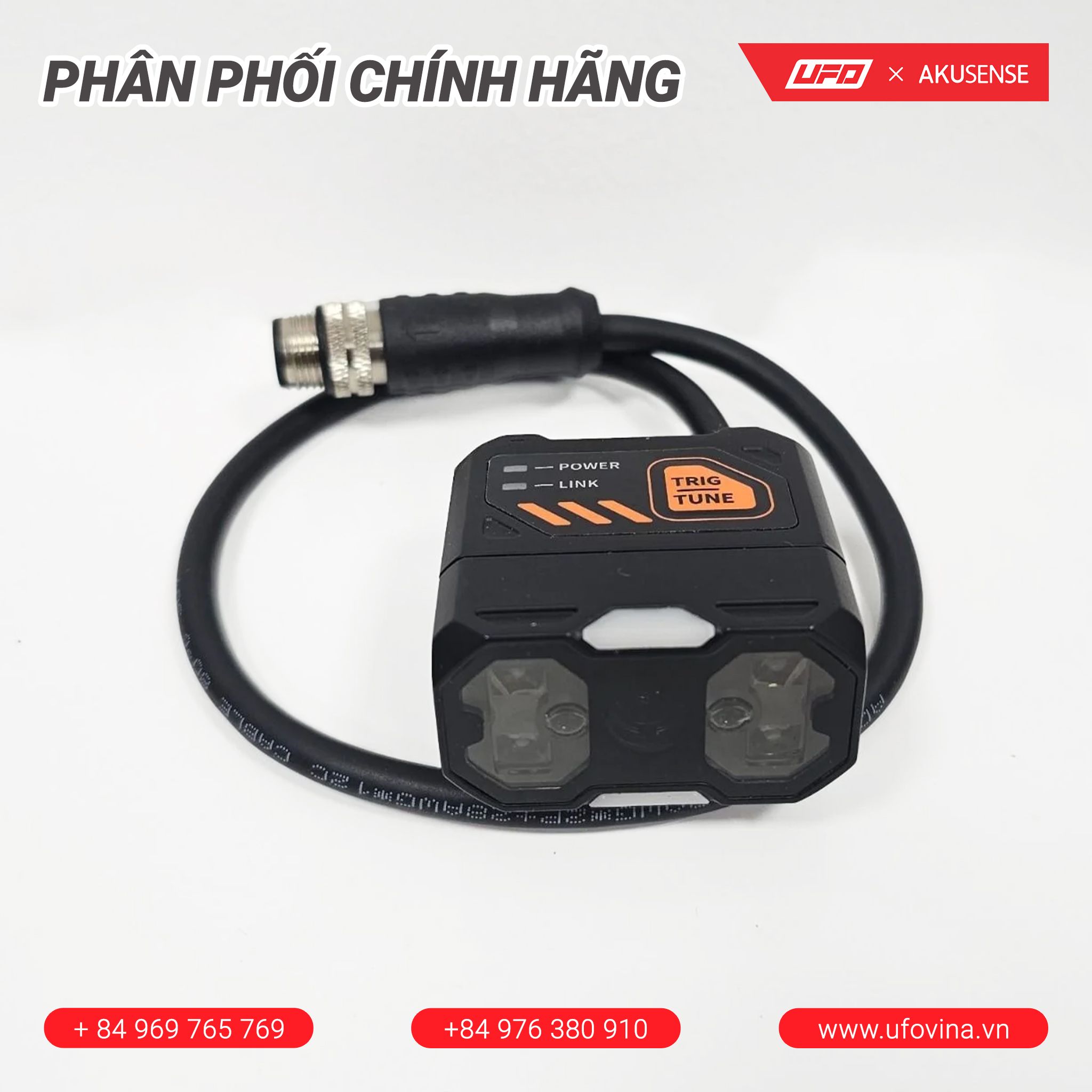

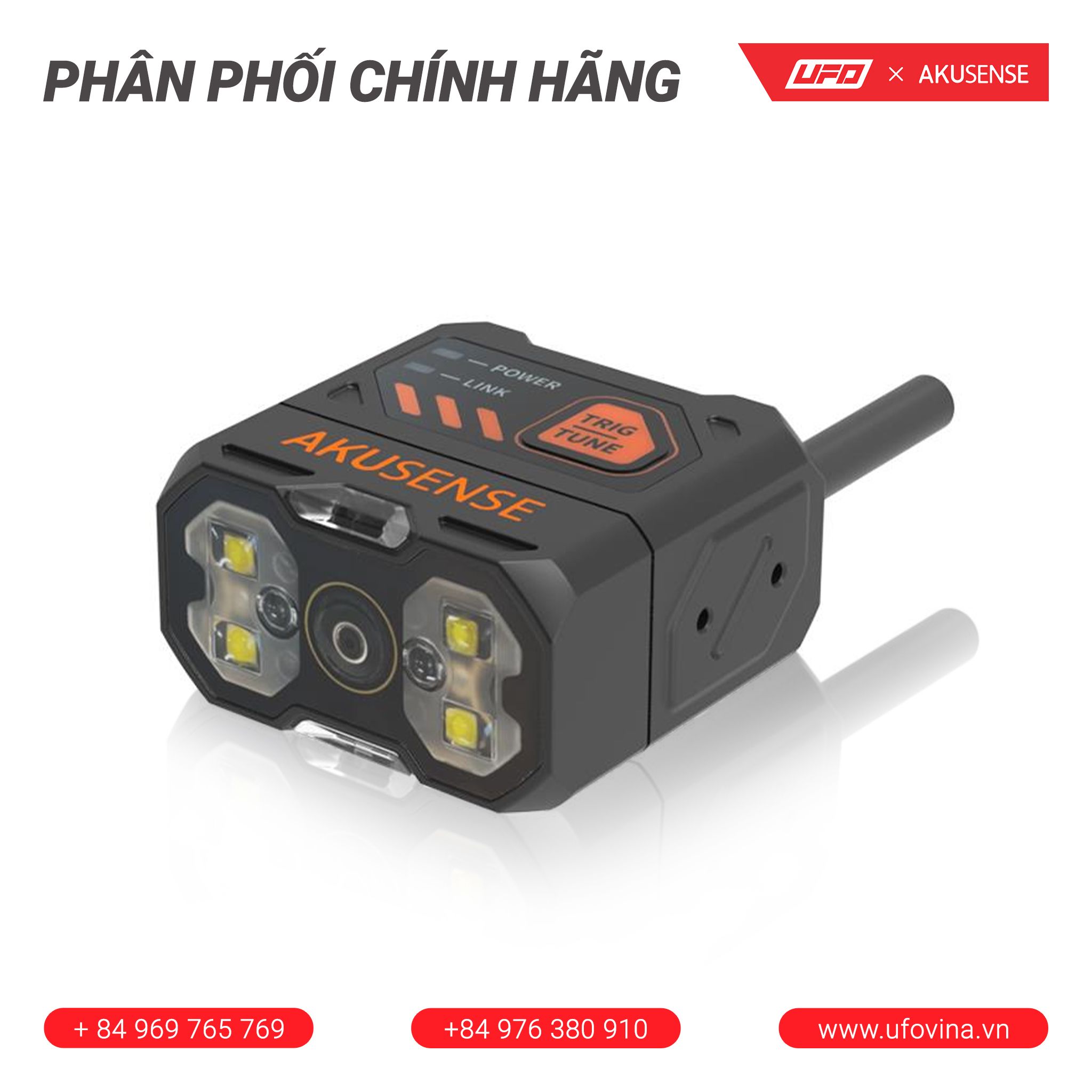

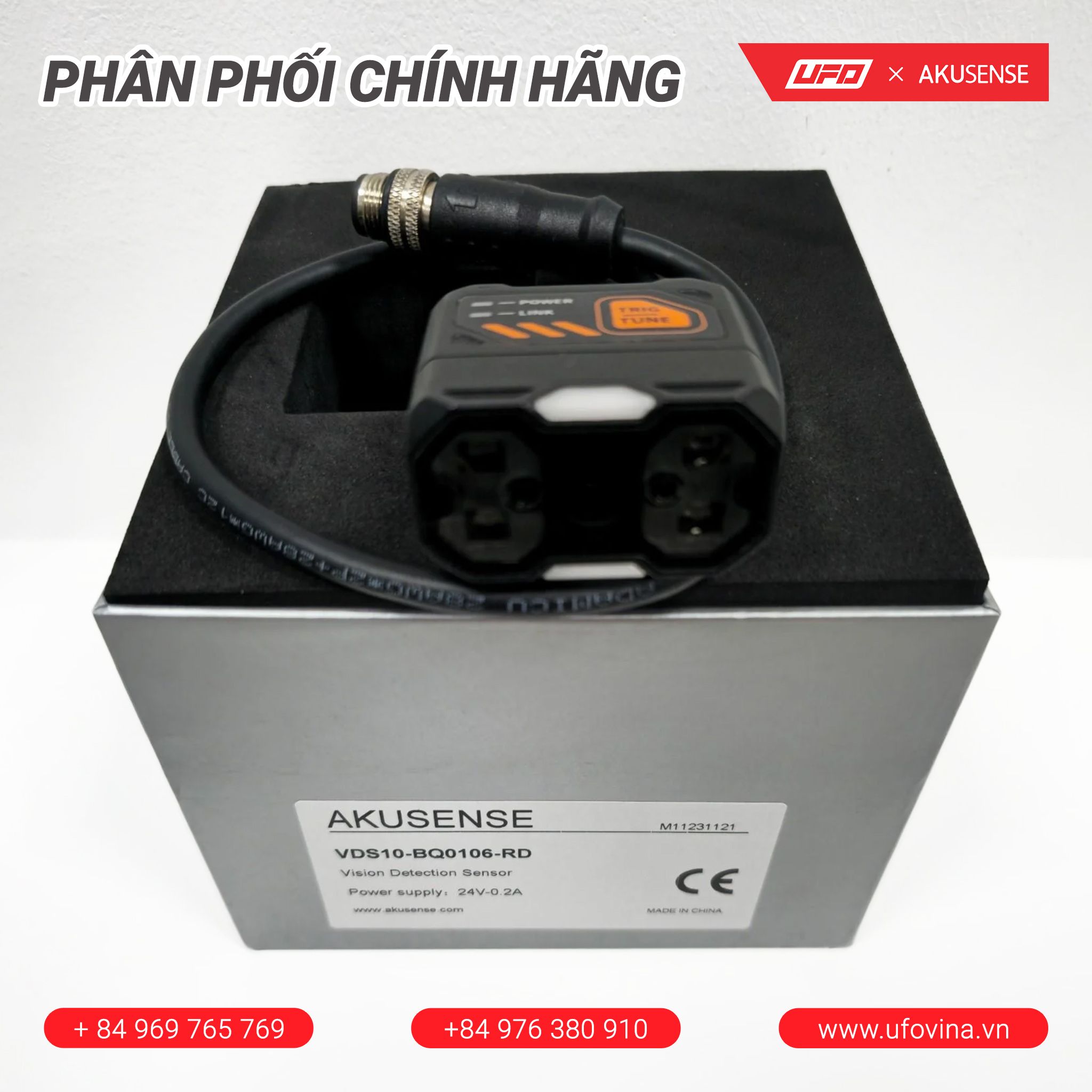

Akusense Visual Sensor VDS10-BQ0106-RD
0₫
Mô tả
- Light Source：Polarized red light
- Protection Degree：IP67
- Focal Length：
| Model | VDS10-BQ0106-RD |
| Shutter | overall situation |
| Pixel Size | 3μmx3μm |
| Target Size | 1/4" |
| Light Source | Polarized red light |
| Input Control | Two optocoupler isolation inputs,supporting NPN and PNP types |
| Output Control | Three non-isolated outputs |
| Communication Interface | RS232,Ethernet |
| Power Input | 24V DC |

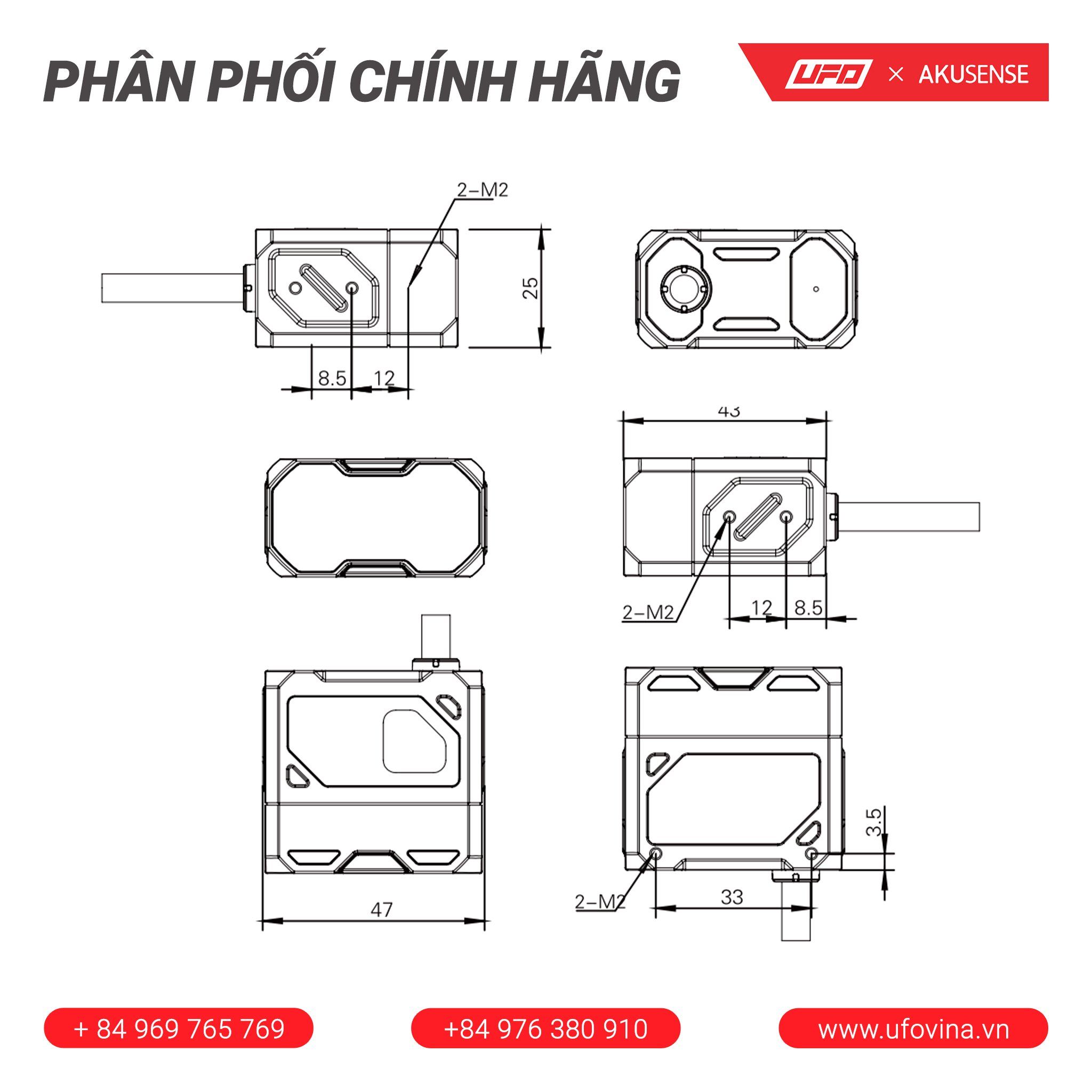

| Overall Dimension | 47*25*43mm |
| Weight | 100G |
| Storage Temperature | -20℃~70℃ |
| Humidity | 5%~95%RH,no condensation |
| Visual Tools | Count: spot count,pattern count,edge count; Yes or no: spots,patterns,colors,edges,circles,straight lines |

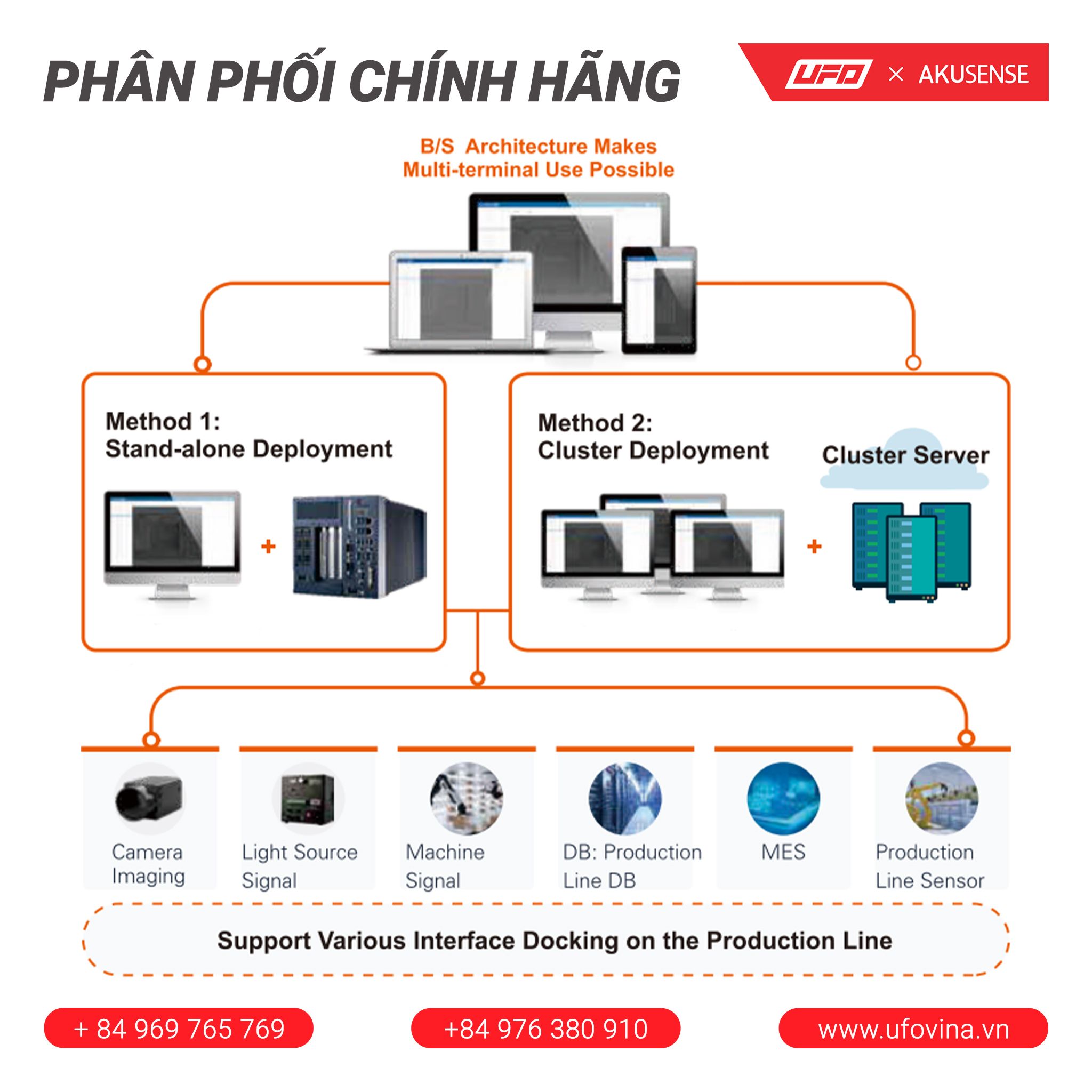

| Equipment Monitoring | 1~12 visual sensors detect real-time images |
| Resolution (HxV) | 1280*800 |
| Maximum Acquisition Frame Rate (fps) | 0.6 |
| Color/black And White | black and white |
| Time Of Exposure | 20μs~10000μs |
| Gain | 0dB~256dB |
| Focus Mode | Liquid focusing |
| Focal Distance | 6mm |
| Working Distance | 30~300mm(@~manual operation),40~300mm(@~liquid state) |
| Position Indication | Two green light points indicate the central area of the scanning position |

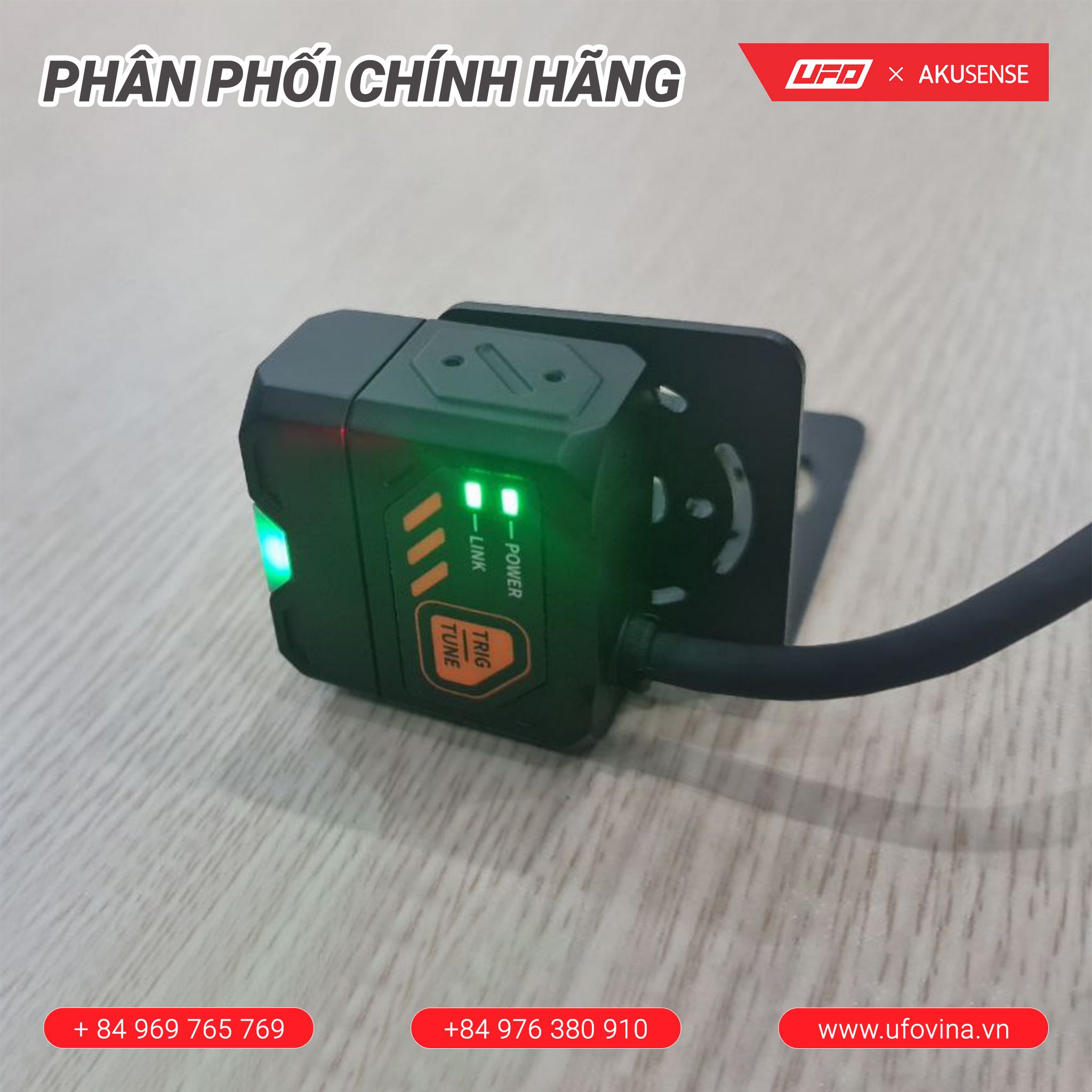

| Status Indication | 3 status LEDs and buzzers |
| Polarizer | Polarization integrated model |
| Communication Protocol | TCP Server,TCP Client,ModBus TCP,MELSEC,SLMP,Serial |
| Data Interface | Fast Ethernet（100Mbit/s) |
| Power Dissipation | 5W |
| Working Temperature | 0~45℃ |
| Protection Degree | IP67 |
