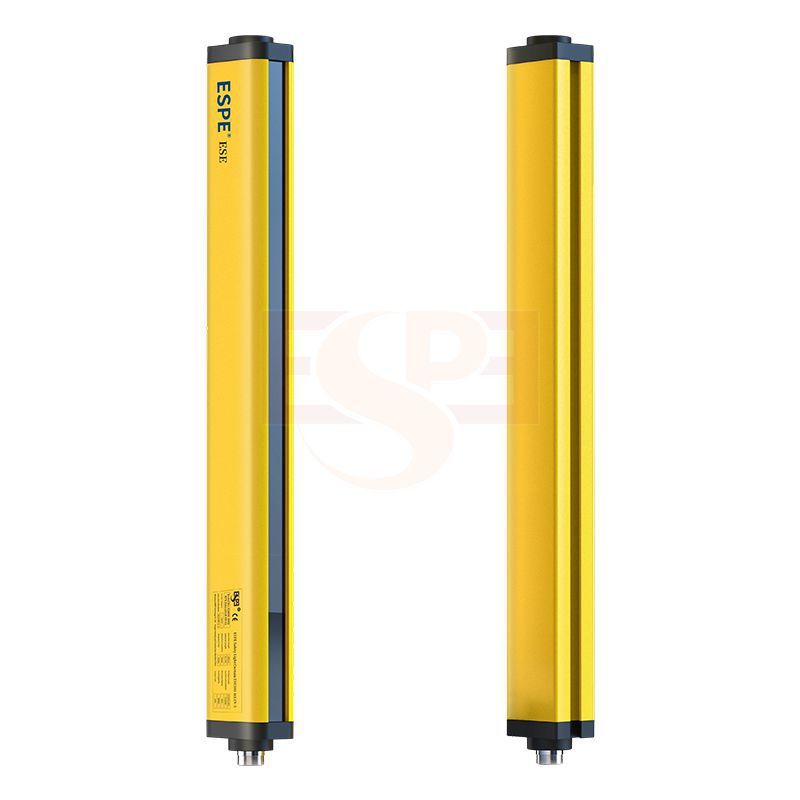

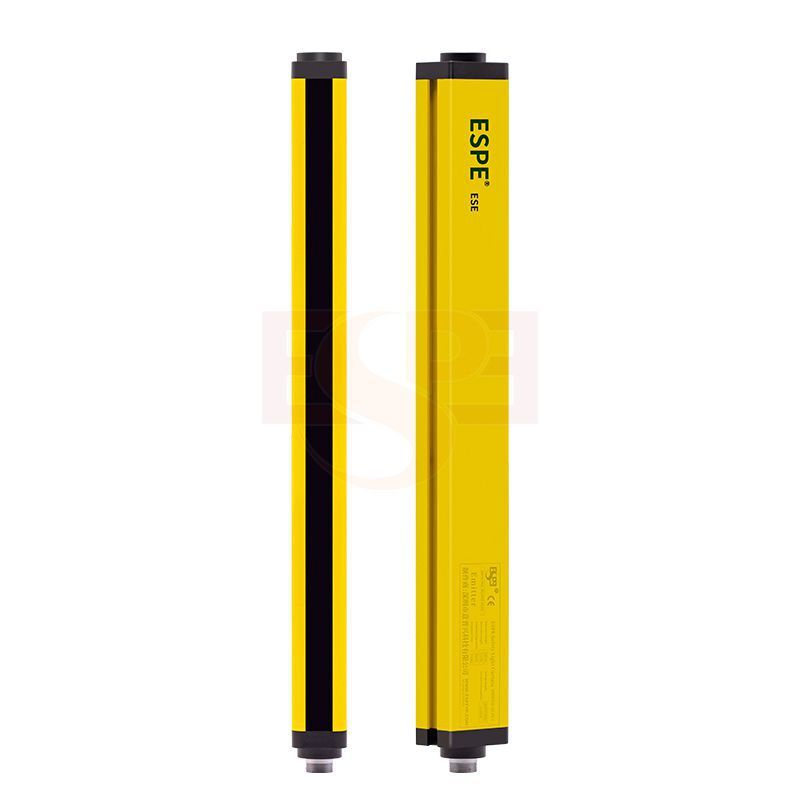

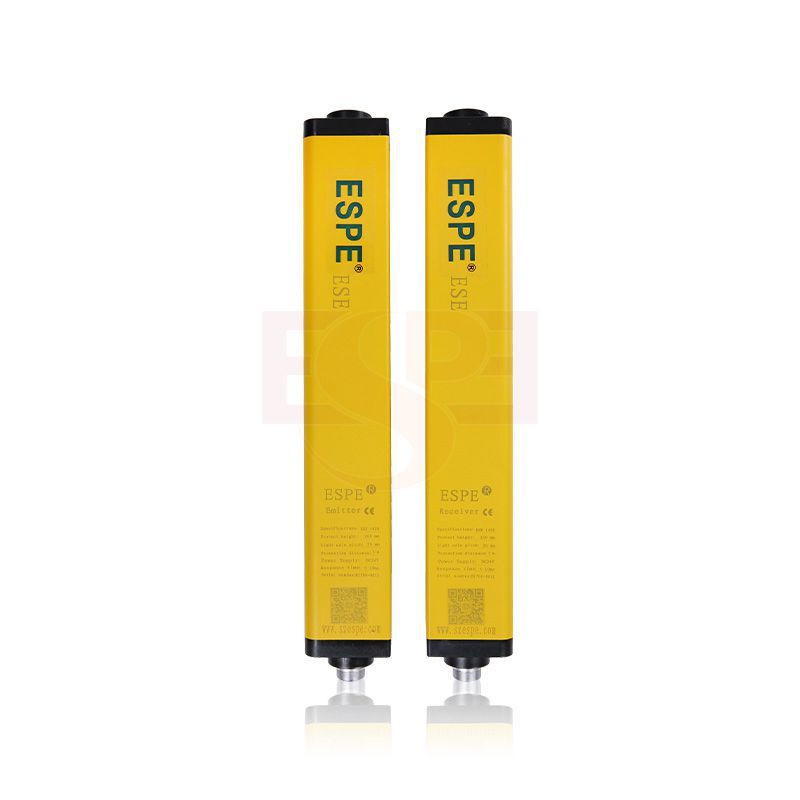

Mô tả sản phẩm
Technical Parameters

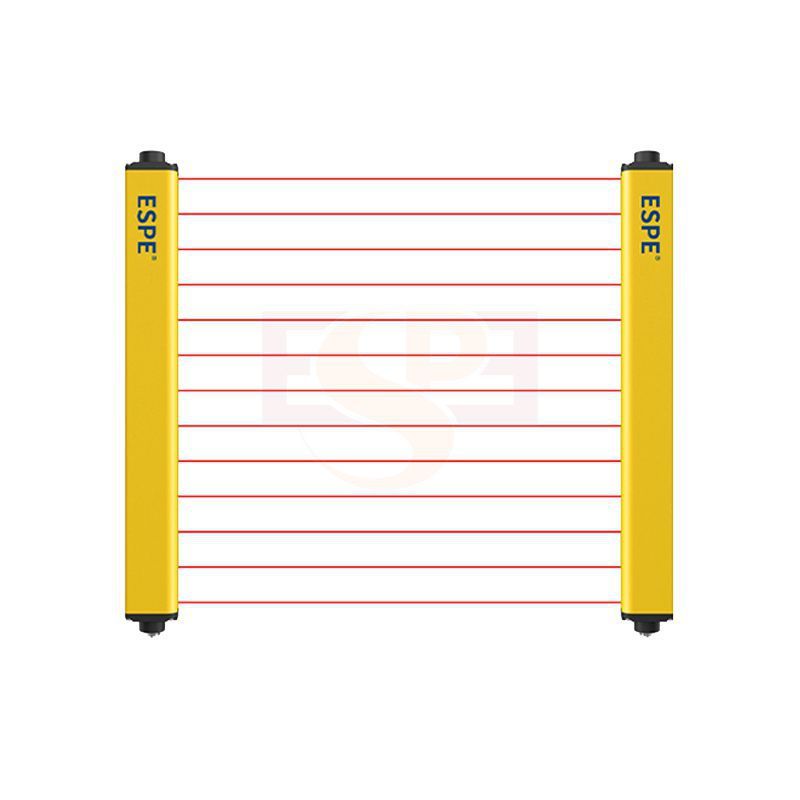

| Parameter of safety light curtain | |
| Reference standard | EN 61496-1 (Type 4 ESPE)EN 61496-2 (Type 4 AOPD)EN ISO 13849-1 (Category 4、PLe) |
| Safety level | Type 4 |
| Supply voltage | DC24V±20% |
| Capacity | <5W |
| Beam space | 10mm, 20mm, 40mm |
| Resolution | 20mm, 30mm, 50mm |
| Beams | 10mm beam space:12, 16, 20……7220mm beam space: 8, 10……7240mm beam space:4, 6, 8……36 |
| Protective height | Protective height =（N-1）*beam gap，N is beam quantity |
| Wave length | 940nm |
| Response time | <10ms |
| Type of output（OSSD） | PNP/NPN semiconductors，current <200mA max, residual voltage: 1 V max. leakage current: 1mA max. (Expect voltage influenced by lengthen wire). |
| Protective circuit | Overload voltage protection, power supply reverse polarity protection, over current protection. |
| Sensing distance | 0.1~5m、0.1~10m (remark: If have light reflection, please let us know) |
| Anti-optical interference | 10000Lux(I >2.5°) |
| Sensing method | Through-beam type |
| Synchronization | Wire synchronization |
| Enclosure material | Aluminum alloy |
| Enclosure rating | IP65 |
| Housing cross-section | 35*53mm |
| Vibration resistance | 10Hz～55Hz，double amplitude each in X、Y、Z directions for 20 times. |
| Ambient operating temperature | -10℃-55℃（with no freezing） |
| Storage temperature | -30℃～70℃（with no freezing） |
| Ambient operating humidity | When temperature is 20℃，humidity max 85% |
Wire Connection
Explanation of Model Number
Product Size
A1:Upper cover A2:Bottom cover + aviatiom plug B1:Upper stop-work range B2:Bottom stop-work range D:Beam space(10mm/20mm/40mm) H: Protection height L: Total height | A1=17mm;A2=28mm When D=10mm,B1=5mm; B2=30mm When D=20mm,B1=10mm;B2=35mm When D=40mm,B1=30mm;B2=35mm L (total height)=A1+A2+B1+B2+H H (protective height)=(beams-1)*beam space |
Option for Brackets
Model Selection Table
Beam space 10mm
| Beams | Protective height（mm） | Total height（mm） | Model | |
| 16 | 150 | 230 | 10ESE150-16 | |
| 20 | 190 | 270 | 10ESE190-20 | |
| 24 | 230 | 310 | 10ESE230-24 | |
| 28 | 270 | 350 | 10ESE270-28 | |
| 32 | 310 | 390 | 10ESE310-32 | |
| 36 | 350 | 430 | 10ESE350-36 | |
| 40 | 390 | 470 | 10ESE390-40 | |
| 44 | 430 | 510 | 10ESE430-44 | |
| 48 | 470 | 550 | 10ESE470-48 | |
| 52 | 510 | 590 | 10ESE510-52 | |
| 56 | 550 | 630 | 10ESE550-56 | |
| 60 | 590 | 670 | 10ESE590-60 | |
| 64 | 630 | 710 | 10ESE630-64 | |
| 68 | 670 | 750 | 10ESE670-68 | |
| 72 | 710 | 790 | 10ESE710-72 | |
| 76 | 750 | 830 | 10ESE750-76 | |
| 80 | 790 | 870 | 10ESE790-80 | |
| 84 | 830 | 910 | 10ESE830-84 | |
| 88 | 870 | 950 | 10ESE870-88 | |
| 92 | 910 | 990 | 10ESE910-92 | |
| 96 | 950 | 1030 | 10ESE950-96 | |
| 100 | 990 | 1070 | 10ESE990-100 | |
| 104 | 1030 | 1110 | 10ESE1030-104 | |
| 108 | 1070 | 1150 | 10ESE1070-108 | |
| 112 | 1110 | 1190 | 10ESE1110-112 | |
| 116 | 1150 | 1230 | 10ESE1150-116 | |
| 120 | 1190 | 1270 | 10ESE1190-120 | |
| 124 | 1230 | 1310 | 10ESE1230-124 | |
| 128 | 1270 | 1350 | 10ESE1270-128 | |
| 132 | 1310 | 1390 | 10ESE1310-132 | |
| 136 | 1350 | 1430 | 10ESE1350-136 | |
| …… | …… | …… | …… | |
| 160 | 1590 | 1670 | 10ESE1590-160 |
| Beams | Protective height（mm） | Total height（mm） | Model | |
| 8 | 140 | 230 | 20ESE140-08 | |
| 10 | 180 | 270 | 20ESE180-10 | |
| 12 | 220 | 310 | 20ESE220-12 | |
| 14 | 260 | 350 | 20ESE260-14 | |
| 16 | 300 | 390 | 20ESE300-16 | |
| 18 | 340 | 430 | 20ESE340-18 | |
| 20 | 380 | 470 | 20ESE380-20 | |
| 22 | 420 | 510 | 20ESE420-22 | |
| 24 | 460 | 550 | 20ESE460-24 | |
| 26 | 500 | 590 | 20ESE500-26 | |
| 28 | 540 | 630 | 20ESE540-28 | |
| 30 | 580 | 670 | 20ESE580-30 | |
| 32 | 620 | 710 | 20ESE620-32 | |
| 34 | 660 | 750 | 20ESE660-34 | |
| 36 | 700 | 790 | 20ESE700-36 | |
| 38 | 740 | 830 | 20ESE740-38 | |
| 40 | 780 | 870 | 20ESE780-40 | |
| 42 | 820 | 910 | 20ESE820-42 | |
| 44 | 860 | 950 | 20ESE860-44 | |
| 46 | 900 | 990 | 20ESE900-46 | |
| 48 | 940 | 1030 | 20ESE940-48 | |
| 50 | 980 | 1070 | 20ESE980-50 | |
| 52 | 1020 | 1110 | 20ESE1020-52 | |
| 54 | 1060 | 1150 | 20ESE1060-54 | |
| 56 | 1100 | 1190 | 20ESE1100-56 | |
| 58 | 1140 | 1230 | 20ESE1140-58 | |
| 60 | 1180 | 1270 | 20ESE1180-60 | |
| 62 | 1220 | 1310 | 20ESE1220-62 | |
| 64 | 1260 | 1350 | 20ESE1260-64 | |
| 66 | 1300 | 1390 | 20ESE1300-66 | |
| 68 | 1340 | 1430 | 20ESE1340-68 | |
| 70 | 1380 | 1470 | 20ESE1380-70 | |
| 72 | 1420 | 1510 | 20ESE1380-72 |
Beam space 40mm
| Beams | Protective height（mm） | Total height（mm） | Model | |
| 4 | 120 | 230 | 40ESE120-04 | |
| 6 | 200 | 310 | 40ESE200-06 | |
| 8 | 280 | 390 | 40ESE280-08 | |
| 10 | 360 | 470 | 40ESE360-10 | |
| 12 | 440 | 550 | 40ESE440-12 | |
| 14 | 520 | 630 | 40ESE520-14 | |
| 16 | 600 | 710 | 40ESE600-16 | |
| 18 | 680 | 790 | 40ESE680-18 | |
| 20 | 760 | 870 | 40ESE760-20 | |
| 22 | 840 | 950 | 40ESE840-22 | |
| 24 | 920 | 1030 | 40ESE920-24 | |
| 26 | 1000 | 1110 | 40ESE1000-26 | |
| 28 | 1080 | 1190 | 40ESE1080-28 | |
| 30 | 1160 | 1270 | 40ESE1160-30 | |
| 32 | 1240 | 1350 | 40ESE1240-32 | |
| 34 | 1320 | 1430 | 40ESE1320-34 | |
| 36 | 1400 | 1510 | 40ESE1400-36 |
Công ty TNHH THƯƠNG MẠI & DỊCH VỤ KỸ THUẬT UFO VIỆT NAM là Đại lý chính thức phân phối chính hãng sản phẩm ESPE tại thị trường Việt Nam.
Vui lòng liên hệ chúng tôi để được tư vấn chi tiết hơn về sản phẩm
