Transparent Body Detection Type Sensor EST-X200N

Giá gốc Giá bán: 0₫
Model: EST-X200N

- Detection Method:Retro-Reflection-Coaxial beam

- Detection Distance:0~2m

- Output Mode:NPN open collector

- Response Time :0.5ms

- Light Source:Red Light LED 660nm

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

ModelEST-X200N
Detection MethodRetro-Reflection-Coaxial beam
Detection Distance0~2m
Spot SizeΦ60mm/200cm
Output ModeNPN open collector
Switch ModeL.on(light entry action)/D.on(shading action) can be switched
IndicatorOutput LED: Orange
Response Time0.5ms
Light SourceRed Light LED 660nm
Working Voltage10~30V DC±10%
Current Consumption≤20mA
Load Current≤100mA
Ambient IlluminanceSunlight≤10,000 Lux,incandescent lamp ≤3,000 Lux
Ambient Temperature-25℃~+55℃,no freezing
Ambient Humidity35%~85%RH,no condensation
Protection DegreeIP67
Connection Method2M/3 Core Cable
MaterialHousing: with fiberglass ABS,Lens: PMMA
AccessaryReflector,bracket,Screw
Size structure:

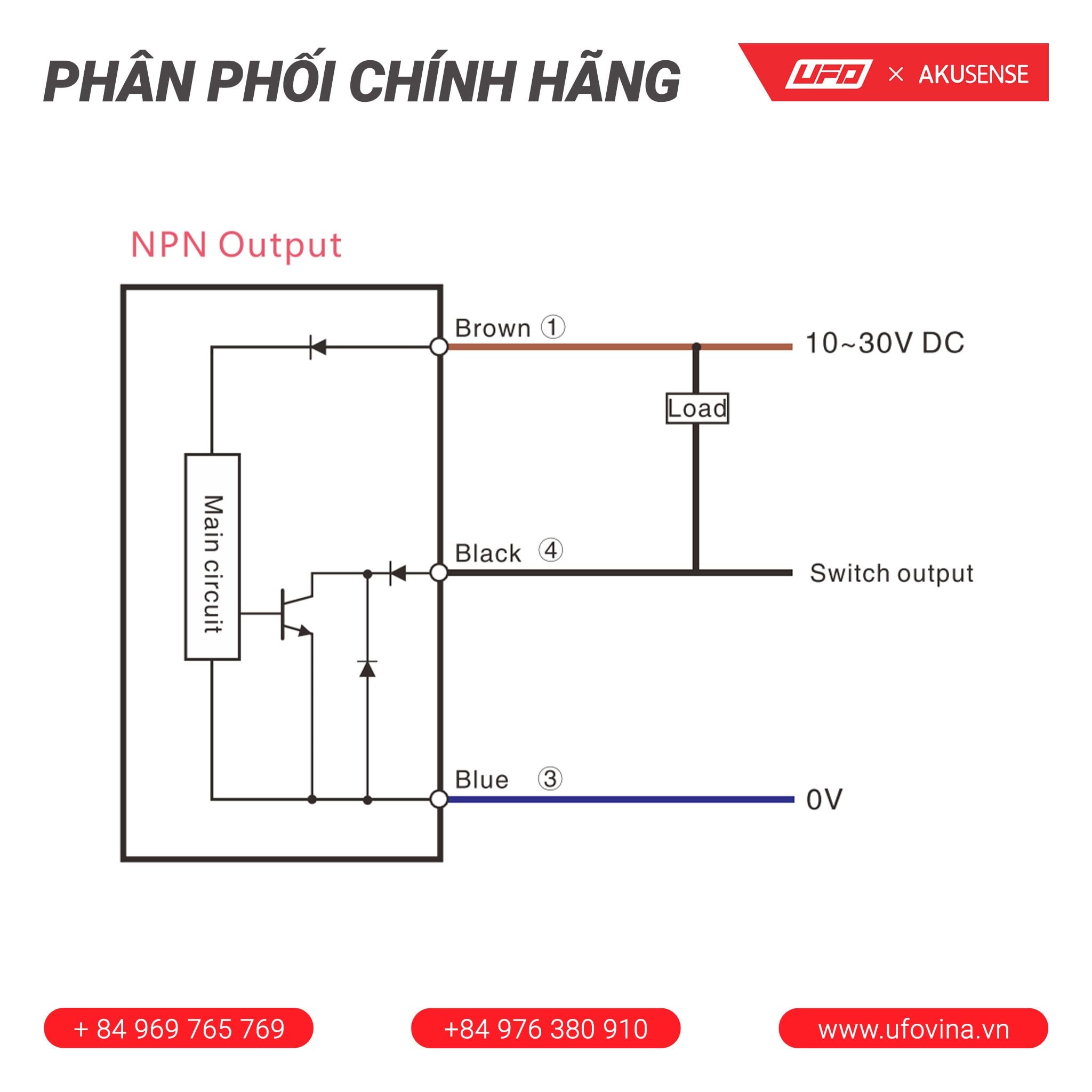

Circuit diagram:


EST Series Catalog:
