Mô tả sản phẩm

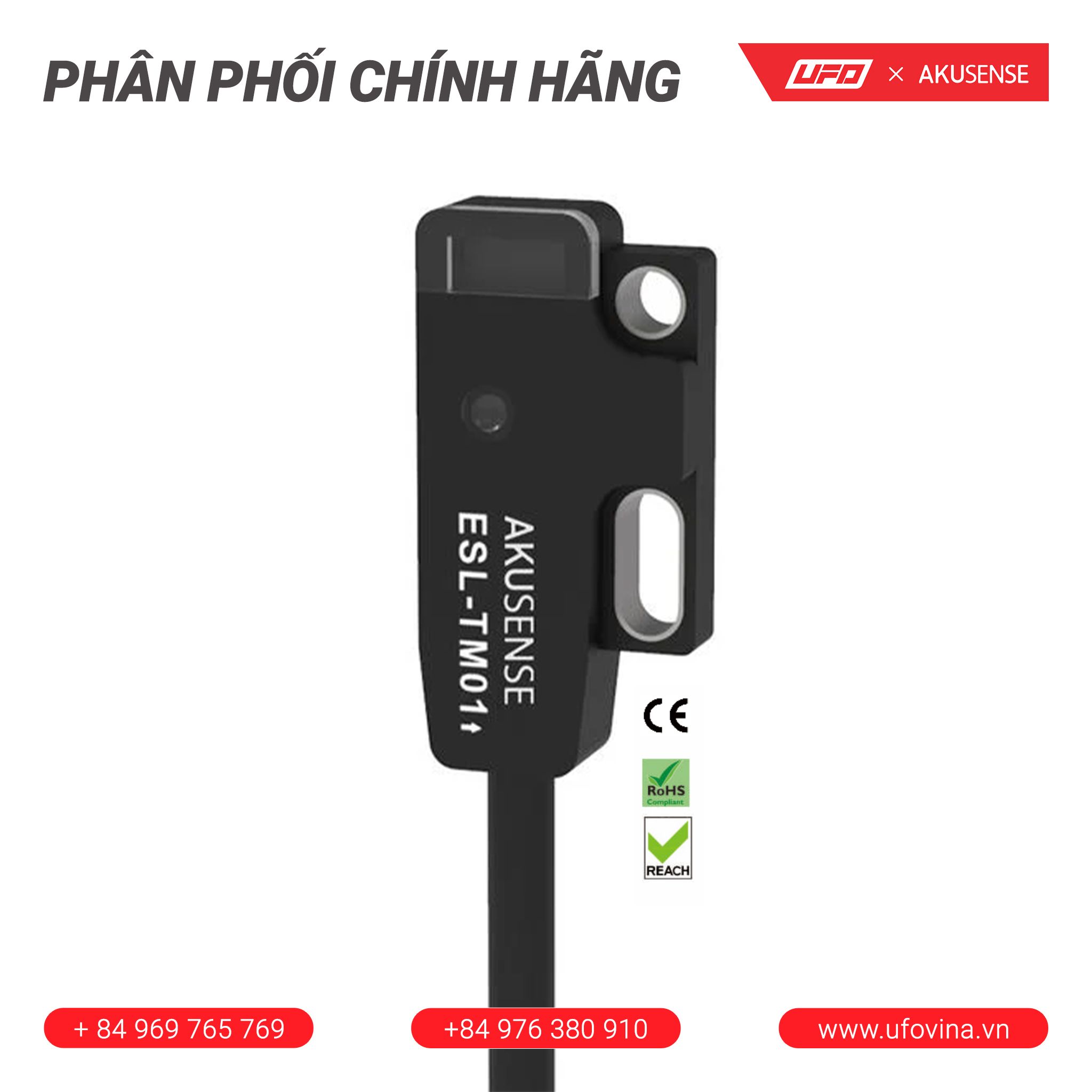

Model | ESL-TM01NO |
Detection Method | Thru-beam |
Detection Distance | 1m not adjustable |
Detacted Object | Φ2mmOpaque Objects |
Output Mode | NPN |
Switch Mode | D.on(shading action) |
Indicator | Output indicator: orange; Power LED: Green |
Response Time | ≤1.2ms |
Light Source | Red Light LED |
Working Voltage | 10~30V DC±10% |
Current Consumption | ≤20mA |
Load Current | <50mA |
Residual Voltage | <2V(load current<50mA) |
Ambient Illuminance | Sunlight≤10,000 Lux,incandescent lamp ≤3,000 Lux |
Ambient Temperature | When working:-25℃~+55℃,no freezing,no condensation; When storing:-10~+55℃ |
Ambient Humidity | When working:35%~85%RH,When storing:35%~95%RH |
Group Pulse | ±2000V(5kHZ/50kHZ/100kHZ) |
Static Electricity | ±8000V |
Insulation Withstand Voltage | ±500V 50/60Hz 60s |
Vibration Resistance | 10~50Hz,0.5mm amplitude,2 hours each in the three directions of X,Y and Z |
Circuit Protection | Power supply reverse polarity protection,surge protection,short circuit protection |
Protection Degree | IP67 |
Connection Method | Φ2.5*2M/3Cable |
Material | PC |
Accessary | Screw |
Circuit diagram:
ESL Series Catalog:
