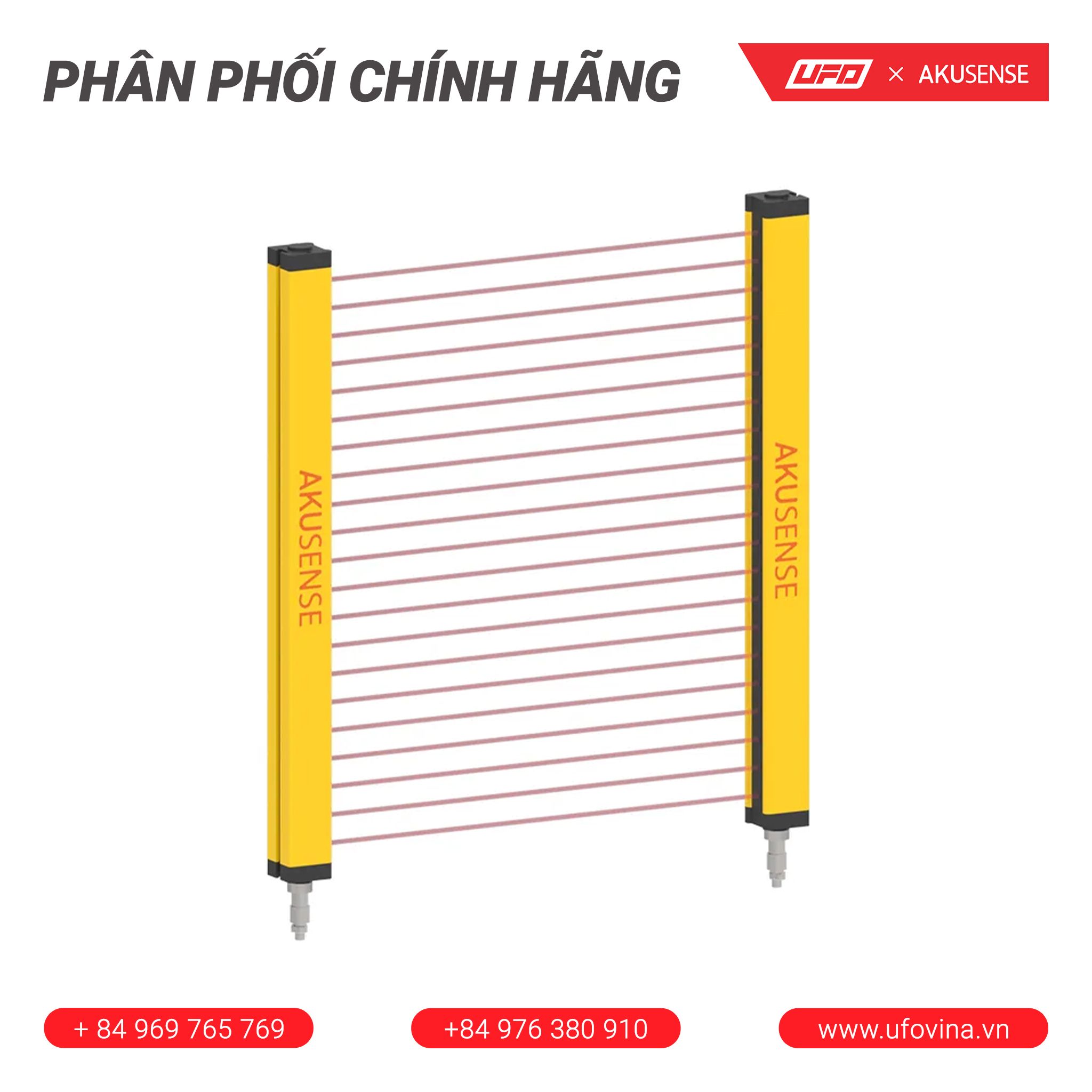

Standard Sensor BML20-T1203NC

Giá gốc Giá bán: 0₫
  • Beam Pitch:20mm
  • Protection Height:220mm
  • Light Curtain Height:275mm
  • Number Of Optical Axes:12 axes
  • Protection Distance:0.3~3m

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

ModelBML20-T1203NC
Cross-Sectional Area30*30mm
Number Of Optical Axes12 axes
Protection Height220mm
Light Curtain Height275mm
Protection Distance0.3~3m
Beam Pitch20mm
Minimum Detected ObjectΦ25
Operating Voltage24V DC±10%
Current Consumption<200mA
Power Consumption4~6W
Output ModeNPN
Synchronization TypeLine Synchronization
Response Time≤15ms
Light SourceInfrared LED (modulated)
Circuit ProtectionReverse polarity protection,overload protection,output short circuit protection
Ambient Temperature-10℃~+55℃(be careful not to condense or freeze)
Ambient Humidty35~85%RH
Anti-Interference Ability10000 Lux
Insulation ResistanceAbove 50MΩ,based on the high-resistance meter of DC500V
Vibration Resistant10~150Hz,double amplitude; 1.5mm,X,Y,Z in all directions for 2 hours
Impact ResistantAcceleration: 500m/S²(50G),X、Y、Z 3 times in all directions
Protection DegreeIP65
MaterialShell: aluminum alloy; Light shield: polyester; End cap: reinforced nylon
Wiring MethodLeadless M12 Connector
AccessaryLead 3m female cable (can be customized according to customer requirements)

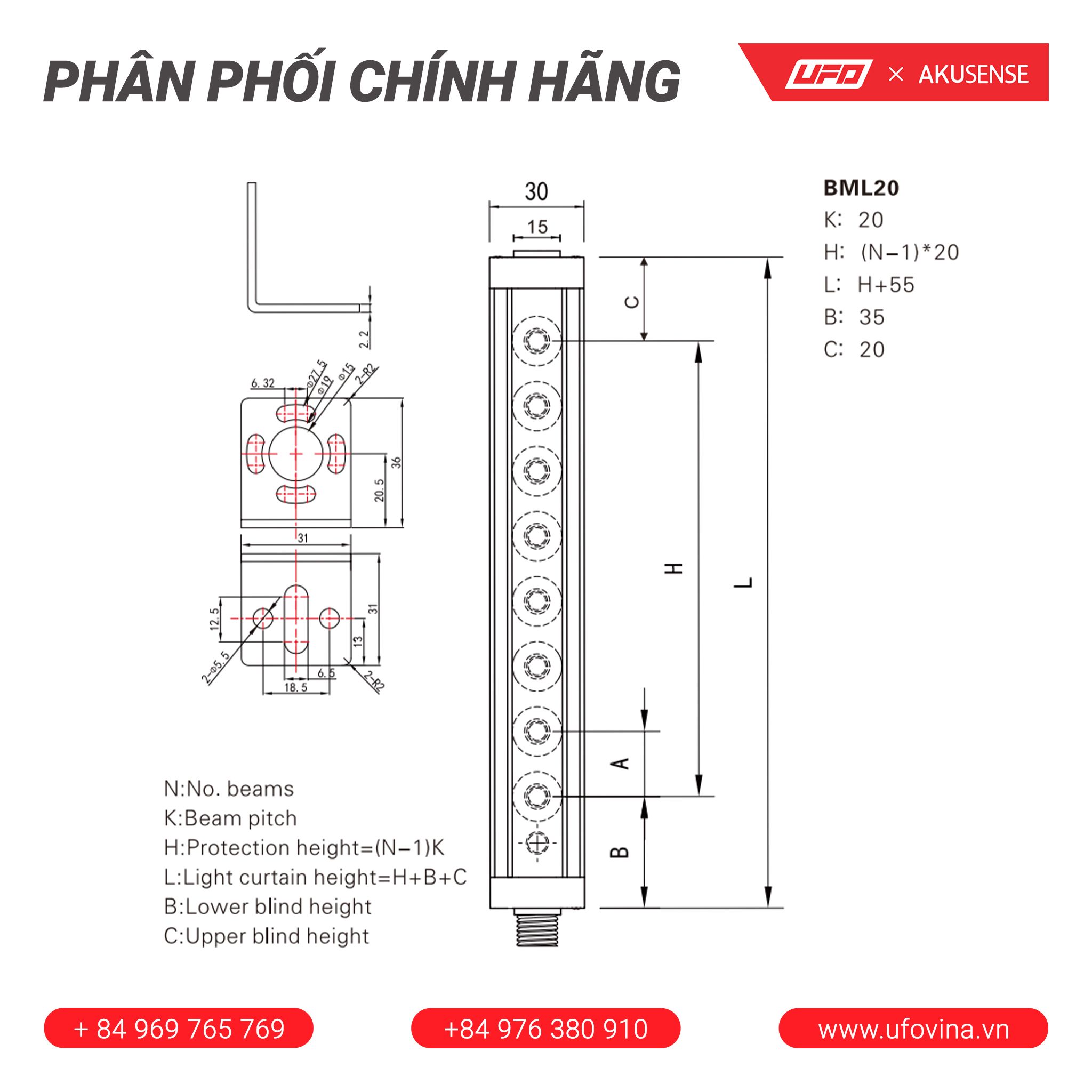

Size structureStandard Type (BML Series)

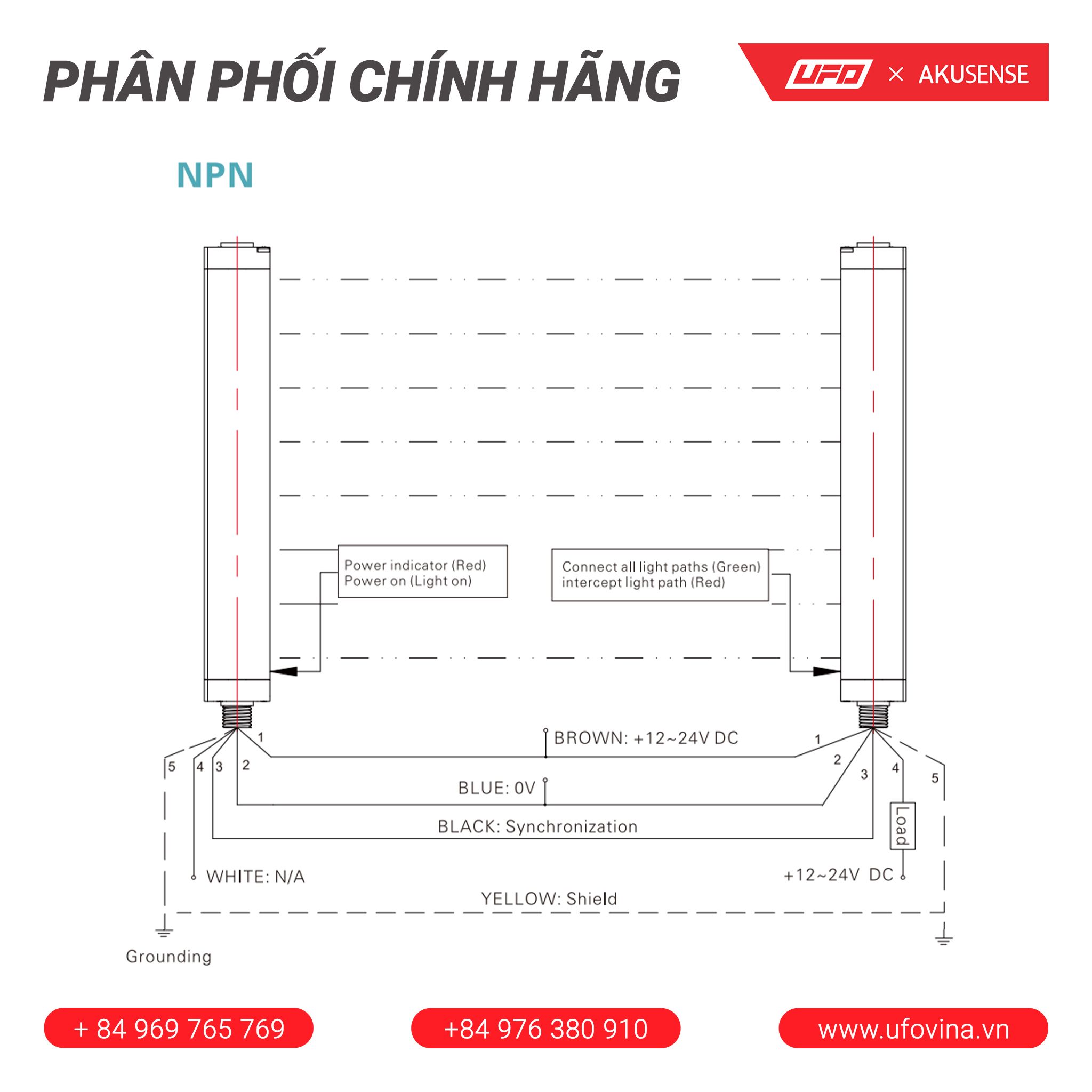

Circuit diagram
Standard Type (BML Series)
