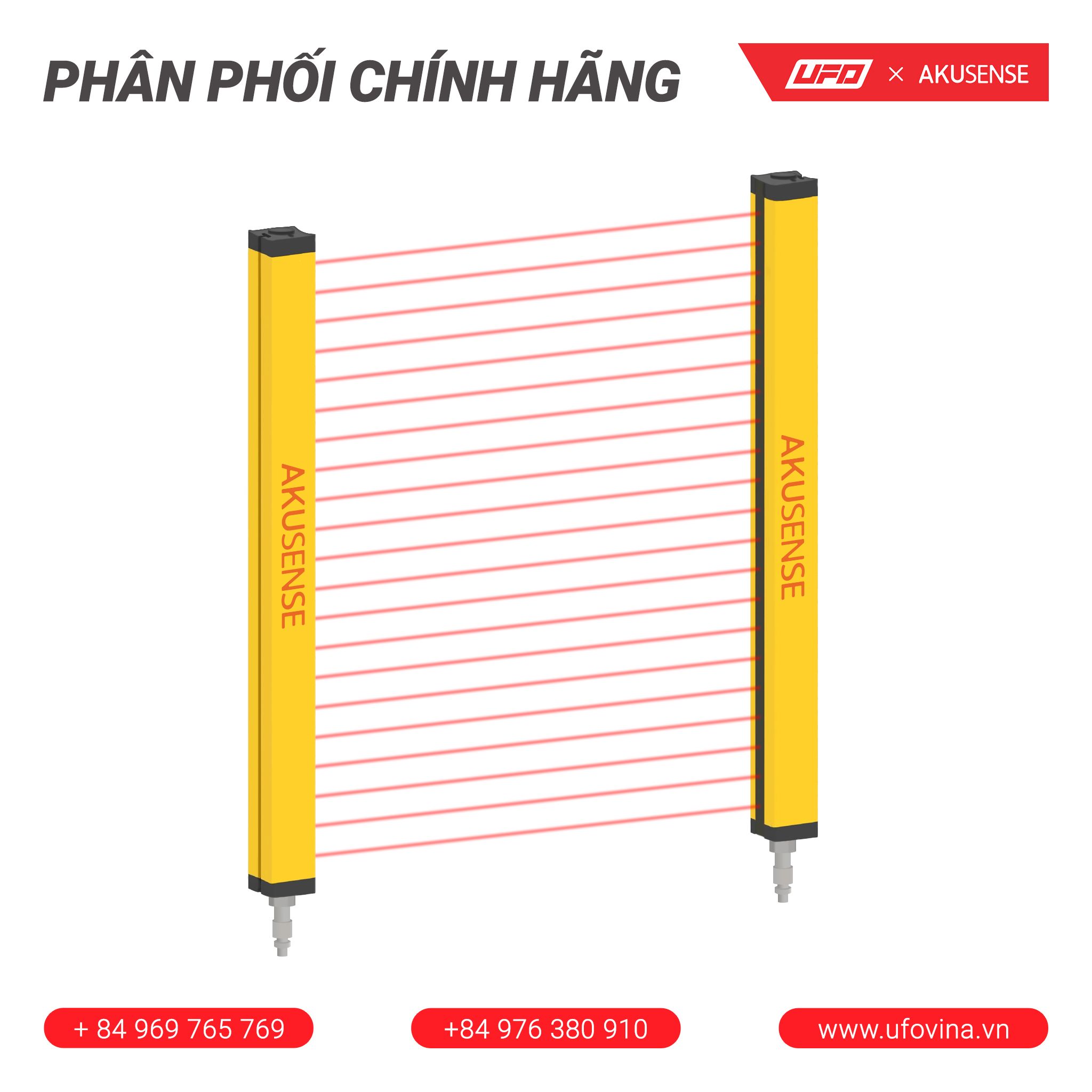

Akusense Standard Sensor BML20-T1203NC
0₫
Mô tả
- Beam Pitch：20mm
- Protection Height：220mm
- Light Curtain Height：275mm
- Number Of Optical Axes：12 axes
- Protection Distance：0.3~3m
####
| Model | BML20-T1203NC |
| Cross-Sectional Area | 30*30mm |
| Number Of Optical Axes | 12 axes |
| Protection Height | 220mm |
| Light Curtain Height | 275mm |
| Protection Distance | 0.3~3m |
| Beam Pitch | 20mm |
| Minimum Detected Object | Φ25 |
| Operating Voltage | 24V DC±10% |
| Current Consumption | ＜200mA |
| Power Consumption | 4~6W |
| Output Mode | NPN |
| Synchronization Type | Line Synchronization |
| Response Time | ≤15ms |
| Light Source | Infrared LED (modulated) |
| Circuit Protection | Reverse polarity protection,overload protection,output short circuit protection |
| Ambient Temperature | -10℃~+55℃(be careful not to condense or freeze) |
| Ambient Humidty | 35~85%RH |
| Anti-Interference Ability | 10000 Lux |
| Insulation Resistance | Above 50MΩ,based on the high-resistance meter of DC500V |
| Vibration Resistant | 10~150Hz,double amplitude; 1.5mm,X,Y,Z in all directions for 2 hours |
| Impact Resistant | Acceleration: 500m/S²(50G),X、Y、Z 3 times in all directions |
| Protection Degree | IP65 |
| Material | Shell: aluminum alloy; Light shield: polyester; End cap: reinforced nylon |
| Wiring Method | Leadless M12 Connector |
| Accessary | Lead 3m female cable (can be customized according to customer requirements) |

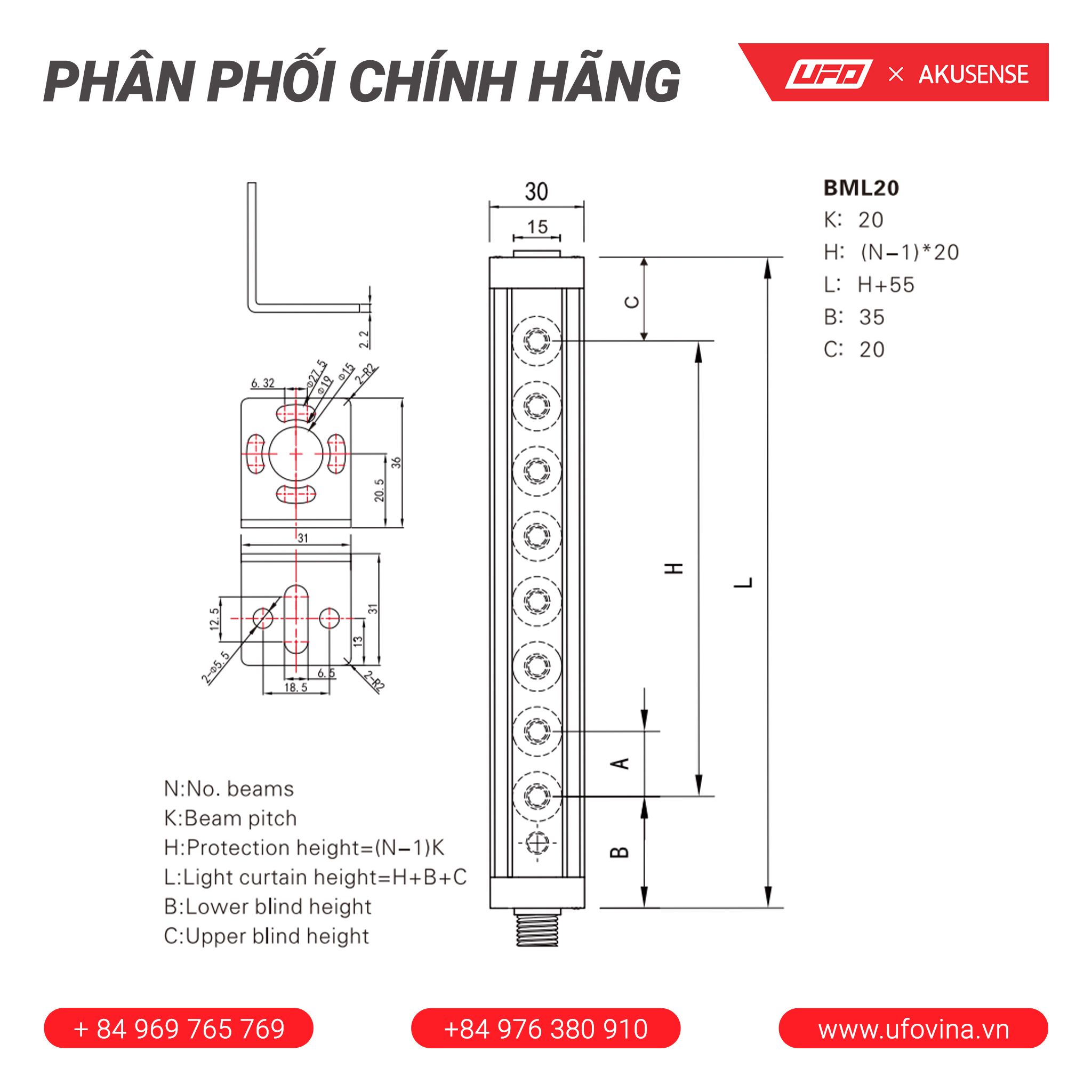

Size structure:

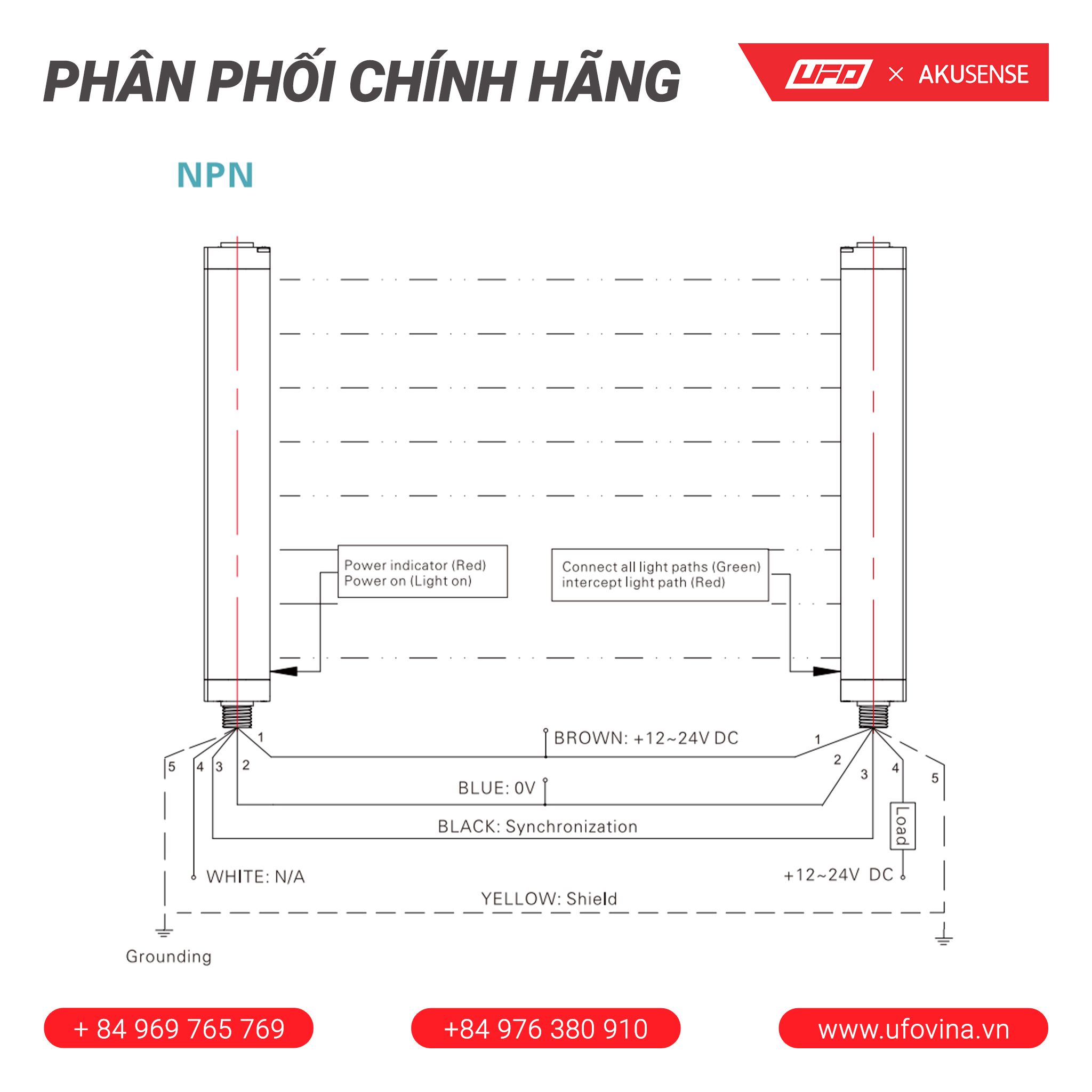

Circuit diagram:

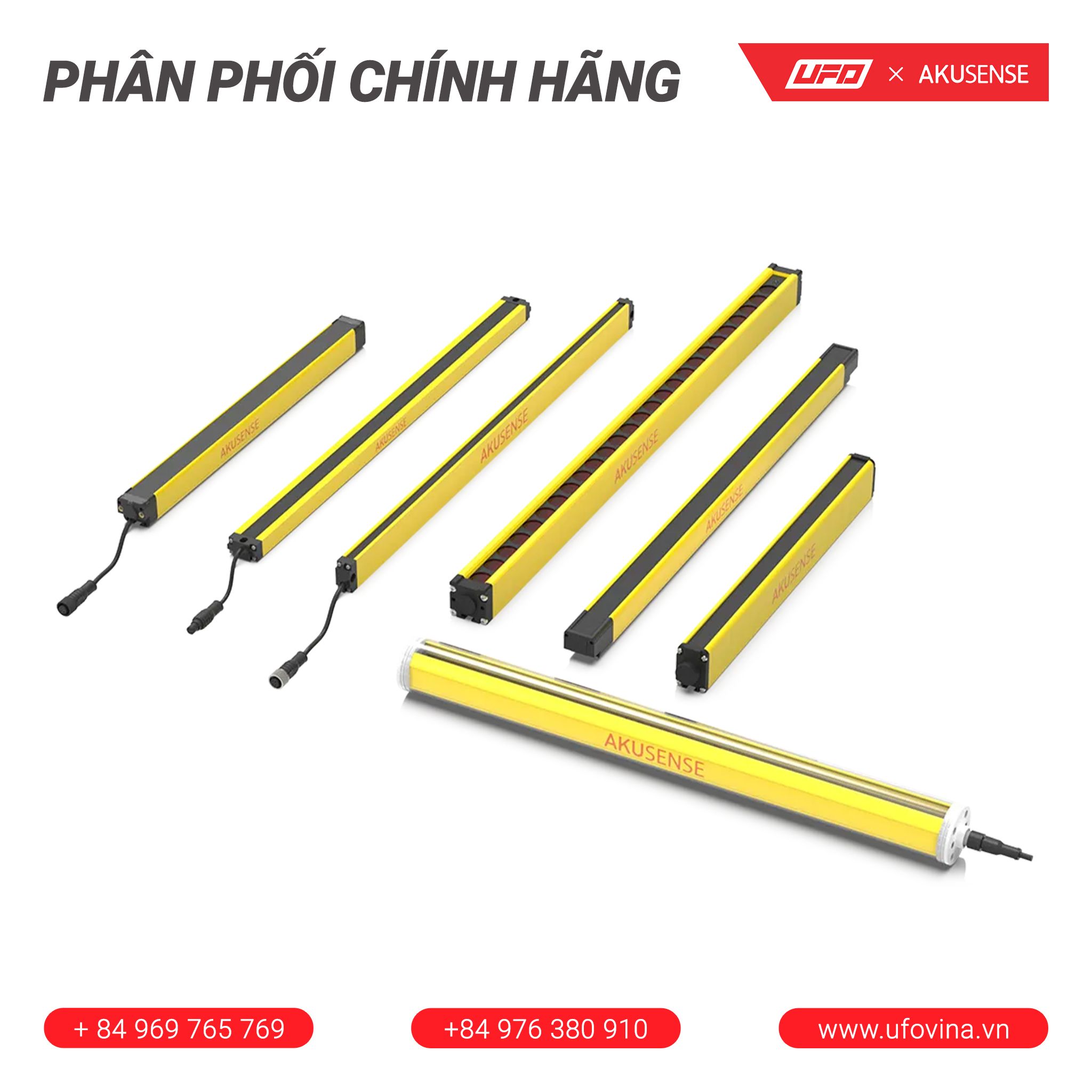

BML Series Catalog:
