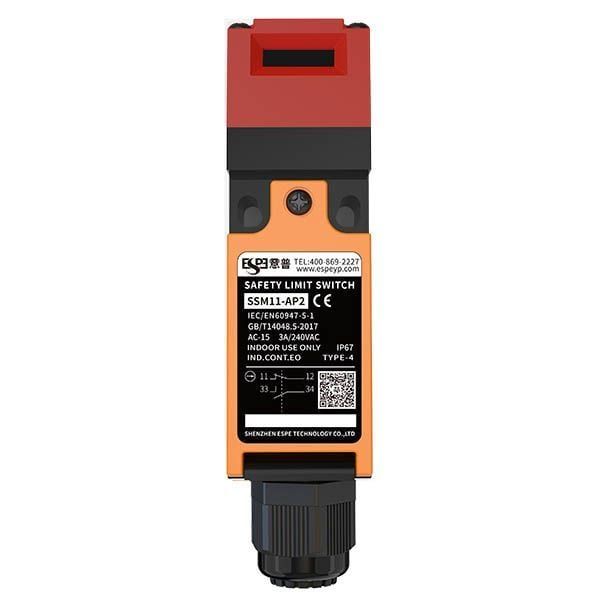

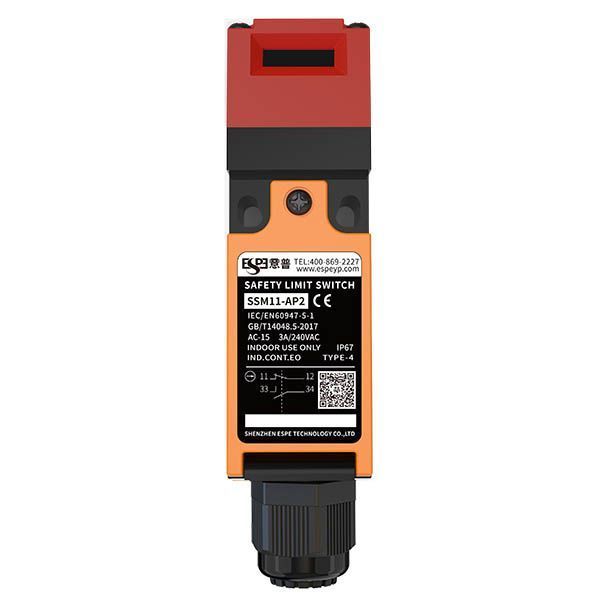

SSM11 Safety Door Switch (economic)

Giá gốc Giá bán: 0₫

Brand:ESPE

Model:SSM11

Characteristic:

  1. IP 67 protection degree;

  2. Multiple models for selection;

  3. Easy for installment and operation;

  4. Widely use in varies industrial environment.

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

Technical Parameter



Safety level
CertificateCE
StandardEN60947-5-1, GB14048.5, IEC61508, EN ISO14119
Protection rateIP67
MaterialPA66 fire retardant
Mechanical lifespan>1 million times
Electrical lifespanover 150,000 times
TypeAC-15DC-13
Rated operating voltage(Ue)240V24V
Rated operating current(Ie)3A2A
Electrical parameter
Contact resistance<25mΩ
Rated insulation voltage (Ui)300V
Anti-electric shock levelClass II (double insulation)
Pulse withstand voltage (EN60947-5-1)2.5kv
Insulation resistance>100mΩ
Short-circuit protection10A, 250V requires a quick-break fuse
Vibration resistance10-55HZ, double amplitude 1.5mm
Compact resistanceDurability 1000/S², mal-operation 300m/S²
Conditional short-circuit current100A (EN60947-5-1)
Space of contactAbove 2 x 2mm
Action characteristic
Direct opening forceStandard model: minimum 60N
Strong force model: minumum 80N
Direct opening travelover 10mm
Allowed operating speed0.1m-0.5m/s
Allowed operating frequencyMaximum 20 times/minute
Environment
Operating environment3 (EN60947-5-1)
Operating temperature-10 to 70°C ( no freezing)
Operating humidity<85% RH

Model Selection Table

Plastic Head

Contact typeContactorModel

1NC/1NO

PG13.5SSM11-AP1
M20SSM11-AP2
2NCPG13.5SSM11-BP1
M20SSM11-BP2
2NC/1NOPG13.5SSM11-CP1
M20SSM11-CP2
3NCPG13.5SSM11-DP1
M20SSM11-DP2

Metal Head

Contact typeContactorModel
1NC/1NOPG13.5SSM11-AM1
M20SSM11-AM2
2NCPG13.5SSM11-BM1
M20SSM11-BM2
2NC/1NOPG13.5SSM11-CM1
M20SSM11-CM2
3NCPG13.5SSM11-DM1
M20SSM11-DM2

Công ty  TNHH THƯƠNG MẠI & DỊCH VỤ KỸ THUẬT UFO VIỆT NAM là Đại lý chính thức phân phối chính hãng sản phẩm ESPE tại thị trường Việt Nam.

Vui lòng liên hệ chúng tôi để được tư vấn chi tiết hơn về sản phẩm
