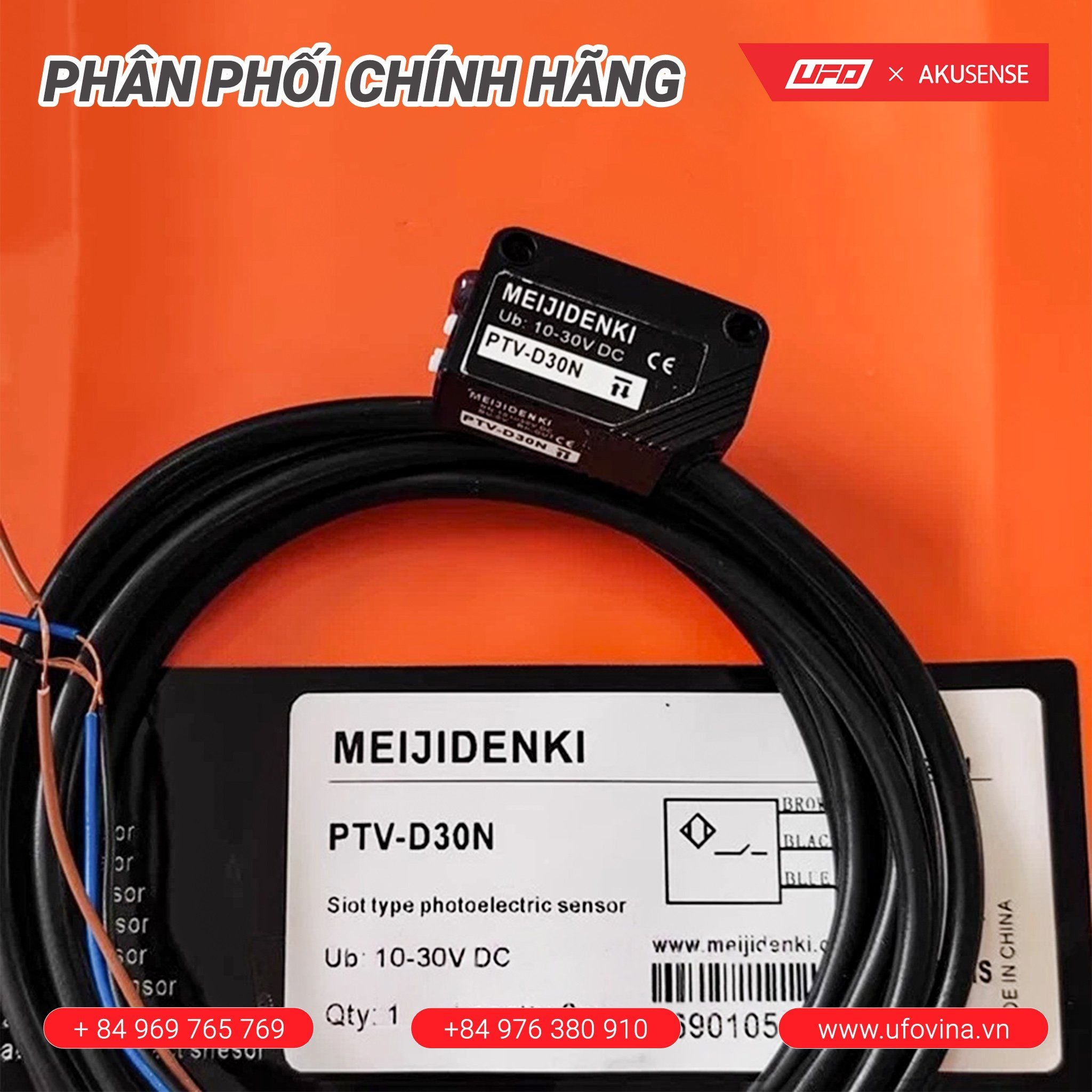

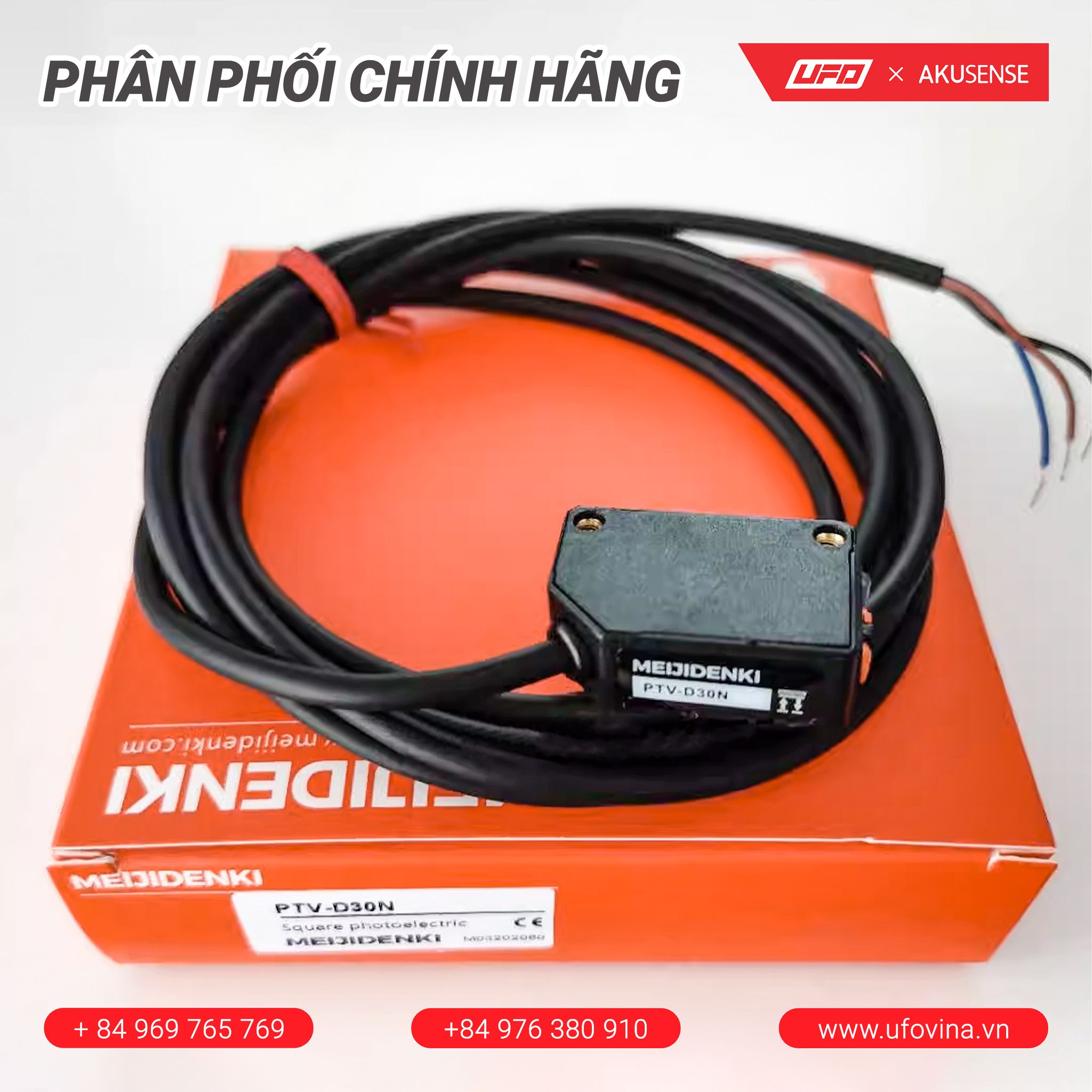

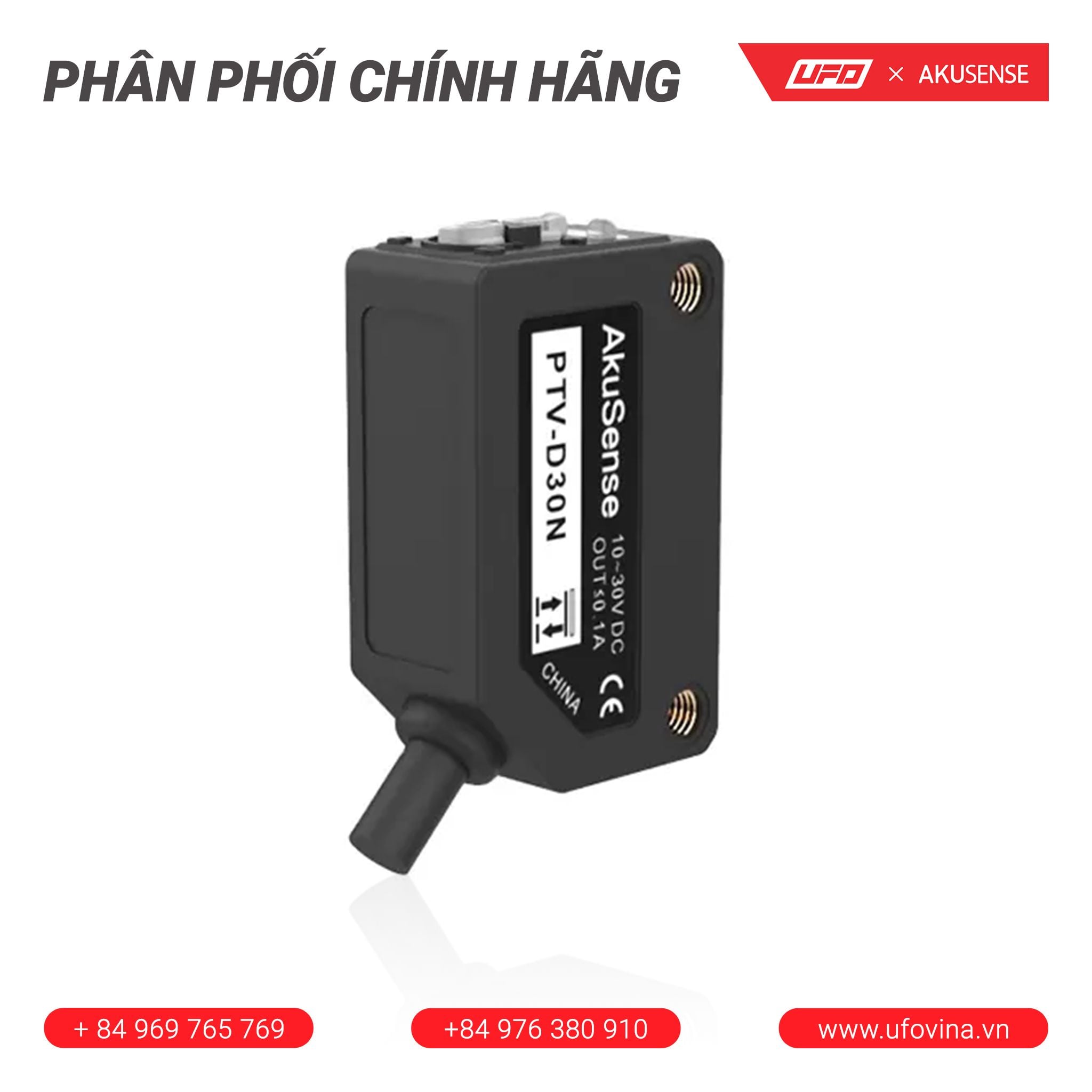

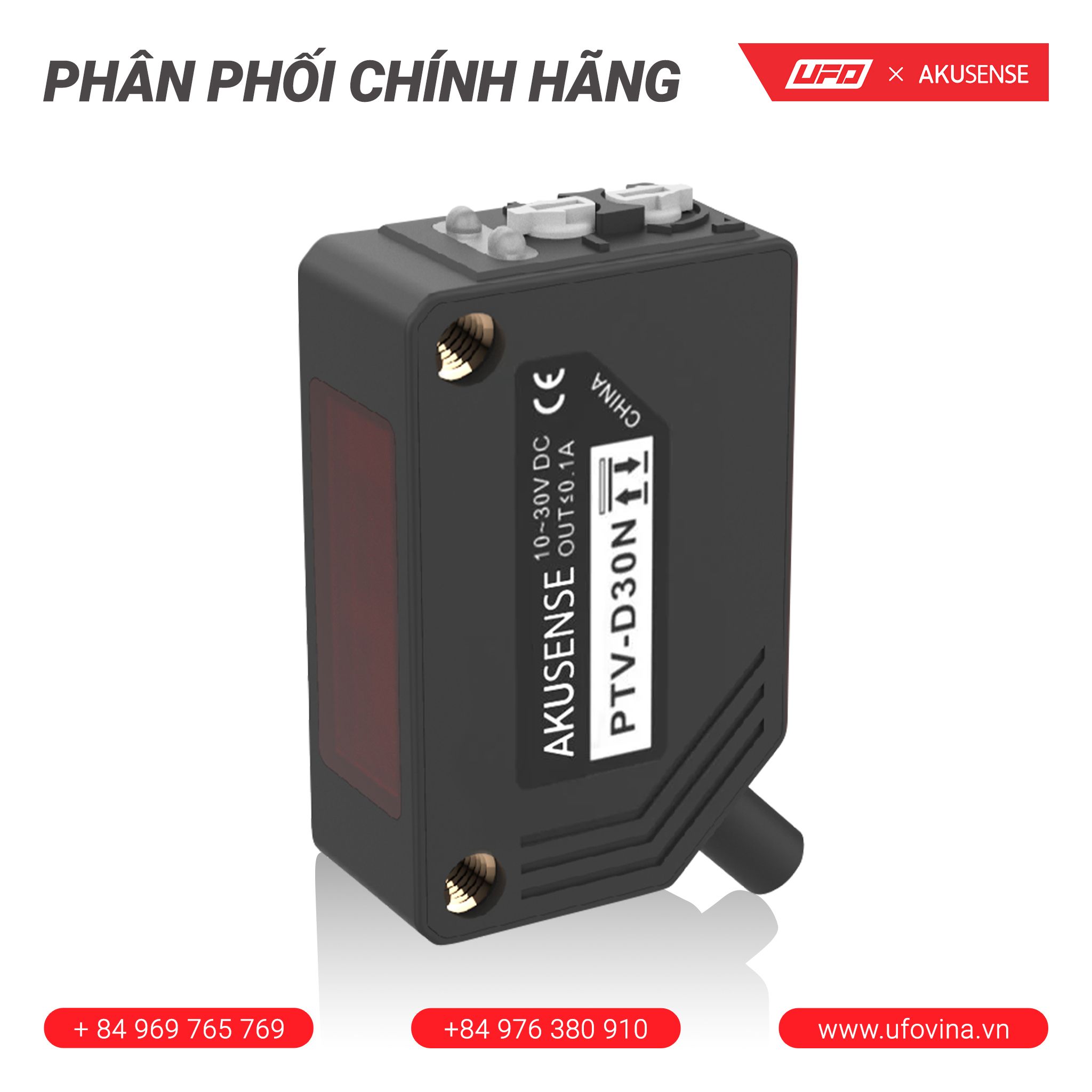

Akusense Square Sensor PTV-D30N
0₫
Mô tả
- Detection Method：Diffuse Reflection
- Detection Distance：10~300mm
- Output Mode：NPN open collector
- Response Time ：<1ms
- Light Source：Infrared LED 940nm(modulation)
####
| Model | PTV-D30N |
| Detection Method | Diffuse Reflection |
| Detection Distance | 10~300mm |
| Output Mode | NPN open collector |
| Switch Mode | L.on(light entry action)/D.on(shading action) can be switched |
| Response Time | <1ms |
| Light Source | Infrared LED 940nm(modulation) |
| Working Voltage | 10~30V DC |
| Current Consumption | <25mA |
| Load Current | <100mA |
| Ambient Temperature | -25℃~+55℃,no freezing |
| Ambient Humidity | 35%~85%RH,no condensation |
| Circuit Protection | Power supply reverse polarity protection,output reverse polarity protection,surge protection,short circuit protection |
| Protection Degree | IP65 |
| Connection Method | 2M/3 Core Cable |
| Material | PBT+glass fiber(shell) PMMA(lens) |
| Weight | ≈50g |
| Accessary | Screwdriver |
Circuit diagram:

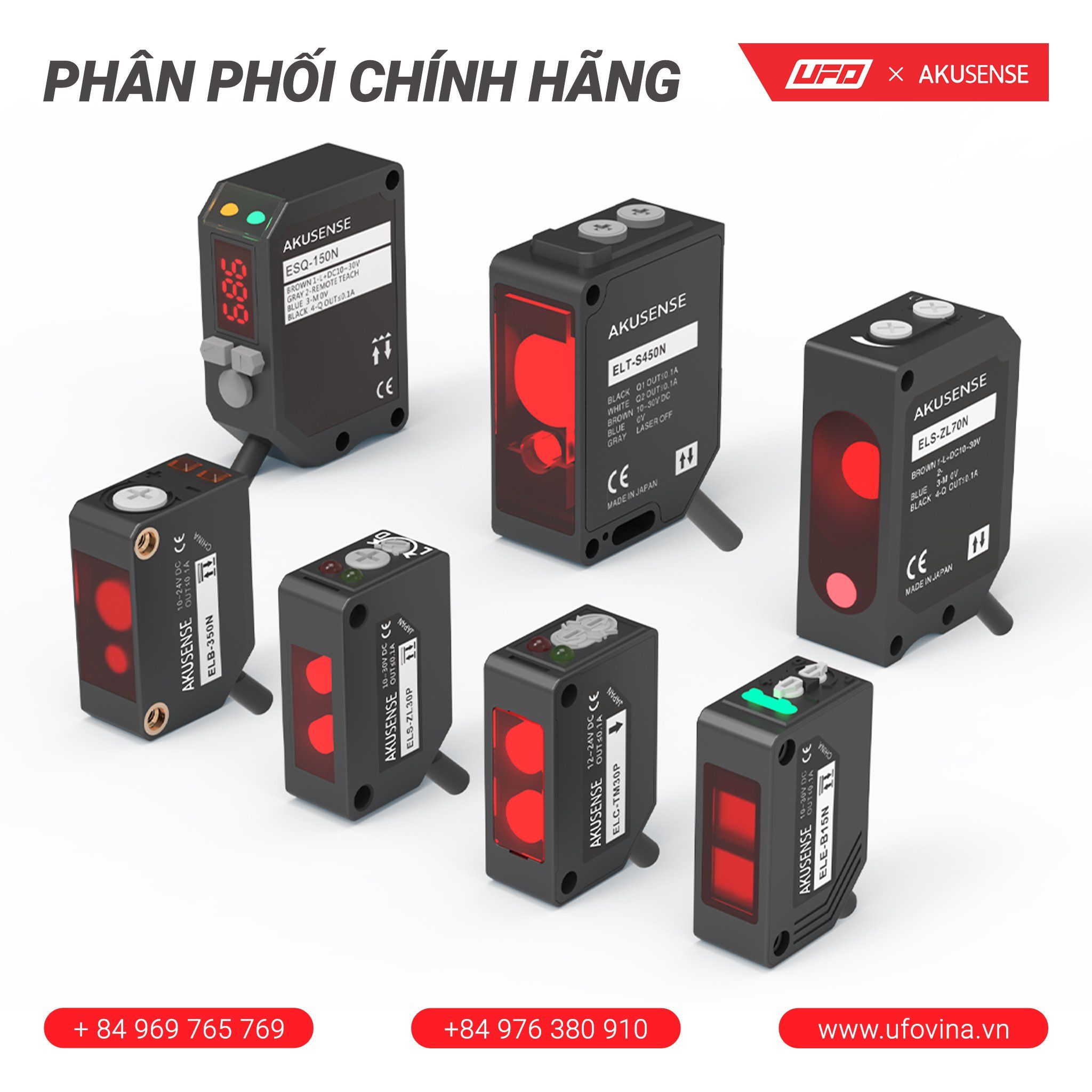

Square Type Catalog:
