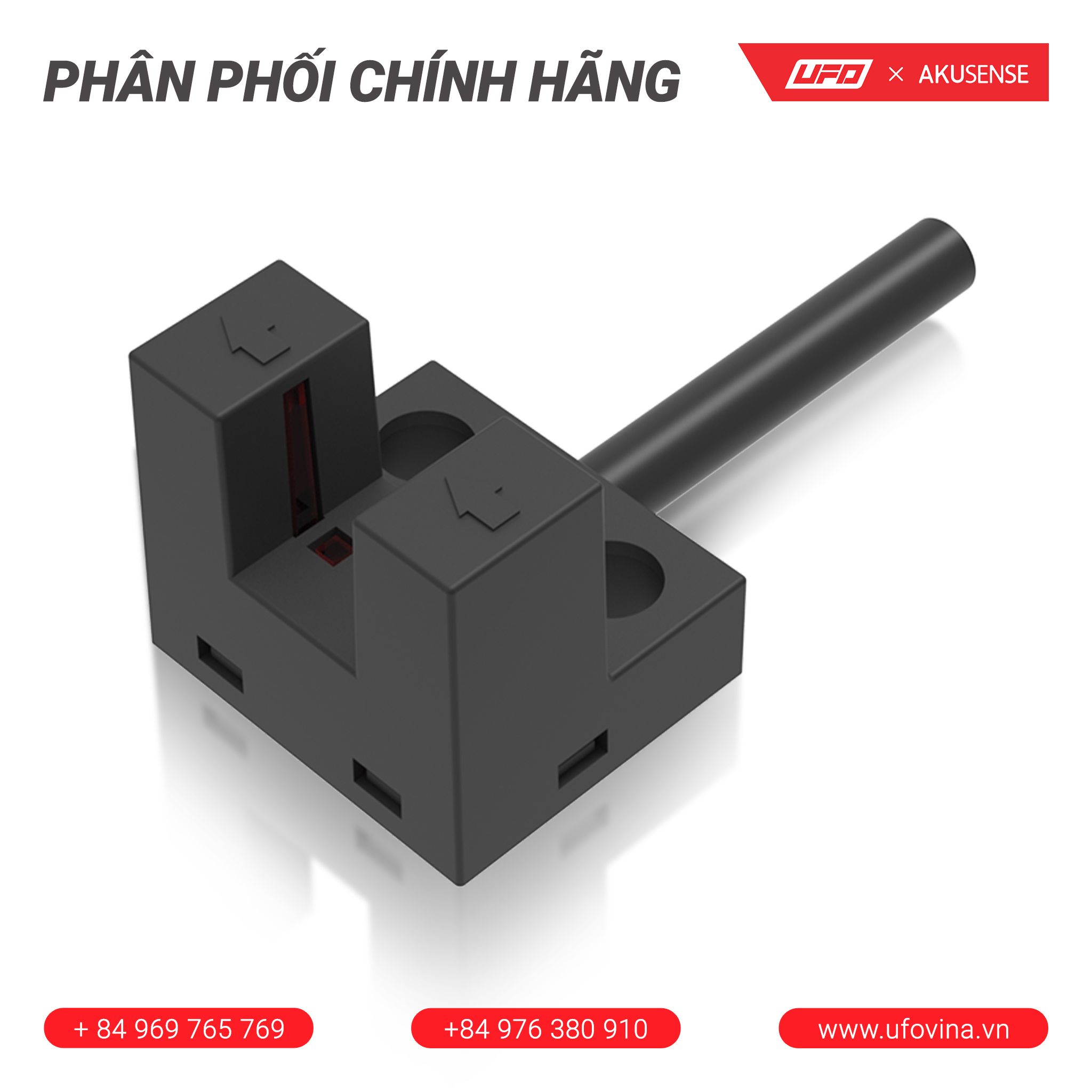

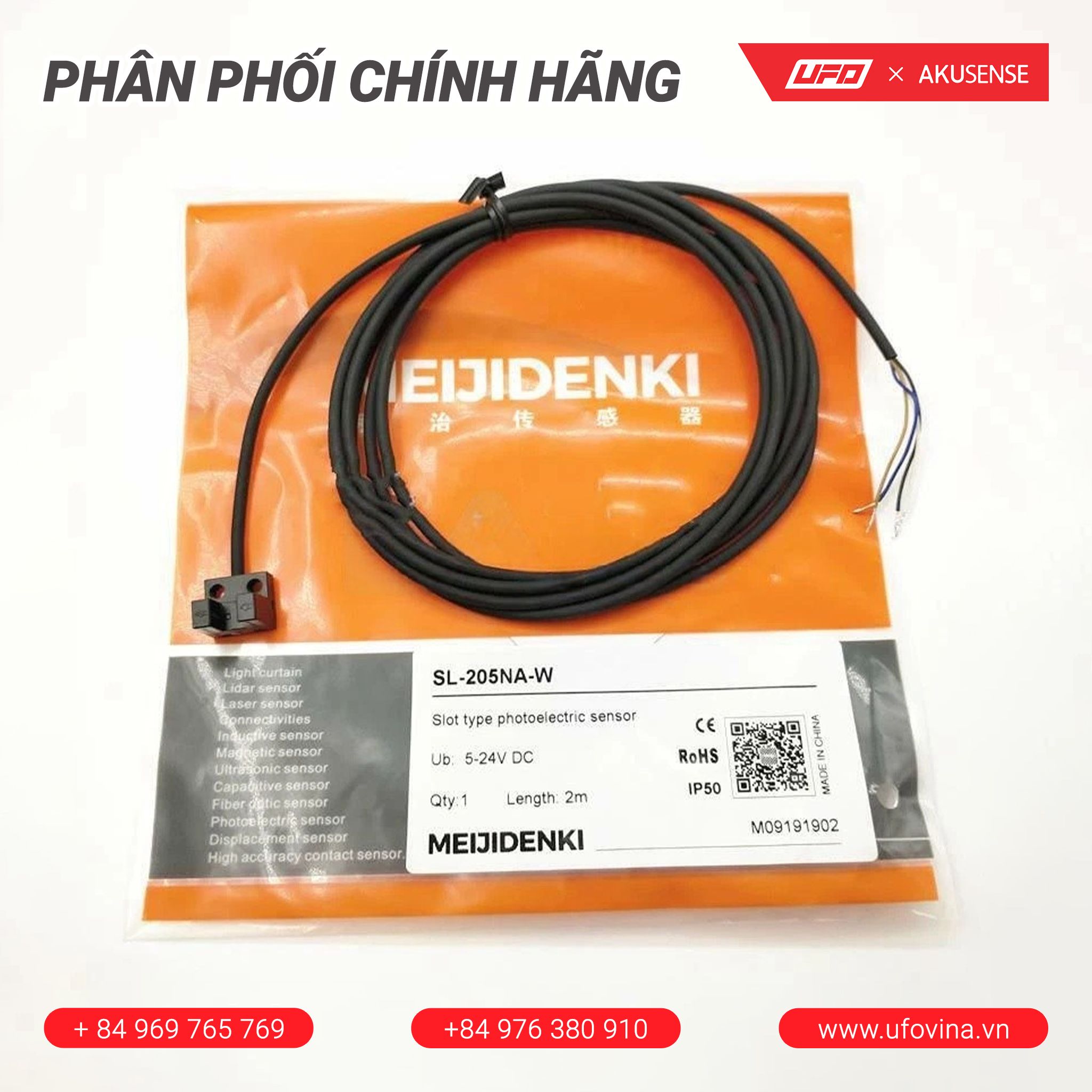

Small Slot Sensor SL-205NA-W

Giá gốc Giá bán: 0₫

- Detection Method:

- Detection Distance:5mm

- Output Mode:NPN open collector

- Repeatability:0.03mm or less

- Light Source:Infrared LED(940nm)

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

ModelSL-205NA-W
TypeL Type
Detection Method
Detection Distance5mm
Repeatability0.03mm or less
Output ModeNPN open collector
Switch ModeL.on(light entry action) /D.on(shading action) can be switched
IndicatorThe light is off when an object is detected,and the light is on when there is no object
Response Frenquency3KHz
Light SourceInfrared LED(940nm)
Working Voltage5~24V DC
Residual Voltage1V or less(at 50mA load current)
Current Consumption≤16mA
Circuit ProtectionSurge protection,reverse polarity protection
Ambient IlluminanceIlluminance of the light-receiving surface incandescent lamp:1000luxor less
Ambient TemperatureWorking time: -25℃~+55℃ When storing: -30℃~+80℃,no freezing
Ambient HumidityWorking time: 5%~95%RH When storing: 5%~95%RH,no freezing
Pressure ResistanceAC,1000V for 1 min,between all power link terminals and housing
Anti-Vibration10~55Hz,amplitude 1.5mm,2 hours each in X,Y,Z direction
Insulation ResistanceBetween all power connection terminals and housing,20MΩ or more(based on 250V DC)
Insulation ResistanceIP50
Protection DegreeABS

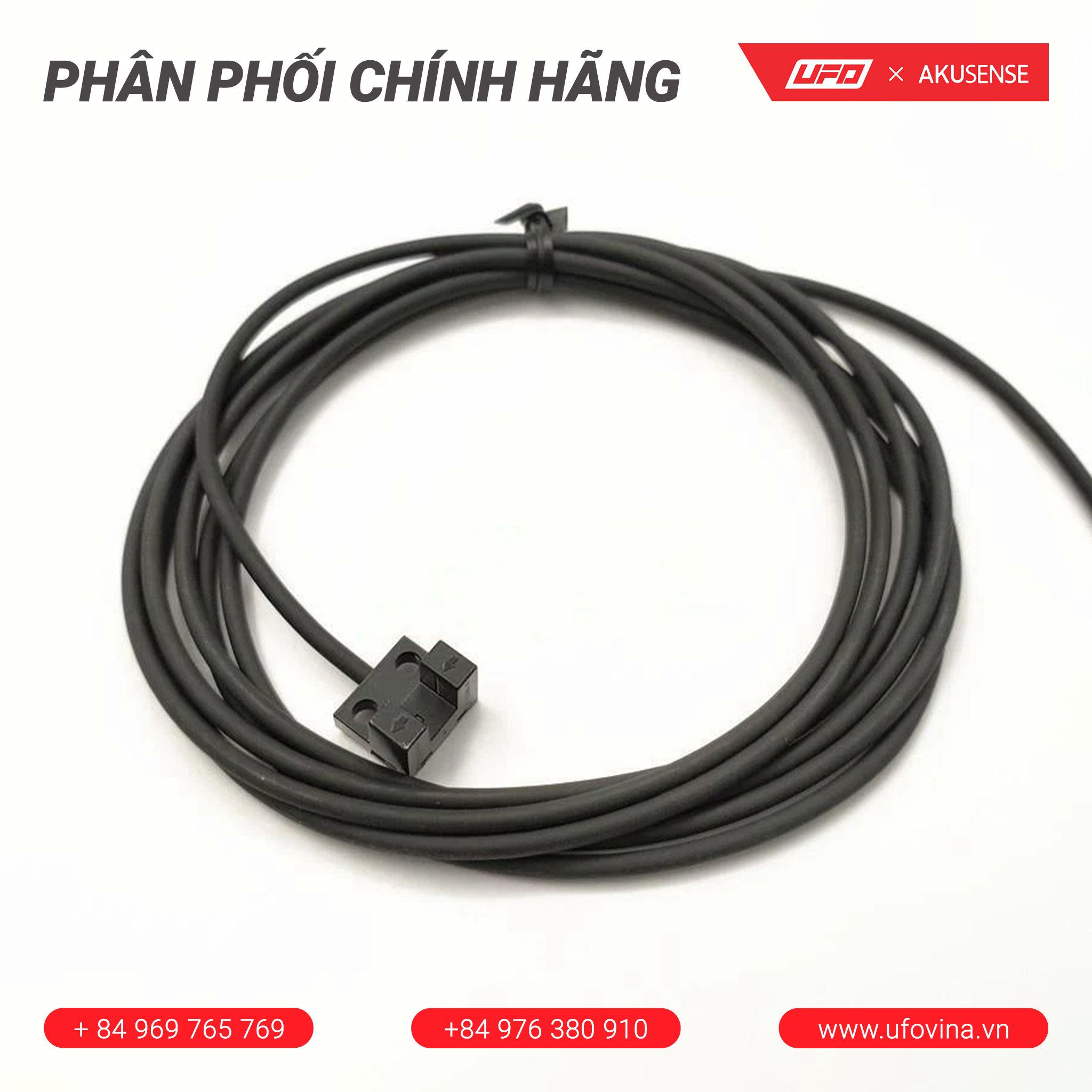

Connection Method2M 4 core cable

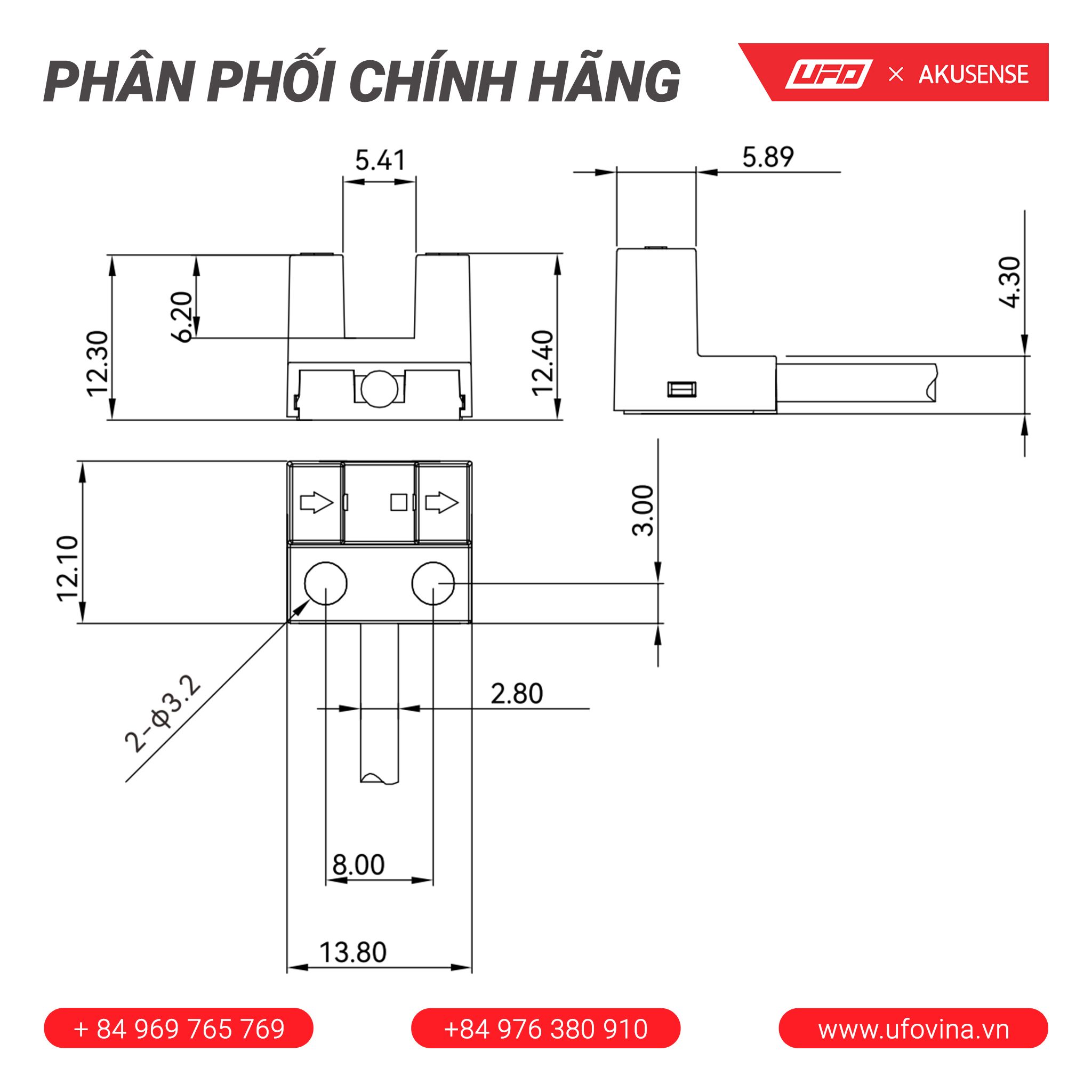

Size structure:

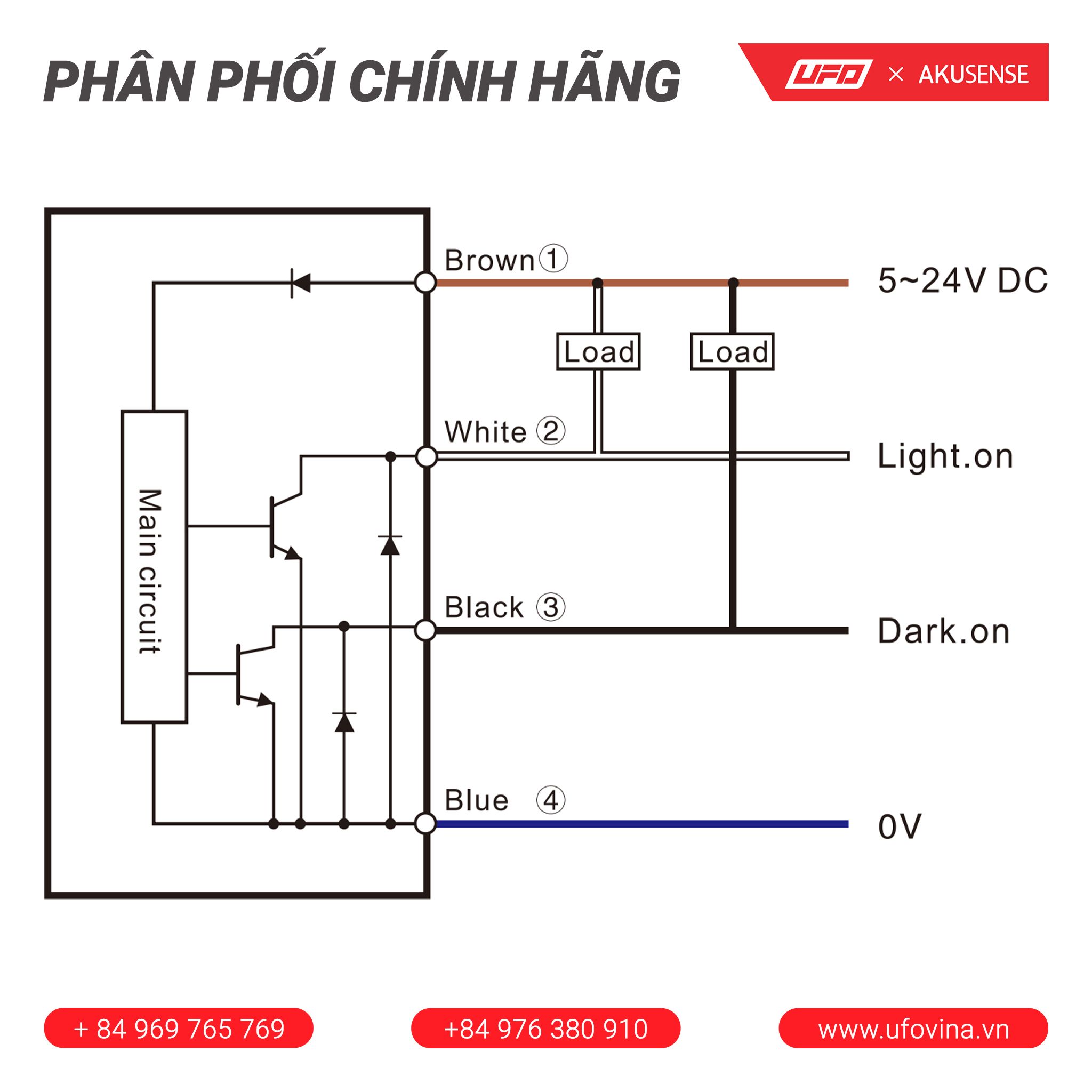

Circuit diagram:

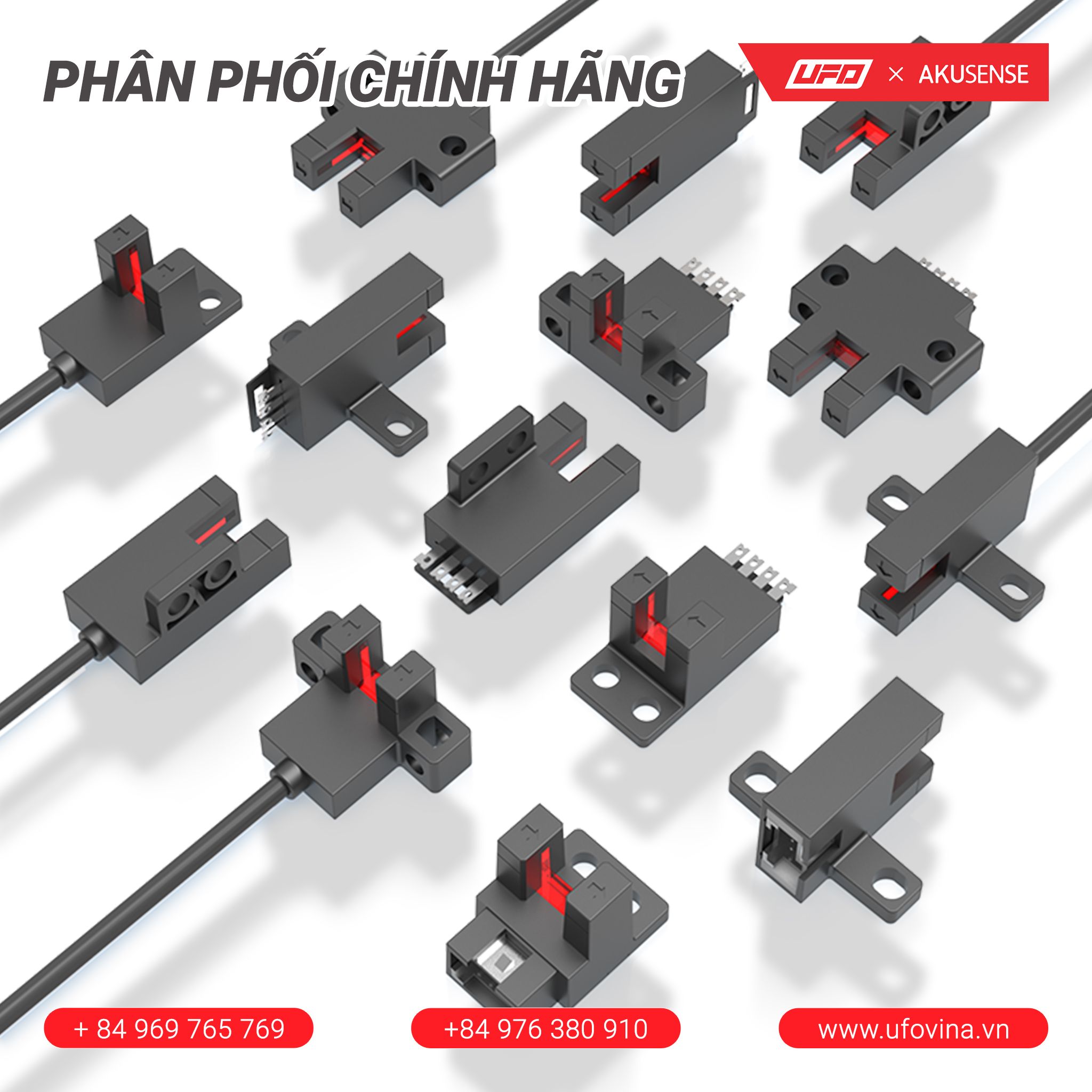

Micro Slot Type Series Catalog:
