Mô tả sản phẩm

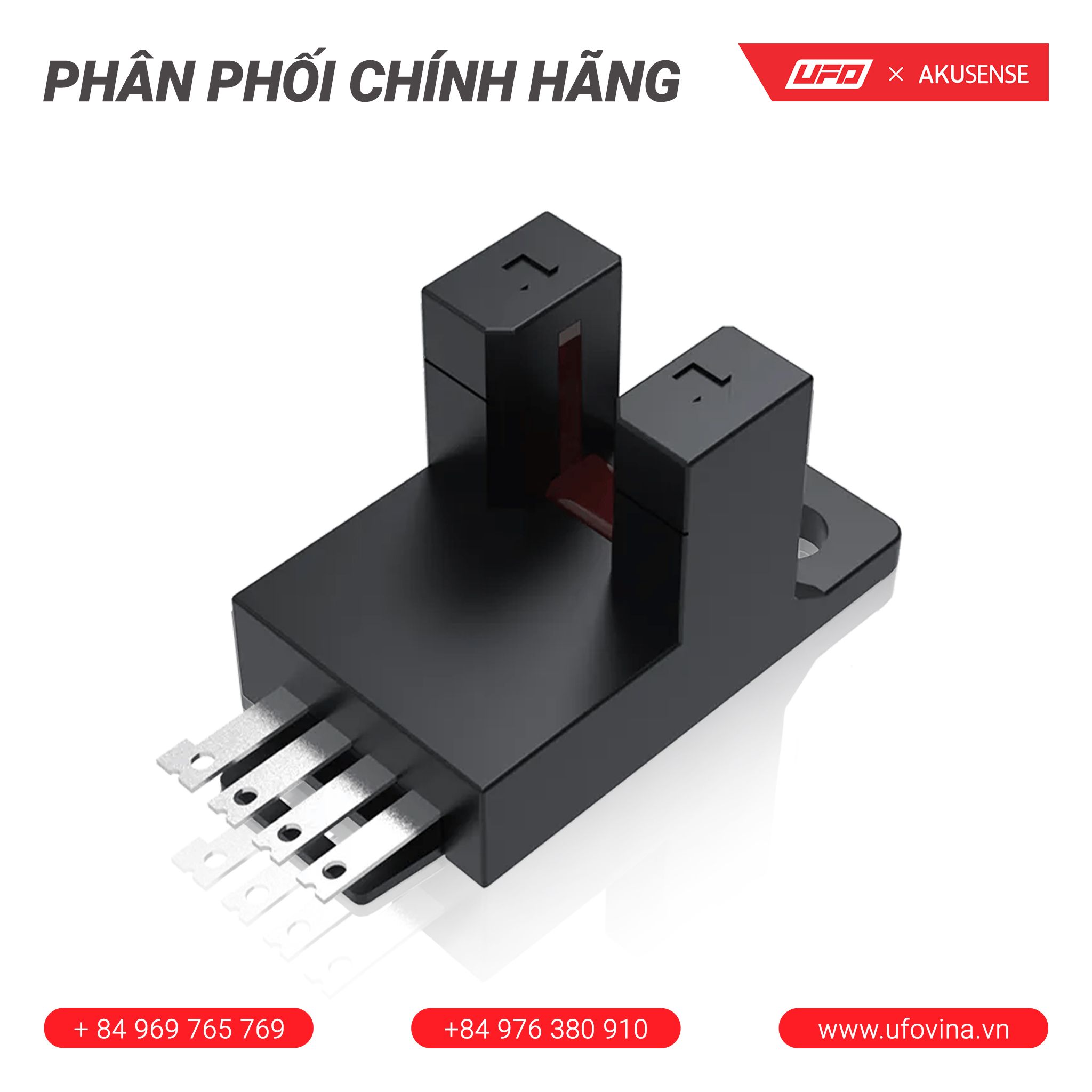

Model | SY-307N-E |
Type | Y Type |
Detection Distance | 5mm |
Repeatability | 0.03mm or less |
Output Mode | NPN open collector |
Switch Mode | L.on(light entry action) /D.on(shading action) can be switched |
Indicator | The light is on when there is no object |
Response Frenquency | 3KHz |
Response Time | ≤0.3ms |
Light Source | Infrared LED(940nm) |
Working Voltage | 5~24V DC |
Residual Voltage | 0.2V or less(load current 10mA),1.5V or less(load current 100mA) |
Current Consumption | <20mA |
Circuit Protection | Surge protection,reverse polarity protection |
Ambient Illuminance | incandescent lamp≤1000Lux |
Ambient Temperature | Working time: -25℃~+55℃ When storing: -30℃~+80℃,no freezing |
Ambient Humidity | Working time: 5%~95%RH When storing: 5%~95%RH,no freezing |
Pressure Resistance | AC,1000V for 1 min,between all power link terminals and housing |
Anti-Vibration | 10~55Hz,amplitude 1.5mm,2 hours each in X,Y,Z direction |
Insulation Resistance | Between all power connection terminals and housing,20MΩ or more(based on 250V DC) |
Insulation Resistance | IP50 |
Protection Degree | PC |
Connection Method | Pluggable |
Size structure:

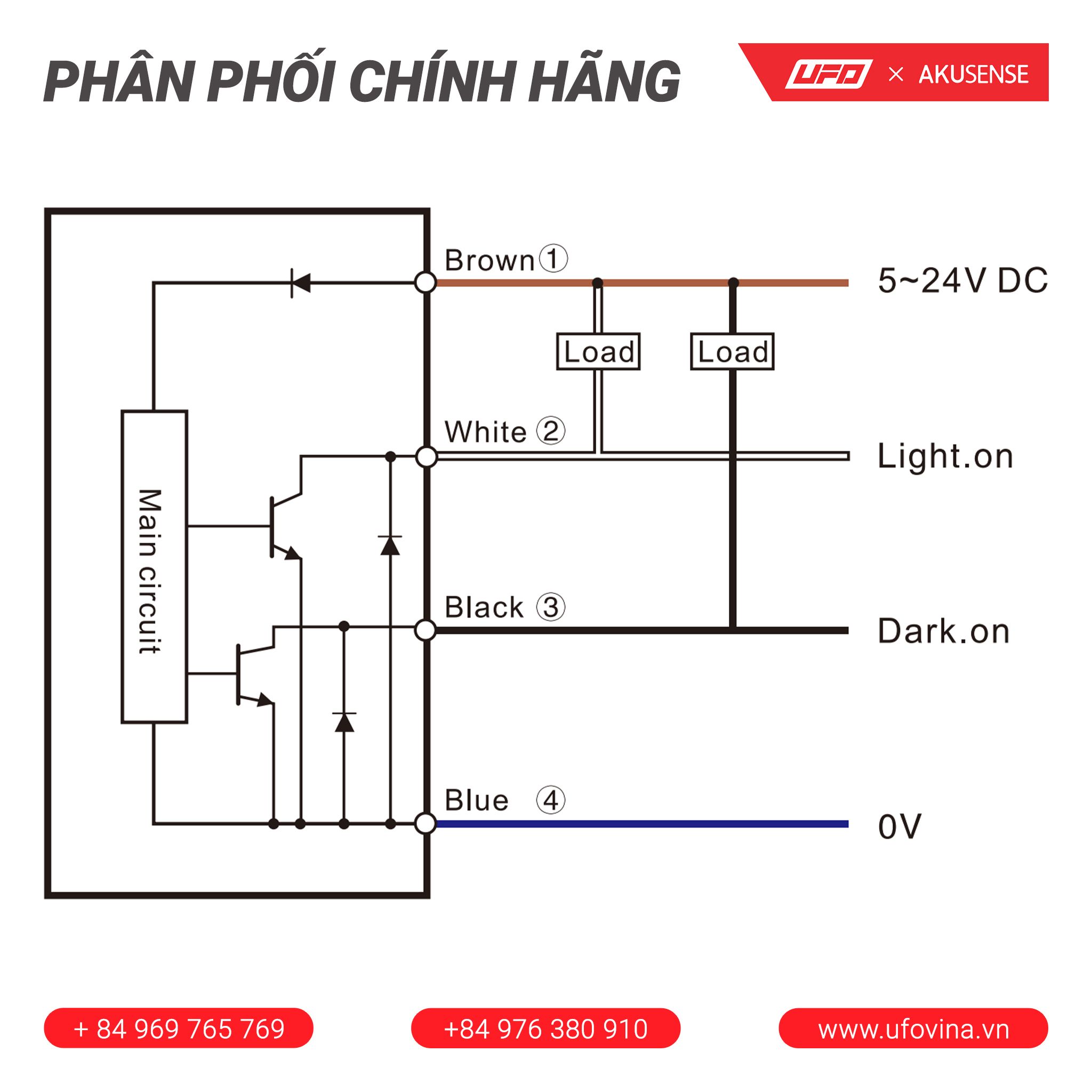

Circuit diagram:

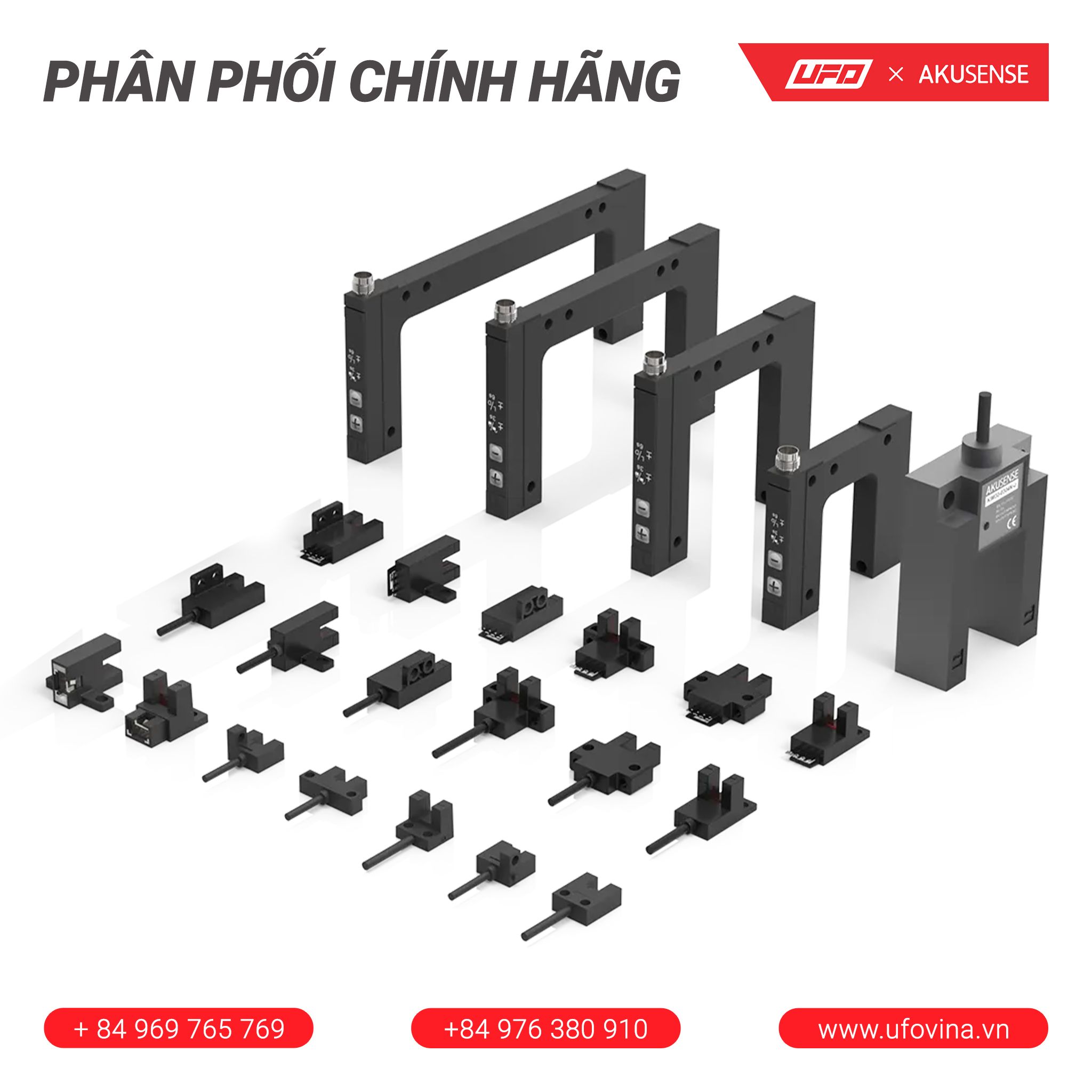

Slot Type Series Catalog:
