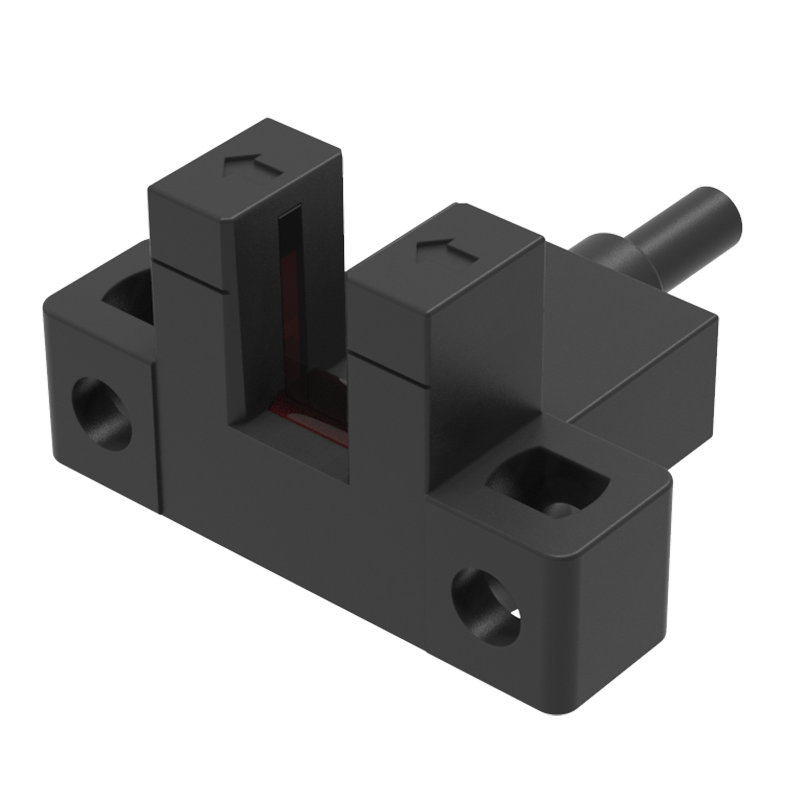

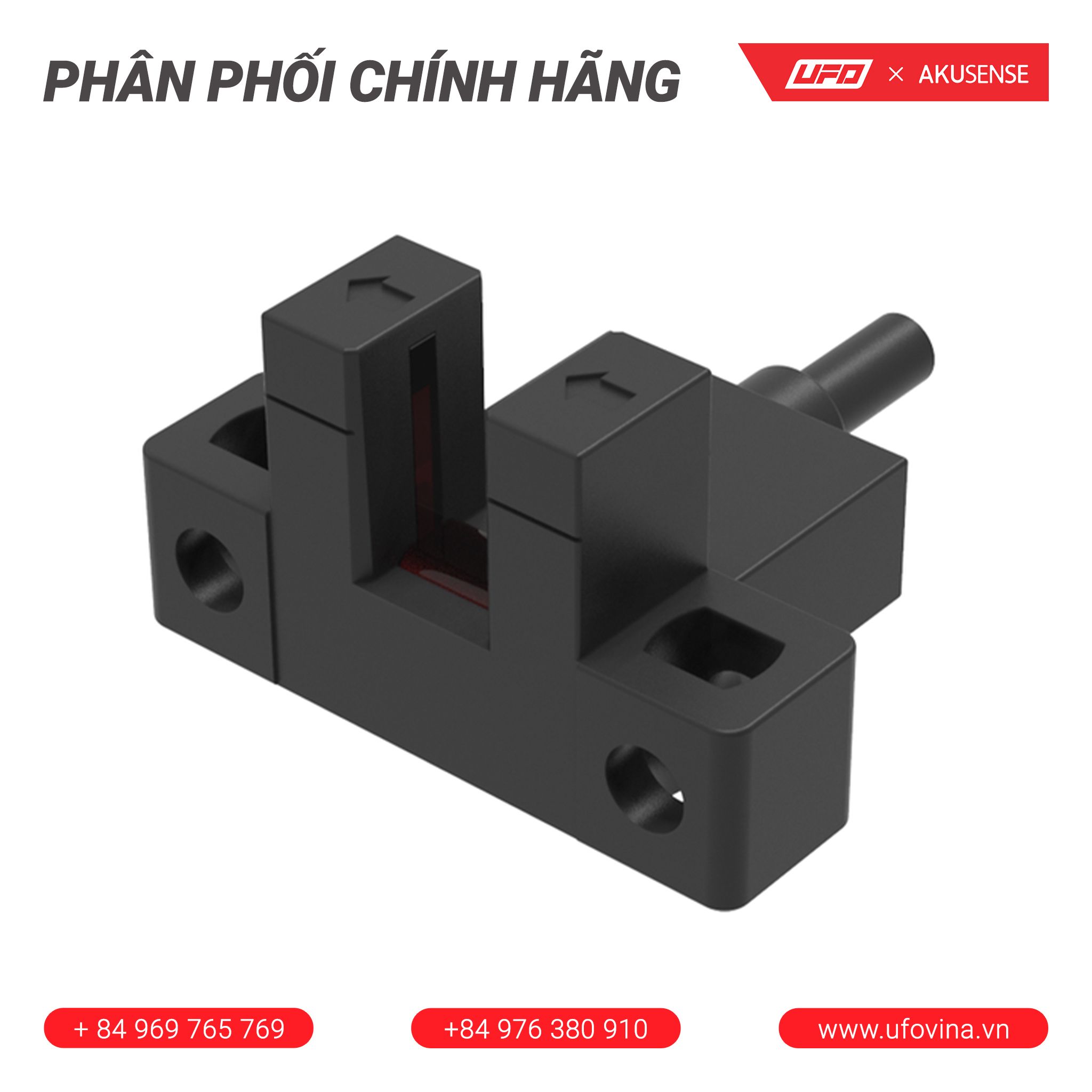

Slot Sensor SL-305N-W

Giá gốc Giá bán: 0₫

- Detection Method:

- Detection Distance:5mm

- Output Mode:NPN open collector

- Repeatability:0.03mm or less

- Response Time :≤0.3ms

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

TypeL Type
Detection Distance5mm
Repeatability0.03mm or less
Output ModeNPN open collector
Switch ModeL.on(light entry action) /D.on(shading action) can be switched
IndicatorThe light is on when there is no object
Response Frenquency3KHz
Response Time≤0.3ms
Light SourceInfrared LED(940nm)
Working Voltage5~24V DC
Residual Voltage1.5V or less(load current 100mA,wire length 2m)
Current Consumption<20mA
Circuit ProtectionSurge protection,reverse polarity protection
Ambient Illuminanceincandescent lamp≤1000Lux
Ambient TemperatureWorking time: -25℃~+55℃ When storing: -30℃~+80℃,no freezing
Ambient HumidityWorking time: 5%~95%RH When storing: 5%~95%RH,no freezing
Pressure ResistanceAC,1000V for 1 min,between all power link terminals and housing
Anti-Vibration10~55Hz,amplitude 1.5mm,2 hours each in X,Y,Z direction
Insulation ResistanceBetween all power connection terminals and housing,20MΩ or more(based on 250V DC)
Insulation ResistanceIP50
Protection DegreePC
Connection Method2M 4 core cable

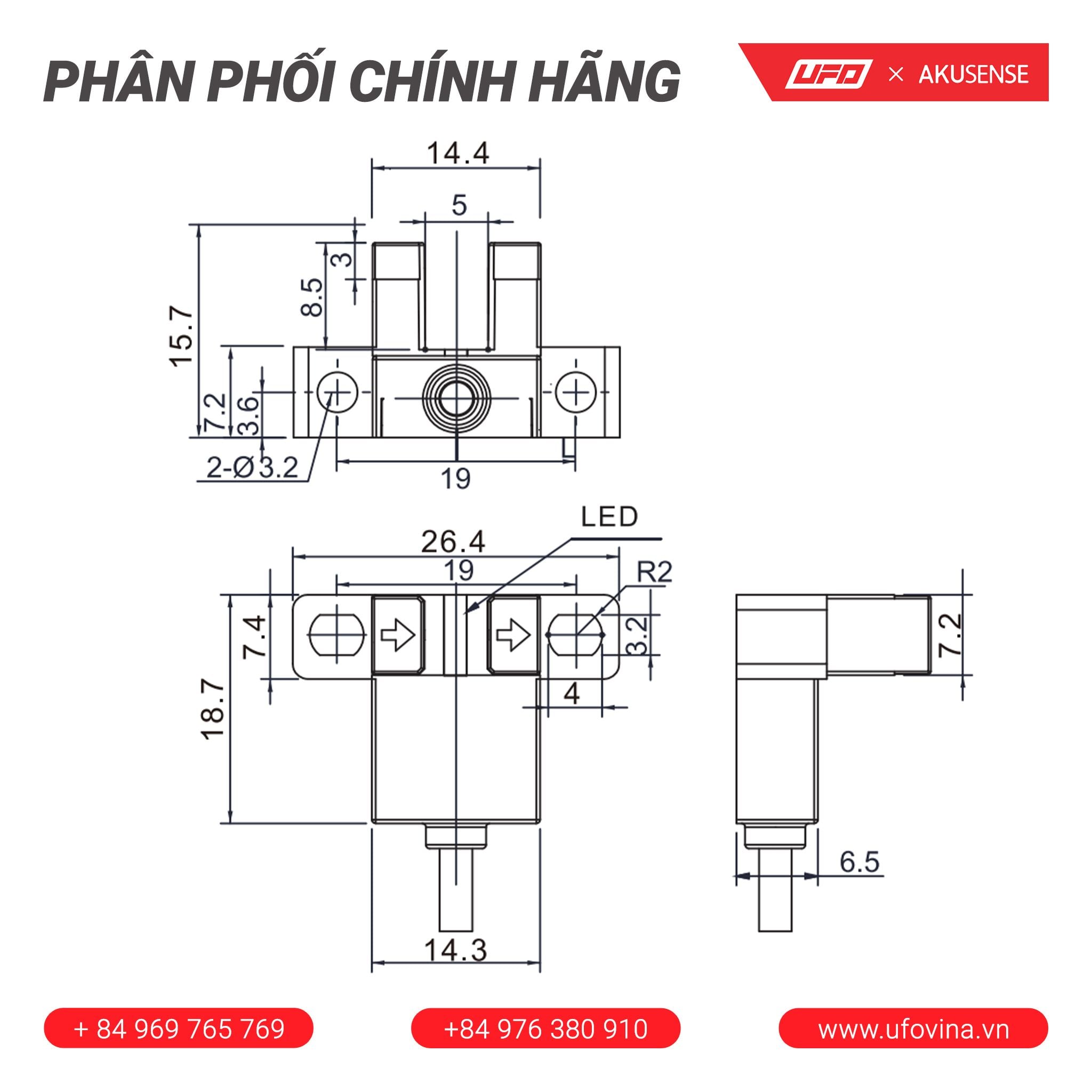

Size structure:

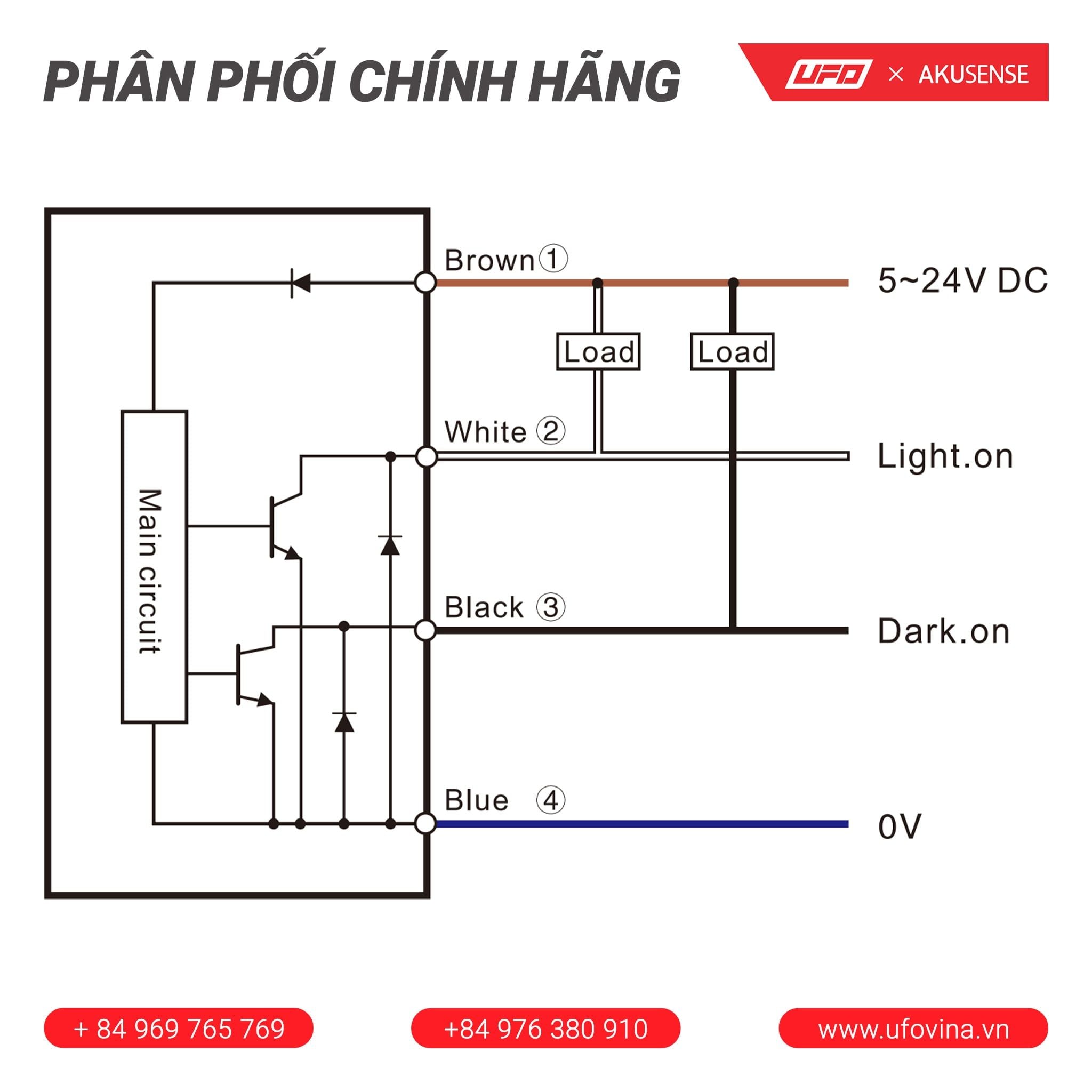

Circuit diagram:

Slot Type Series Catalog:
