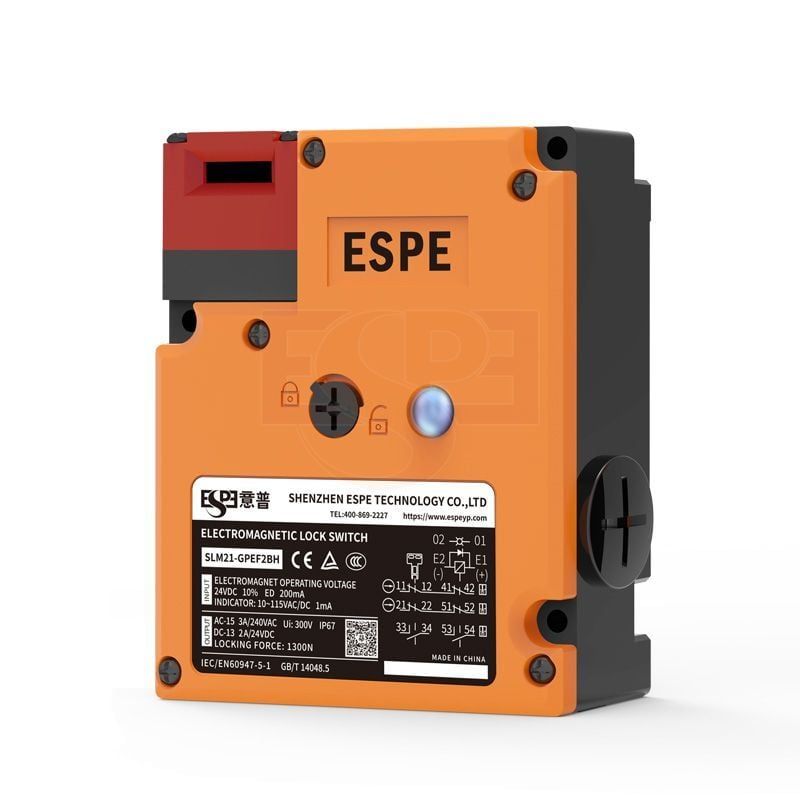

SLM21 Safety Door Switch(6 contacts)

Giá gốc Giá bán: 0₫

Brand: ESPE

Model: SLM21 series

Product Feature:

1.IP 67 protection degree (EPL and EPS series safety door switches);

2.Multiple models for selection;

3.Easy for installment and operation;

4.Holding force up to 1300N;

5.Widely use in varies industrial environment.

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

Technical Parameter



Electromagnetic tube
Rated VoltageDC24V
Capacity4.8W
Rated currentapproximate 200mA
InsulationClas N (130­°C)
LED indicator
Rated voltageDC24V
Rated currentapproximate 1mA
Luminous color (LED)Green
Safety level
CertificateCE TUV
StandardEN60947-5-1, GB14048.5, IEC61508, EN ISO 14119
Protection rateIP67
MaterialPA66 fire retardant
Mechanical lifespan>1 million
Electrical lifespanover 150, 000 times (AC240V3A, resistive load)
TypeAC-15DC-13
Rated operating voltage(Ue)240V24V
Rated operating current(Ie)3A2A
Electrical parameter
Contact resistance<24mΩ
Nominal discharge current (lth)10A
Rated insulation voltage (Ui)300V
Anti-electric shock levelClass II (double insulation)
Pulse withstand voltage (EN60947-5-1)2.5kv
Insulation resistance>100mΩ
Short-circuit protection10A, 250V requires a quick-break fuse
Vibration resistance10-55HZ, double amplitude 1.5mm
Compact resistanceDurability 1000/S², mal-operation 300m/S²
Conditional short-circuit current100A (EN60947-5-1)
Space of contactAbove 2 x 2mm
Action characteristic
Direct opening forceMinimum 60N
Direct opening travelover 10mm
Allowed operating speed0.1m-0.5m/s
Allowed operating frequencyMaximum 30 times/minute
Holding force1300N
Environment
Operating environment3 (EN60947-5-1)
Operating temperature-10 to 55°C ( no freezing)
Operating humidity<95% RH

Model Selection Table

Plastic Head

Magnet voltage

/indicator light

Lock/ unlock

Contact type

(door monitor +

lock monitor)

ConnectorModel

Electromagnet

DC24V Green LED

Power to unlock1NC/1NO+1NC/1NOPG13.5SLM21-APMF1
M20SLM21-APMF2
1NC/1NO+2NCPG13.5SLM21-BPMF1
M20SLM21-BPMF2
2NC+1NC/1NOPG13.5SLM21-CPMF1
M20SLM21-CPMF2
2NC+2NCPG13.5SLM21-DPMF1
M20SLM21-DPMF2
2NC/1NO+1NC/1NOPG13.5SLM21-EPMF1
M20SLM21-EPMF2
2NC/1NO+2NCPG13.5SLM21-FPMF1
M20SLM21-FPMF2
2NC/1NO+2NC/1NOPG13.5SLM21-GPMF1
M20SLM21-GPMF2
3NC+1NC/1NOPG13.5SLM21-HPMF1
M20SLM21-HPMF2
3NC+2NCPG13.5SLM21-IPMF1
M20SLM21-IPMF2
3NC+3NCPG13.5SLM21-JPMF1
M20SLM21-JPMF2
3NC+2NC/1NOPG13.5SLM21-KPMF1
M20SLM21-KPMF2
2NC/1NO+3NCPG13.5SLM21-LPMF1
M20SLM21-LPMF2
Power to lock1NC/1NO+1NC/1NOPG13.5SLM21-APEF1
M20SLM21-APEF2
1NC/1NO+2NCPG13.5SLM21-BPEF1
M20SLM21-BPEF2
2NC+1NC/1NOPG13.5SLM21-CPEF1
M20SLM21-CPEF2
2NC+2NCPG13.5SLM21-DPEF1
M20SLM21-DPEF2
2NC/1NO+1NC/1NOPG13.5SLM21-EPEF1
M20SLM21-EPEF2
2NC/1NO+2NCPG13.5SLM21-FPEF1
M20SLM21-FPEF2
2NC/1NO+2NC/1NOPG13.5SLM21-GPEF1
M20SLM21-GPEF2
3NC+1NC/1NOPG13.5SLM21-HPEF1
M20SLM21-HPEF2
3NC+2NCPG13.5SLM21-IPEF1
M20SLM21-IPEF2
3NC+3NCPG13.5SLM21-JPEF1
M20SLM21-JPEF2
3NC+2NC/1NOPG13.5SLM21-KPEF1
M20SLM21-KPEF2
2NC/1NO+3NCPG13.5SLM21-LPEF1
M20SLM21-LPEF2



Metal Head

Magnet voltage

/indicator light

Lock / unlock

Contact type

(door monitor+

lock monitor)

ConnectorModel

Electromagnet

DC24V Green LED

Power to unlock1NC/1NO+1NC/1NOPG13.5SLM21-AMMF1
M20SLM21-AMMF2
1NC/1NO+2NCPG13.5SLM21-BMMF1
M20SLM21-BMMF2
2NC+1NC/1NOPG13.5SLM21-CMMF1
M20SLM21-CMMF2
2NC+2NCPG13.5SLM21-DMMF1
M20SLM21-DMMF2
2NC/1NO+1NC/1NOPG13.5SLM21-EMMF1
M20SLM21-EMMF2
2NC/1NO+2NCPG13.5SLM21-FMMF1
M20SLM21-FMMF2
2NC/1NO+2NC/1NOPG13.5SLM21-GMMF1
M20SLM21-GMMF2
3NC+1NC/1NOPG13.5SLM21-HMMF1
M20SLM21-HMMF2
3NC+2NCPG13.5SLM21-IMMF1
M20SLM21-IMMF2
3NC+3NCPG13.5SLM21-JMMF1
M20SLM21-JMMF2
3NC+2NC/1NOPG13.5SLM21-KMMF1
M20SLM21-KMMF2
2NC/1NO+3NCPG13.5SLM21-LMMF1
M20SLM21-LMMF2
Power to lock1NC/1NO+1NC/1NOPG13.5SLM21-AMEF1
M20SLM21-AMEF2
1NC/1NO+2NCPG13.5SLM21-BMEF1
M20SLM21-BMEF2
2NC+1NC/1NOPG13.5SLM21-CMEF1
M20SLM21-CMEF2
2NC+2NCPG13.5SLM21-DMEF1
M20SLM21-DMEF2
2NC/1NO+1NC/1NOPG13.5SLM21-EMEF1
M20SLM21-EMEF2
2NC/1NO+2NCPG13.5SLM21-FMEF1
M20SLM21-FMEF2
2NC/1NO+2NC/1NOPG13.5SLM21-GMEF1
M20SLM21-GMEF2
3NC+1NC/1NOPG13.5SLM21-HMEF1
M20SLM21-HMEF2
3NC+2NCPG13.5SLM21-IMEF1
M20SLM21-IMEF2
3NC+3NCPG13.5SLM21-JMEF1
M20SLM21-JMEF2
3NC+2NC/1NOPG13.5SLM21-KMEF1
M20SLM21-KMEF2
2NC/1NO+3NCPG13.5SLM21-LMEF1
M20SLM21-LMEF2
