Repeatability:±0.01(mm)
Ball Screw Lead:2/6/12(mm)
Maximum rotating speed: 3000/3600/3600(rpm)
Maximum Speed | Horizontal:≦100/≦360/≦720(mm/s)
Maximum Speed | Vertical:≦100/≦360/≦720 (mm/s)
Maximum Payload | Horizontal:≦25/≦20/≦12(kg)
Maximum Payload | Vertical:≦8/≦5/≦2 (kg)
Rated Thrust:827/276/138(N)

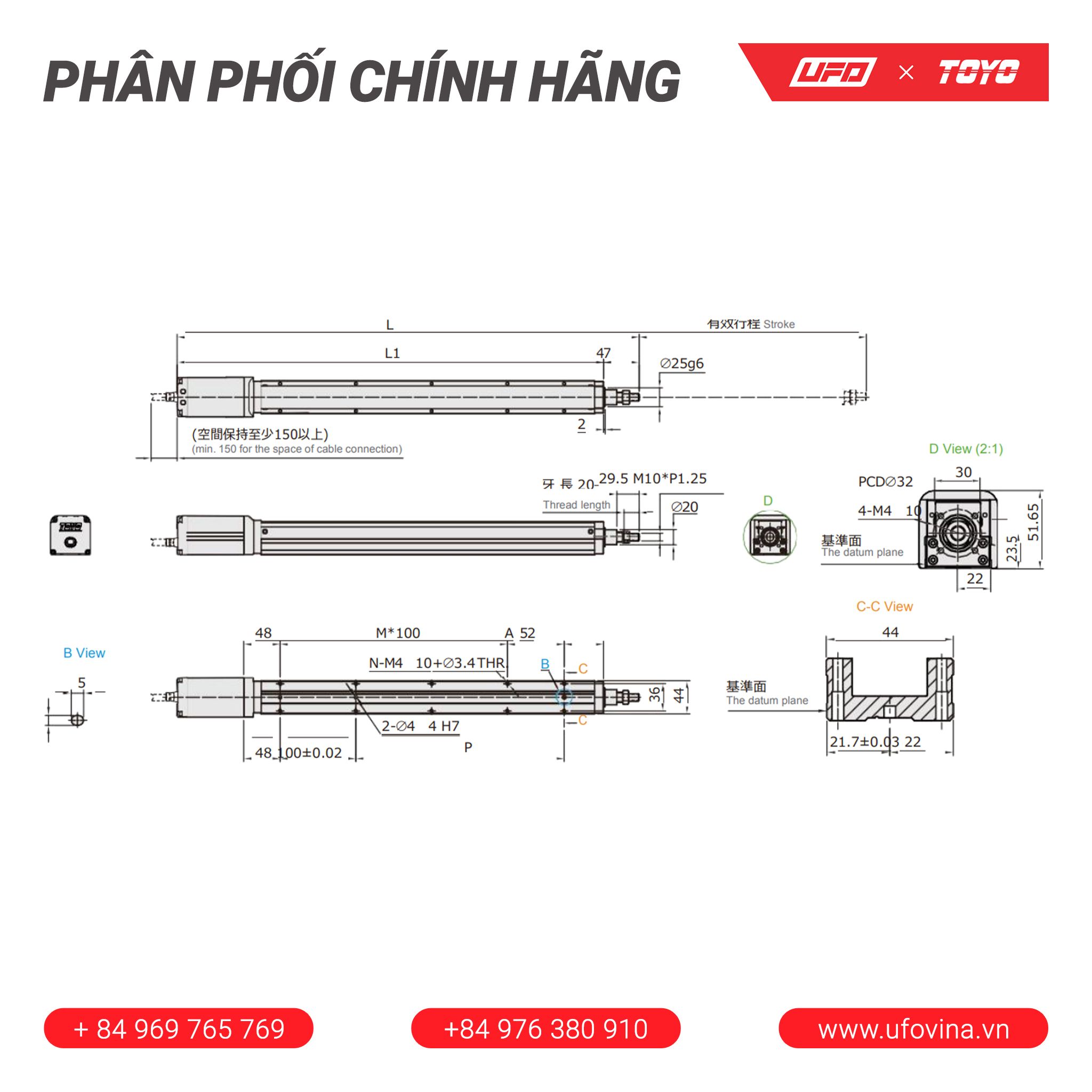

Stroke/Pitch :50-500 / 50 pitch (mm)
*The maximum speed shown here is when software speed setting is 100%
* If payload is near maximum ,it requires to collocate externally with auxiliary guideway for bearing radial load.
