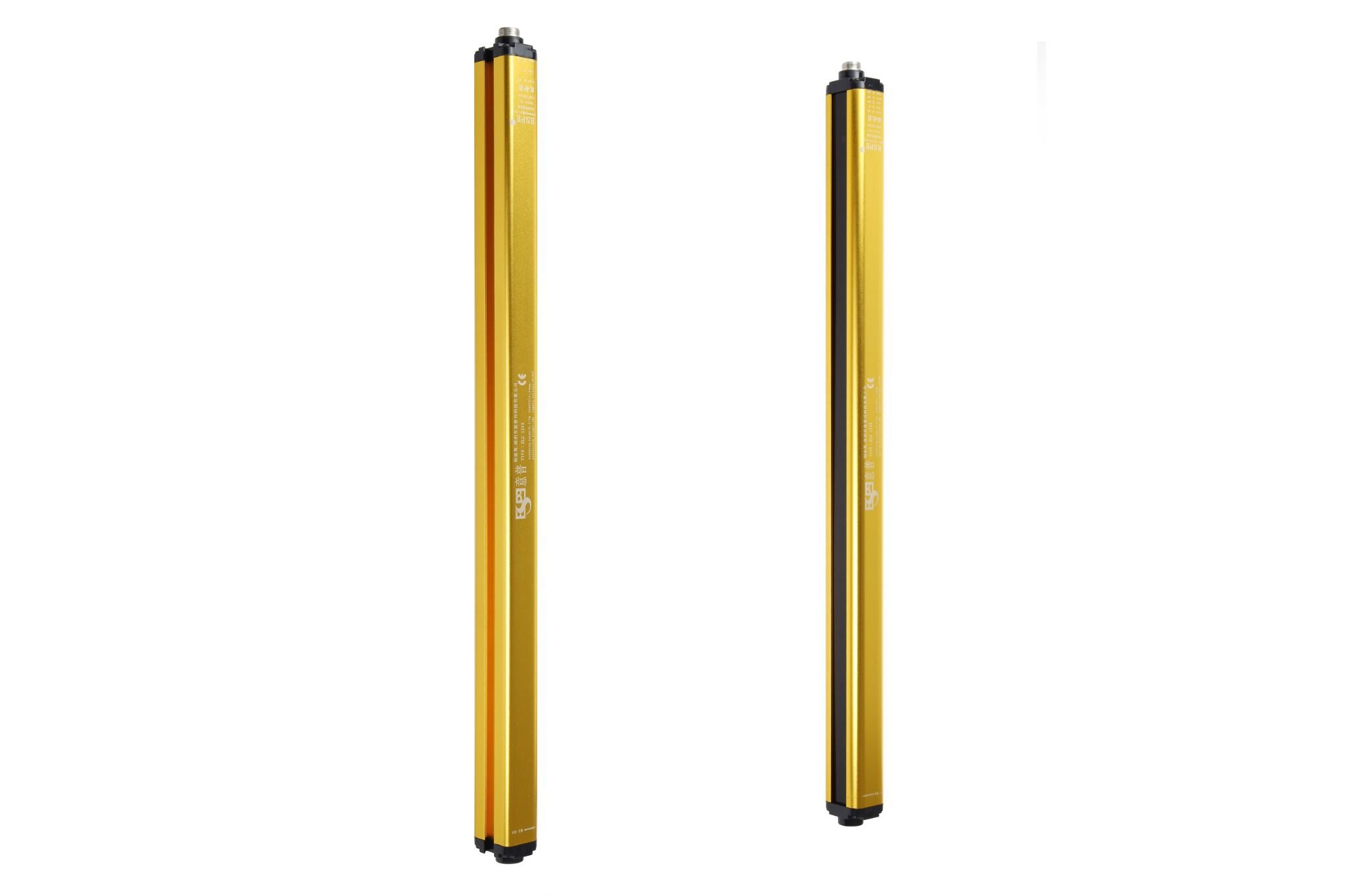

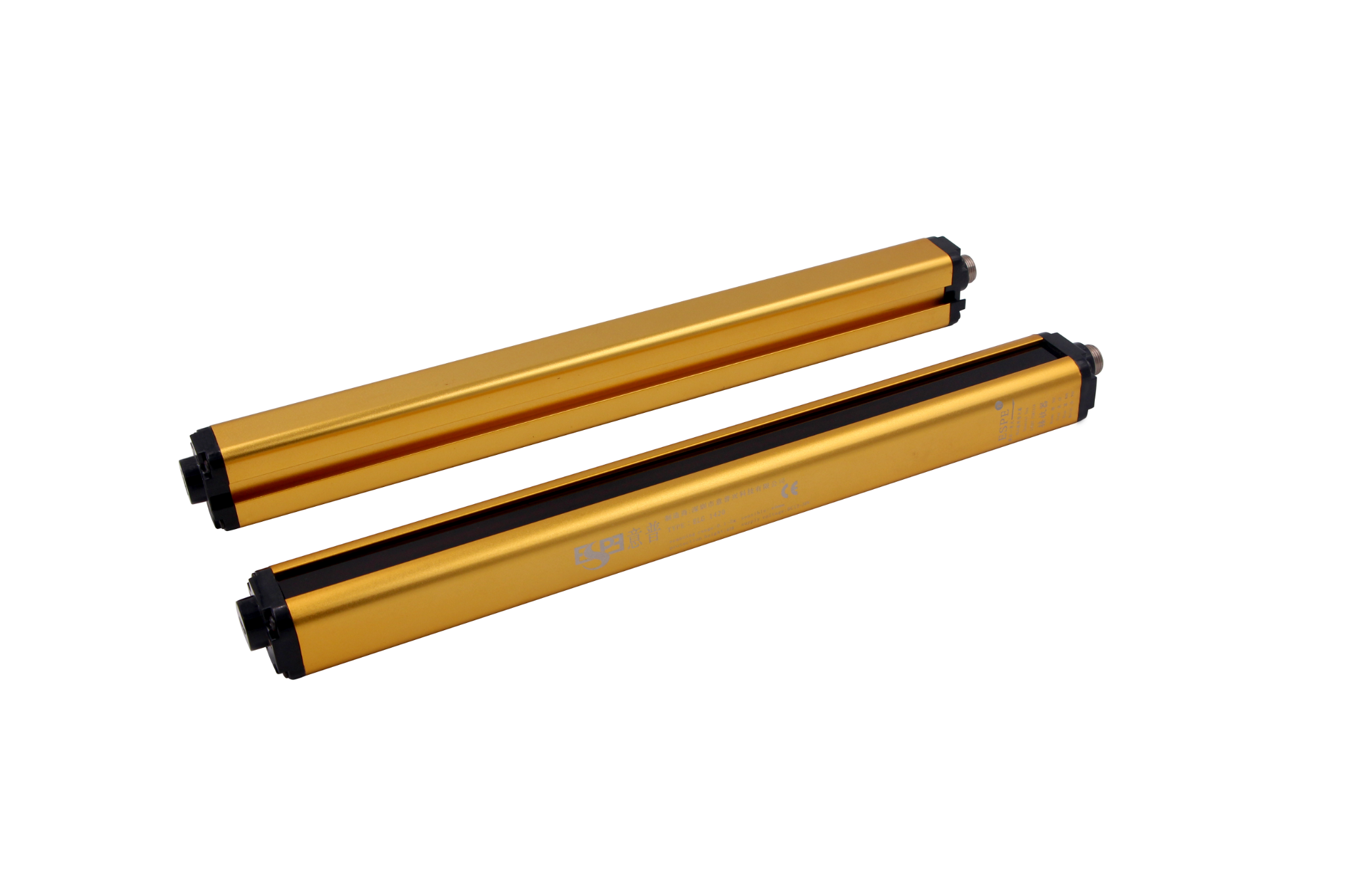

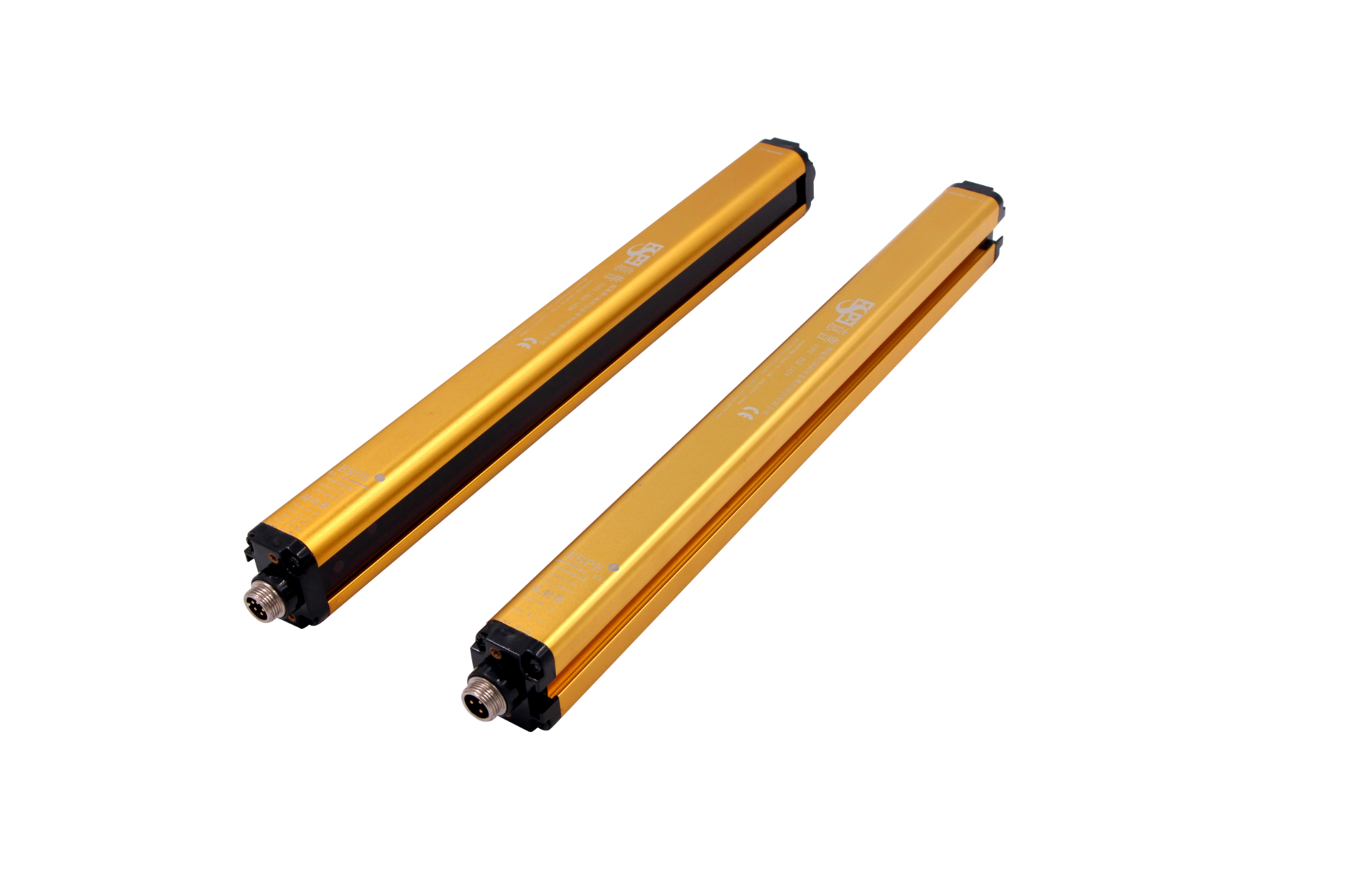

Non-standard Machine Safety Light Curtain
Mô tả
Brand: ESPE
Model: ELG Series

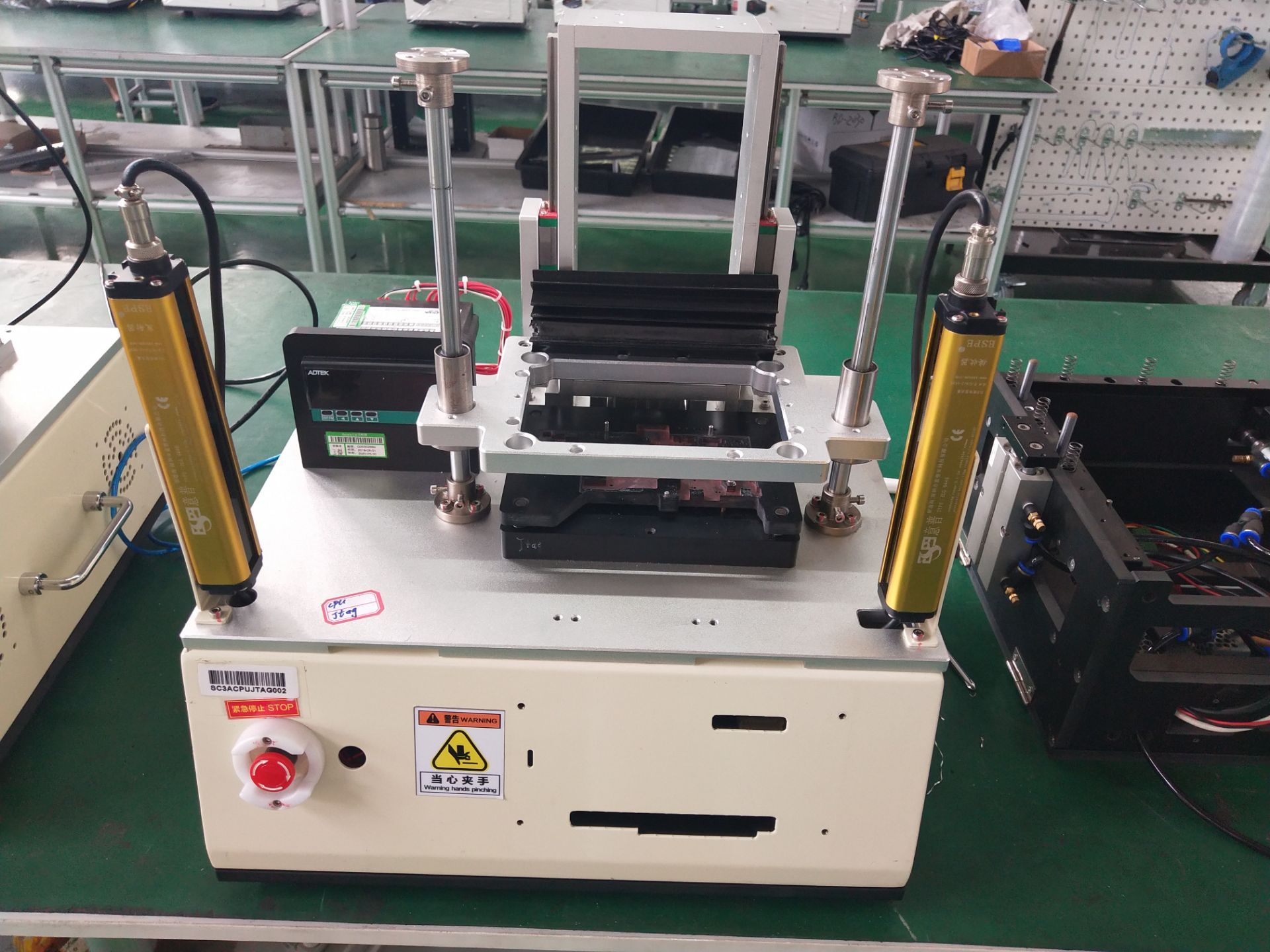

Product Feature:
1. Compact size for easy installment；
2. High precision, stronger signal emission and reception ability；
3. With double-circuit self-inspection design；
4. High reliability, short response time and strong to fight against optical or electromagnetic interference.
####
Technical Parameters
| Parameter of safety light curtain | |
| Supply voltage | DC10V~30V |
| Capacity | <5W |
| Beam space | 10mm, 20mm, 40mm |
| Resolution | 15mm, 25mm, 45mm |
| Beams | 10mm beam space:8, 12, 16……14420mm beam space: 4, 6, 8……7240mm beam space:4, 6, 8……36 |
| Protective height | Protective height =（N-1）*beam gap，N is beam quantity |
| Wave length | 940nm |
| Response time | Response time =(N * 0.1ms) + 0.4ms, N is beam quantity |
| Type of output（OSSD） | PNP/NPN semiconductors，current <200mA max, residual voltage: 1 V max. leakage current: 1mA max. (Expect voltage influenced by lengthen wire). |
| Protective circuit | Overload voltage protection, power supply reverse polarity protection, over current protection. |
| Sensing distance | 0.1~0.5m , 0.1~2m, 0.1~5m (If reflective light environment, please let us know in advanced) |
| Anti-optical interference | 10000Lux(I >5°) |
| Sensing method | Through-beam type |
| Synchronization | Wire synchronization |
| Enclosure material | Aluminum alloy |
| Enclosure rating | IP65 |
| Housing cross-section | 35*27mm |
| Ambient operating temperature | -10℃-55℃（with no freezing） |
| Storage temperature | -30℃～70℃（with no freezing） |
| Ambient operating humidity | When temperature is 20℃，humidity max 85% |

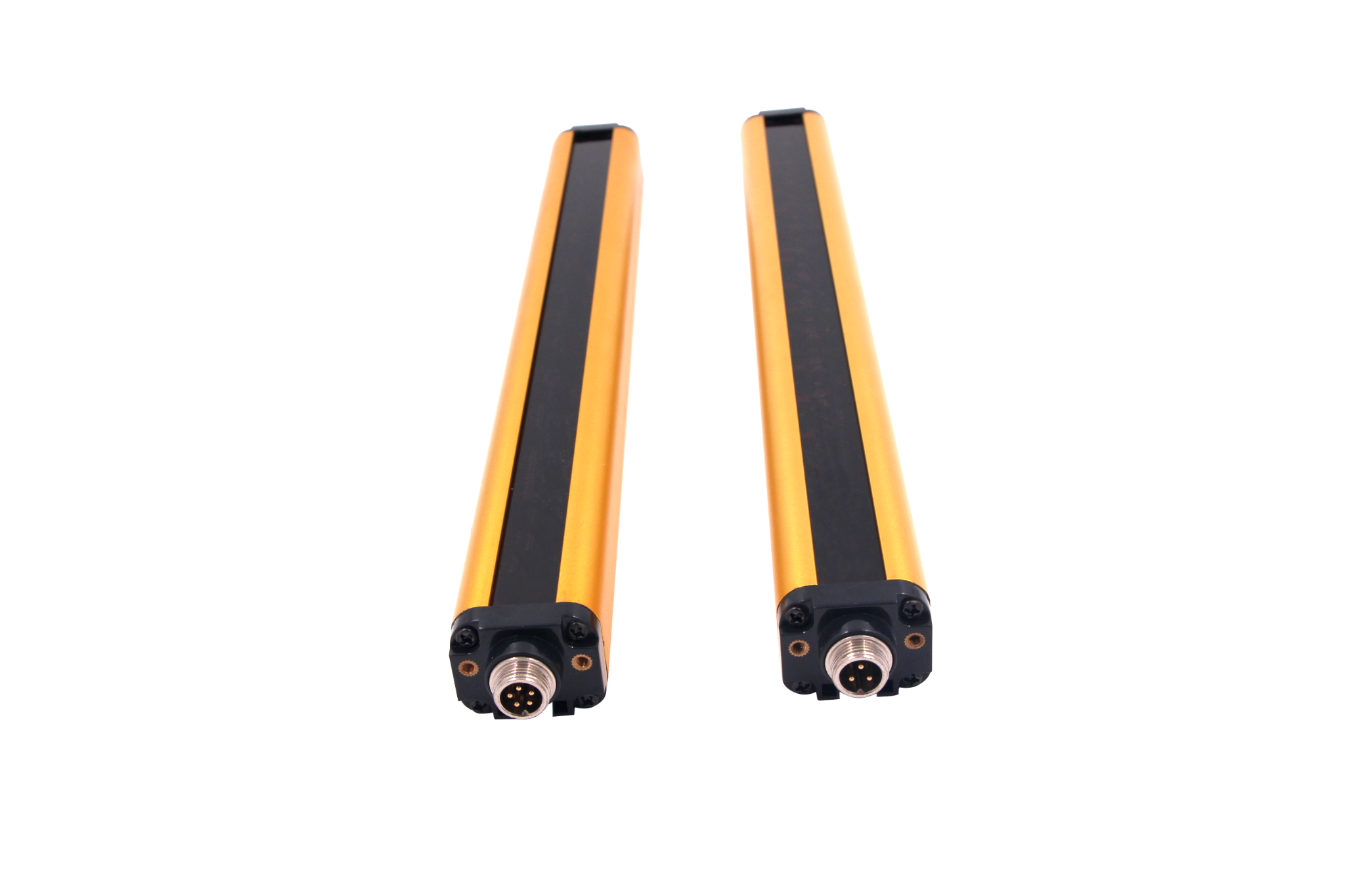

Wire Connection
Explanation of Model Number
Product Size
A1: Uppercover A2: Bottomcover + aviation cap B1: Upper stop-work range B2: Bottom stop-work range D: Beam gap H: Protective height L: Total height | A1=14mm; A2=20mm When D=10mm, B1=5mm; B2=25mm When D=20mm, B1=5mm; B2=35mm When D=40mm, B1=5mm; B2=35mm H is protective height:H=(beams-1) * beam space L is total height: L=A1+A2+B1+B2+H |

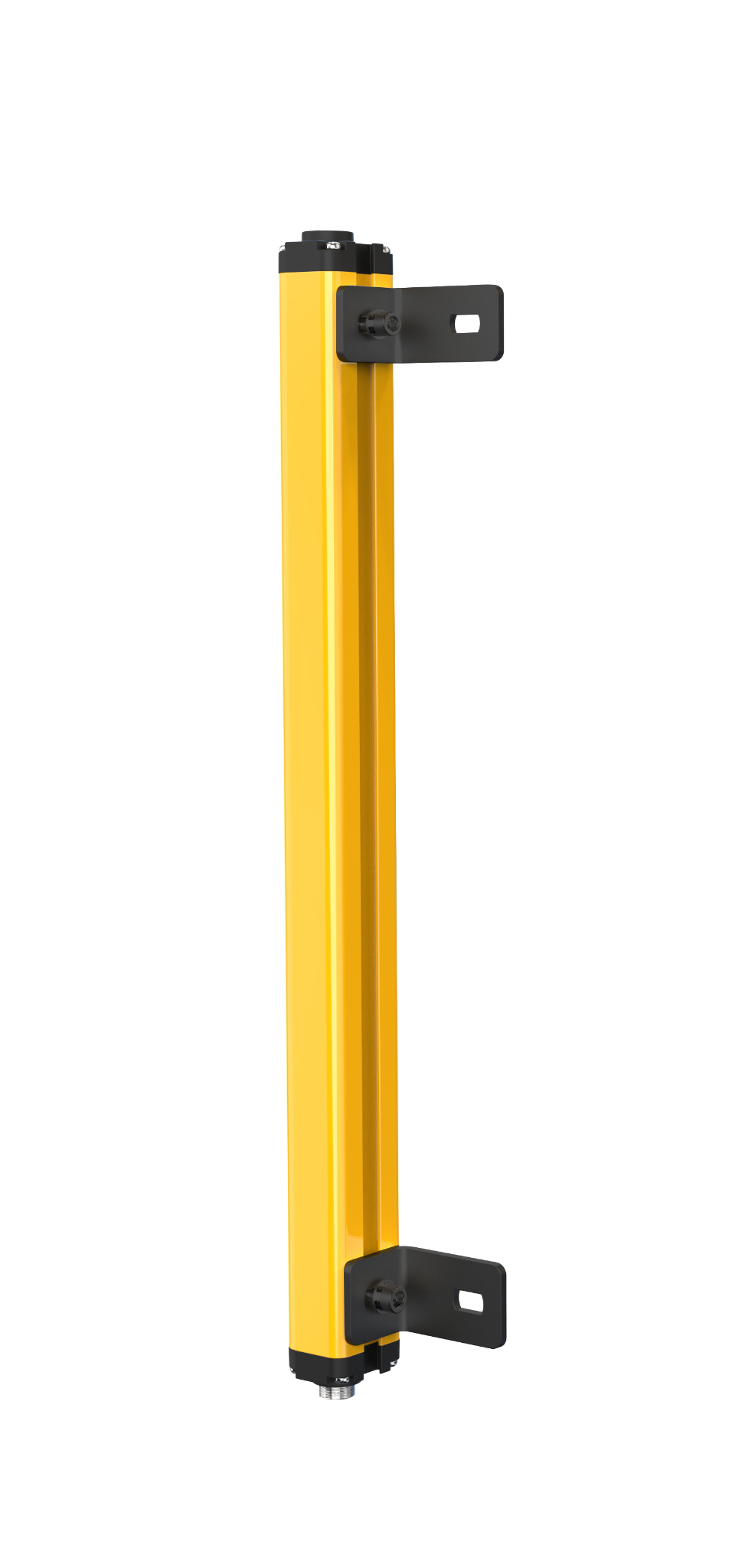

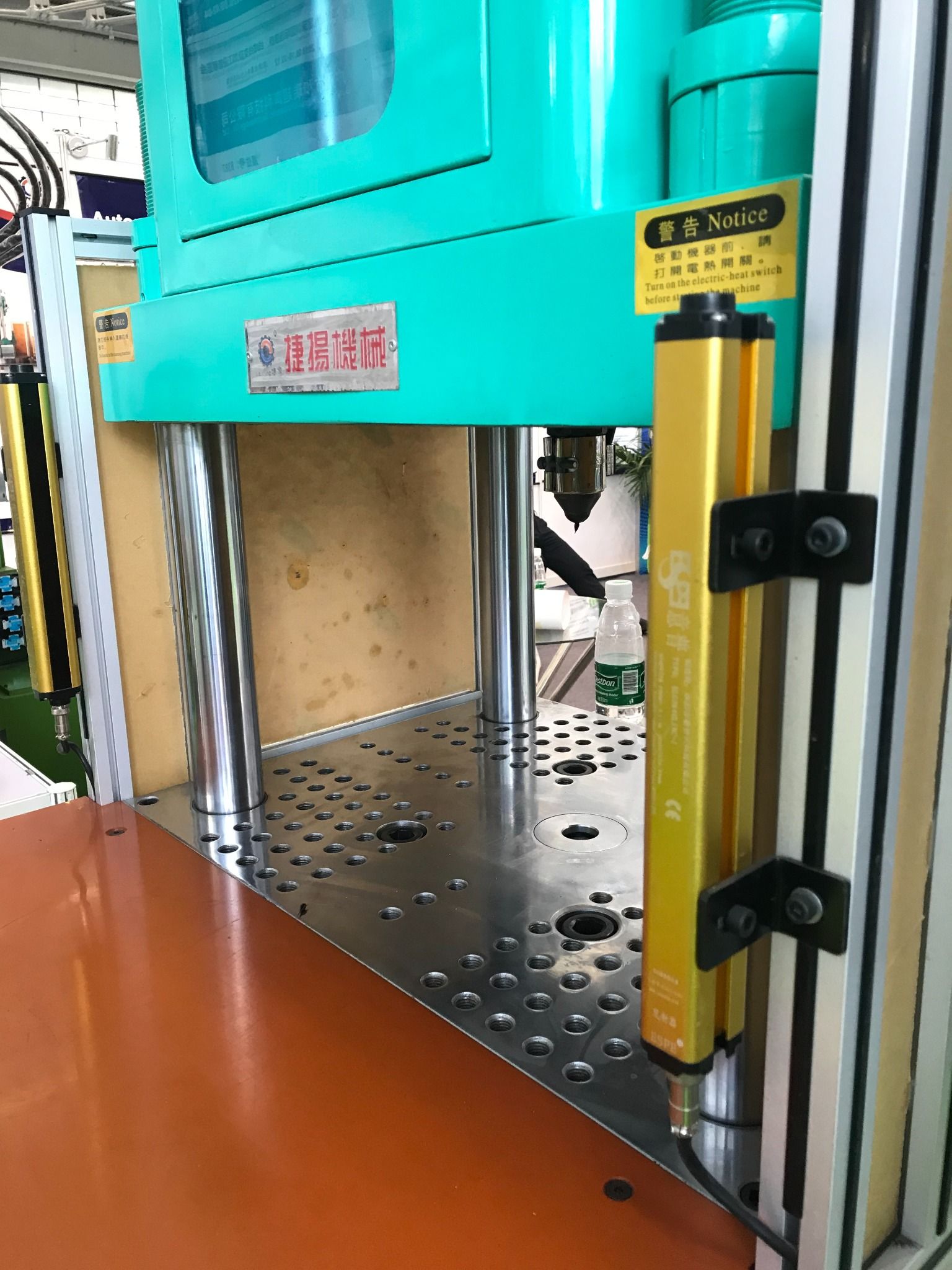

Option for Brackets
Model Selection Table
Beam space 10mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | |
| 8 | 70 | 139 | ELG0810 | |
| 12 | 110 | 179 | ELG1210 | |
| 16 | 150 | 219 | ELG1610 | |
| 20 | 190 | 259 | ELG2010 | |
| 24 | 230 | 299 | ELG2410 | |
| 28 | 270 | 339 | ELG2810 | |
| 32 | 310 | 379 | ELG3210 | |
| 36 | 350 | 419 | ELG3610 | |
| 40 | 390 | 459 | ELG4010 | |
| 44 | 430 | 499 | ELG4410 | |
| 48 | 470 | 539 | ELG4810 | |
| 52 | 510 | 579 | ELG5210 | |
| 56 | 550 | 619 | ELG5610 | |
| 60 | 590 | 659 | ELG6010 | |
| 64 | 630 | 699 | ELG6410 | |
| 68 | 670 | 739 | ELG6810 | |
| 72 | 710 | 779 | ELG7210 | |
| 76 | 750 | 819 | ELG7610 | |
| 80 | 790 | 859 | ELG8010 | |
| 84 | 830 | 899 | ELG8410 | |
| 88 | 870 | 939 | ELG8810 | |
| 92 | 910 | 979 | ELG9210 | |
| 96 | 950 | 1019 | ELG9610 | |
| 100 | 990 | 1059 | ELG10010 | |
| 104 | 1030 | 1099 | ELG10410 | |
| 108 | 1070 | 1139 | ELG10810 | |
| 112 | 1110 | 1179 | ELG11210 | |
| 116 | 1150 | 1219 | ELG11610 | |
| 120 | 1190 | 1259 | ELG12010 | |
| 124 | 1230 | 1299 | ELG12410 | |
| 128 | 1270 | 1339 | ELG12810 | |
| …… | …… | …… | …… | |
| 144 | 1430 | 1499 | ELG14410 |
Beam space 20mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | |
| 4 | 60 | 114 | ELG0420 | |
| 6 | 100 | 179 | ELG0620 | |
| 8 | 140 | 219 | ELG0820 | |
| 10 | 180 | 259 | ELG1020 | |
| 12 | 220 | 299 | ELG1220 | |
| 14 | 260 | 339 | ELG1420 | |
| 16 | 300 | 379 | ELG1620 | |
| 18 | 340 | 419 | ELG1820 | |
| 20 | 380 | 459 | ELG2020 | |
| 22 | 420 | 499 | ELG2220 | |
| 24 | 460 | 539 | ELG2420 | |
| 26 | 500 | 579 | ELG2620 | |
| 28 | 540 | 619 | ELG2820 | |
| 30 | 580 | 659 | ELG3020 | |
| 32 | 620 | 699 | ELG3220 | |
| 34 | 660 | 739 | ELG3420 | |
| 36 | 700 | 779 | ELG3620 | |
| 38 | 740 | 819 | ELG3820 | |
| 40 | 780 | 859 | ELG4020 | |
| 42 | 820 | 899 | ELG4220 | |
| 44 | 860 | 939 | ELG4420 | |
| 46 | 900 | 979 | ELG4620 | |
| 48 | 940 | 1019 | ELG4820 | |
| 50 | 980 | 1059 | ELG5020 | |
| 52 | 1020 | 1099 | ELG5220 | |
| 54 | 1060 | 1139 | ELG5420 | |
| 56 | 1100 | 1179 | ELG5620 | |
| 58 | 1140 | 1219 | ELG5820 | |
| 60 | 1180 | 1259 | ELG6020 | |
| 62 | 1220 | 1299 | ELG6220 | |
| 64 | 1260 | 1339 | ELG6420 | |
| …… | …… | …… | …… | |
| 72 | 1420 | 1499 | ELG7220 |
Beam space 40mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | |
| 4 | 120 | 199 | ELG0440 | |
| 6 | 200 | 279 | ELG0640 | |
| 8 | 280 | 359 | ELG0840 | |
| 10 | 360 | 439 | ELG1040 | |
| 12 | 440 | 519 | ELG1240 | |
| 14 | 520 | 599 | ELG1440 | |
| 16 | 600 | 679 | ELG1640 | |
| 18 | 680 | 759 | ELG1840 | |
| 20 | 760 | 839 | ELG2040 | |
| 22 | 840 | 919 | ELG2240 | |
| 24 | 920 | 999 | ELG2440 | |
| 26 | 1000 | 1079 | ELG2640 | |
| 28 | 1080 | 1159 | ELG2840 | |
| 30 | 1160 | 1239 | ELG3040 | |
| 32 | 1240 | 1319 | ELG3240 | |
| 34 | 1320 | 1399 | ELG3440 | |
| 36 | 1400 | 1479 | ELG3640 |
