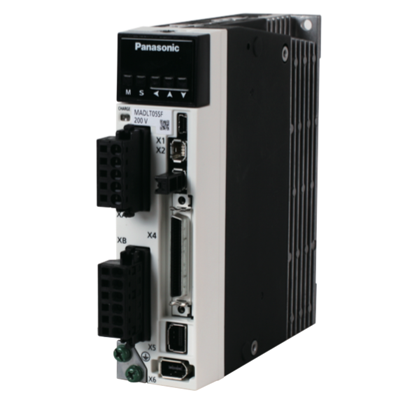

Spec Detail
Item | Specifications |
---|---|
Part Number | MBDLT25SF |
Details | A6SF series Multifunction type (Pulse analog full-closed) with the safety function |
Family Name | MINAS A6 |
Series | A6SF series |
Type | Multifunction type |
Frame | B-Frame |
Frequency response (kHz) | 3.2 |
Control method | Position control, Velocity control, Torque control, and Full-closed control |
Safety Function | with |
Supply voltage | Single/3-phase 200 V |
I/F Classification of type | Analog /Pulse, Modbus (RS485 /RS232) |
Dimensions (W) (Unit: mm) | 55 |
Dimensions (H) (Unit: mm) | 150 |
Dimensions (D) (Unit: mm) | 130 |
Mass (kg) | 1.0 |
Environment | For more details, please refer to the instruction manual. |
Basic Specifications
Item | Specifications |
---|---|
Input power: Main circuit | Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz |
Input power: Control circuit | Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz |
Encoder feedback | 23-bit (8388608 resolution) absolute encoder, 7-wire serial |
About Encoder feedback | * When using it as an incremental system (not using multi-turn data), do not connect the battery for absolute encoder. Parameter Pr. 0.15 must be set to "1" (factory settings). |
External scale feedback | A/B phase, homing signal differential input. ”A communication protocol developed for Servo Motor encoders of Panasonic Industry Co., Ltd.” is also supported. |
Parallel I/O connector: Control signal Input | General purpose 10 inputs The function of general-purpose input is selected by parameters. |
Parallel I/O connector: Control signal Output | General purpose 6 output The function of general-purpose output is selected by parameters. |
Parallel I/O connector: Analog signal Input | 3 inputs (16-bit A/D : 1 input, 12-bit A/D : 2 inputs) |
Parallel I/O connector: Analog signal Output | 2 outputs (Analog monitor: 2 output) |
Parallel I/O connector: Pulse signal Input | 2 inputs (Photo-coupler input, Line receiver input) Both open collector and line driver interface can be connected. High speed line driver interface can be connected. |
Parallel I/O connector: Pulse signal Output | 4 outputs (Line driver: 3 output, open collector: 1 output) Line driver output for encoder pulses (A/B/Z signal) or external feedback pulses (EXA/EXB/EXZ signal) open collector output also available for Z or EXZ signal. |
Communication function | USB, RS232, RS485, Modbus-RTU |
Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
Communication function: RS232 | 1:1 communication |
Communication function: RS485 | 1: n communication (max 31) |
Communication function: Modbus-RTU | 1: n communication |
Regeneration | No built-in regenerative resistor (external resistor only) |
Control mode | Switching among the following 7 mode is enabled, (1) Position control, (2) Speed control, (3) Torque control, (4) Position/speed control, (5) Position/Torque control, (6) Speed/Torque control, (7) Full-closed control |
Connector specification:
* The dimension is for the A6SF Series. Please refer to the catalog for detail dimension.
Dimensions:
* The dimension is for the A6SF Series. Please refer to the catalog for detail dimension.
