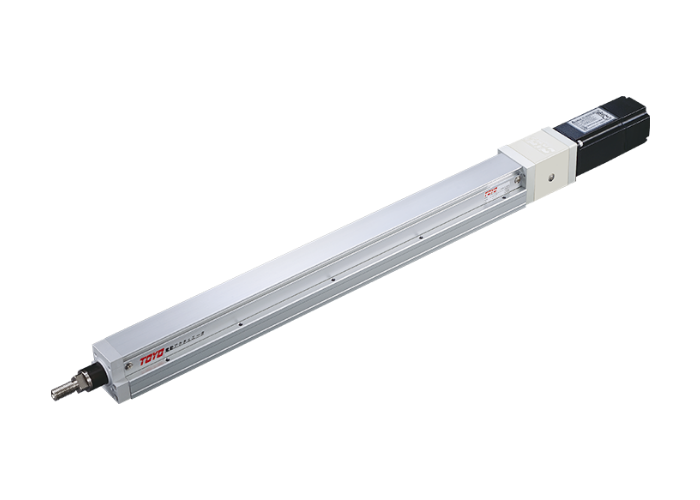

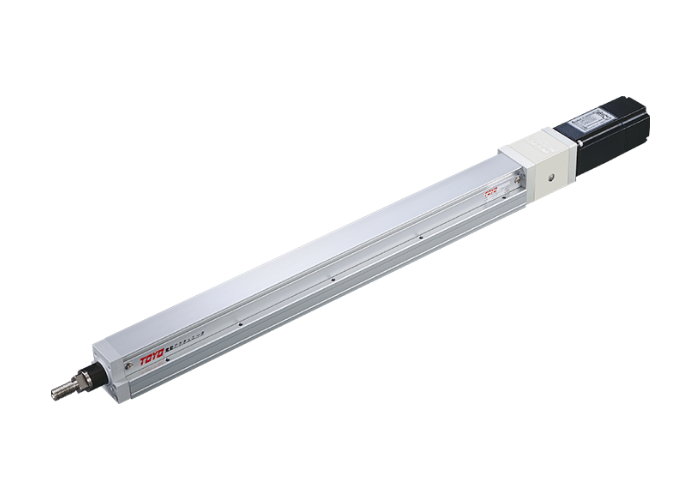

Linear motion modules GTY4
0₫
Mô tả
Repeatability：±0.01(mm)
Ball Screw Lead：2/6/12(mm)
Maximum Speed ：100/300/600(mm/s)
Maximum Payload (Horizontal)：25/20/12(kg)
Maximum Payload (Vertical)：8/5/2(kg)
Rated Thrust：424/141/71(N)
Stroke/Pitch ：50-500 / 50 mm Pitch.
* If payload near maximum , it requires to collocate externally with auxiliary guideway for bearing radial load.
* Acceleration and deacceleration value is set 0.2 second.
####
