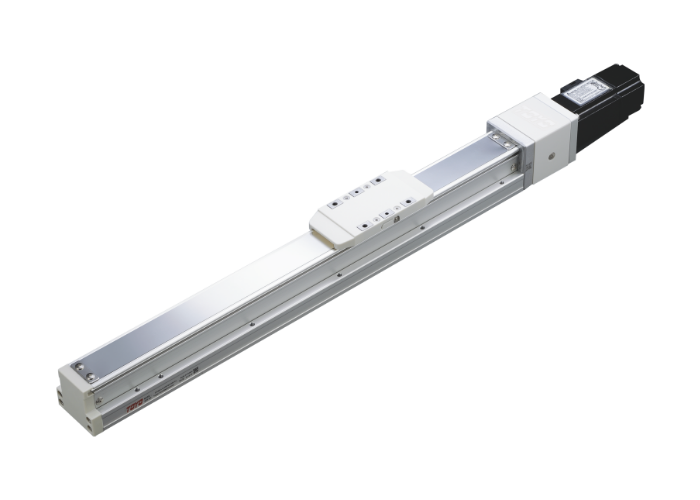

Linear motion modules GTH5
0₫
Mô tả
Repeatability：±0.005(mm)
Ball Screw Lead：2/5/10/20(mm)
Maximum Speed ：100/250/500/1000(mm/s)
Maximum Payload (Horizontal)：30/30/15/10(kg)
Maximum Payload (Vertical)：10/10/5/2.5(kg)
Rated Thrust：854/341/170/85(N)
Stroke/Pitch ：50-800 / 50 mm Pitch.
* When the stroke is over 600 mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.
* Acceleration and deacceleration value is set 0.2 second
####
.
