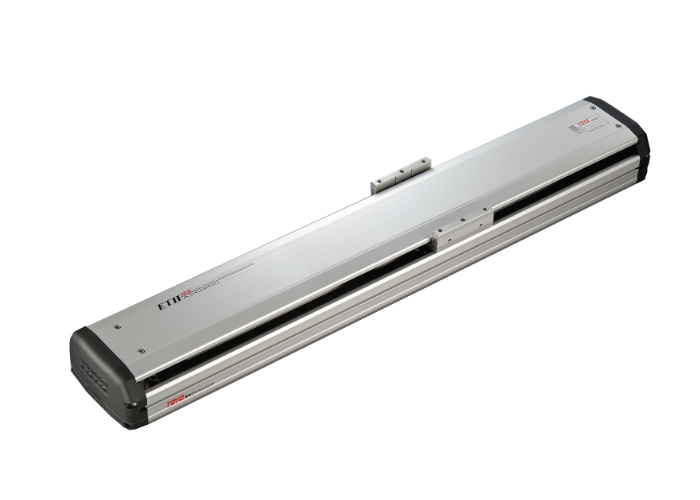

Linear motion modules ETH13 - Toyo Robot

0₫

Mô tả

Repeatability±0.005(mm)
Ball Screw Lead5/10/20/32(mm)
Maximum Speed250/500/1000/1600(mm/s)
Maximum Payload (Horizontal)70/47/24/13(kg)
Maximum Payload (Vertical)17/12/6/-(kg)
Rated Thrust1388/694/433/347(N)
Stroke/Pitch 50-1050/ 50 mm pitch

*When the stroke is over 750mm, the run-out of the ball screw will occur .We recommend to low down the working speed under this circumstances.
*Acceleration and deacceleration value is set 0.4 second.

####
