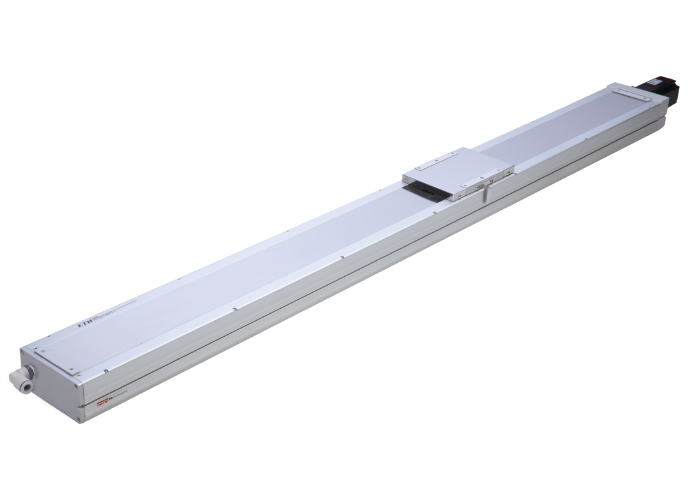

Linear motion modules ECH22M - Toyo Robot

Repeatability：±0.005(mm)
Ball Screw Lead：5/10/20/40(mm)
Maximum Speed：200/400/800/1600(mm/s)
Maximum Payload (Horizontal)：1330/130/85/43(kg)
Maximum Payload (Vertical)：50/40/25/12(N)
Rated Thrust：50/40/25/12(N)
Stroke/Pitch ：850-2400 / 50 mm pitch

*When the stroke is over 2050 mm, the run-off the ball screw will occur.We recommend to low down the working speed under this circumstances.
*Acceleration and deacceleration value is set 0.2 second.

####
