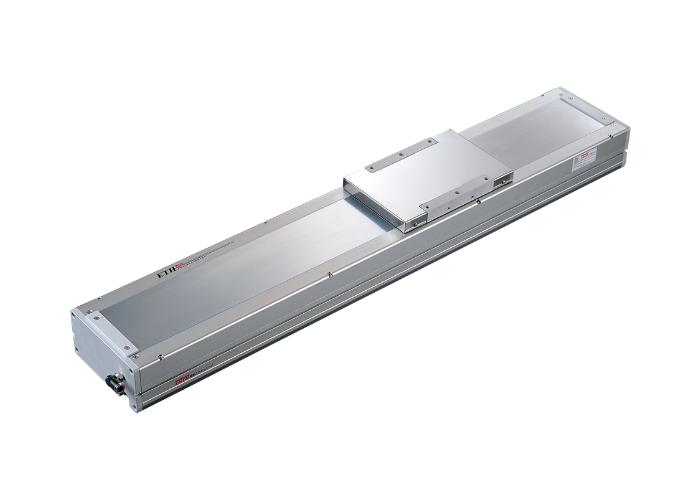

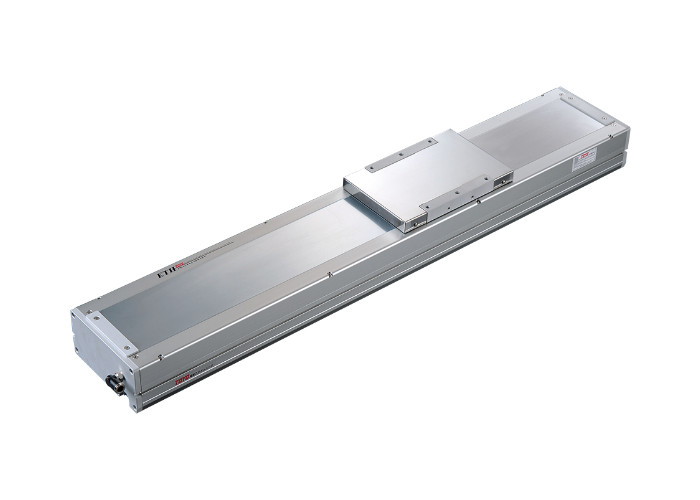

Linear motion modules ECH17 - Toyo Robot

Giá gốc Giá bán: 0₫

Repeatability±0.005(mm)
Ball Screw Lead5/10/20/40(mm)
Maximum Speed250/500/1000/2000(mm/s)
Maximum Payload (Horizontal)120/110/75/22(kg)
Maximum Payload (Vertical)40/30/14/7(kg)
Rated Thrust1388/694/347/217(N)
Stroke/Pitch 50-1050/ 50 mm pitch

*When the stroke is over 850 mm, the run-off the ball screw will occur.We recommend to low down the working speed under this circumstances.
*Acceleration and deacceleration value is set 0.2 second.
