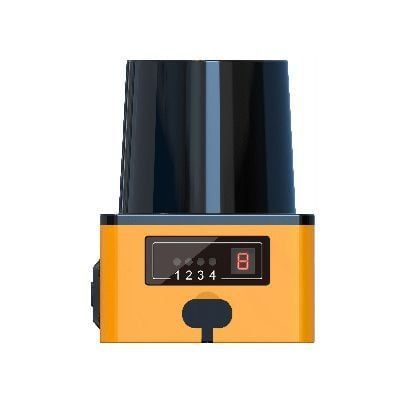

LGA10 270° Laser Scanner
0₫
Mô tả
Brand: ESPE
Model: LGA10
Feature:
Accurate realistic target restoration ±30mm detection precision;
62mm * 62mm*83mm (max) compact size;
Customized multi-angle view for different requirement;
Detecting distance can reach 20m;
0.18° minimum angular;
Strong recognition ability even low reflectivity.
####
Technical Parameter
| Detection distance | 0.1-8m (reflectivity 20%) 0.1-20m (relfectivity 90%) | |
| Detection range | 270° | |
| Scanning principle | Pulse TOF | |
| Laser level | Level 1 ( IEC60825-1:2014, EN60825-1:2014) | |
| Wave length | 905nm | |
| Sampling rate | 20KHz | |
| Scanning frequency | 10Hz, 20Hz can be set | |
Horizontal angular resolution | 0.18° | |
| Response time | 100ms | |
| Accuracy | ±30mm | |
| Startup time | 8s | |
| Channel | 15 (each channel includes 3 detection areas) | |
| Operating current (DC24V) | ≤100ma (signal output not by IO) | |
| Switching input | 4 | |
| Switching output | 4 (2 for NPN area warning signals, 1 pair for NPN OSSD safety output signal) NPN or PNP output | |
| Protection rate | IP65 | |
| Anti-optical interference | 100000 Lux | |
| Weight | 171g | |
| Dimension (max) | 62mm * 62mm *79mm | |
Sine vibration frequency | 10 Hz-1000Hz, acceleration 5g, 10 time each at X, Y,Z | |
Randon vibration frequency | 5Hz-250H, Gr.m.s=4.24g, 5 hours each at X,Y,Z direction | |
Impact resistance | 196/(20G) 3000 times each at X, Y and Z directions. | |
Electromagnetic compatibility | EN IEC61000-6-2:2019; EN61000-6-4:2019 | |
| Indicator | 4 (3 for area signal, 1 for faulty signal) | |
| Communication interface | (USB or RS232 or RS485) & Ethernet | |
| Power supply | DC9-28V | |
| Rated power | <1.5W (without load) | |
| Starting power | <3W (without load) | |
| Operating temperature | -10℃-55℃ | |
| Storage temperature | -20℃ - 70℃ | |
| Operating humidity | Below 85% RH | |

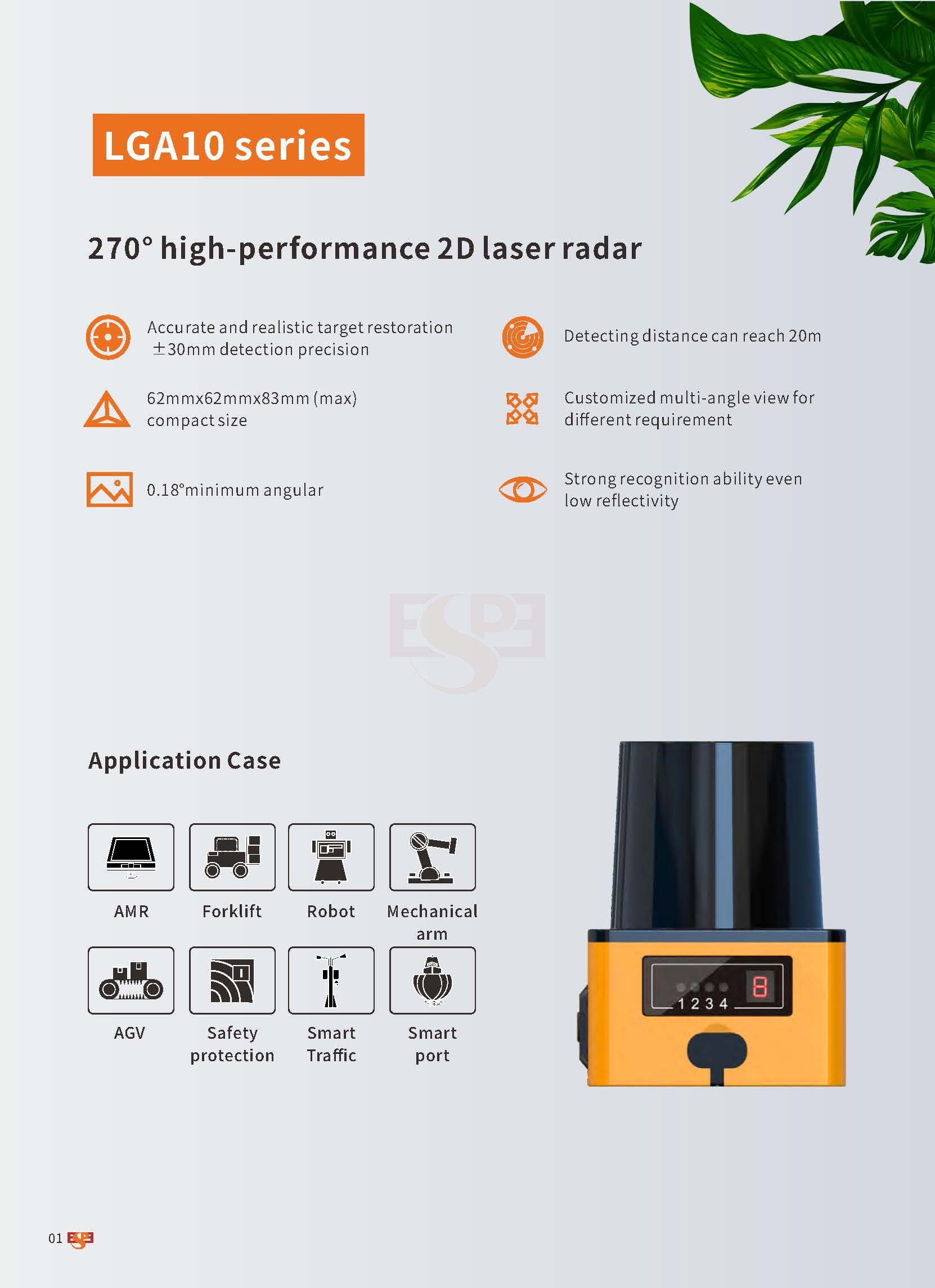

Product Feature

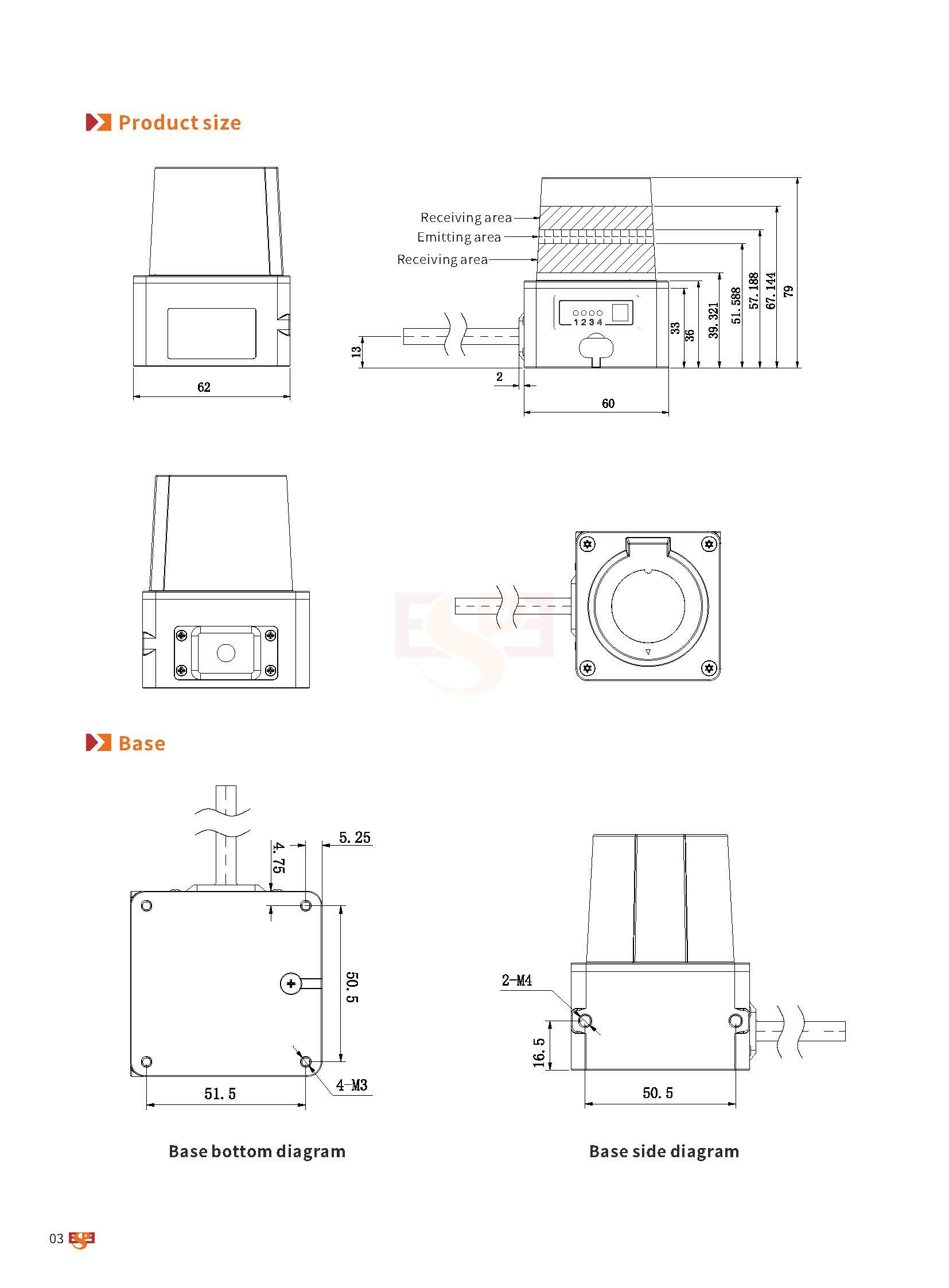

Product Size

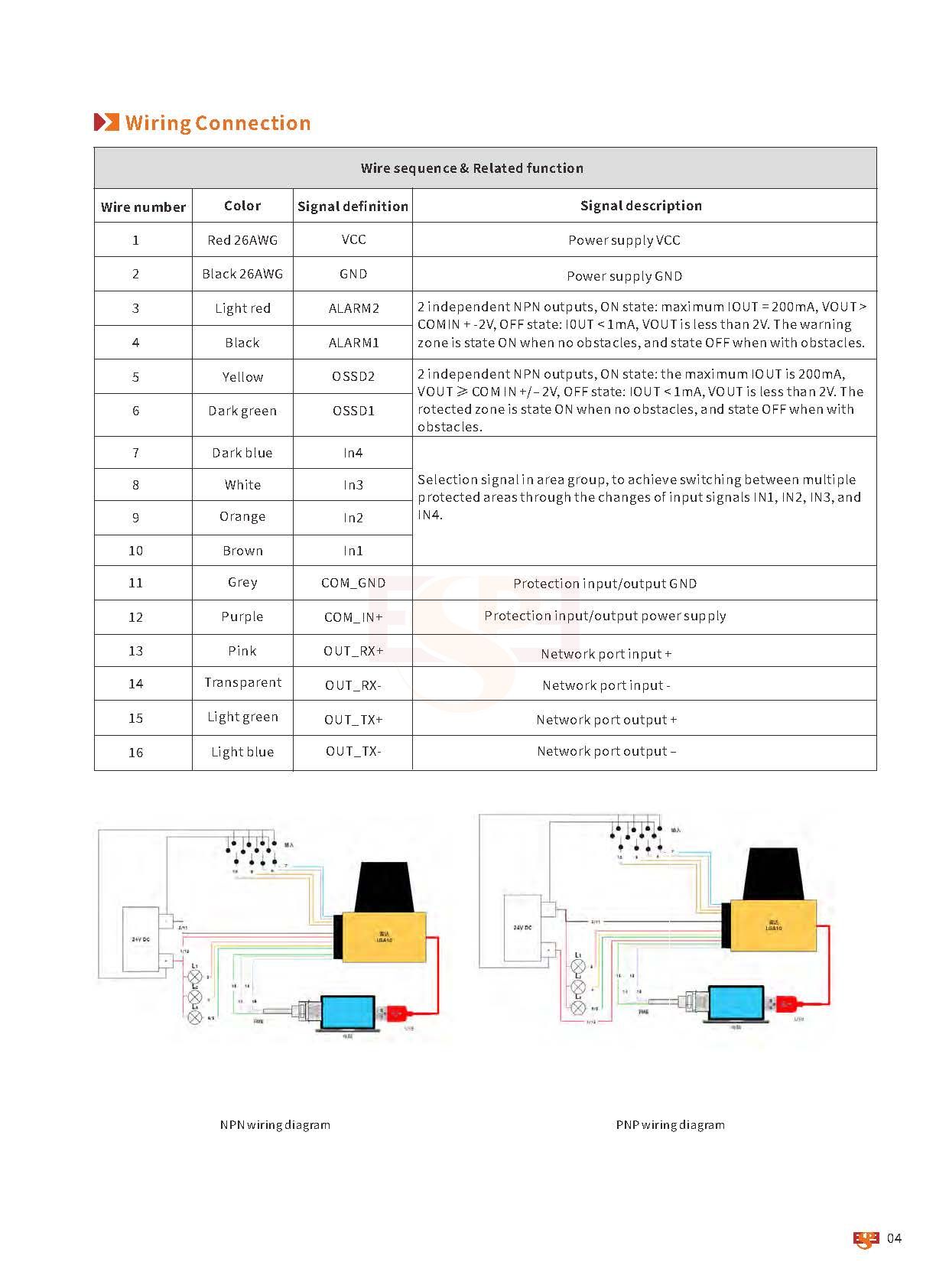

Wire Connection
