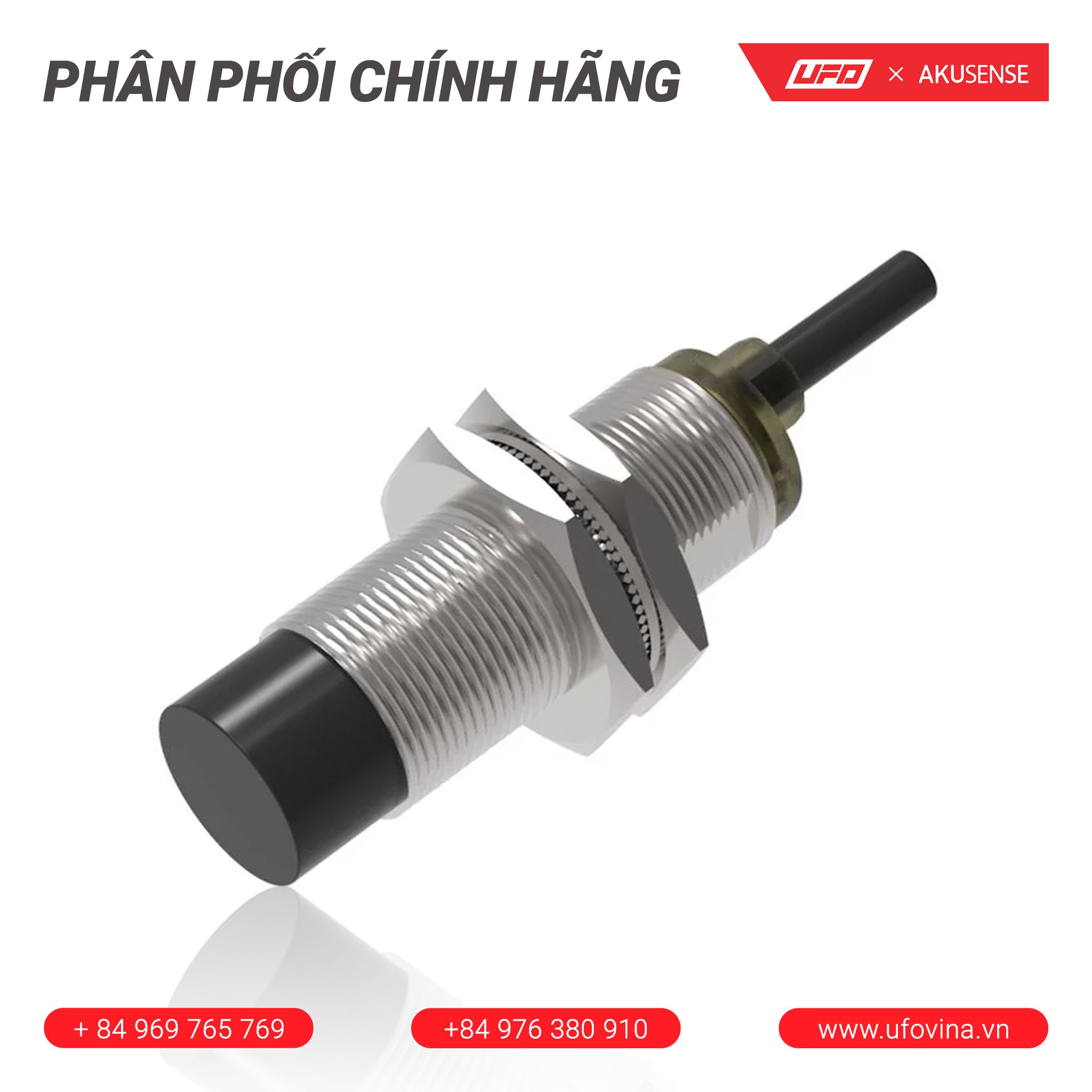

Extended Distance Sensor TLN12-08NO

Giá gốc Giá bán: 0₫

- Size:M12

- Repeatability:<5.0%(Sr)

- Switch Mode:500Hz

- Connection Method:Cable-type

- Protection Degree:IP67

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

ModelTLN12-08NO
Connection MethodCable-type
Installation MethodUnflush
SizeM12
Detaction Distance8mm±10%
OutputNPN normally open
Housing MaterialNickel-copper Alloy
Working Voltage10~30V DC(Voltage Fluctuation<10%)
Residual Voltage<2.0V
Load Current150mA
Current Consumption<10mA
Leakage Current<0.01mA
Switch Mode500Hz
Repeatability<5.0%(Sr)
Hysteresis<15%(Sr)
Sensing Surface MaterialPBT
Ambient Temperature-25℃~+75℃
Circuit ProtectionShort-circuit protection
Protection DegreeIP67

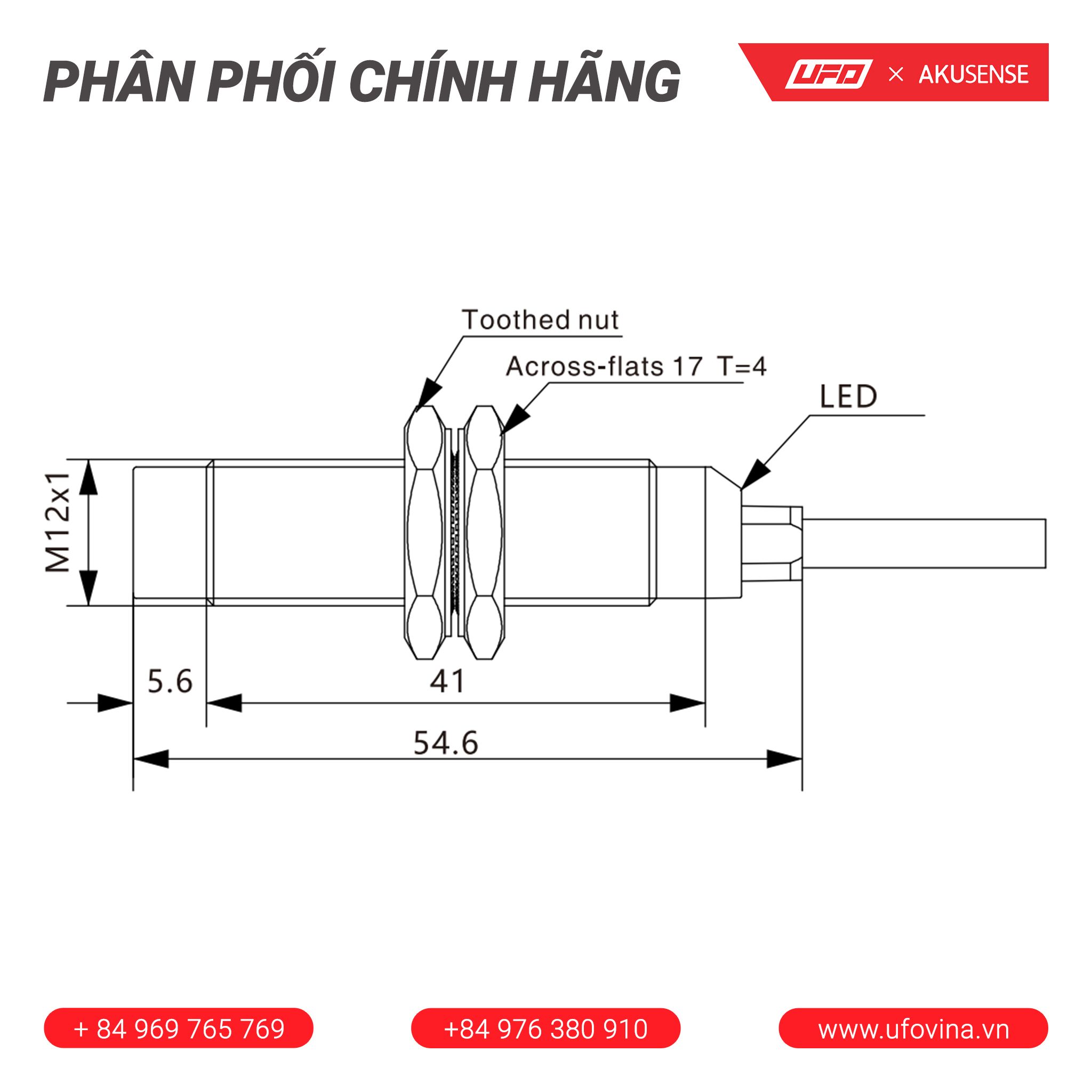

Size structure:

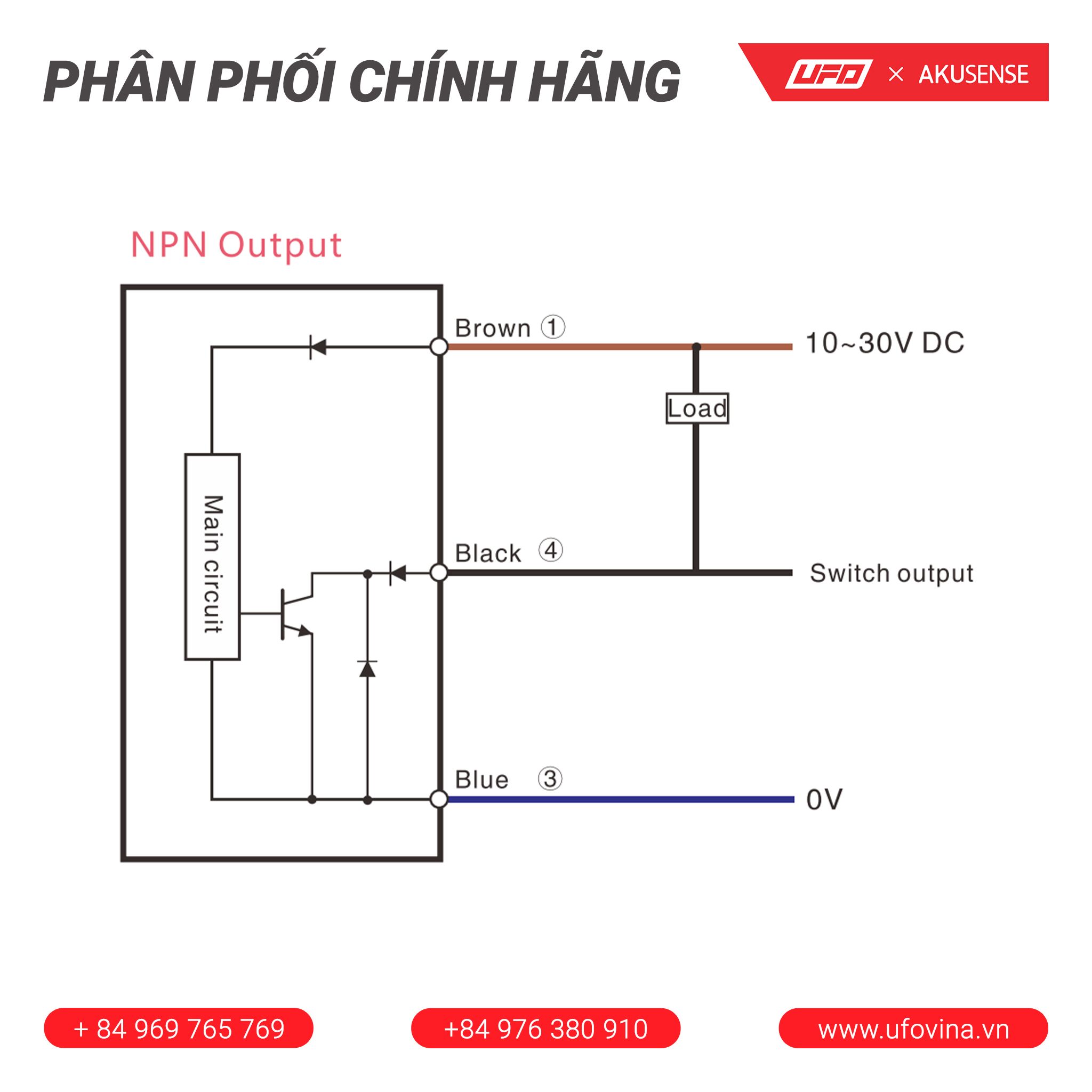

Circuit diagram:

TL Series Catalog:
