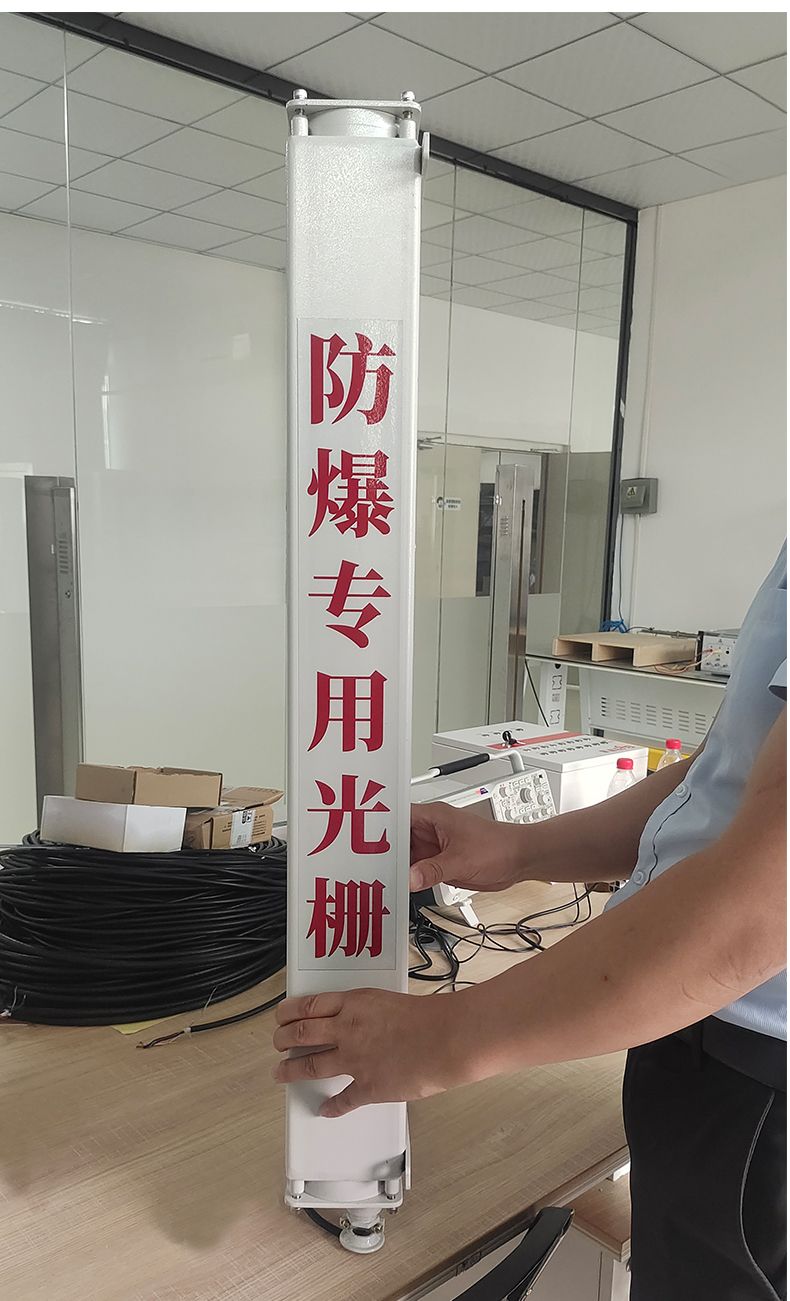

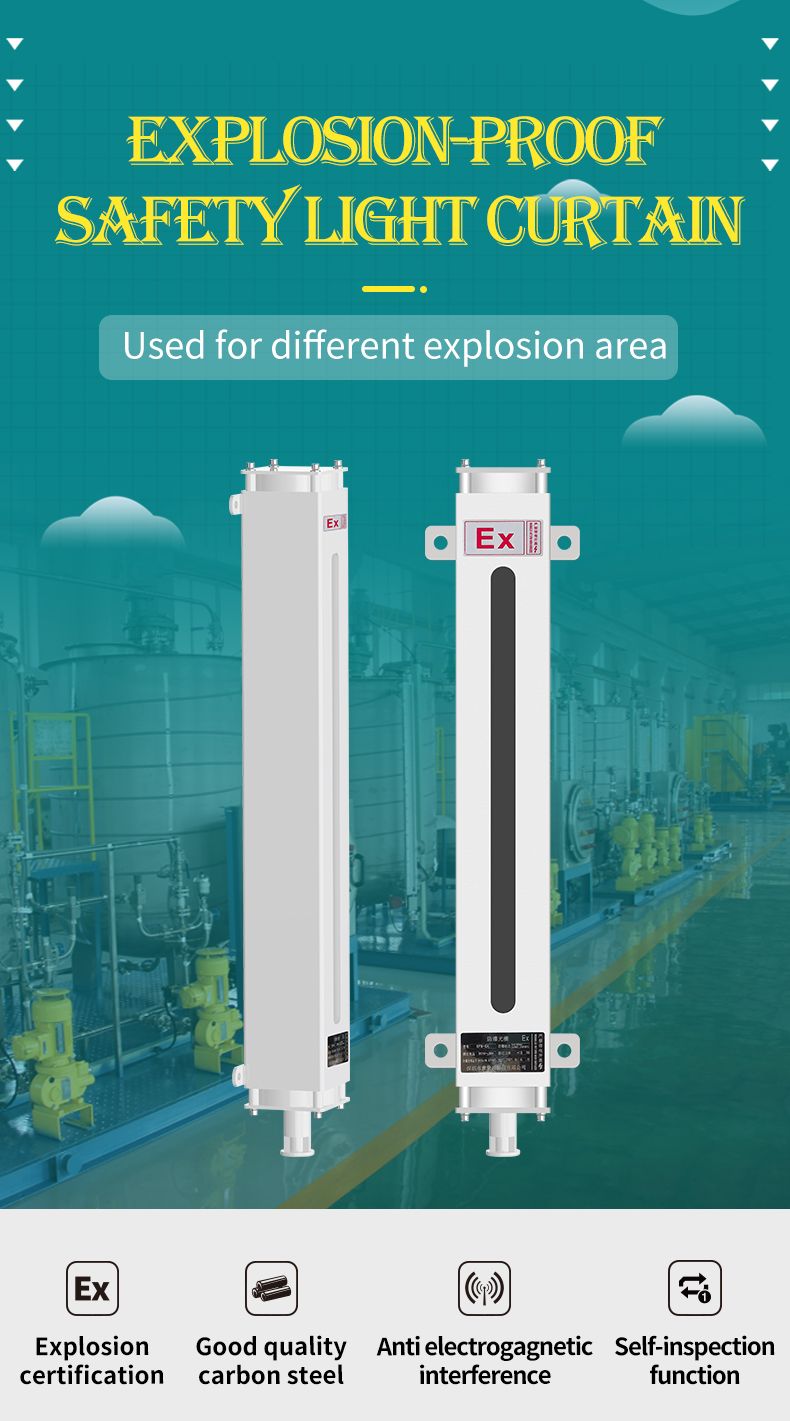

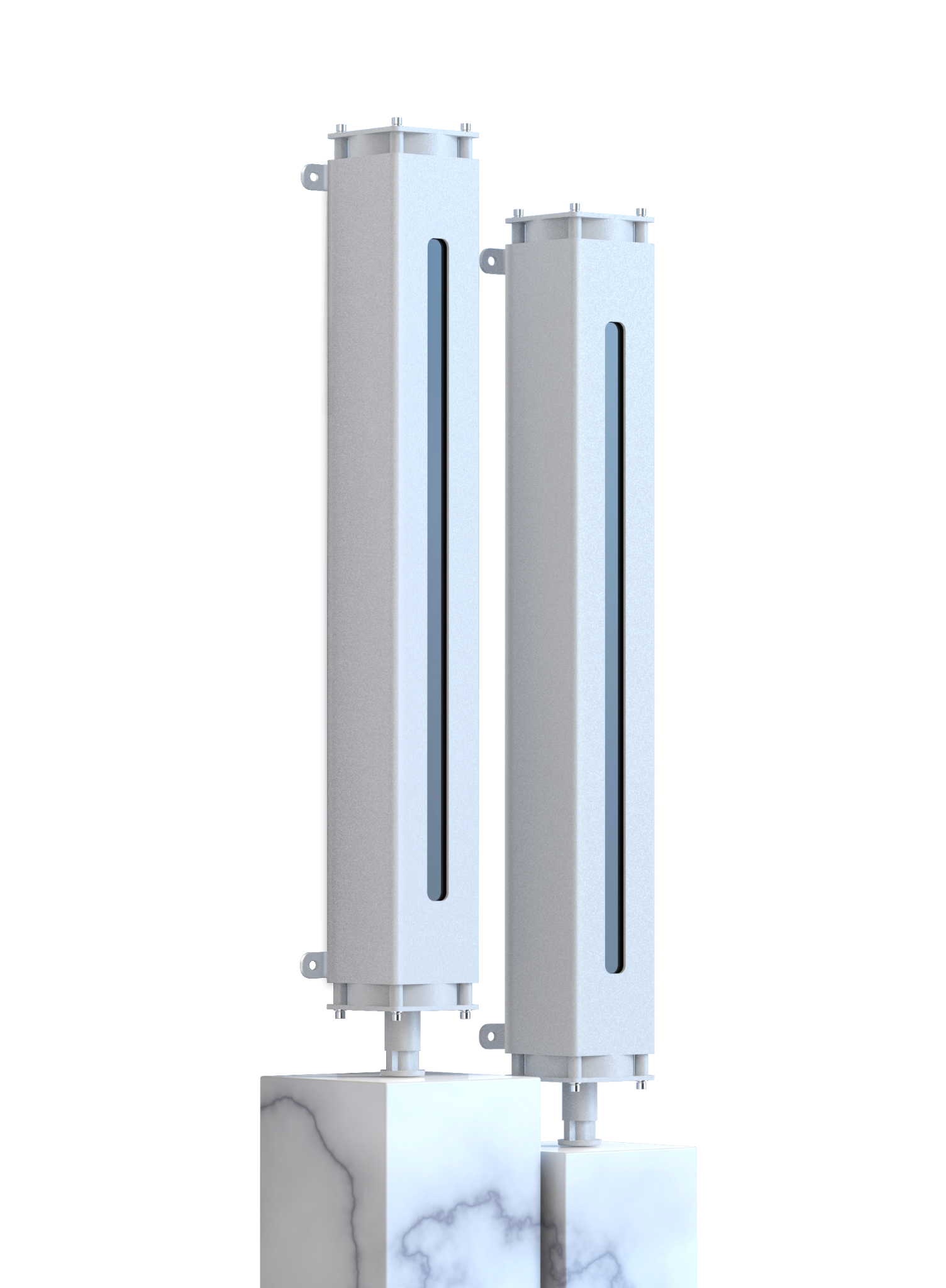

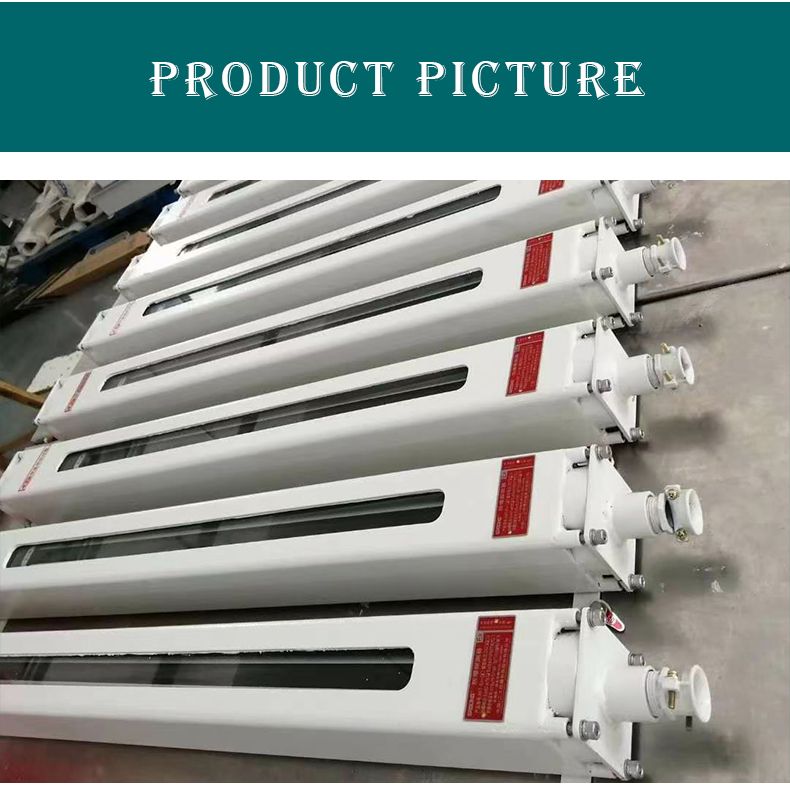

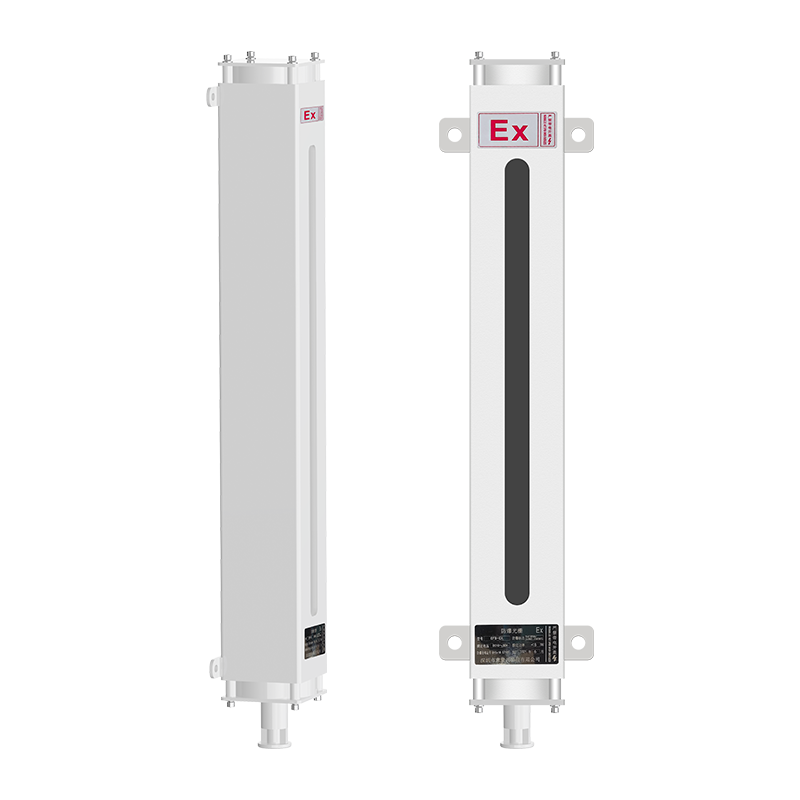

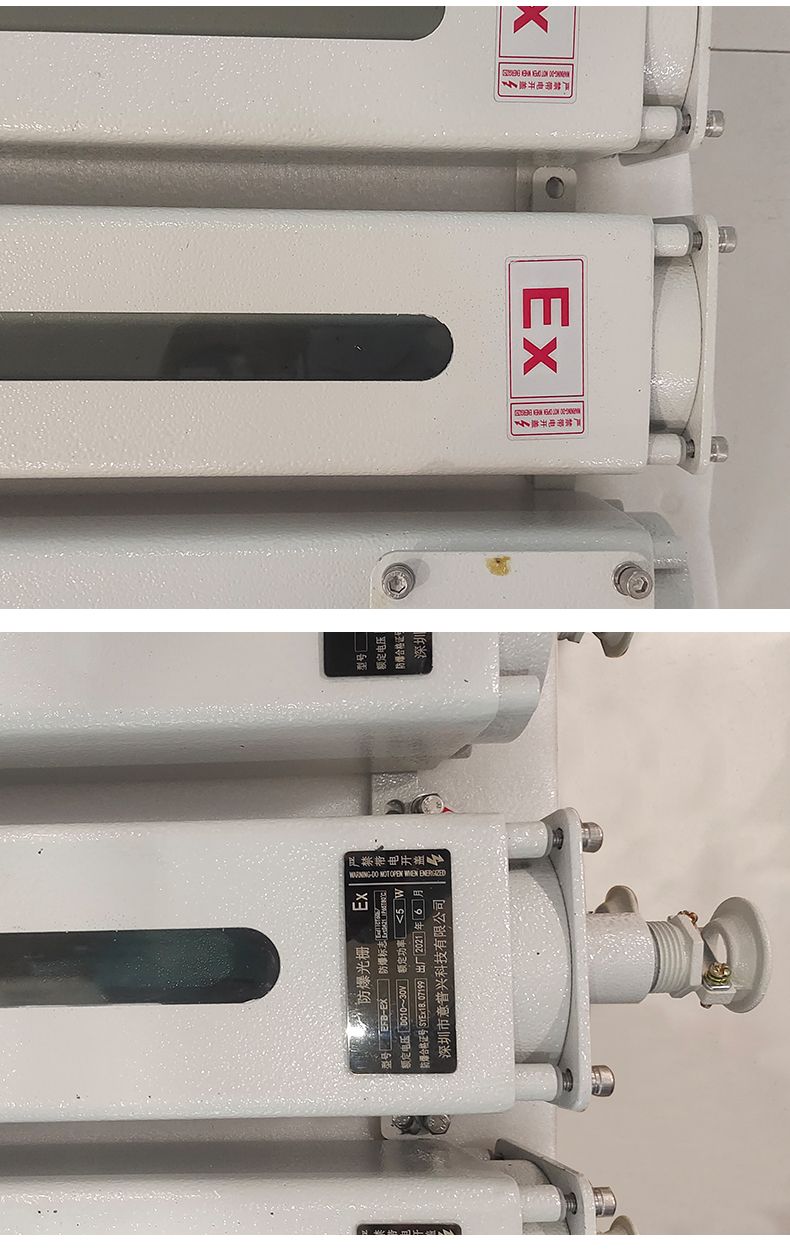

Explosion Proof Safety Light Curtain

Giá gốc Giá bán: 0₫

Brand: ESPE

Model: EFB Series

Product Feature:

EFB series explosion-proof safety light curtain, mainly used for isolation and explosion prevention. Applicable to explosive gas environmental Zone 1, Zone 2; grade IIA, grade IIB, grade IIC explosive gas environmental zone; combustible dust environmental zone 20, zone 21, zone 22; temperature grade Tl-T6 environmental zone; petrochemical, offshore drilling platform, metallurgy, medicine, light industry, textile, wine, paint, coatings, food, biological engineering and military facilities, etc.

Download Catalog

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

Technical Parameters

Parameter of safety light curtain
Supply voltageDC10V~30V
Capacity<5W
Beam space10mm, 20mm, 40mm
Resolution20mm, 30mm, 50mm
Beams10mm beam space:32, 36, 40……17620mm beam space: 16, 18, 20……8840mm beam space:8, 10, 12……44
Protective heightProtective height =(N-1)*beam gap,N is beam quantity
Wave length940nm
Response timeResponse time =(N * 0.1ms) + 0.4ms, N is beam quantity
Type of output(OSSD)PNP/NPN semiconductors,current <200mA max, residual voltage: 1 V max. leakage current: 1mA max. (Expect voltage influenced by lengthen wire).
Protective circuitOverload voltage protection, power supply reverse polarity protection, over current protection.
Sensing distance0.1~5m, 0.1~10m, 0.1~20m (If reflective light environment, please let us know in advanced)
Anti-optical interference10000Lux(I >5°)
Sensing methodThrough-beam type
SynchronizationWire synchronization
Enclosure materialAluminum alloy
Enclosure ratingIP65
Housing cross-section35*50mm
Vibration resistance10Hz~55Hz,double amplitude each in X、Y、Z directions for 20 times.
Ambient operating temperature-10℃-55℃(with no freezing)
Storage temperature-30℃~70℃(with no freezing)
Ambient operating humidityWhen temperature is 20℃,humidity max 85%

Wire Connection

Explosion Proof Safety Light Curtain

Explanation of Model Number

Explosion Proof Safety Light Curtain

Product Size

Explosion Proof Safety Light Curtain

B1: Upper stop-work range for sensing side

B2: Bottom stop-work range for sensing side

D: Beam space

H: Protective height

L: Total height

When D=10mm, B1=10mm, B2=35mm

When D=20mm, B1=15mm, B2=40mm

When D=40mm, B1=15mm, B2=60mm

H is protective height: H=(beams-1) *beam space

L is total height: L=A1+A2+B1+B2+H+261

Model Selection Table

Beam space 10mm

BeamsProtective Height (mm)Total Height (mm)Model3D File
32310616EFB-EX-N3210Download
36350656EFB-EX-N3610Download
40390696EFB-EX-N4010Download
44430736EFB-EX-N4410Download
48470776EFB-EX-N4810Download
52510816EFB-EX-N5210Download
56550856EFB-EX-N5610Download
60590896EFB-EX-N6010Download
64630936EFB-EX-N6410Download
68670976EFB-EX-N6810Download
727101016EFB-EX-N7210Download
767501056EFB-EX-N7610Download
807901096EFB-EX-N8010Download
848301136EFB-EX-N8410Download
888701176EFB-EX-N8810Download
929101216EFB-EX-N9210Download
969501256EFB-EX-N9610Download
1009901296EFB-EX-N10010Download
10410301336EFB-EX-N10410Download
10810701376EFB-EX-N10810Download
11211101416EFB-EX-N11210Download
11611501456EFB-EX-N11610Download
12011901496EFB-EX-N12010Download
12412301536EFB-EX-N12410Download
12812701576EFB-EX-N12810Download
13213101616EFB-EX-N13210Download
13613501656EFB-EX-N13610Download
14013901696EFB-EX-N14010Download
14414301736EFB-EX-N14410Download
14814701776EFB-EX-N14810Download
15215101816EFB-EX-N15210Download
……………………
17617502056EFB-EX-N17610Download

Beam space 20mm

BeamsProtective Height (mm)Total Height (mm)Model3D File
16300616EFB-EX-N1620Download
18340656EFB-EX-N1820Download
20380696EFB-EX-N2020Download
22420736EFB-EX-N2220Download
24460776EFB-EX-N2420Download
26500816EFB-EX-N2620Download
28540856EFB-EX-N2820Download
30580896EFB-EX-N3020Download
32620936EFB-EX-N3220Download
34660976EFB-EX-N3420Download
367001016EFB-EX-N3620Download
387401056EFB-EX-N3820Download
407801096EFB-EX-N4020Download
428201136EFB-EX-N4220Download
448601176EFB-EX-N4420Download
469001216EFB-EX-N4620Download
489401256EFB-EX-N4820Download
509801296EFB-EX-N5020Download
5210201336EFB-EX-N5220Download
5410601376EFB-EX-N5420Download
5611001416EFB-EX-N5620Download
5811401456EFB-EX-N5820Download
6011801496EFB-EX-N6020Download
6212201536EFB-EX-N6220Download
6412601576EFB-EX-N6420Download
6613001616EFB-EX-N6620Download
6813401656EFB-EX-N6820Download
7013801696EFB-EX-N7020Download
7214201736EFB-EX-N7220Download
7414601776EFB-EX-N7420Download
7615001816EFB-EX-N7620Download
……………………
8817402056EFB-EX-N8820Download

Beam space 40mm

BeamsProtective Height (mm)Total Height (mm)Model3D File
8280616EFB-EX-N0840Download
10360696EFB-EX-N1040Download
12440776EFB-EX-N1240Download
14520856EFB-EX-N1440Download
16600936EFB-EX-N1640Download
186801016EFB-EX-N1840Download
207601096EFB-EX-N2040Download
228401176EFB-EX-N2240Download
249201256EFB-EX-N2440Download
2610001336EFB-EX-N2640Download
2810801416EFB-EX-N2840Download
3011601496EFB-EX-N3040Download
3212401576EFB-EX-N3240Download
3413201656EFB-EX-N3440Download
3614001736EFB-EX-N3640Download
3814801816EFB-EX-N3840Download
4015601896EFB-EX-N4040Download
4216401976EFB-EX-N4240Download
4417202056EFB-EX-N4440Download
