Economical Cylinder MR-C80

Giá gốc Giá bán: 0₫
  • Protection Degree:IP67(EN6052)

Sản phẩm sau →

Mô tả sản phẩm


Model





MR-C80
Switch LogicElectronic type: normally open type
Switch TypeTwo-wire Contactless Electric Crystal
Load CurrentDC24V Relay. PLC
Working Voltage10~30V DC
Maximum Switch Current100mA Max
Maximum Switch Capacity3W Max
Current Consumption6μA Max@24V
Residual Voltage2.65V Max@50mA DC
Leakage Current40μA Max@28v
IndicaterRed LED
Outgoing Line2.8Φ,2C,Grey oil resistant TPU
Outgoing Line25-1000G
Maximum Switching Frequency1000Hz
Ambient Temperature-10~70°C
Impact Resistance50G
Vibration Resistance9G
Protection DegreeIP67(EN6052)
Circuit ProtectionSurge absorption protection

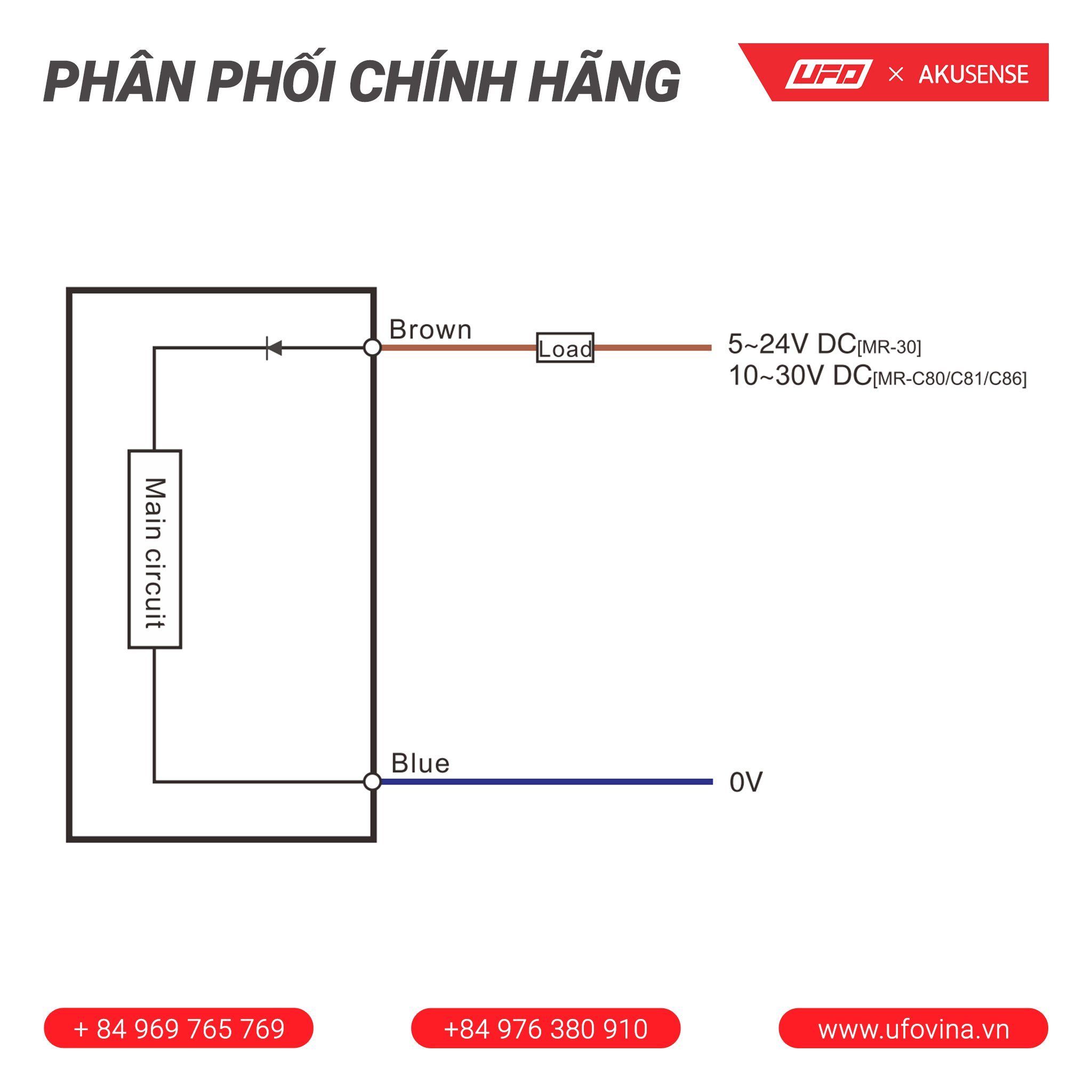

Circuit diagram:
