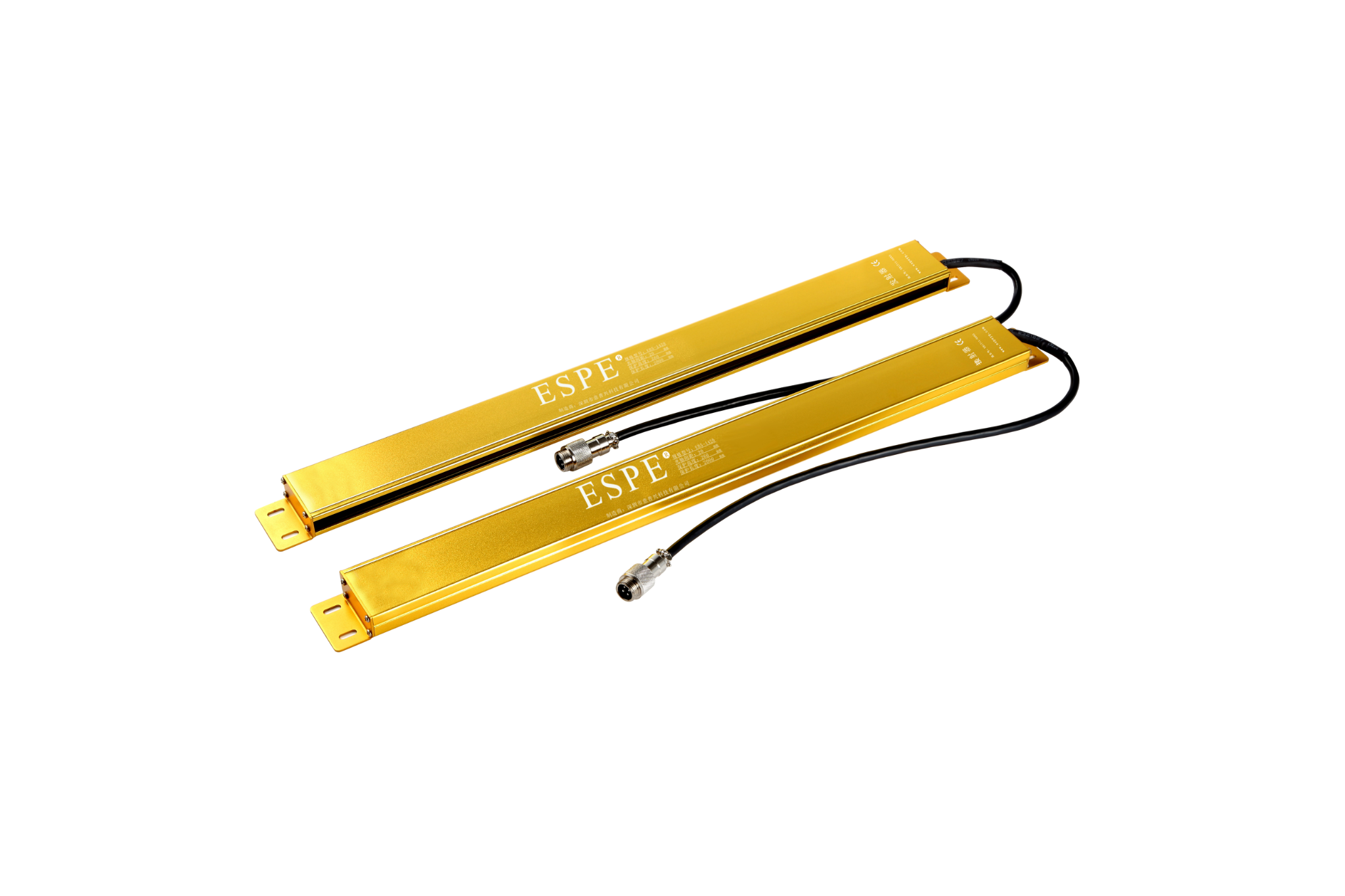

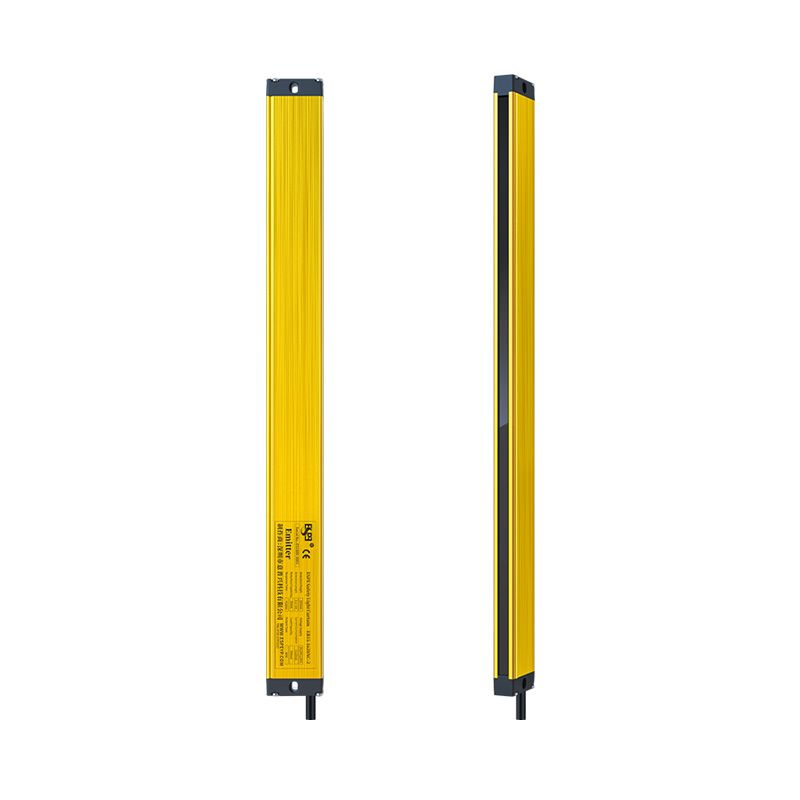

EB15 Compact Safety Light Curtain
0₫
Mô tả
Brand: ESPE
Model: EB15 Series
Product Feature:

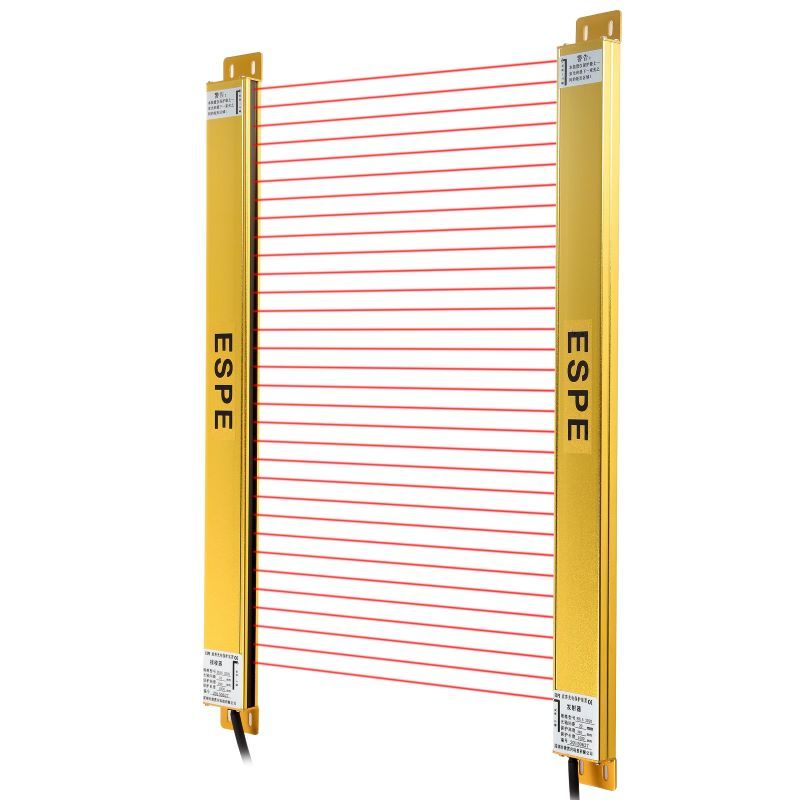

1. The first Untra-thin safety light curtain in China;
2. Compact size for small installment space, excellent concealment, exquisite appearance and stable performance;

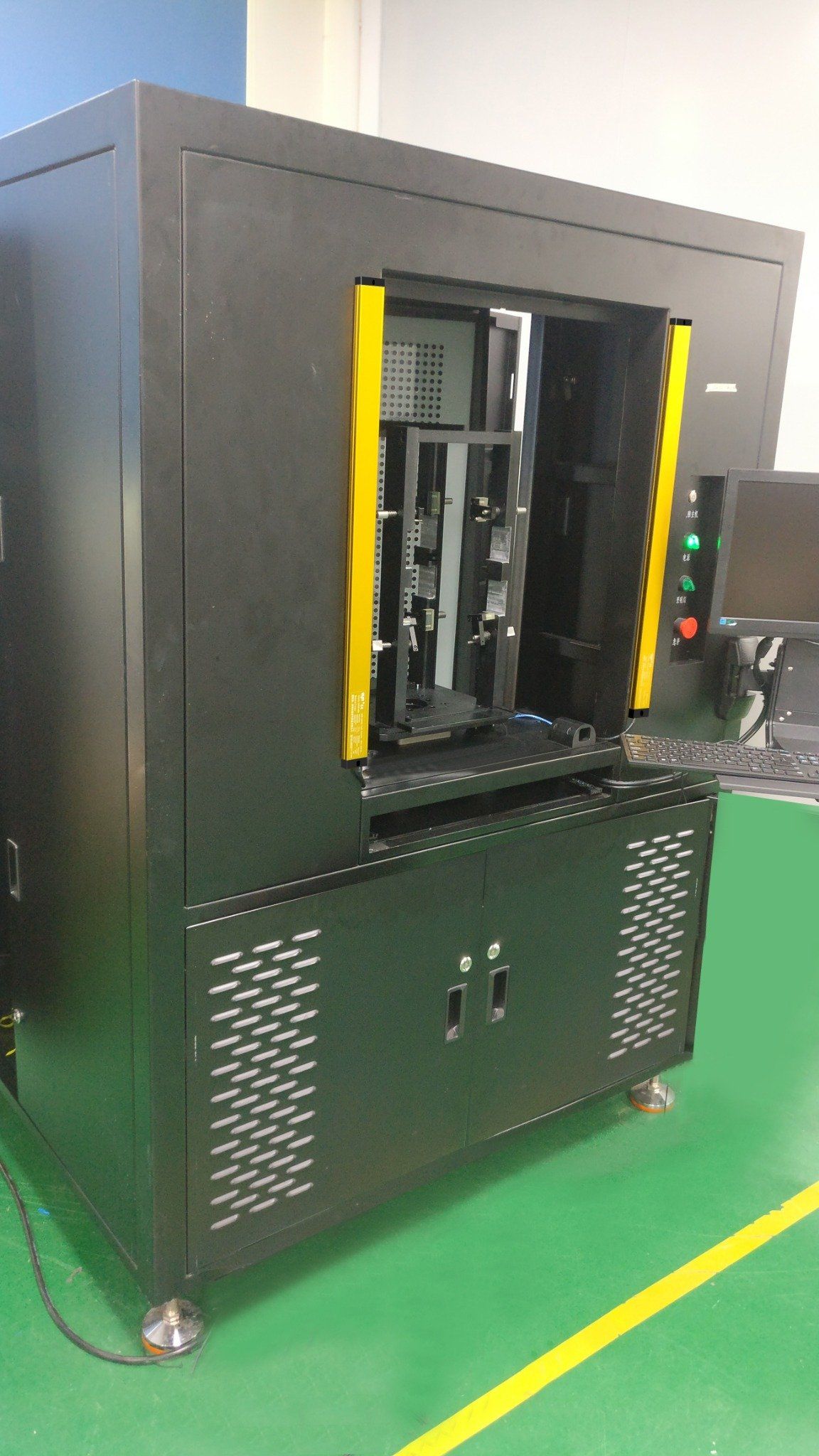

3. Widely use in non-standard equipment or equipment with small installation space;

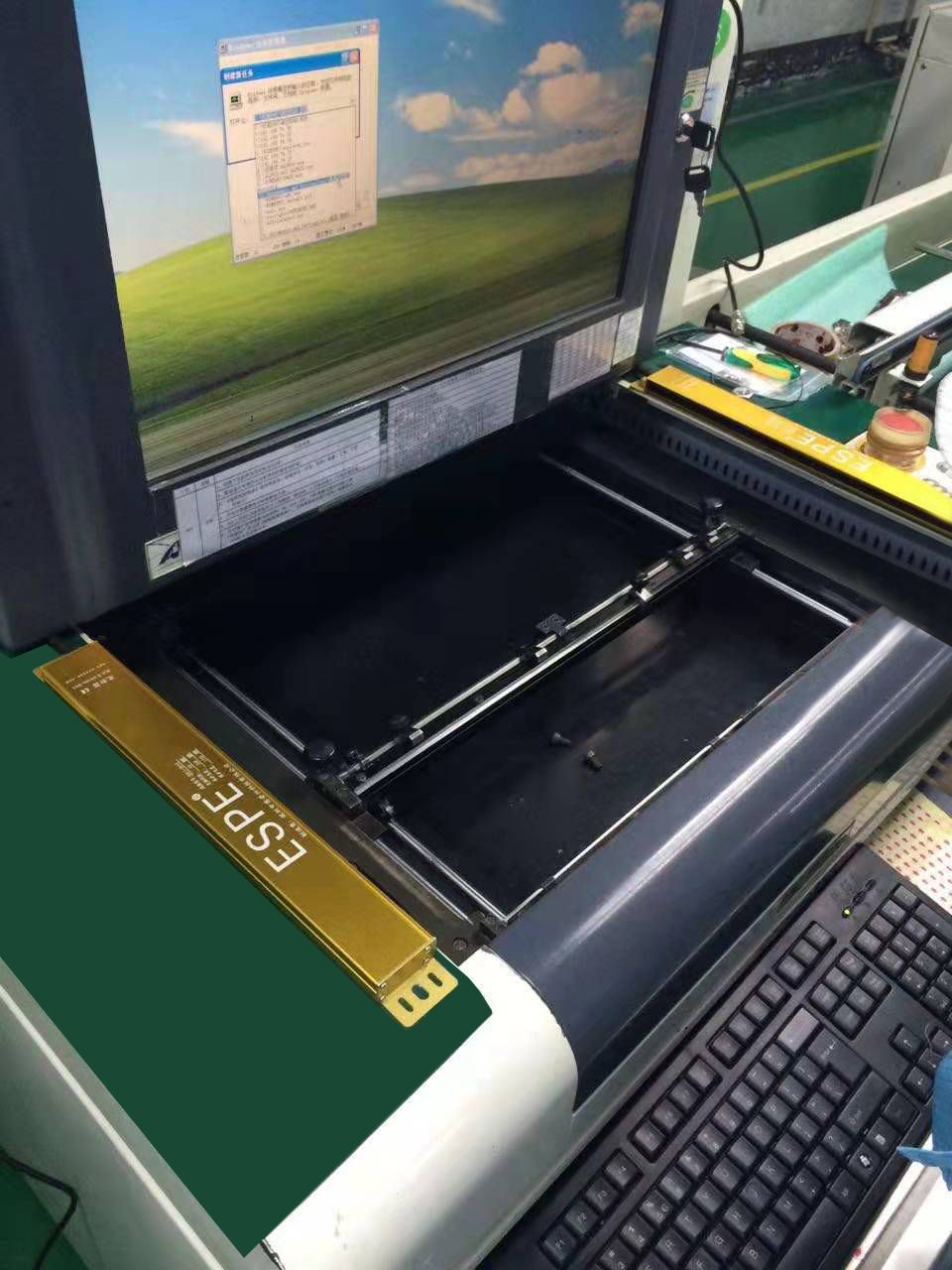

4. Apply in optical detection equipment such as AOI as a protection or start signal.
####
Technical Parameters
| Parameter of safety light curtain | |
| Power supply | DC10V~30V |
| Capacity | <5W |
| Beam space | 10mm、20mm、40mm |
| Resolution | 15mm、25mm、45mm |
| Beams | 10mm beam space：8, 12, 16……16020mm beam space：4, 6, 8……8040mm beam space： 4, 6, 8……40 |
| Protective height | Protective height =（N-1）*beam space，N is beam quantity |
| Wave length | 940nm |
| Response time | Response time =(N * 0.1ms) + 0.4ms（N is beam quantity） |
| Type of output（OSSD） | PNP/ NPN semiconductors, current <200mA, residual voltage: 1 V max, (Expect voltage influenced by lengthen wire) |
| Protective circuit | Over voltage protection, power supply reverse polarity protection, over current protection |
| Sensing distance | 0.1~0.5m、0.1~2m、0.1~4m (remark: if have light reflection, please let us know) |
| Anti-optical interference | 10000Lux(angle >5°） |
| Sensing method | Through-beam type |
| Synchronization | Wire synchronization |
| Enclosure material | Aluminum alloy |
| Enclosure rating | IP54 |
| Housing cross-section | 39*15mm |
| Vibration resistance | 10Hz～55Hz，amplitude0.35±0.05mm，20 times each in X、Y、Z direction |
| Ambient operating temperature | -10℃-55℃（without freezing） |
| Storage temperature | -30℃～70℃（without freezing） |
| Ambient operating humidity | When temperature is 20℃，humidity max 85% |
Wire Connection
Explanation of Model Number
Product Size
Option for Brackets
Model Selection Table
Beam space 10mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 8 | 70 | 120 | EB15-0810 | Download |
| 12 | 110 | 160 | EB15-1210 | Download |
| 16 | 150 | 200 | EB15-1610 | Download |
| 20 | 190 | 240 | EB15-2010 | Download |
| 24 | 230 | 280 | EB15-2410 | Download |
| 28 | 270 | 320 | EB15-2810 | Download |
| 32 | 310 | 360 | EB15-3210 | Download |
| 36 | 350 | 400 | EB15-3610 | Download |
| 40 | 390 | 440 | EB15-4010 | Download |
| 44 | 430 | 480 | EB15-4410 | Download |
| 48 | 470 | 520 | EB15-4810 | Download |
| 52 | 510 | 560 | EB15-5210 | Download |
| 56 | 550 | 600 | EB15-5610 | Download |
| 60 | 590 | 640 | EB15-6010 | Download |
| 64 | 630 | 680 | EB15-6410 | Download |
| 68 | 670 | 720 | EB15-6810 | Download |
| 72 | 710 | 760 | EB15-7210 | Download |
| 76 | 750 | 800 | EB15-7610 | Download |
| 80 | 790 | 840 | EB15-8010 | Download |
| 84 | 830 | 880 | EB15-8410 | Download |
| 88 | 870 | 920 | EB15-8810 | Download |
| 92 | 910 | 960 | EB15-9210 | Download |
| 96 | 950 | 1000 | EB15-9610 | Download |
| 100 | 990 | 1040 | EB15-10010 | Download |
| 104 | 1030 | 1080 | EB15-10410 | Download |
| 108 | 1070 | 1120 | EB15-10810 | Download |
| 112 | 1110 | 1160 | EB15-11210 | Download |
| 116 | 1150 | 1200 | EB15-11610 | Download |
| 120 | 1190 | 1240 | EB15-12010 | Download |
| 124 | 1230 | 1280 | EB15-12410 | Download |
| 128 | 1270 | 1320 | EB15-12810 | Download |
| …… | …… | …… | …… | |
| 160 | 1590 | 1640 | EB15-16010 | Download |
Beam space 20mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 4 | 60 | 120 | EB15-0420 | Download |
| 6 | 100 | 160 | EB15-0620 | Download |
| 8 | 140 | 200 | EB15-0820 | Download |
| 10 | 180 | 240 | EB15-1020 | Download |
| 12 | 220 | 280 | EB15-1220 | Download |
| 14 | 260 | 320 | EB15-1420 | Download |
| 16 | 300 | 360 | EB15-1620 | Download |
| 18 | 340 | 400 | EB15-1820 | Download |
| 20 | 380 | 440 | EB15-2020 | Download |
| 22 | 420 | 480 | EB15-2220 | Download |
| 24 | 460 | 520 | EB15-2420 | Download |
| 26 | 500 | 560 | EB15-2620 | Download |
| 28 | 540 | 600 | EB15-2820 | Download |
| 30 | 580 | 640 | EB15-3020 | Download |
| 32 | 620 | 680 | EB15-3220 | Download |
| 34 | 660 | 720 | EB15-3420 | Download |
| 36 | 700 | 760 | EB15-3620 | Download |
| 38 | 740 | 800 | EB15-3820 | Download |
| 40 | 780 | 840 | EB15-4020 | Download |
| 42 | 820 | 880 | EB15-4220 | Download |
| 44 | 860 | 920 | EB15-4420 | Download |
| 46 | 900 | 960 | EB15-4620 | Download |
| 48 | 940 | 1000 | EB15-4820 | Download |
| 50 | 980 | 1040 | EB15-5020 | Download |
| 52 | 1020 | 1080 | EB15-5220 | Download |
| 54 | 1060 | 1120 | EB15-5420 | Download |
| 56 | 1100 | 1160 | EB15-5620 | Download |
| 58 | 1140 | 1200 | EB15-5820 | Download |
| 60 | 1180 | 1240 | EB15-6020 | Download |
| 62 | 1220 | 1280 | EB15-6220 | Download |
| 64 | 1260 | 1320 | EB15-6420 | Download |
| …… | …… | …… | …… | |
| 80 | 1580 | 1640 | EB15-8020 | Download |
Beam space 40mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 4 | 120 | 164 | EB15-0440 | Download |
| 6 | 200 | 244 | EB15-0640 | Download |
| 8 | 280 | 324 | EB15-0840 | Download |
| 10 | 360 | 404 | EB15-1040 | Download |
| 12 | 440 | 484 | EB15-1240 | Download |
| 14 | 520 | 564 | EB15-1440 | Download |
| 16 | 600 | 644 | EB15-1640 | Download |
| 18 | 680 | 724 | EB15-1840 | Download |
| 20 | 760 | 804 | EB15-2040 | Download |
| 22 | 840 | 884 | EB15-2240 | Download |
| 24 | 920 | 964 | EB15-2440 | Download |
| 26 | 1000 | 1044 | EB15-2640 | Download |
| 28 | 1080 | 1124 | EB15-2840 | Download |
| 30 | 1160 | 1204 | EB15-3040 | Download |
| 32 | 1240 | 1284 | EB15-3240 | Download |
| 34 | 1320 | 1364 | EB15-3440 | Download |
| 36 | 1400 | 1444 | EB15-3640 | Download |
| 38 | 1480 | 1524 | EB15-3840 | Download |
| 40 | 1560 | 1604 | EB15-4040 | Download |
Công ty TNHH THƯƠNG MẠI & DỊCH VỤ KỸ THUẬT UFO VIỆT NAM là Đại lý chính thức phân phối chính hãng sản phẩm ESPE tại thị trường Việt Nam.
Vui lòng liên hệ chúng tôi để được tư vấn chi tiết hơn về sản phẩm
Phone: 0976380910
Email: ufo.vietnam2015@gmail.com
Sản phẩm liên quan
