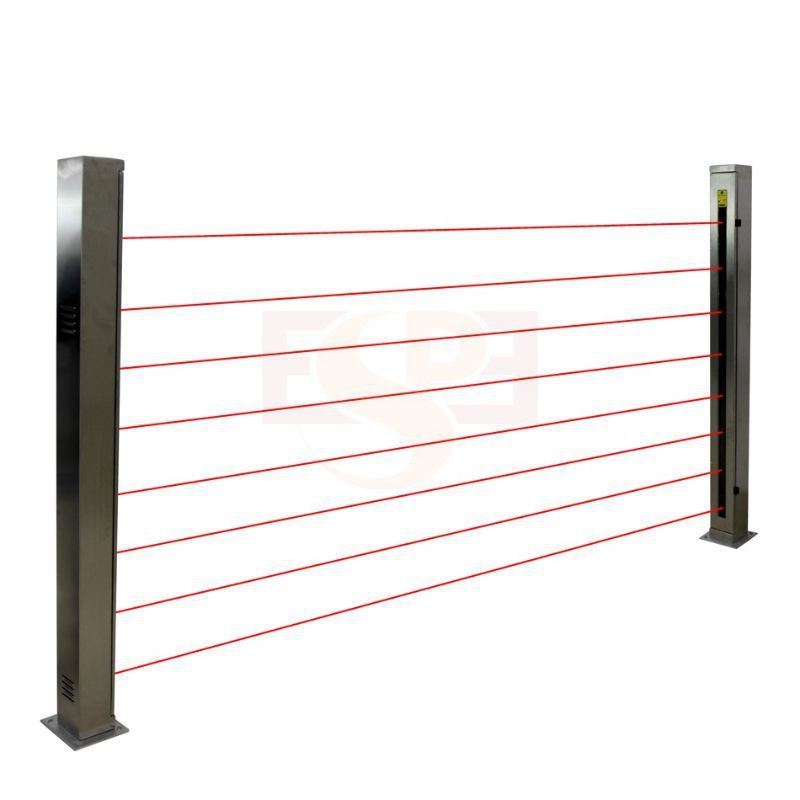

Vehicle Separator

Giá gốc Giá bán: 0₫

Brand: ESPE

Model: ESCC Series

Product Feature:

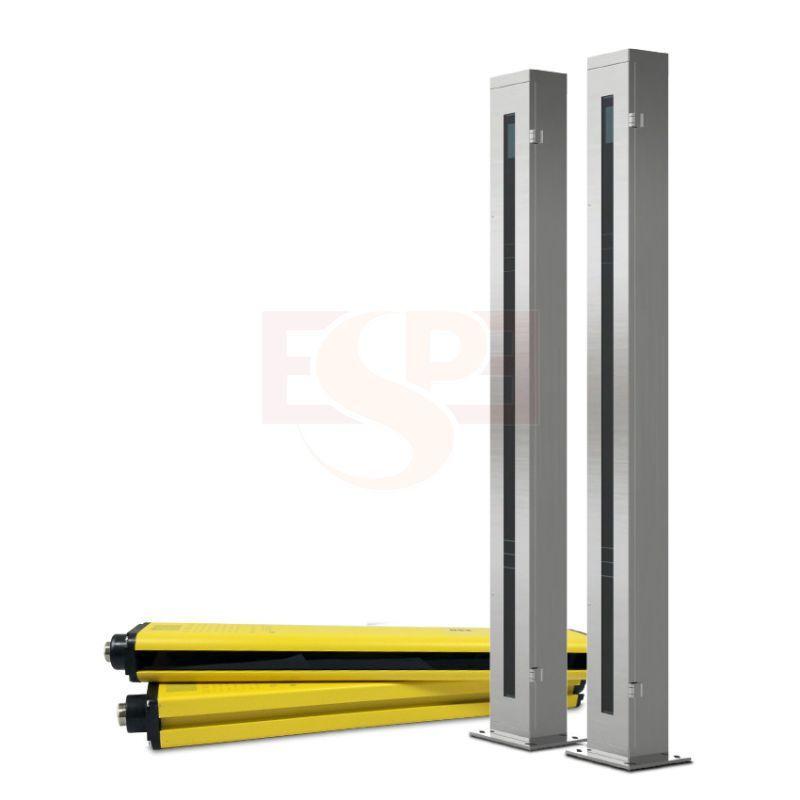

ESCC series vehicle separator is a special application in highway toll stations to realize manual toll collection. Equipped with a strong, waterproof, dust-proof and temperature-regulating shell, ESCC can work not affected by high or low temperature and also work stably and effectively in the harsh environment.

Download Catalog

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

Technical Parameters

Parameter of safety light curtain
Supply voltageDC24V±15%
Beam space20mm, 40mm

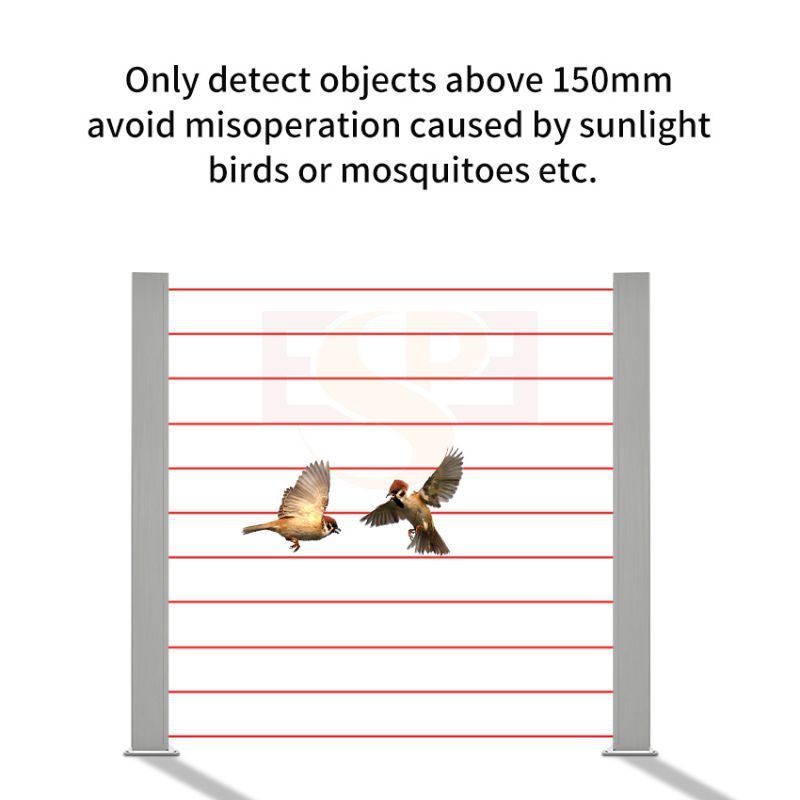

Resolution25mm, 45mm
Beams20mm beam space: 32, 6440mm beam space: 16, 32
Wave length940nm
Capacity<5W
Sensing distanceMax 20m (Remark: if light reflection, please let us know in advanced)
Anti-optical interference10000Lux (Incidence Angle I >5)
Sensing methodThrough-beam type
Output modeNPN, PNP, RS485
Type of output(OSSD)PNP/NPN semiconductors,current <200mA max, residual voltage: 1V max. leakage current: 1mA. (Expect voltage influenced by lengthen wire).RS485 output: Modbus communication protocol, customized protocol.
Protective circuitPower supply over voltage protection, reverse polarity protection and output over current protection.
Output signalOSSD 1 output blocking signal, OSSD 2 output abnormal signal
The Emission IndicatorNormal: The indicator is steady green
The Receiving IndicatorNormal: The green light is steady onAbnormal alignment: The indicator is steady redCP malfunction: Red & green light blink alternately.
Insulation Resistance>100MΩ
Ambient Operating Temperature-40ºC-55ºC
Storage Temperature-55ºC-80ºC
Ambient HumidityWhen the temperature is 20 ºC, the relative air humidity is less than 85%
Enclosure ratingIP65
Housing cross-section35*50mm

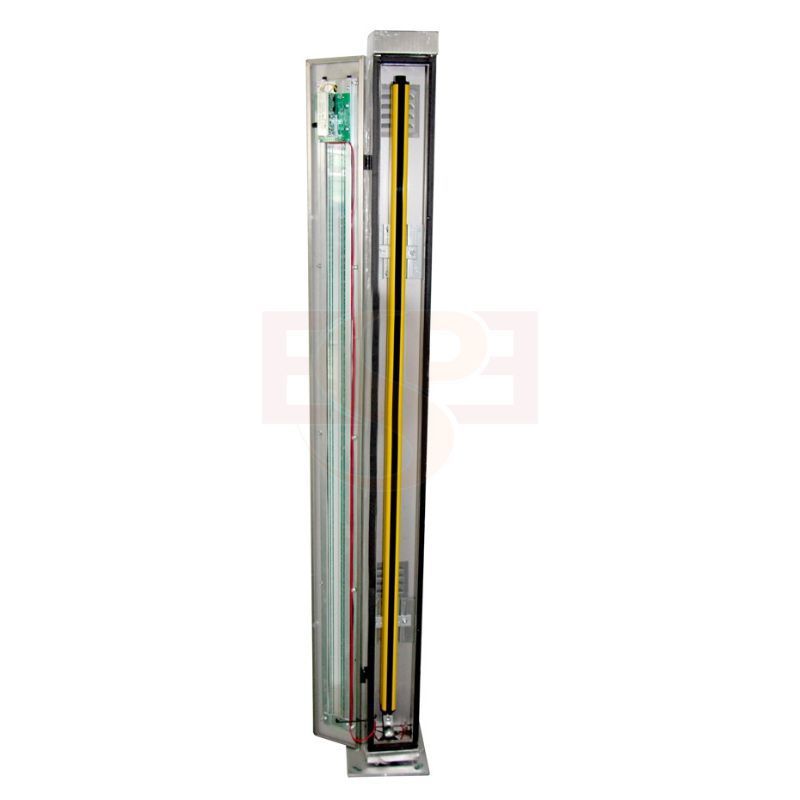

 Electrical parameters of the protective cover
Operating Voltage24V±10%
Working Current10A
Humidity SwitchMechanical nylon film trigger switch relative temperature 20%-80%
Main Control UnitWhen the heating unit of the starts, the red LED light at the front will grow
Cover StructureStainless Steel (201/304)
CoverSelf-adjusting heating glass
Heating GlassCore 2 No. 14 standard cable will ground cable is required for heating glass (cable not provided)
Door Opening MethodFront-door opening mode
Door Closing MethodFront-door screws fixed

Wire Connection

Vehicle Separator

Explanation of Model Number

Vehicle Separator

Model Selection Table

Beam space 20mm

BeamsProtective height
(mm)
Total height
(mm)
ModelEnclosureMaterial3D File
32620705ESCC3220CRH-201-1000
CRH-304-1000
201 Stainless steel
304 Stainless steel
Download
6412601345ESCC6420CRH-201-1650
CRH-304-1650
201 Stainless steel
304 Stainless steel
Download

Beam space 40mm

BeamsProtective height
(mm)
Total height
(mm)
ModelEnclosureMaterial3DFile
16600685ESCC1640CRH-201-1000
CRH-304-1000
201 Stainless steel
304 Stainless steel
Download
3212401325ESCC3240CRH-201-1650
CRH-304-1650
201 Stainless steel
304 Stainless steel
Download
