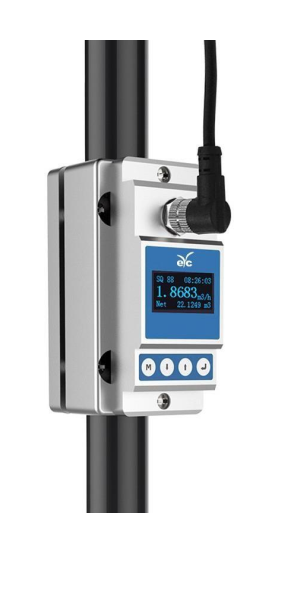

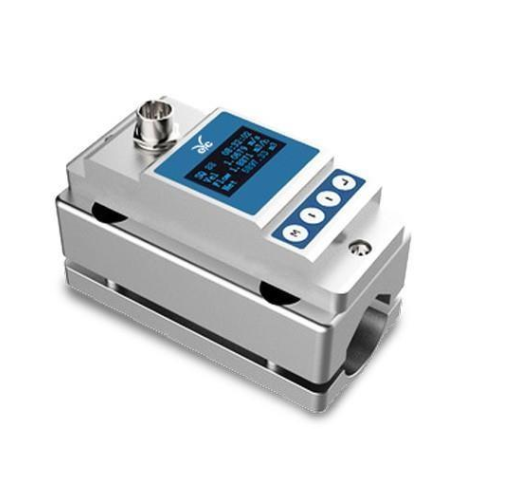

UK-FUMD Clamp-on Ultrasonic Flow Transmitter

• Features

  ● Accuracy 2.0 %
  ● Response time：2 sec ; Repeatability：0.8 %
  ● Power supply：DC 24 V
  ● The clamp-on design is not necessary to shut down flow or cut the pipe when installing the Ultrasonic Flow Transmitter.


  eyc-tech FUMD Clamp-on Ultrasonic Flow Transmitter measures the velocity of a fluid with ultrasound to calculate volume flow. Using ultrasonic transducers, the flow transmitter can measure the average velocity along the path of an emitted beam of ultrasound, by averaging the difference in measured transit time between the pulses of ultrasound propagating into and against the direction of the flow or by measuring the frequency shift from the Doppler effect. Whit affected by the acoustic properties of the fluid and can be impacted by temperature, density, viscosity and suspended particulates depending on the exact flow transmitter.


• Applications

  Water and wastewater treatment / Food, pharmaceutical and paper industry / Petrochemical industry / Refrigeration and air conditioning industry / Energy plant

• Specification

  Analog output：4 ... 20 mA, Maximum load：600 Ω
  Repeatability：0.8%
  Accuracy：2.0% (±0.5 m/s ... 5.0 m/s)
  Response time：2 sec
  Alarm output：OCT, high and low flow alarm function (Optional)
  Communication：RS-485
  Power supply：DC 24 V
  Keypad：Four light touch buttons
  Screen：OLED 128x64 display screen
  Units：Metric and imperial units are available, m³/h, L/h, GAL/h, m³/min, L/min, GAL/min. Default unit setting：m³/h
  Totalizer：Six bit digit
  Liquid：Water, Chemical, Oil
  Piper material：Carbon Steel, Stainless Steel, PVC
  Case material：Aluminum alloy
  Environmental Temp.：0°C ... 50°C
  Liquid Temp.：0°C ... 50°C
  Environmental Humid.：0 ... 95%RH(Non-condensing)
  IP rating：IP54
  Data storage：Day, monthly, and year flow totalizer
  Cable length：1.8 m

• Ordering Guide

                                       Pipe diameter                                          Pipe material
