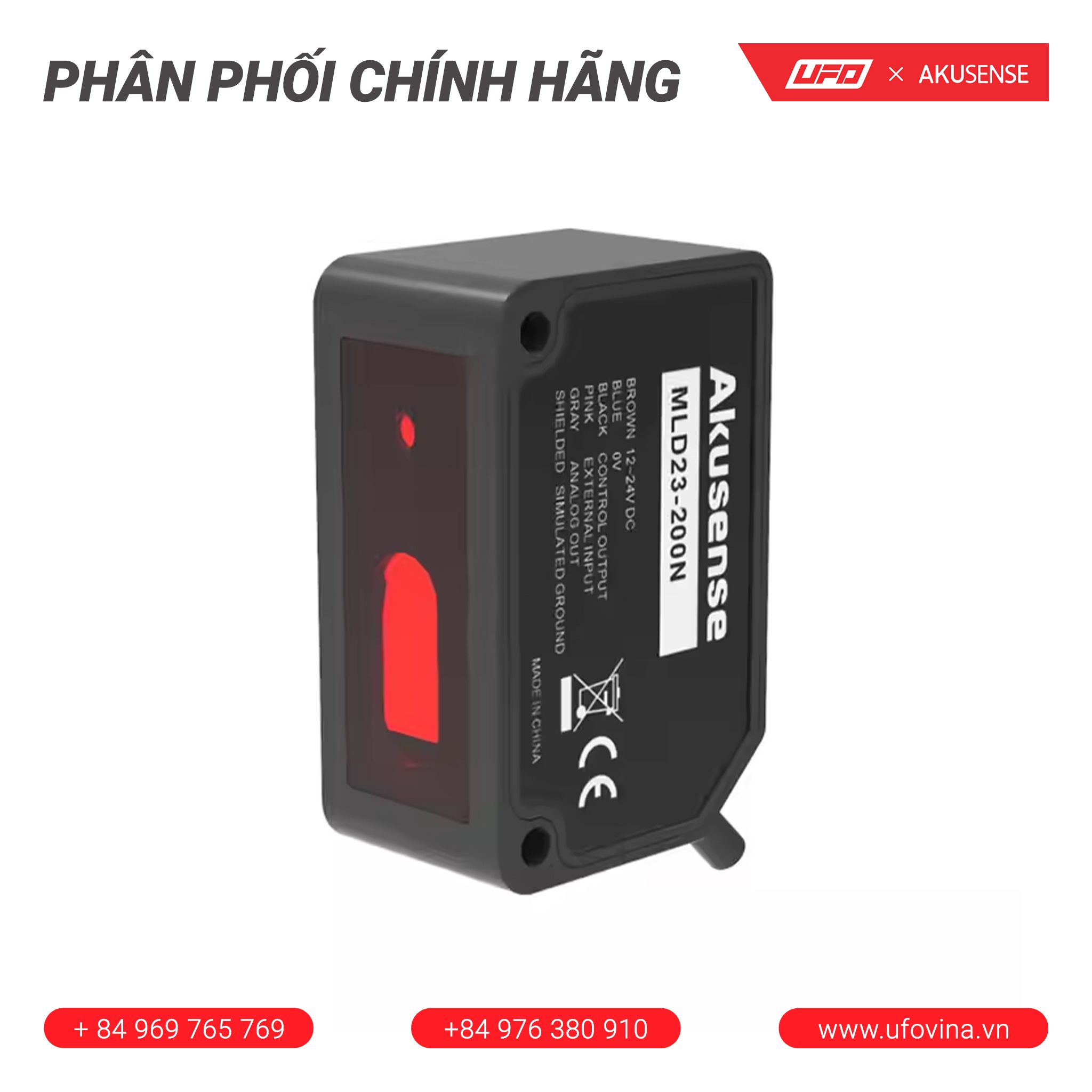

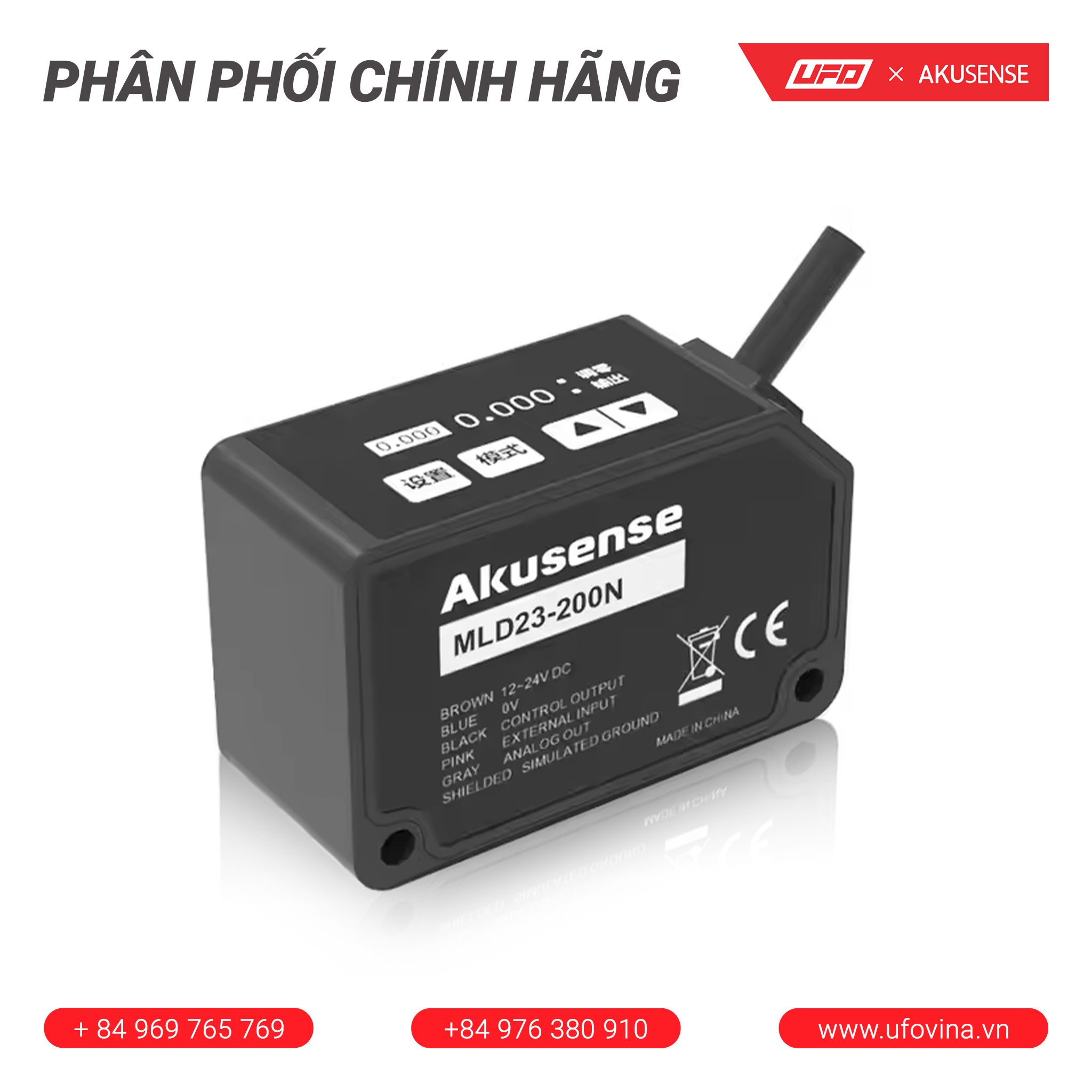

Akusense Triangulation Sensor MLD23-200N
0₫
Mô tả
- Detection Method：
- Detection Distance：
- Repeatability：200μm
- Response Time ：1.5ms/5ms/50ms switchable
- Light Source：Laser Class 2
####
| Model | MLD23-200N |
| Linear Accuracy | ±0.2% F.S. |
| Response Time | 1.5ms/5ms/50ms switchable |
| Protection Degree | IP66 |
| Material | Aluminum,propylene-based |
| Light Source | Laser Class 2 |
| Maximum Output Power | 1mw |
| Linear Accuracy | ±0.2% F.S. |
| Ambient Temperature | -10℃~+45℃,no freezing |
| Ambient Humidity | 35%~85%RH,no condensation |
| Ambient Illuminance | Incandescent lamp irradiation≤3000 Lux |
| Detaction Method | Diffuse Reflection |
| Datum Distance | 200mm |
| Input Voltage | 12~24V DC±10% |
| Response Time | 1.5ms/5ms/50ms switchable |
| Spot Size | Φ0.3mm |
| Temperature Drift | ±0.03%/℃ F.S. |
| Current Consumption | 60mA or less(at 24V DC supply voltage),100mA or less(at 12V DC with supply voltage) |
| Analog Output | Voltage output range: 0V~5V（When alarming: ＋5.2V）; Output impedance: 100Ω; Current output range: 4mA~20mA（When alarming: 0mA）; Load: less than 300Ω |

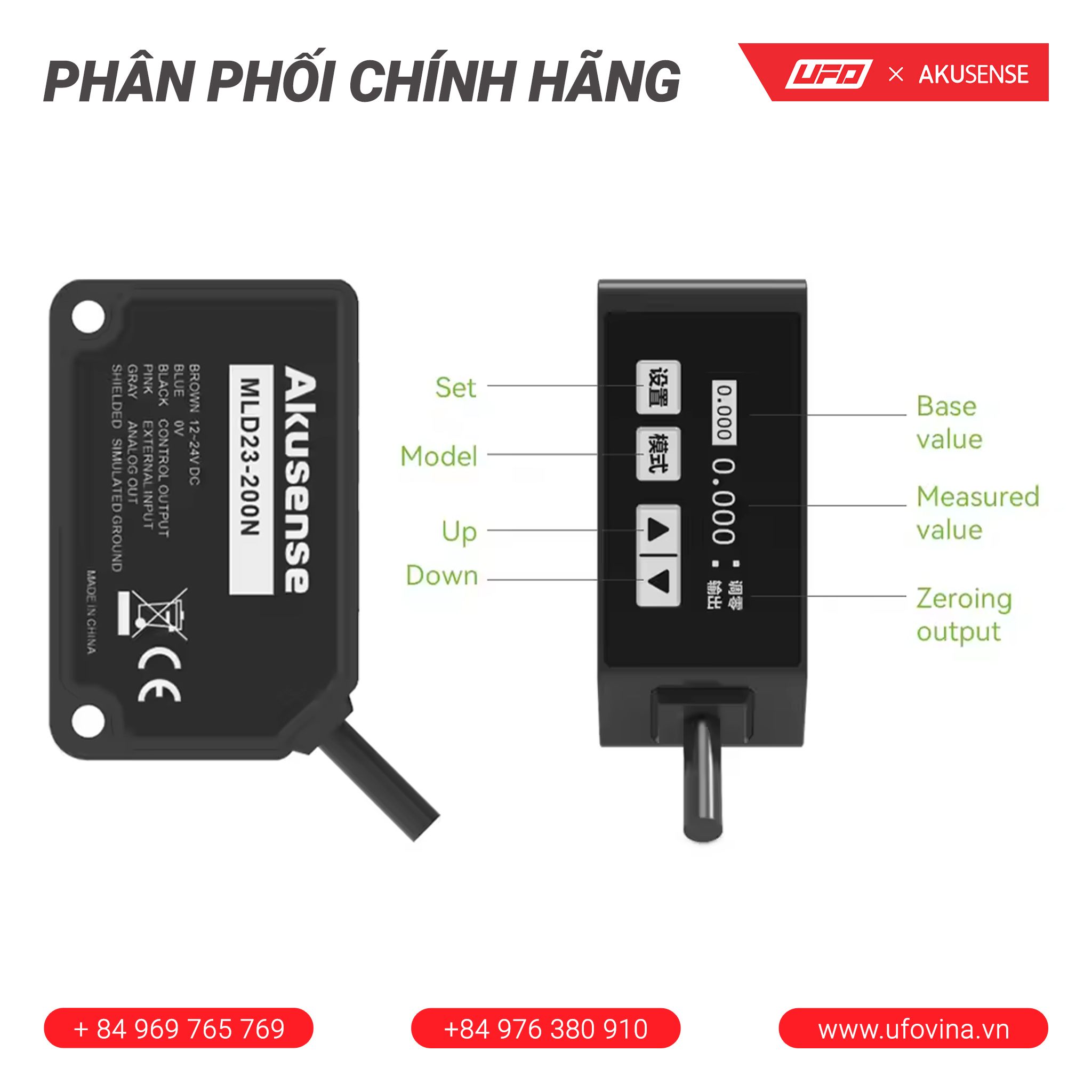

| Product Name | Mini Digital Display |
| Detaction Method | Diffuse Reflection |
| Detaction Distance | 120~280mm |
| Medium,Wavelength | Red Semiconductor Laser wavelength: 655nm |
| Applicable Specifications | EMC Directive |
| Input Voltage | 12~24V DC±10% |
| Spot Size | Φ0.3mm |
| Repeatability | 200μm |
| Digital Output | NPN and PNP are optional,Maximum inflow current: 50mA; Impressed voltage: 30V DC or less(control output-0V),Residual voltage: 1.5V or less(inflow current 50mA |
| Outgoing Line | 2M/5 Core composite cable |
Circuit diagram:
Triangulaiton Type Catalog:
