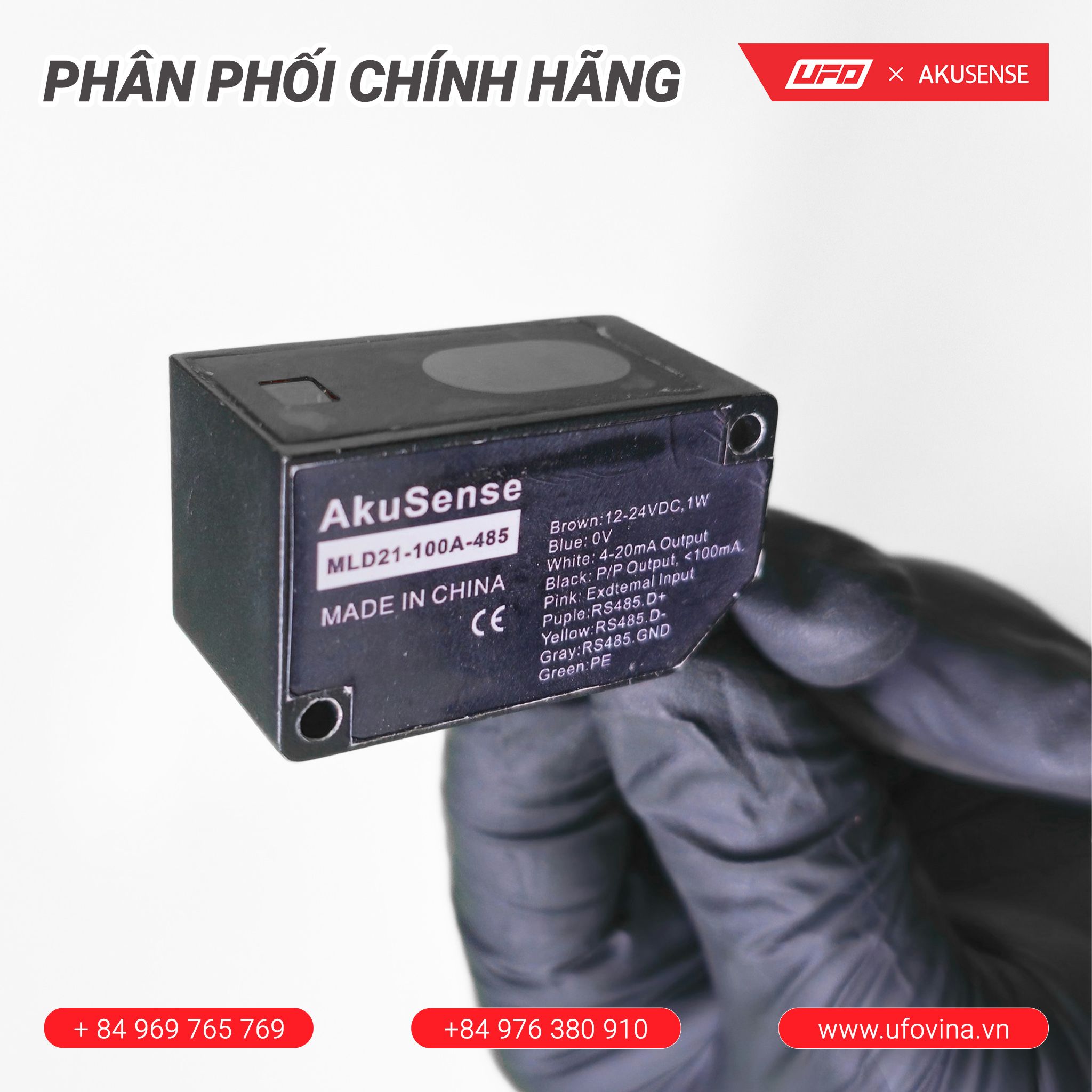

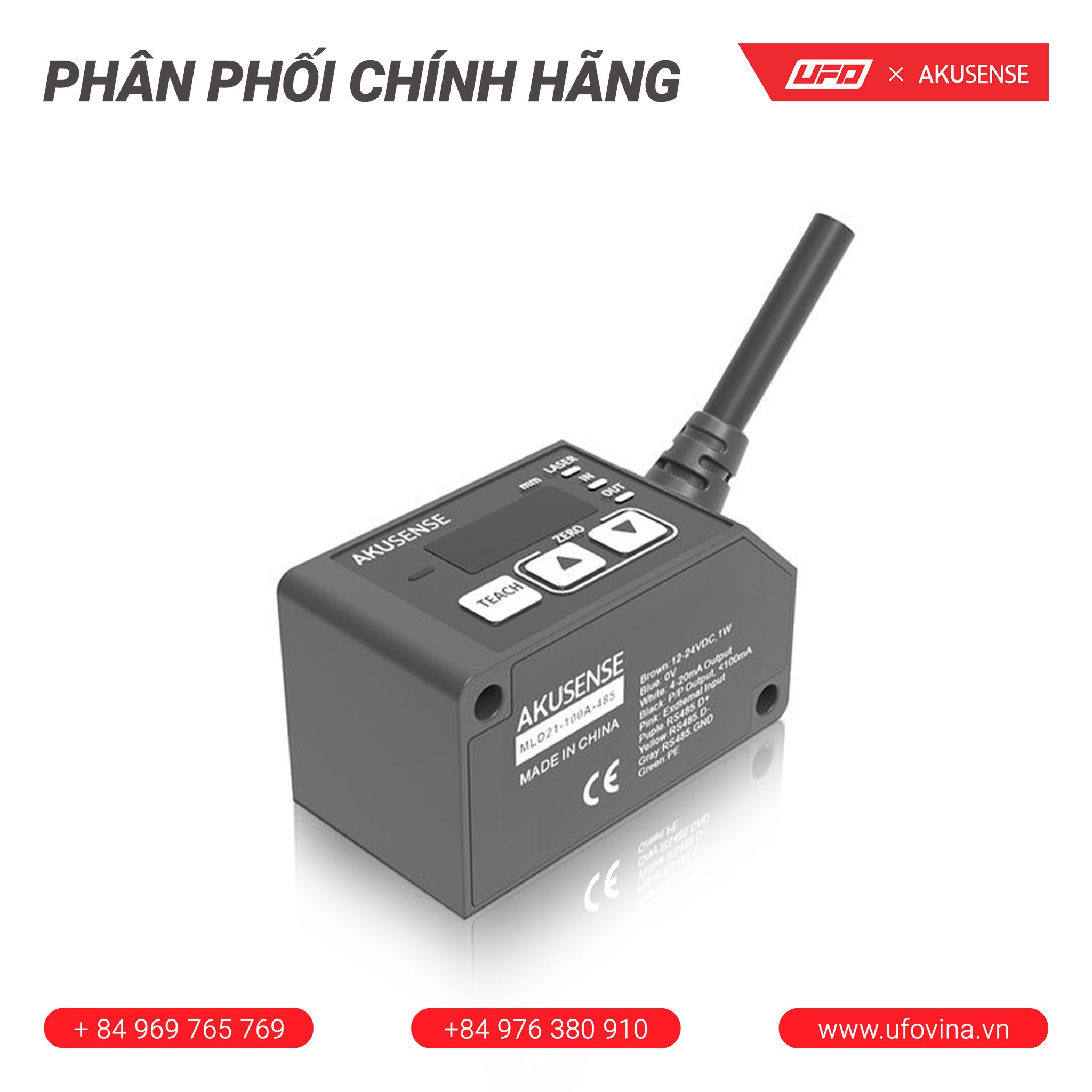

Akusense Triangulation Sensor MLD21-100A-485
0₫
Mô tả

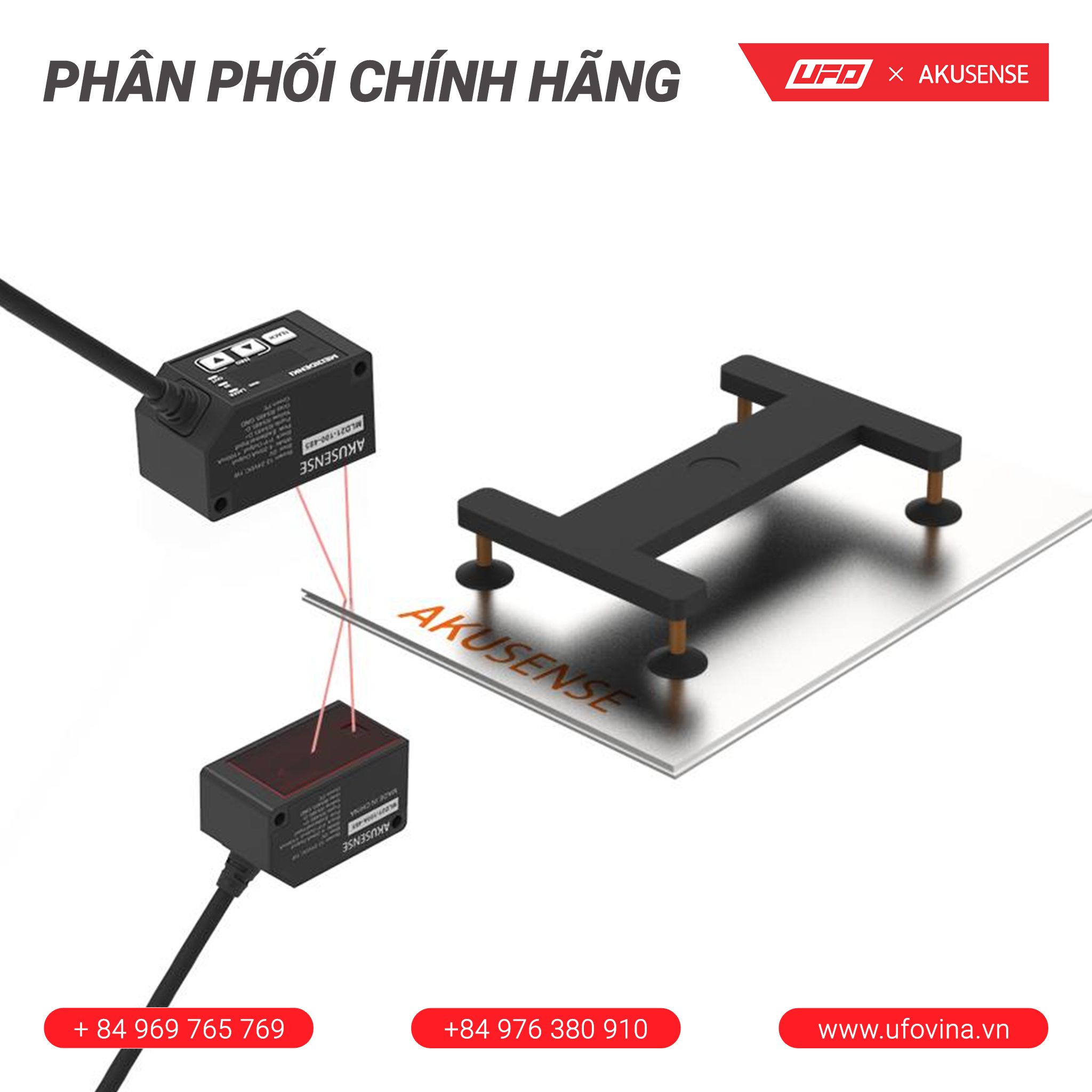

- Detection Method：Diffuse Reflection
- Detection Distance：
- Repeatability：70μm
- Response Time ：
- Light Source：Laser Class 2
####
| Model | MLD21-100A-485 |
| Linear Accuracy | ±0.1% |
| Protection Degree | IP67 |
| Protection Degree | IP67 |
| Material | Optical windows: PC; Case: Aluminum Alloy; wire rod: PUR |
| Light Source | Laser Class 2 |
| Linear Accuracy | ±0.1% |
| Sampling period | 1.5ms/3ms/5ms(Factory value: ms) |
| Communication Interface | Digital IO/MODBUS RS-485 communication interface supports 9,600,14400,19200,38400,57600,115200bps.(Factory value: 115200bps)Supported formats: 8,N,1, 8,N,2, 8,O,1, 8,O,2, 8,E,1, 8,E,2 |
| Ambient Temperature | -10℃~+50℃ |
| Ambient Humidity | 35%~85% |
| Ambient Illuminance | ≤3000 Lux |
| Detaction Method | Diffuse Reflection |
| Datum Distance | 100mm |
| Input Voltage | 12~24V DC±10%,1W |
| Spot Size | 136*110 µm |
| Digital Output | Optional functions: measuring range/compariing output,Push-Pull Output ,<100mA |
| Digital Input | Optional features: zero/teaching,High-level ≧2V,Low-level ≦0.8V |
| Vibration Distance | 10~55Hz,1.5mm Double amplitude,2 hours each in the X,Y,and Z directions |
| Analog Output | Current range: 4~20mA(normal)/22mA(abnormal); Load impedance: ≦300Ω |
| Indicator | Laser emission: blue light; DO: Green light; DI: Yellow light |

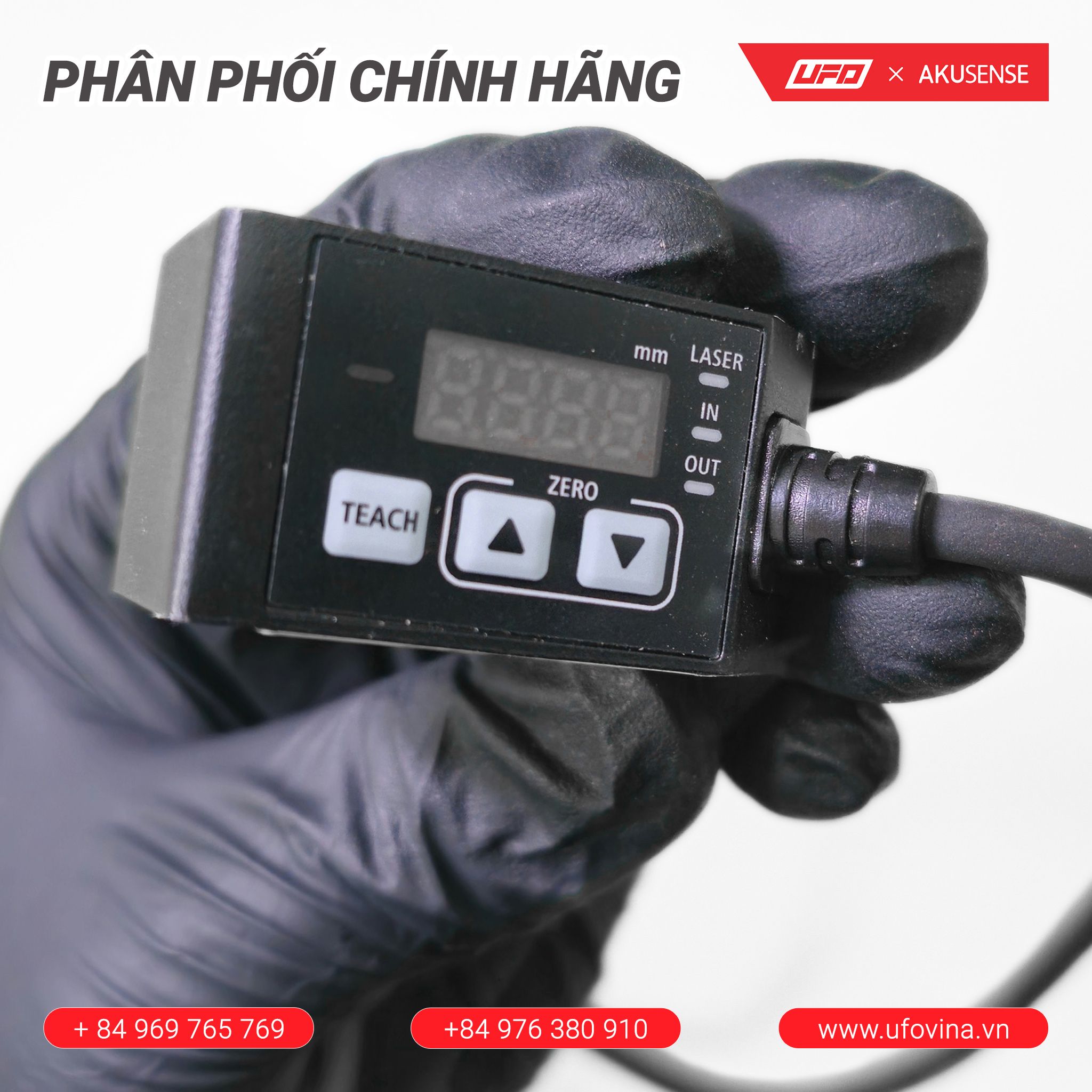

| Product Name | Mini Digital Display |
| Detaction Method | Diffuse Reflection |
| Detaction Distance | 65~135mm |
| Input Voltage | 12~24V DC±10%,1W |
| Spot Size | 136*110 µm |
| Repeatability | 70μm |
| Digital Output | Optional functions: measuring range/compariing output,Push-Pull Output ,<100mA |
| Outgoing Line | 2M |
| Digital Input | Optional features: zero/teaching,High-level ≧2V,Low-level ≦0.8V |
| Circuit Protection | Inverse voltage protection,output overcurrent protection,input power surge protection,output surge protection |
| Vibration Distance | 10~55Hz,1.5mm Double amplitude,2 hours each in the X,Y,and Z directions |
| Insulation Resistance | 20 MΩ or more(500V DC) |
| Insulation Withstand Voltage | 500V/AC 60Hz 1minute |
Size structure:
Circuit diagram:
Triangulaiton Type Catalog:
