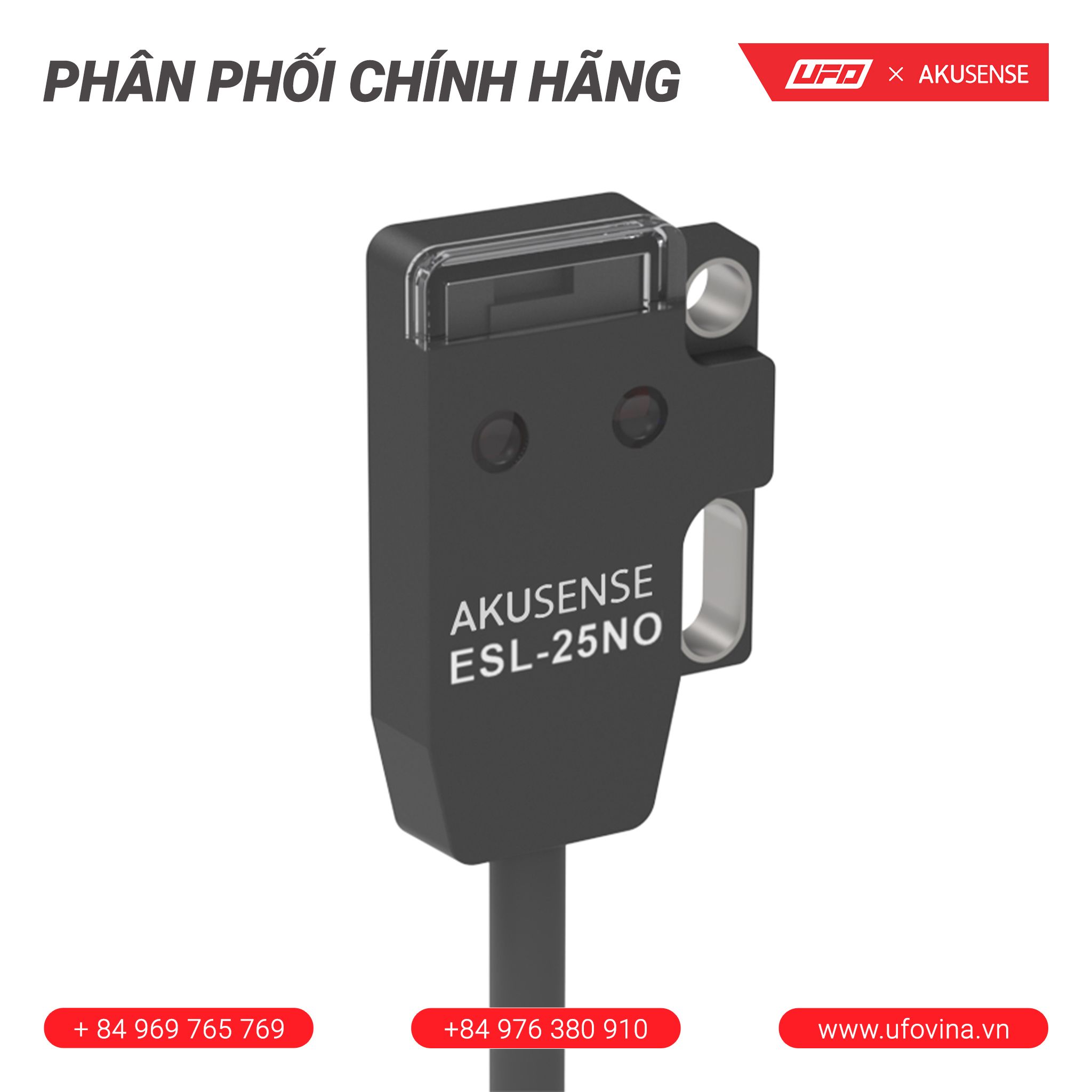

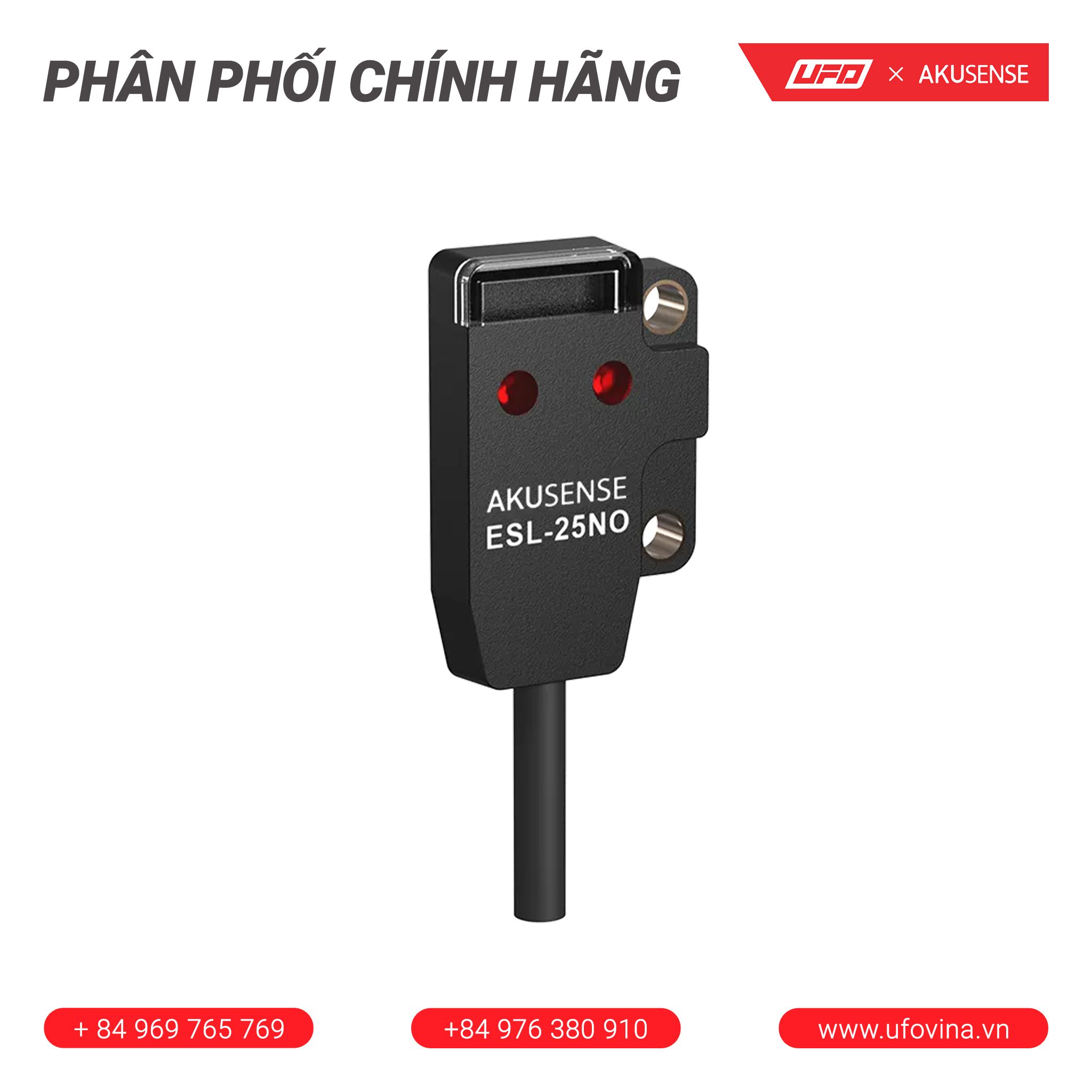

Thin Sensor ESL-25NO

Giá gốc Giá bán: 0₫

- Detection Method:Limited reflection

- Detection Distance:2~25mm not adjustable

- Output Mode:NPN

- Response Time :≤1.2ms

- Light Source:Infrared LED 950nm(modulation)

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

ModelESL-25NO
Detection MethodLimited reflection
Detection Distance2~25mm not adjustable
Detacted Object50*50mmWhite Card
Output ModeNPN
Switch ModeD.on(shading action)
IndicatorOutput indicator: orange; Power LED: Green
Response Time≤1.2ms
Light SourceInfrared LED 950nm(modulation)
Working Voltage10~30V DC±10%
Current Consumption≤20mA
Load Current<50mA
Residual Voltage<2V(load current<50mA)
Ambient IlluminanceSunlight≤10,000 Lux,incandescent lamp ≤3,000 Lux
Ambient TemperatureWhen working:-25℃~+55℃,no freezing,no condensation; When storing:-10~+55℃
Ambient HumidityWhen working:35%~85%RH,When storing:35%~95%RH
Group Pulse±2000V(5kHZ/50kHZ/100kHZ)
Static Electricity±8000V
Insulation Withstand Voltage±500V 50/60Hz 60s
Vibration Resistance10~50Hz,0.5mm amplitude,2 hours each in the three directions of X,Y and Z
Circuit ProtectionPower supply reverse polarity protection,surge protection,short circuit protection
Protection DegreeIP67
Connection MethodΦ2.5*2M/3Cable
MaterialPC
AccessaryScrew

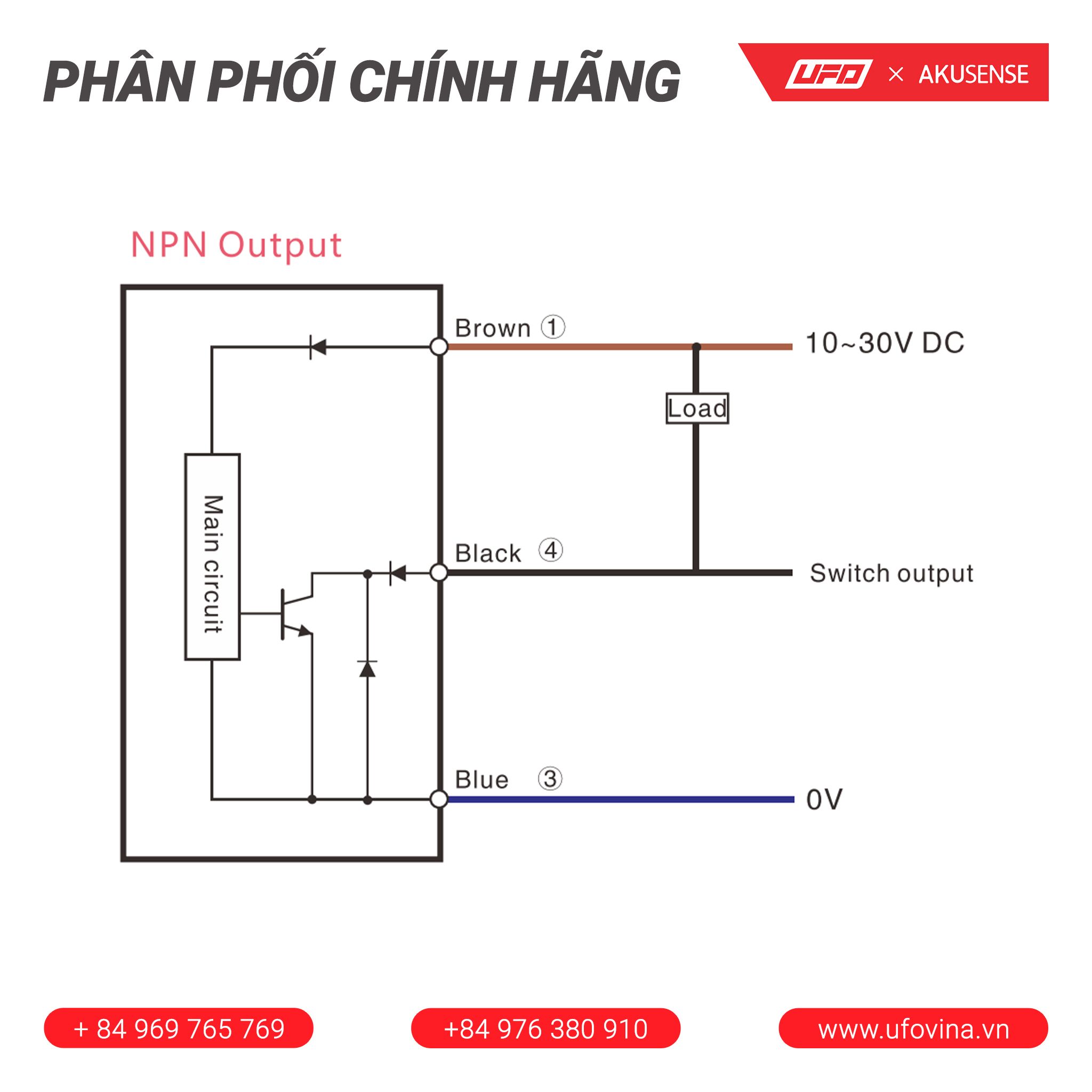

Circuit diagram:

ESL Series Catalog:
