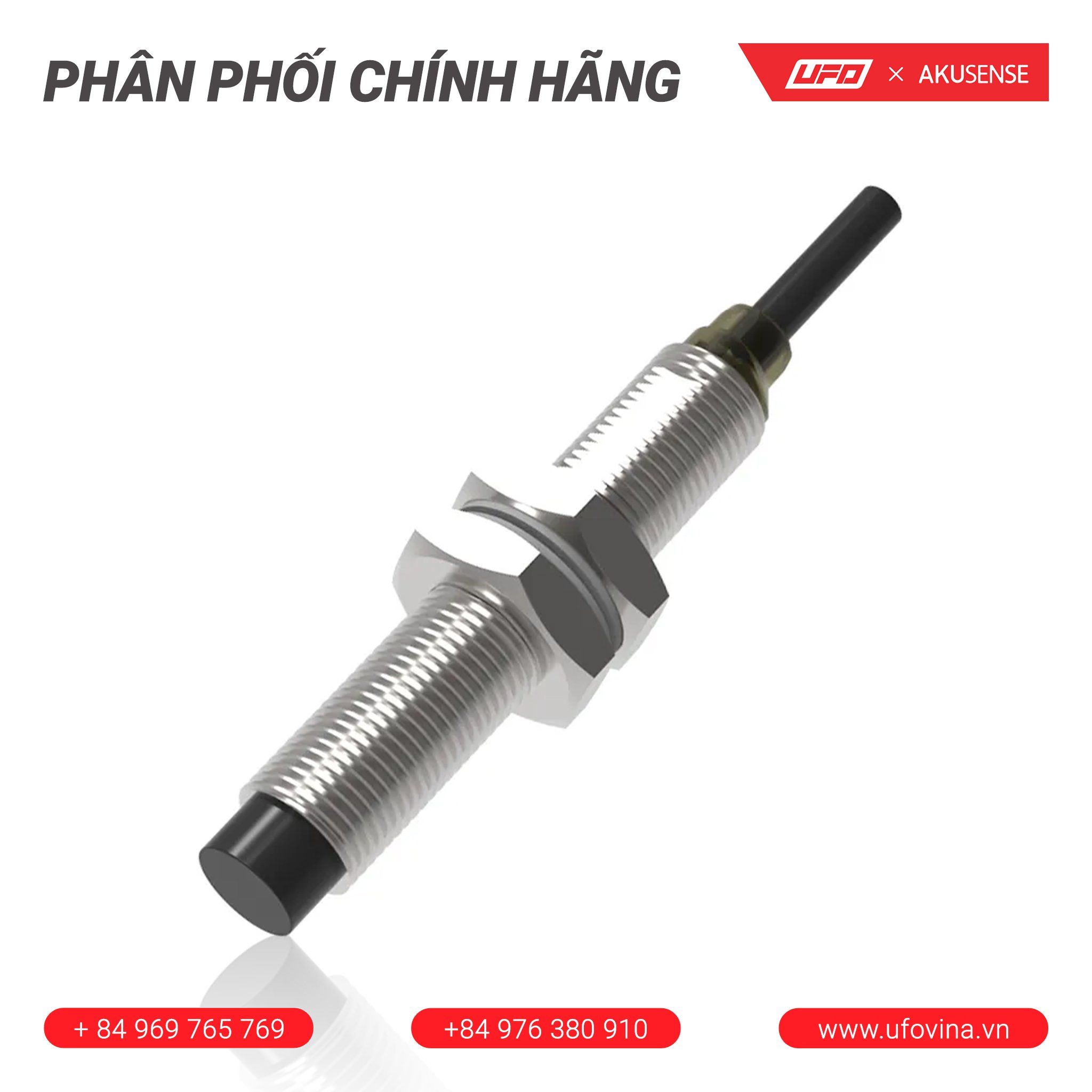

Standard Distance Sensor TRN08-02NO

Giá gốc Giá bán: 0₫

- Size:M8

- Repeatability:<1.0%(Sr)

- Switch Mode:1KHz

- Connection Method:Cable-type

- Protection Degree:IP67

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

ModelTRN08-02NO
Connection MethodCable-type
Installation MethodUnflush
SizeM8
Detaction Distance2mm±10%
OutputNPN normally open
Housing MaterialStainless Steal
Working Voltage10~30V DC(Voltage Fluctuation<10%)
Residual Voltage<2.0V
Load Current150mA
Current Consumption<10mA
Leakage Current<0.01mA
Switch Mode1KHz
Repeatability<1.0%(Sr)
Hysteresis<15%(Sr)
Sensing Surface MaterialPBT
Ambient Temperature-25℃~+75℃
Circuit ProtectionShort-circuit protection
Protection DegreeIP67

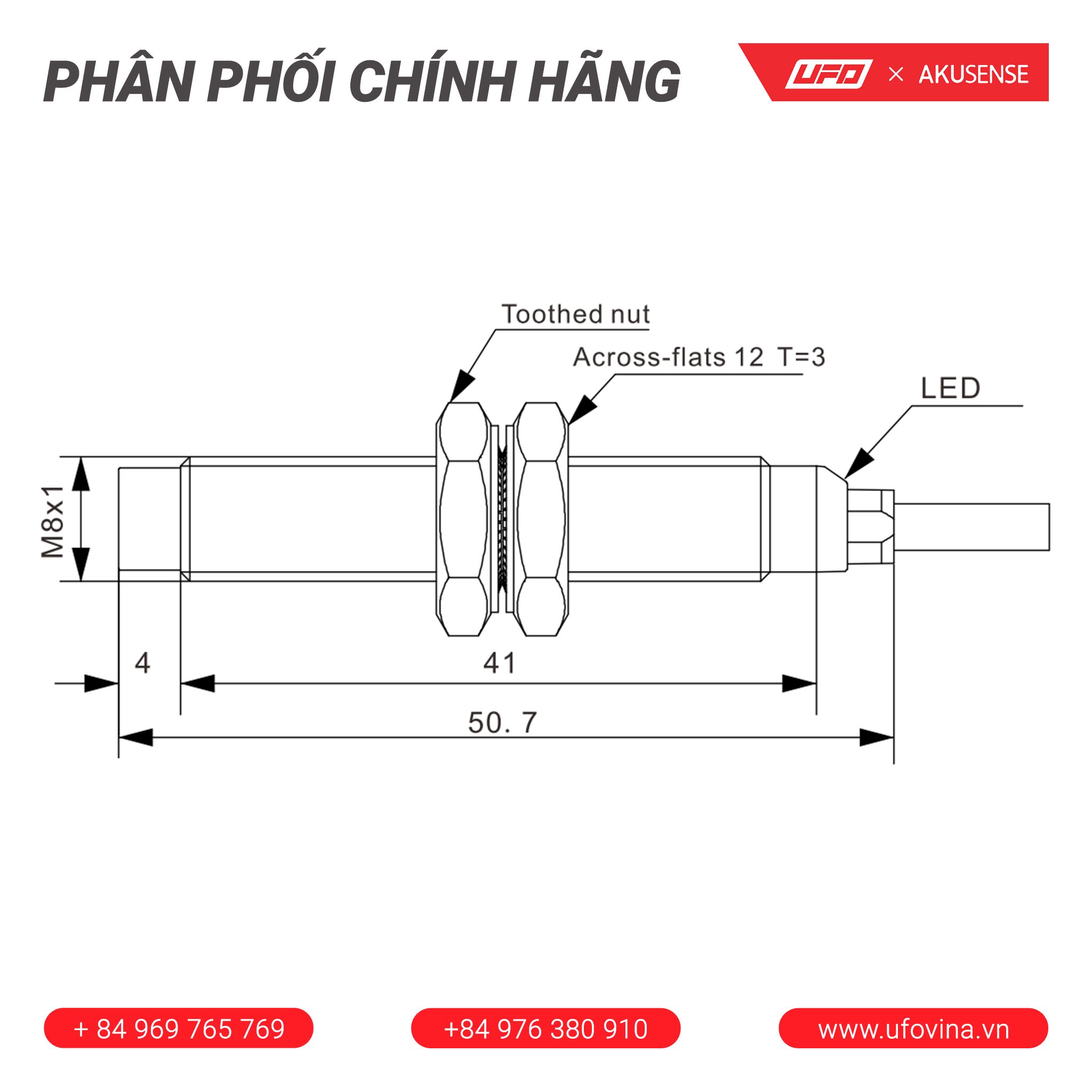

Size structure:

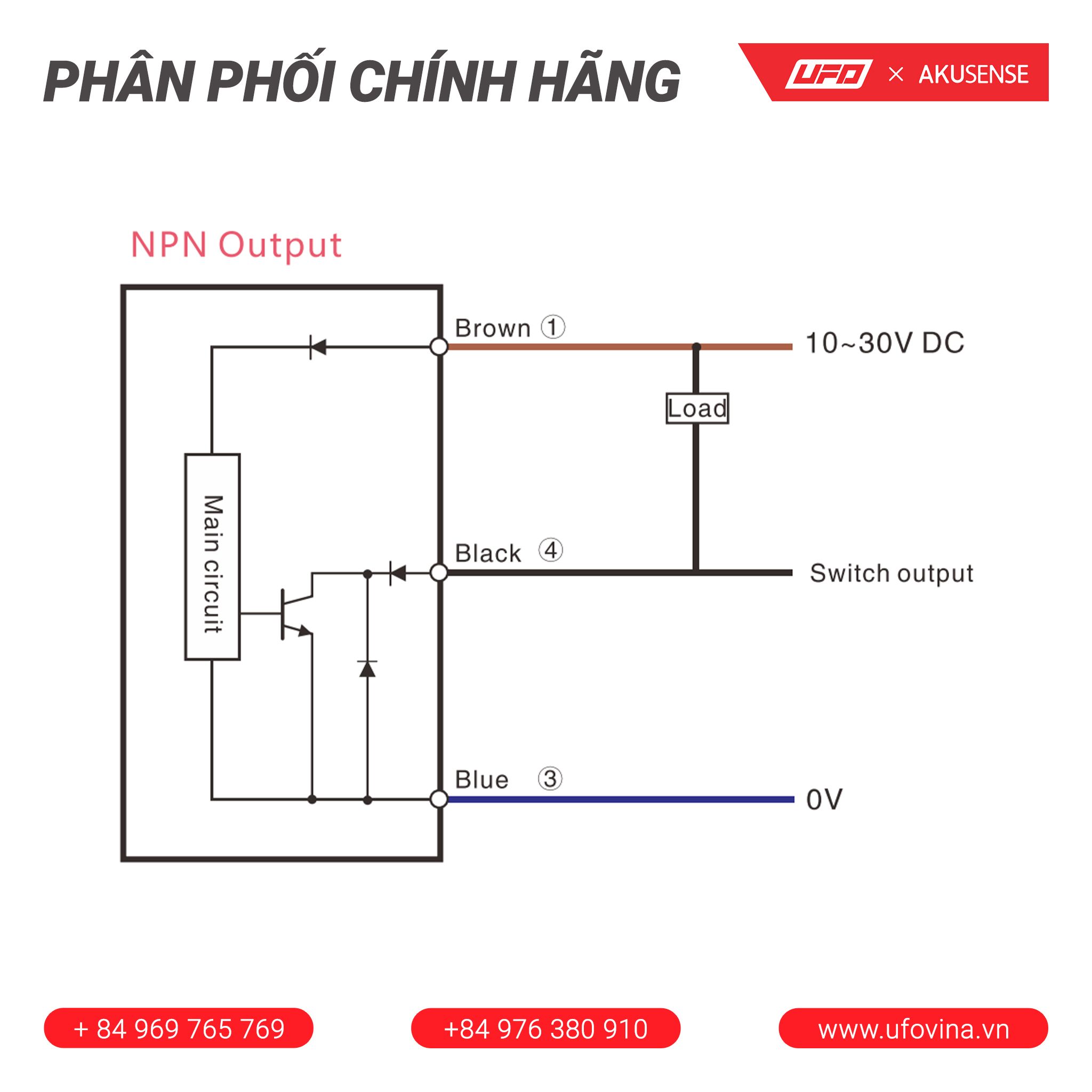

Circuit diagram:

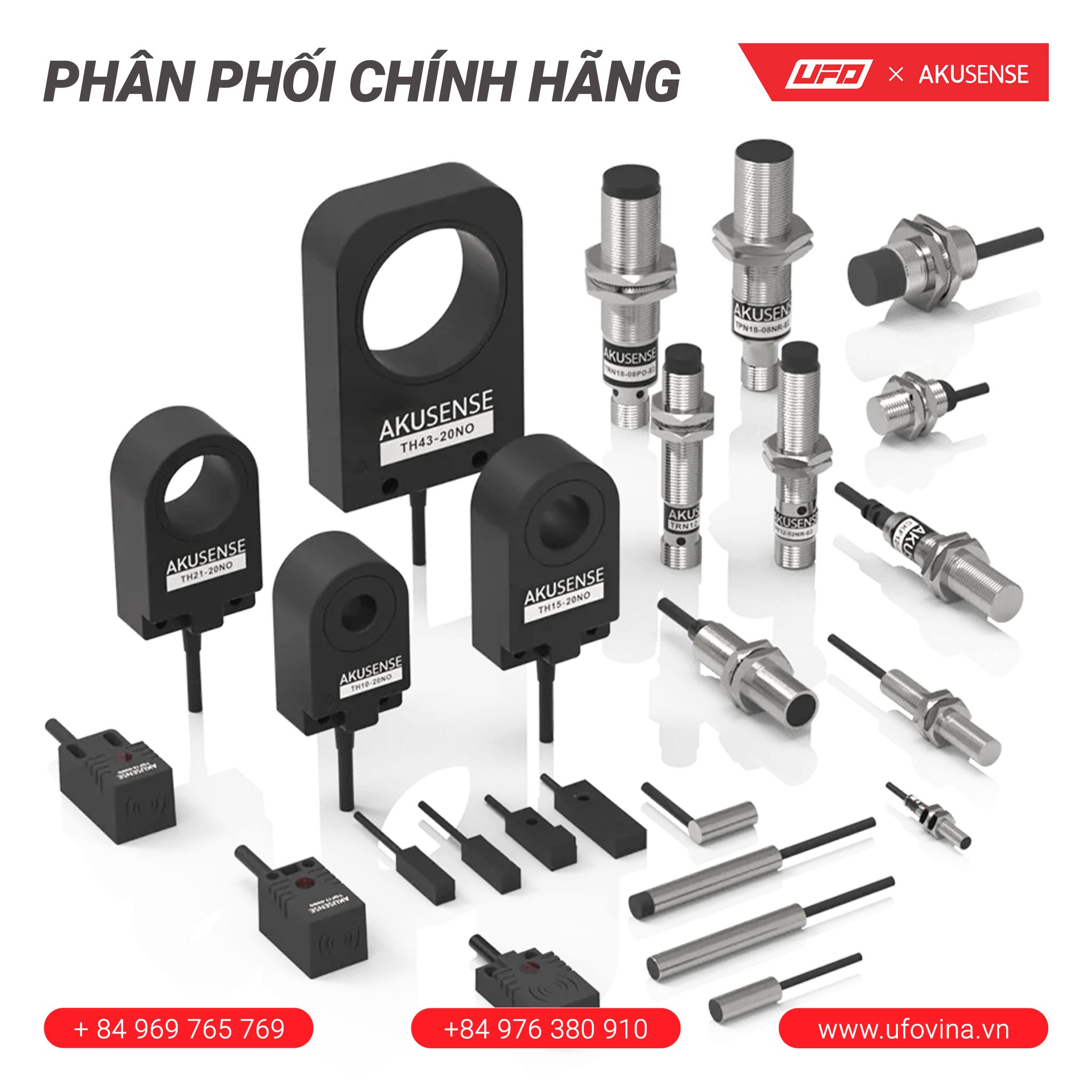

TR Series Catalog:
