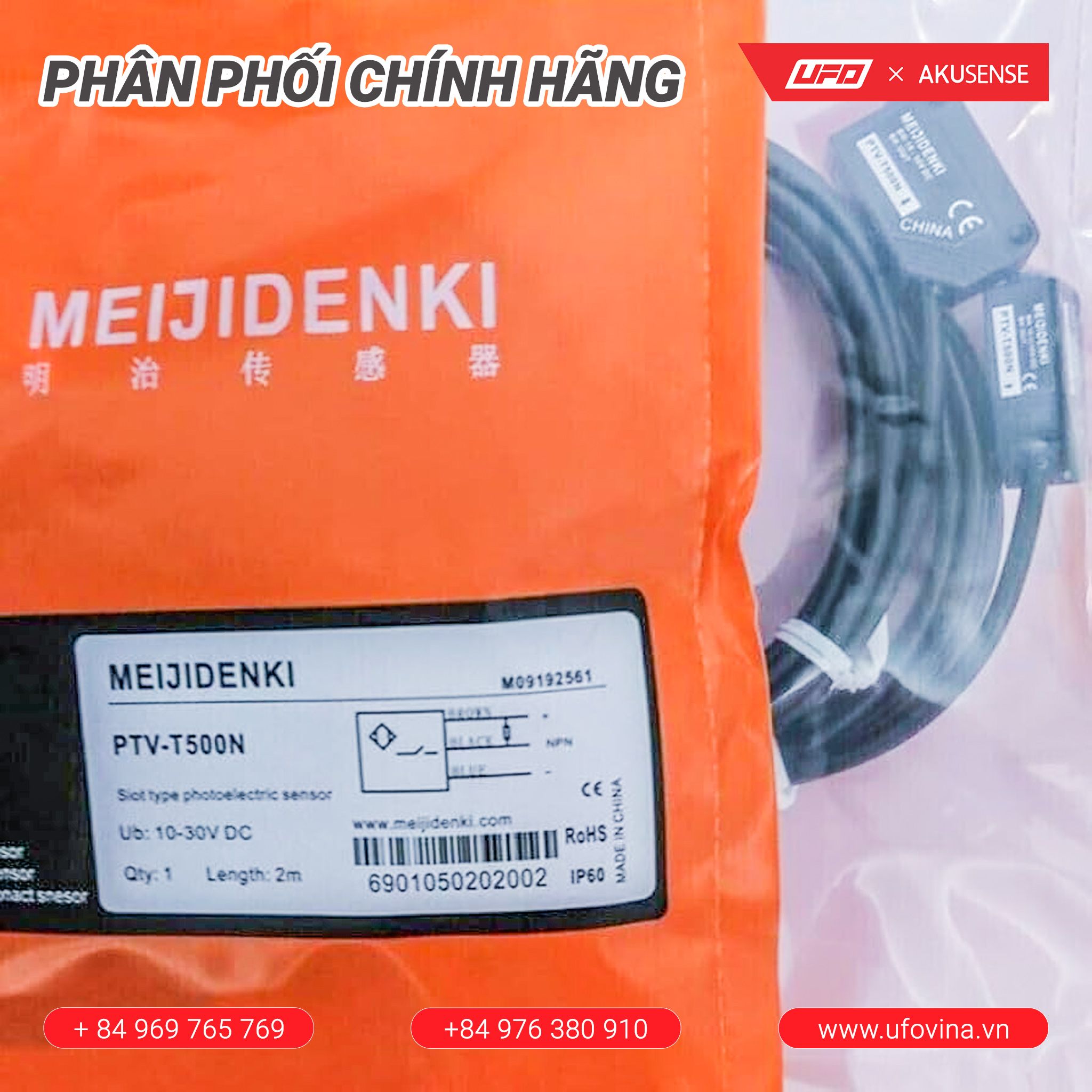

Square Sensor PTV-T500N

Giá gốc Giá bán: 0₫

- Detection Method:Thru-beam

- Detection Distance:5m

- Output Mode:NPN open collector

- Response Time :<5ms

- Light Source:Infrared LED 950nm(modulation)

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

ModelPTV-T500N
Detection MethodThru-beam
Detection Distance5m
Output ModeNPN open collector
Switch ModeL.on(light entry action)/D.on(shading action) can be switched
Response Time<5ms
Light SourceInfrared LED 950nm(modulation)
Working Voltage10~30V DC
Current Consumptionemitter<20mA; receiver<20mA
Load Current<100mA
Ambient Temperature’-25℃~+55℃,no freezing
Ambient Humidity35%~85%RH,no condensation
Circuit ProtectionPower supply reverse polarity protection,surge protection,short circuit protection
Protection DegreeIP65
Connection Method2M/3 Core Cable
MaterialPBT+glass fiber(shell) PMMA(lens)
Weight≈50g
AccessaryScrewdriver

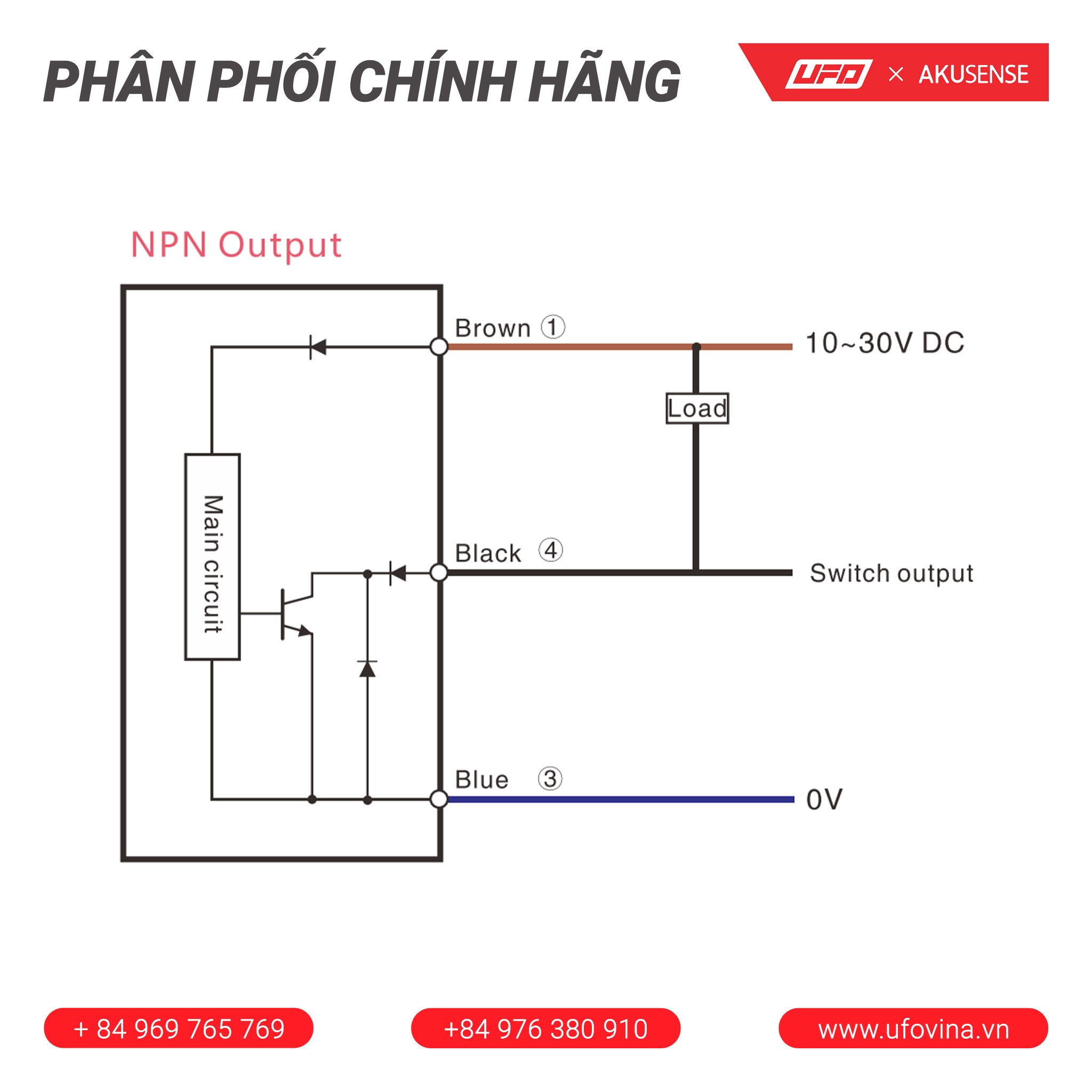

Circuit diagram:

Square Type Catalog:
