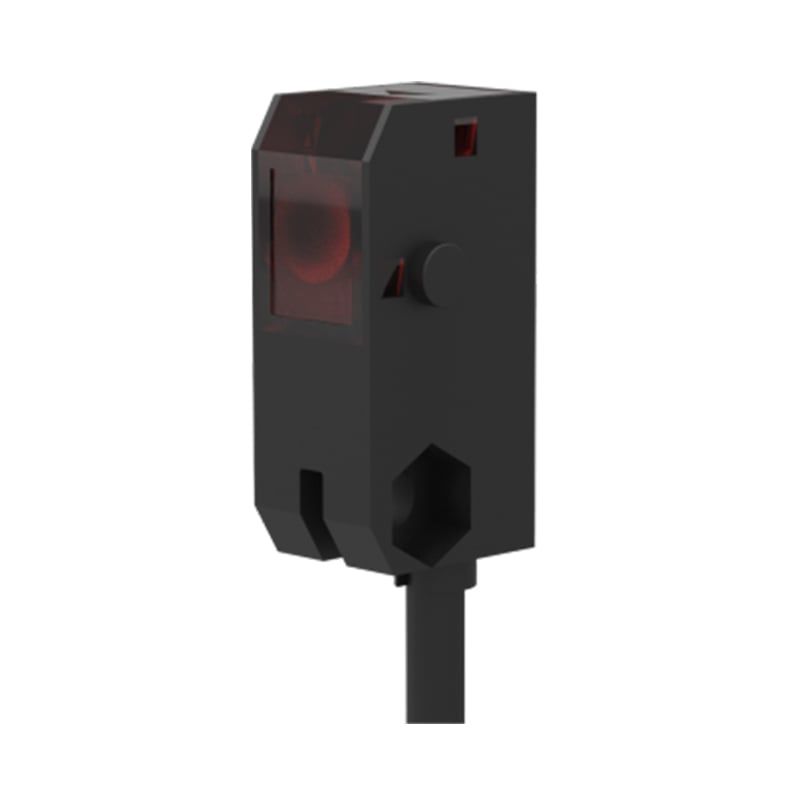

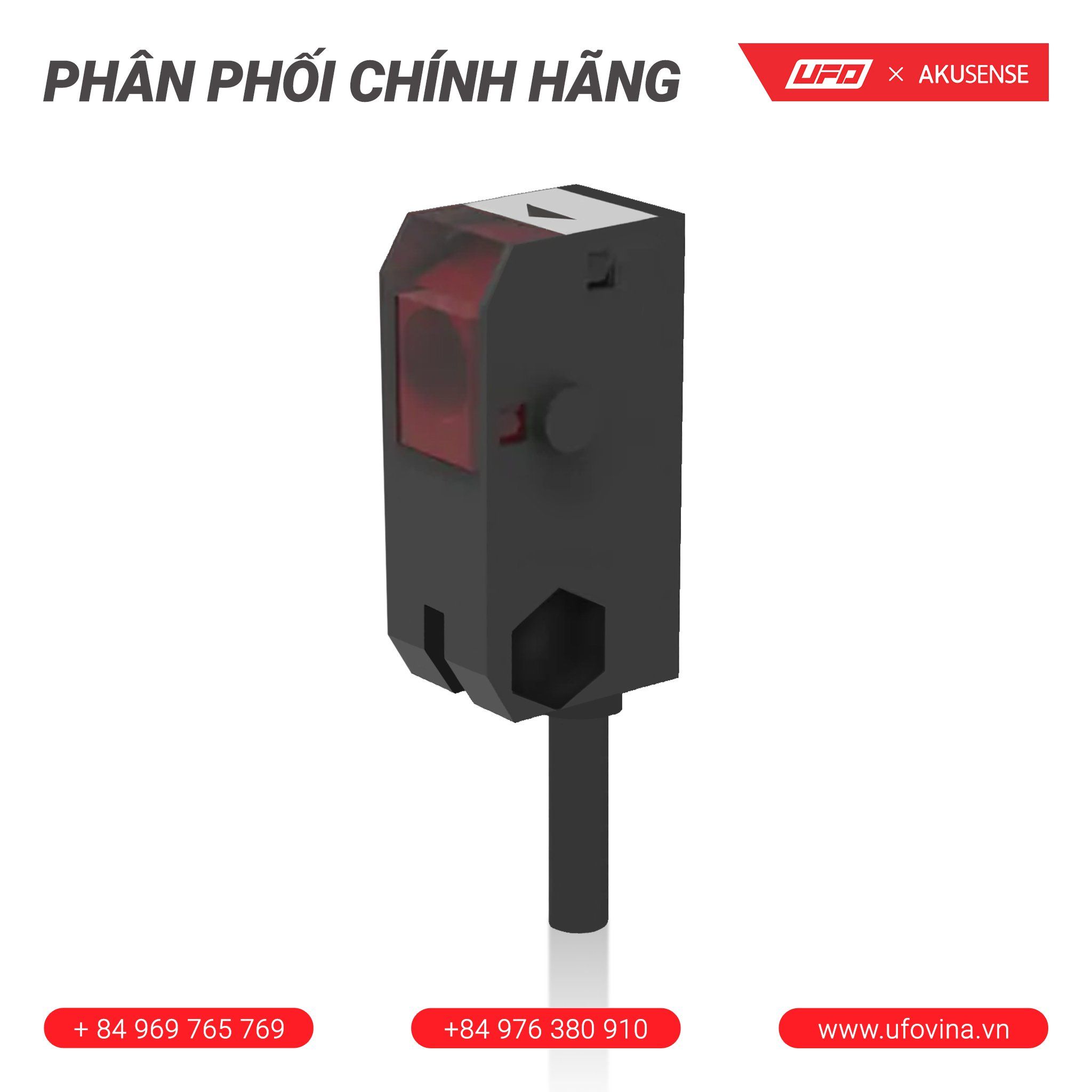

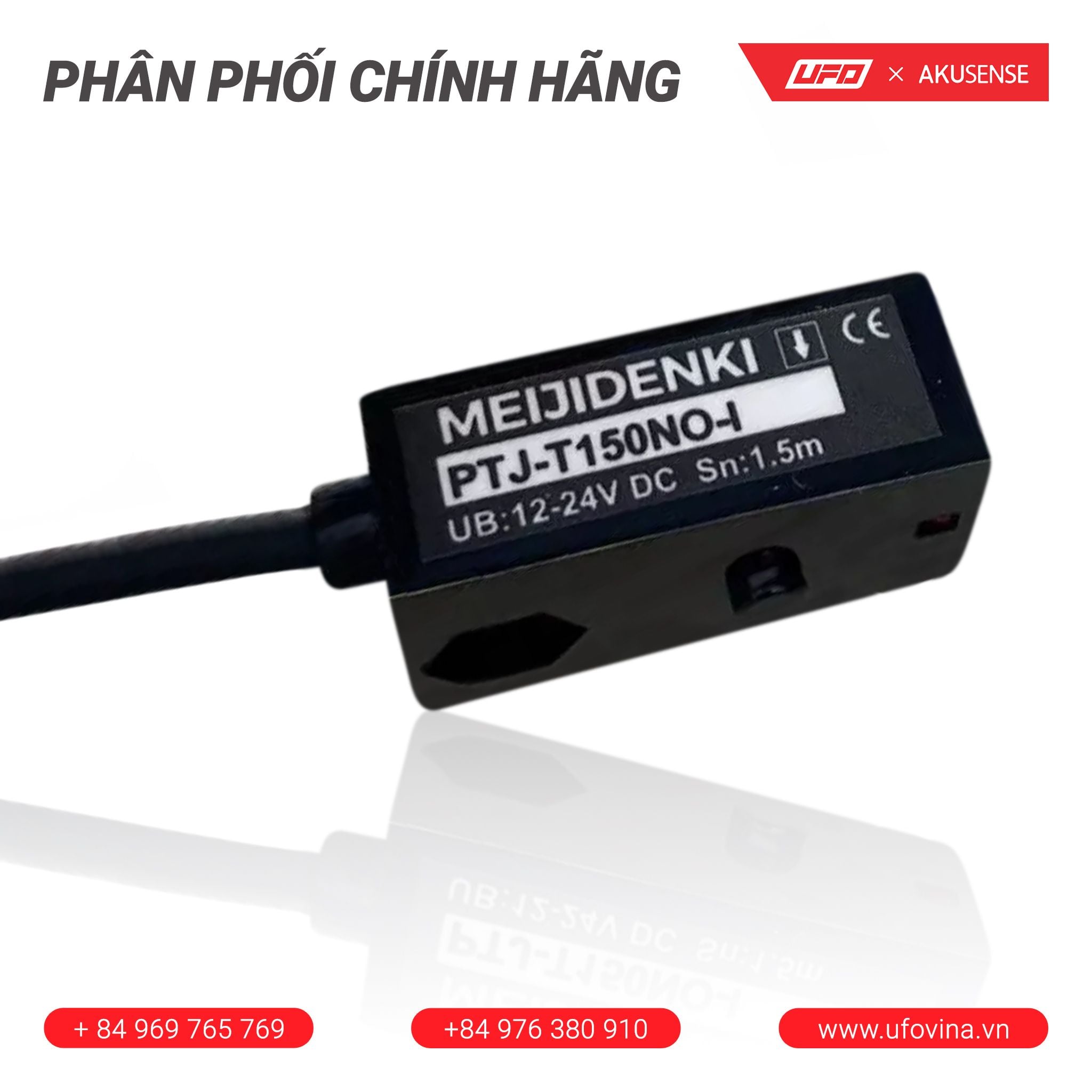

Akusense Square Sensor PTJ-T150NO-I
0₫
Mô tả
Model: PTJ-T150NO-I
- Detection Method：Thru-beam
- Detection Distance：150cm not adjustable
- Output Mode：NPN is normally open
- Response Time ：33ms
- Light Source：Infrared LED 850nm(modulation)
####
| Model | PTJ-T150NO-I |
| Detection Method | Thru-beam |
| Detection Distance | 150cm not adjustable |
| Output Mode | NPN is normally open |
| Switch Mode | D.on(shading action) |
| Response Time | 33ms |
| Light Source | Infrared LED 850nm(modulation) |
| Working Voltage | 12~24V DC |
| Current Consumption | emitter<20mA; receiver <20mA |
| Load Current | <50mA |
| Ambient Temperature | When working:-20℃~+50℃,no freezing When storing:-30℃~+70℃,no freezing |
| Ambient Humidity | When working:35~90%RH,When storing:35~90%RH |
| Insulation Resistance | ≥20MΩ/500V DC |
| Circuit Protection | Reverse polarity protection,short circuit protection |
| Protection Degree | IP64 |
| Connection Method | 2M/4 Core Cable |
| Material | PC/ABS |
| Detacted Object | Opaque objects above Φ6mm |
| Indicator | Emitter: Power indicator: green; Receiver: Working Indicator: yellow |
| Ambient Illuminance | Sunlight≤10,000 Lux,incandescent lamp ≤3,000 Lux |
| Vibration Resistance | 10~55Hz,1.5mm Reciprocating amplitude,X,Y,Z 2 hours in all directions |
| Residual Voltage | 2Vor less(At 50mA) |
| Compressive Strength | AC1000V(50/60Hz)1minute |
| Impact Resistance | 500m/s² 3 times in X, Y, and Z directions respectively |

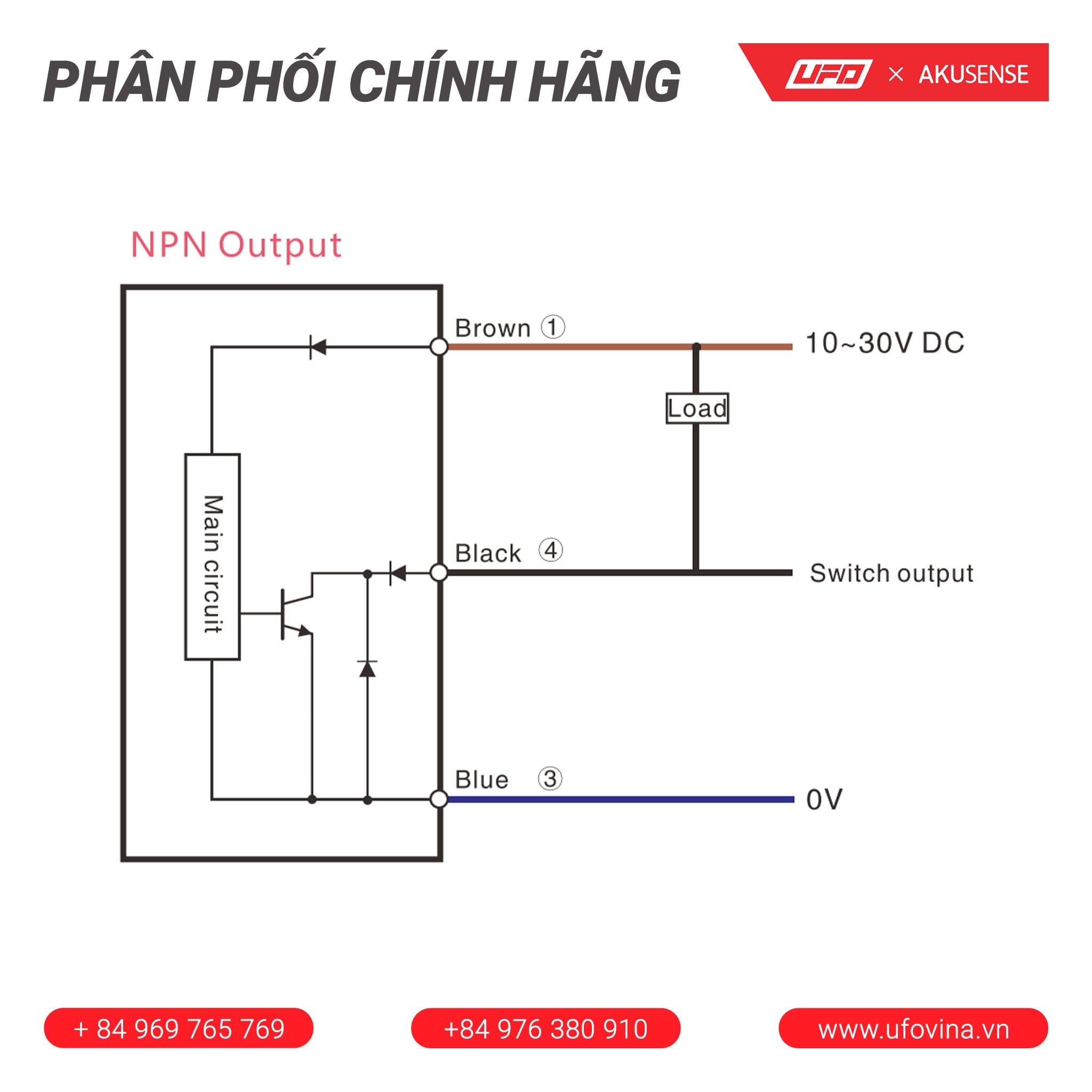

Circuit diagram:
Square Type Catalog:
