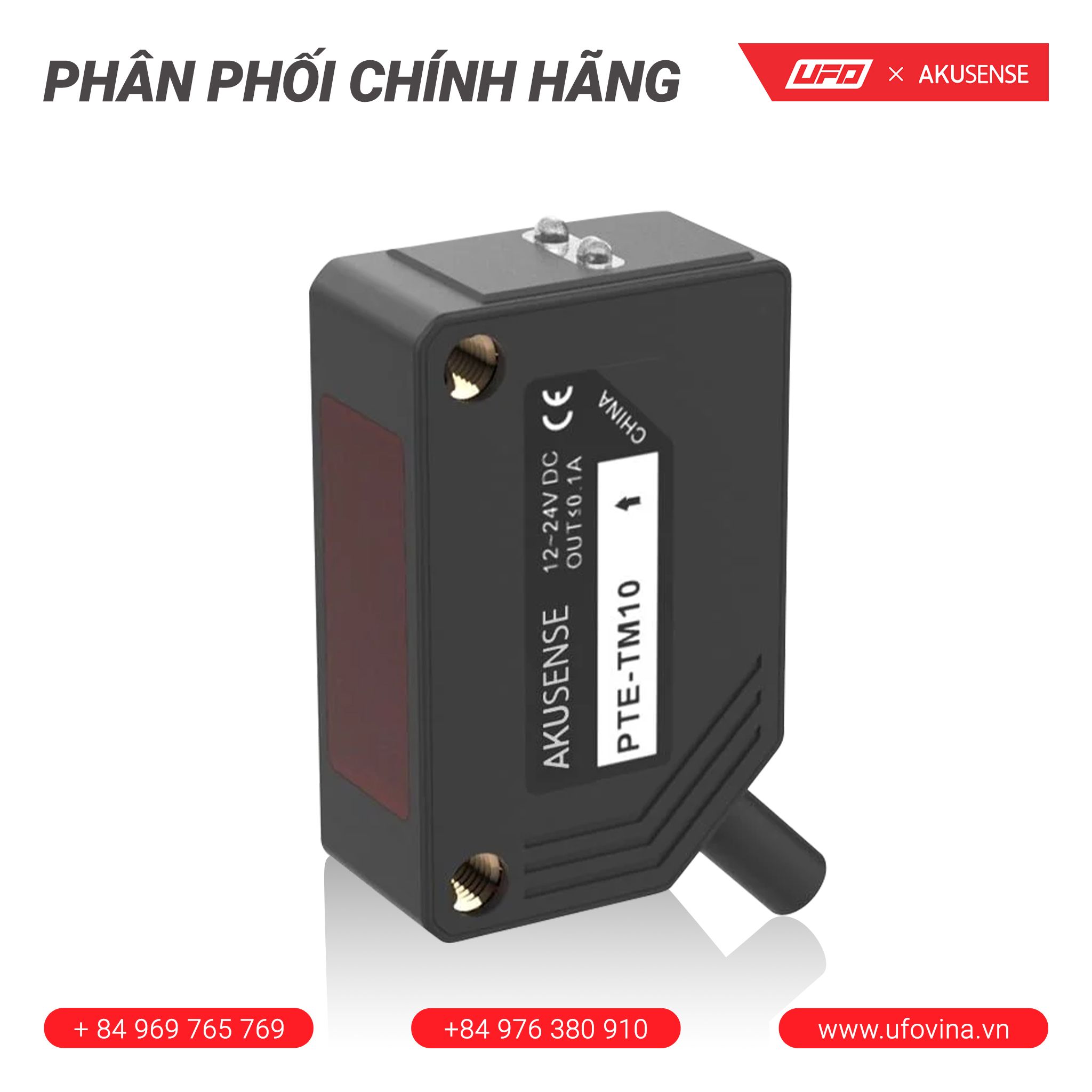

Akusense Square Sensor PTE-TM10AN
0₫
Mô tả
- Detection Method：Thru-beam
- Detection Distance：10m
- Output Mode：NPN open collector
- Response Time ：33ms
- Light Source：Red Light LED 623nm(modulation)
####
| Model | PTE-TM10AN |
| Detection Method | Thru-beam |
| Detection Distance | 10m |
| Output Mode | NPN open collector |
| Switch Mode | L.on(light entry action)/D.on(shading action) can be switched |
| Response Time | 33ms |
| Light Source | Red Light LED 623nm(modulation) |
| Working Voltage | 10~30V DC |
| Current Consumption | emitter<20mA; receiver<20mA |
| Load Current | <100mA |
| Ambient Temperature | -25℃~+55℃,no freezing |
| Ambient Humidity | 35%~85%RH,no condensation |
| Circuit Protection | Reverse polarity protection,short circuit protection |
| Protection Degree | IP65 |
| Connection Method | 2M/3 core cable 4mm diameter |
| Material | PBT+glass fiber(shell) PMMA(lens) |
| Accessary | Screwdriver |
| Detacted Object | Opaque objects above Φ12mm |
| Indicator | Emitter: Power indicator: green; Receiver: Working Indicator: green; Action indicator: red |
| Sensitivity Adjustment | Singleturn Potentiometer |
| Ambient Illuminance | Sunlight≤10,000 Lux,incandescent lamp ≤3,000 Lux |
| Vibration Resistance | 10~50Hz,0.5mm amplitude,2 hours each in the three directions of X,Y and Z |

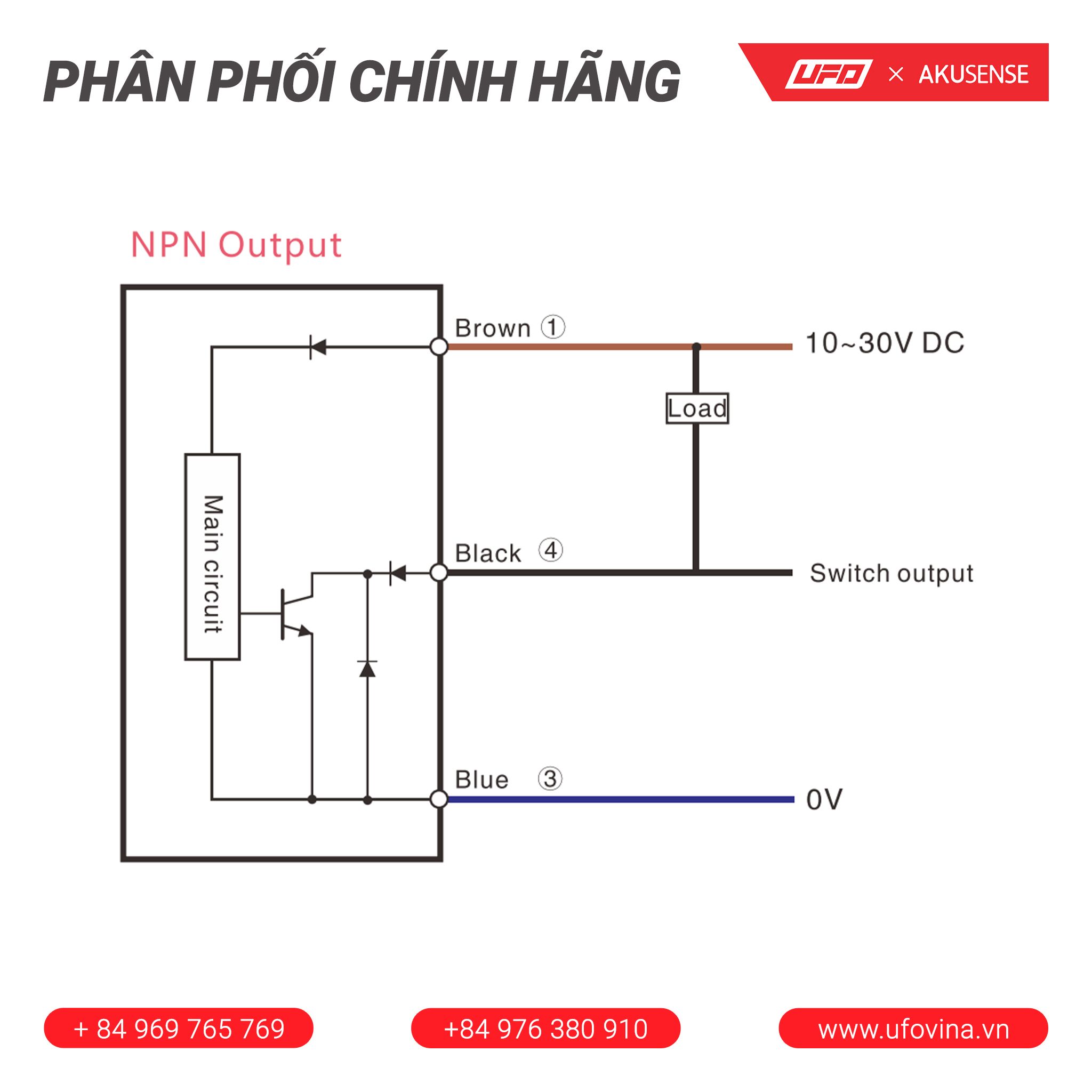

Circuit diagram:

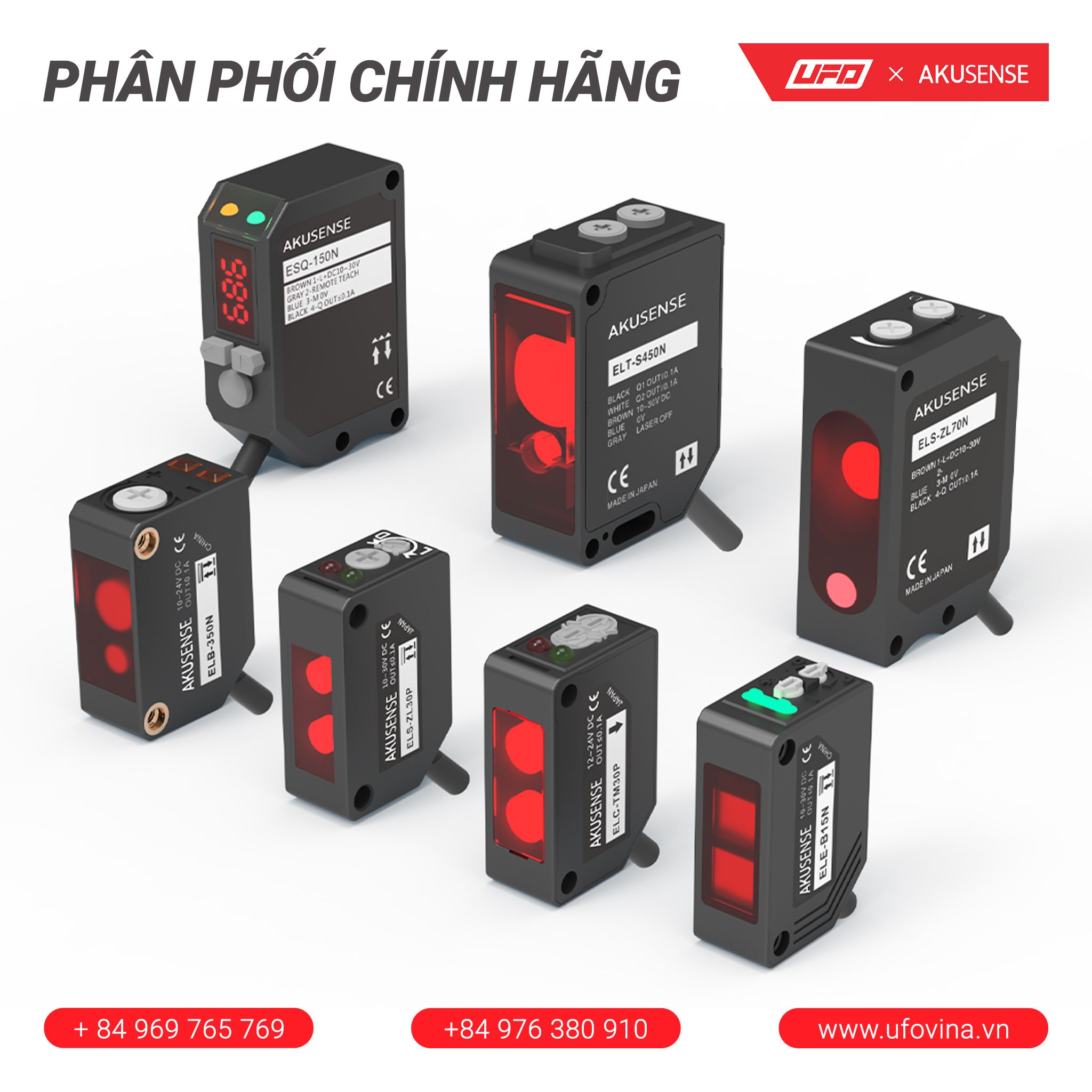

Square Type Catalog:
