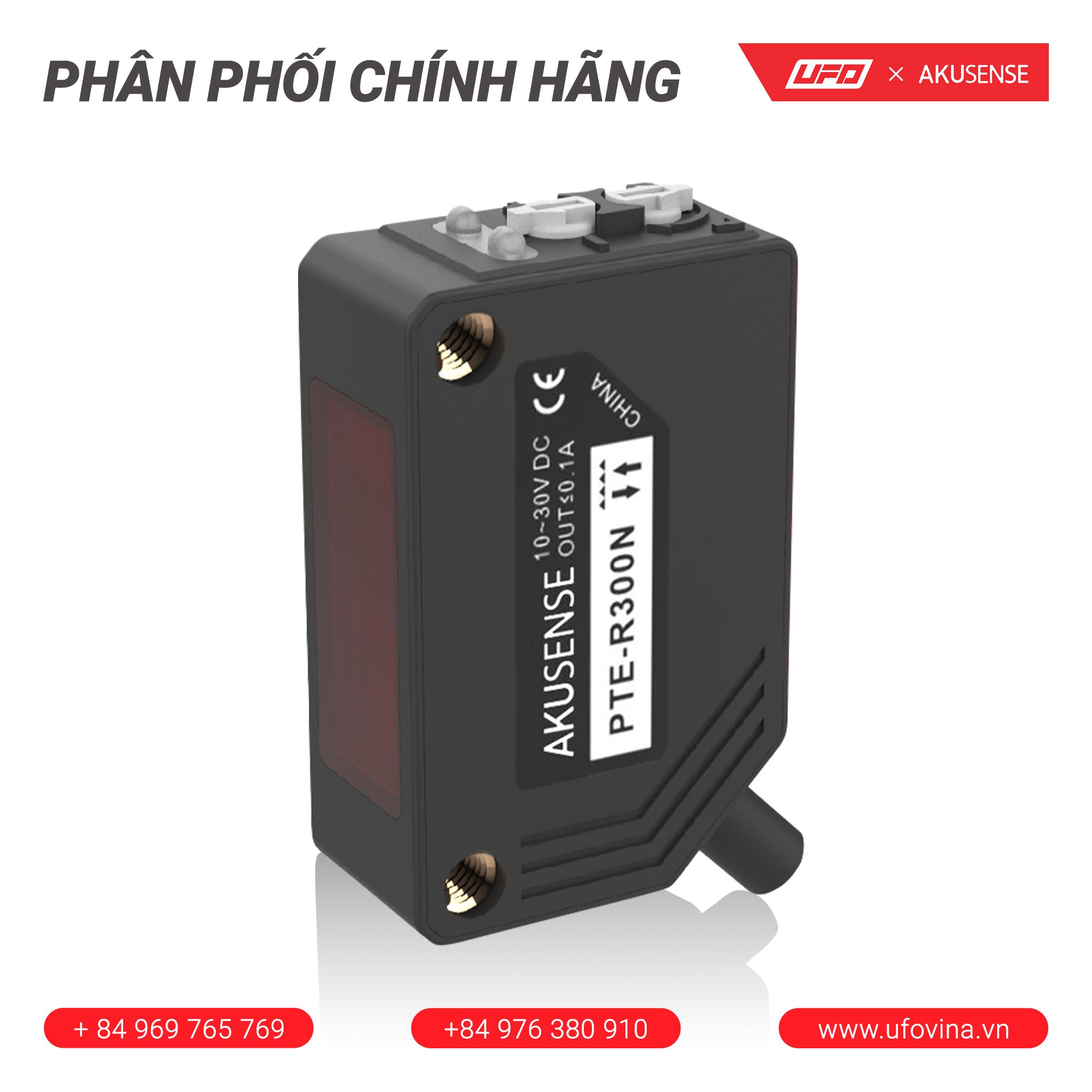

Square Sensor PTE-R300N

Giá gốc Giá bán: 0₫

Model: PTE-R300N

- Detection Method:Retro-Reflection

- Detection Distance:3m

- Output Mode:NPN Open Collector,≤100mA(30V DC)

- Response Time :<1ms

- Light Source:Red Light LED 623nm(modulation)

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

ModelPTE-R300N
Detection MethodRetro-Reflection
Detection Distance3m
Output ModeNPN Open Collector,≤100mA(30V DC)
Switch ModeL.on(light entry action)/D.on(shading action) can be switched
Response Time<1ms
Light SourceRed Light LED 623nm(modulation)
Working Voltage10~30V DC
Current Consumption<20mA
Load Current<100mA
Ambient Temperature-25℃~+55℃,no freezing
Ambient Humidity35%~85%RH,no condensation
Circuit ProtectionPower supply reverse polarity protection,output reverse polarity protection,surge protection,short circuit protection
Protection DegreeIP65
Connection Method2M/3 core cable 4mm diameter
MaterialPBT+glass fiber(shell) PMMA(lens)
AccessaryScrewdriver,Reflector
IndicatorOutput indicator: orange; Power LED: Green
Sensitivity AdjustmentSingleturn Potentiometer
Ambient IlluminanceSunlight≤10,000 Lux,incandescent lamp ≤3,000 Lux
Vibration Resistance10~50Hz,0.5mm amplitude,2 hours each in the three directions of X,Y and Z
Spot SizeΦ90mm/3m

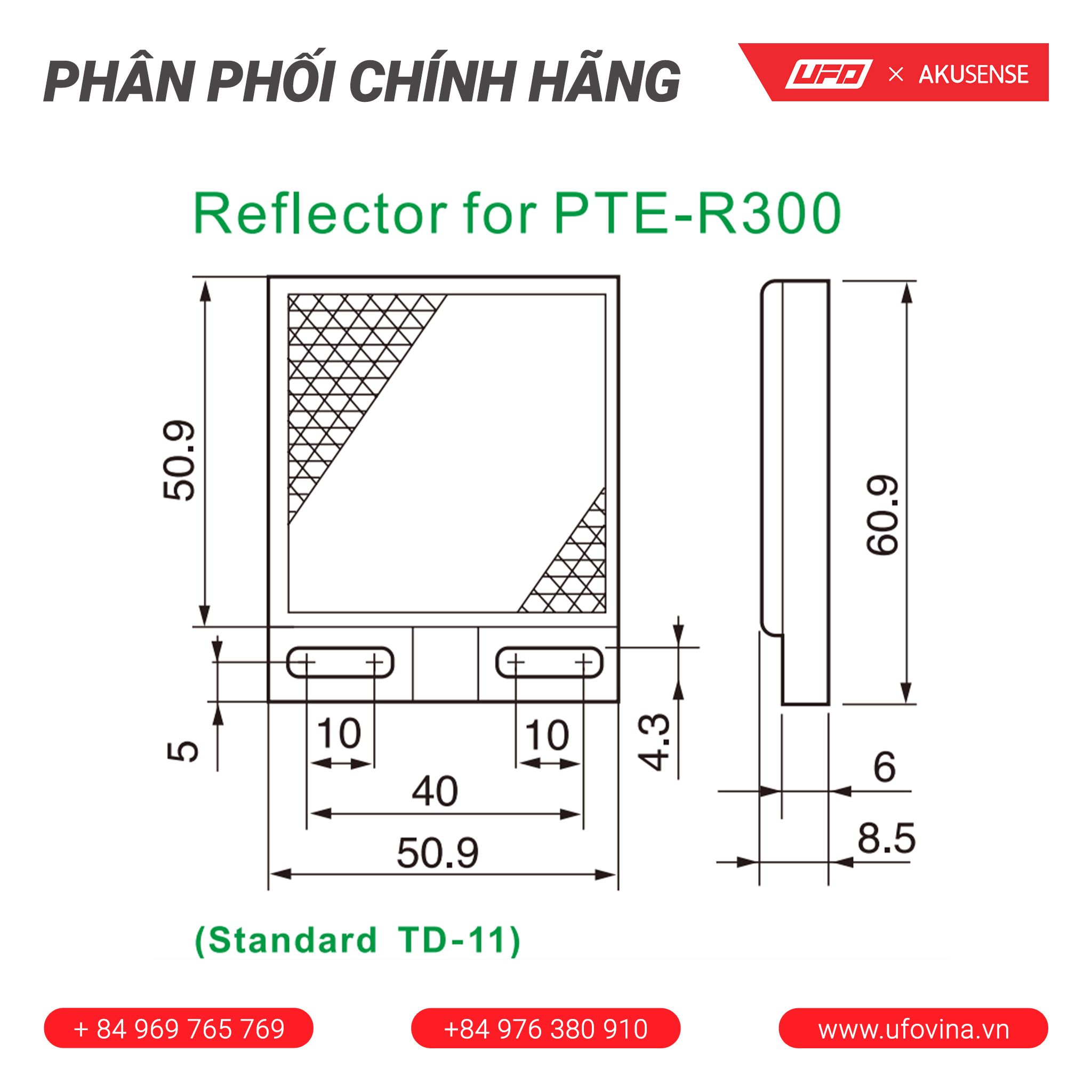

Size structure:

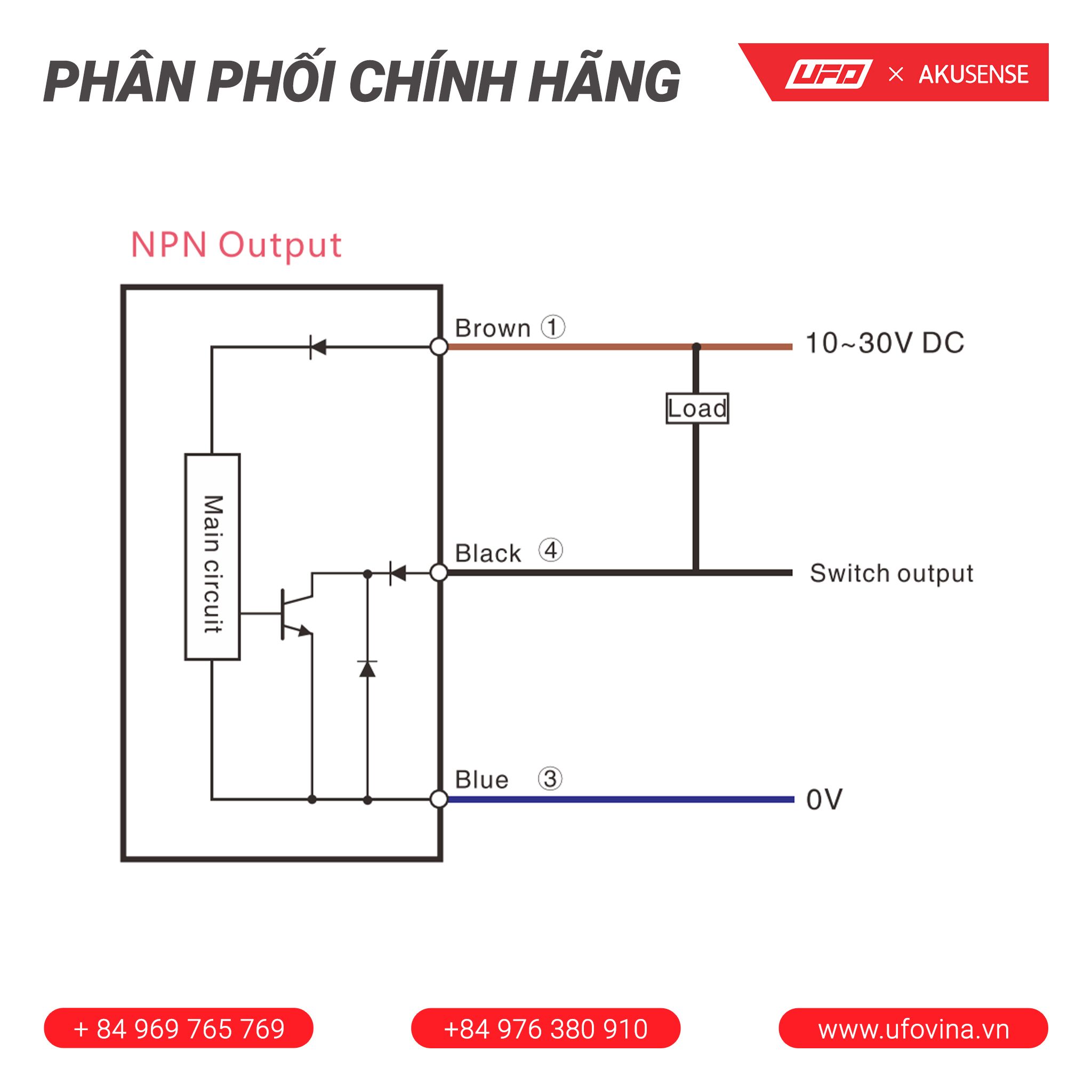

Circuit diagram:

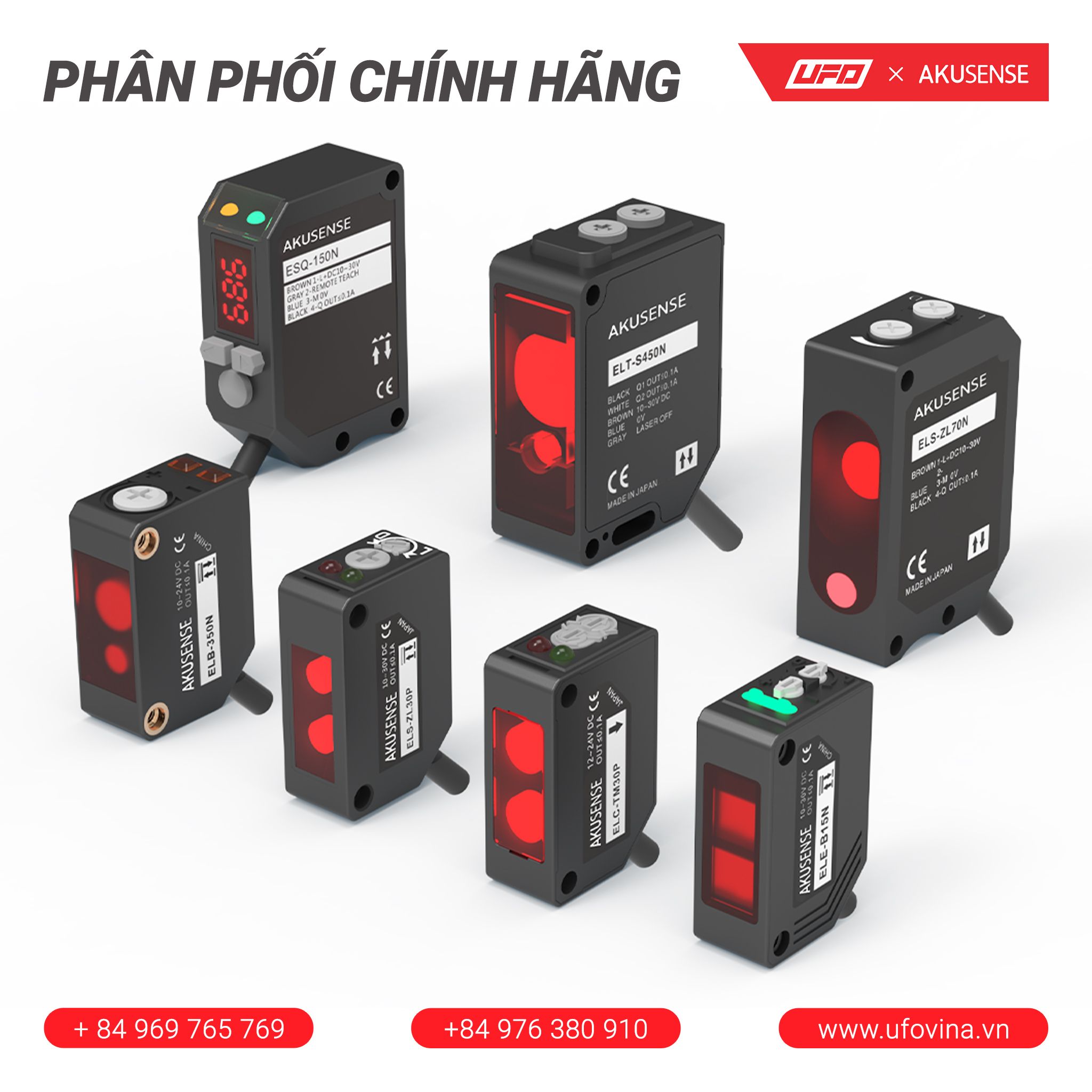

Square Type Catalog:
