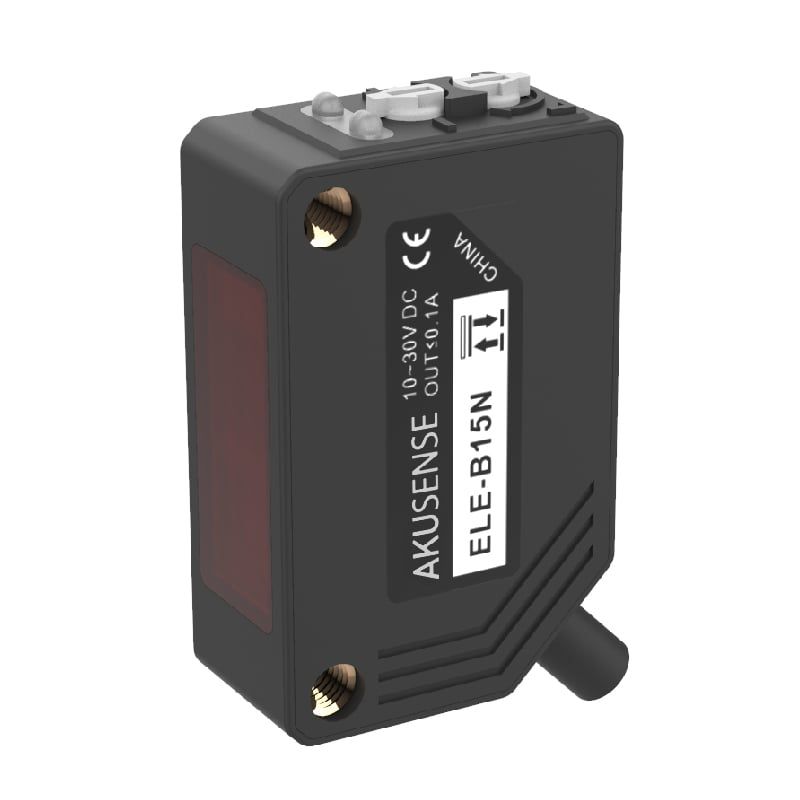

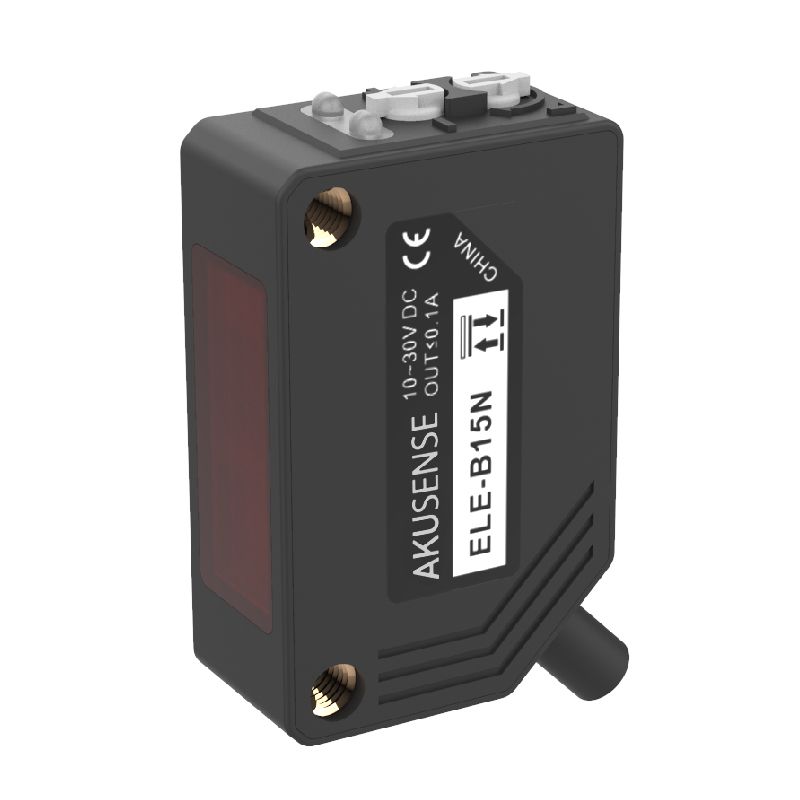

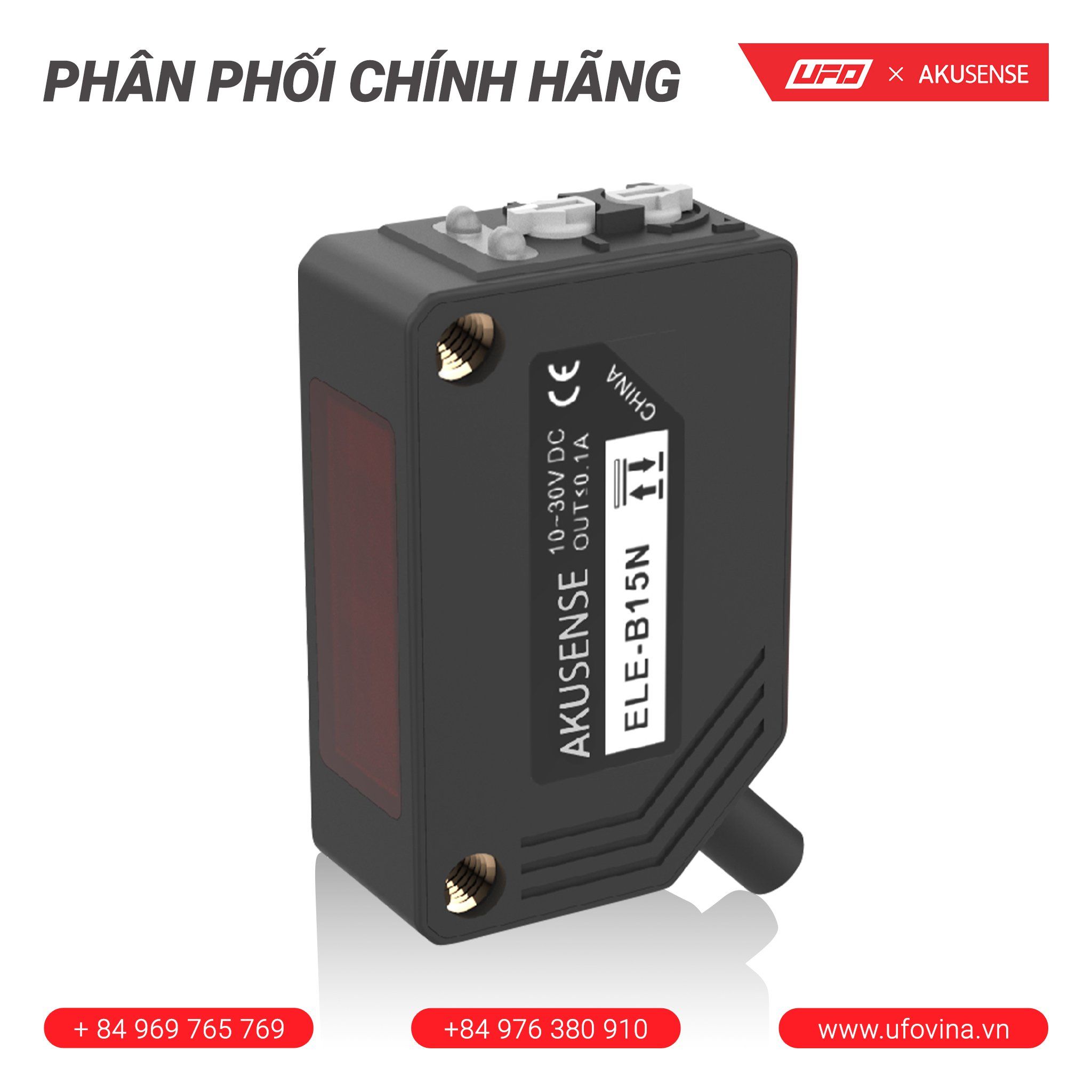

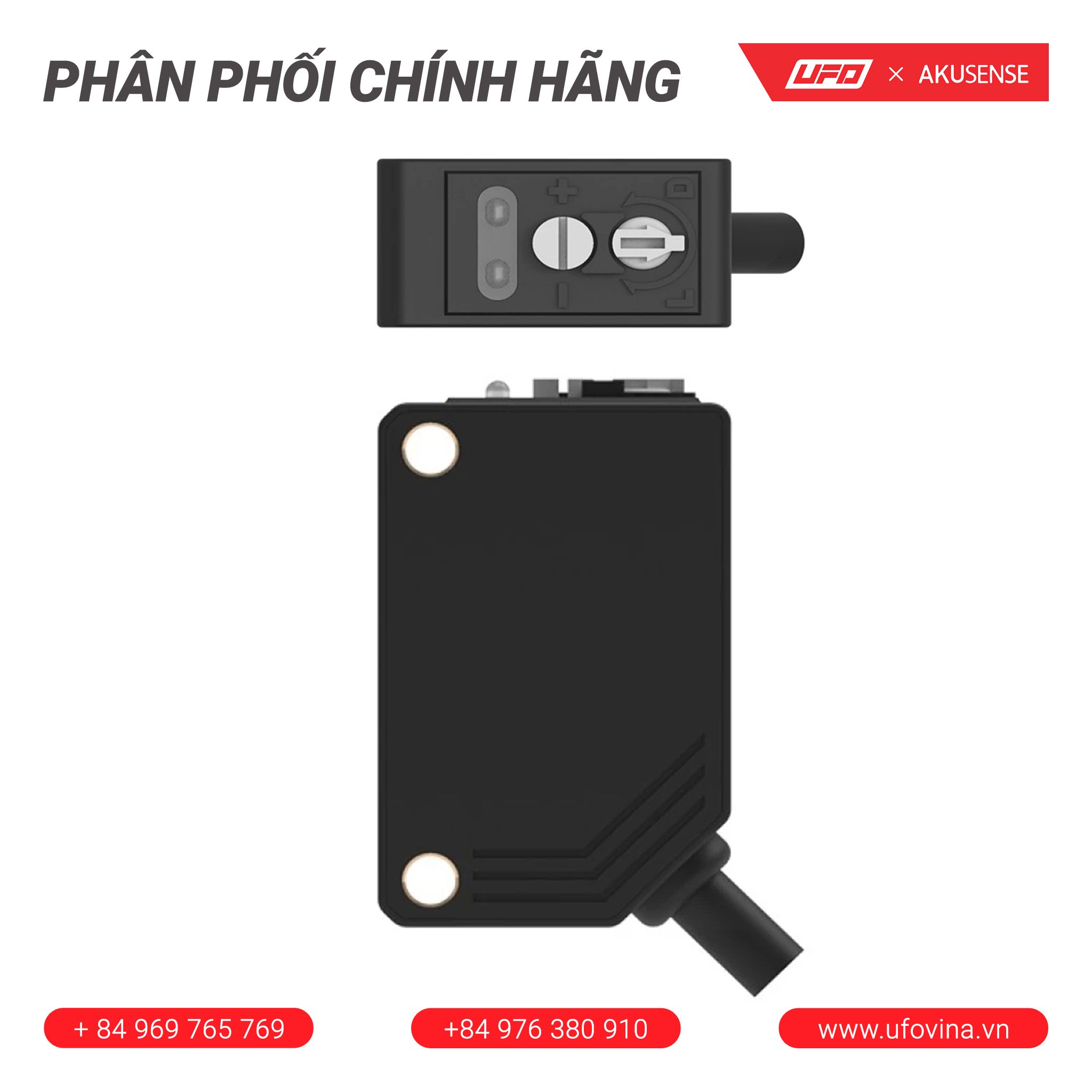

Square Sensor ELE-B15N

Giá gốc Giá bán: 0₫

- Detection Method:Diffuse Reflection-Background Suppresion Type

- Detection Distance:10~150mm

- Output Mode:NPN

- Minimum Detected Object:

- Response Time :≤2ms

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

Detection MethodDiffuse Reflection-Background Suppresion Type
Detection Setting2~15cm
Detection Distance10~150mm
Spot SizeΦ1.5mm/15cm
Differential Range≤5%SN
Switch ModeL.on(light entry action)/D.on(shading action) can be switched
IndicatorOutput indicator: red; Power LED: Green
Response Time≤2ms
Sensitivity Adjustment6-turn adjuster
Light SourceLaser 650nm modulation,Class 2
Working Voltage10~30V DC
Output ModeNPN
Current Consumption≤20mA
Load Current≤100mA
Residual Voltage<1.5V
Circuit ProtectionPower supply reverse polarity protection,output reverse polarity protection,surge protection,short circuit protection
Protection DegreeIP65
Housing MaterialShell: PBT+glass fiber; Lens: PMMA
Ambient IlluminanceSun exposure≤5000 Lux,Incandescent lamp irradiation≤3000 Lux
Ambient Temperature’-25℃~+55℃,no freezing; When Storing: -30~+70℃
Ambient Humidity35%~85%RH,no condensation; When Storing: 35%~95%RH
Withstand Voltage±1000V 50/60Hz 1minute
Static Electricity±8000V(air discharge)
Group Pulse±2000V(5kHZ/50kHZ)
Connection Method2M/3 Core Cable
Vibration Resistance10~50Hz,0.5mm Amplitude,2 hours each in the three directions of X,Y,and Z

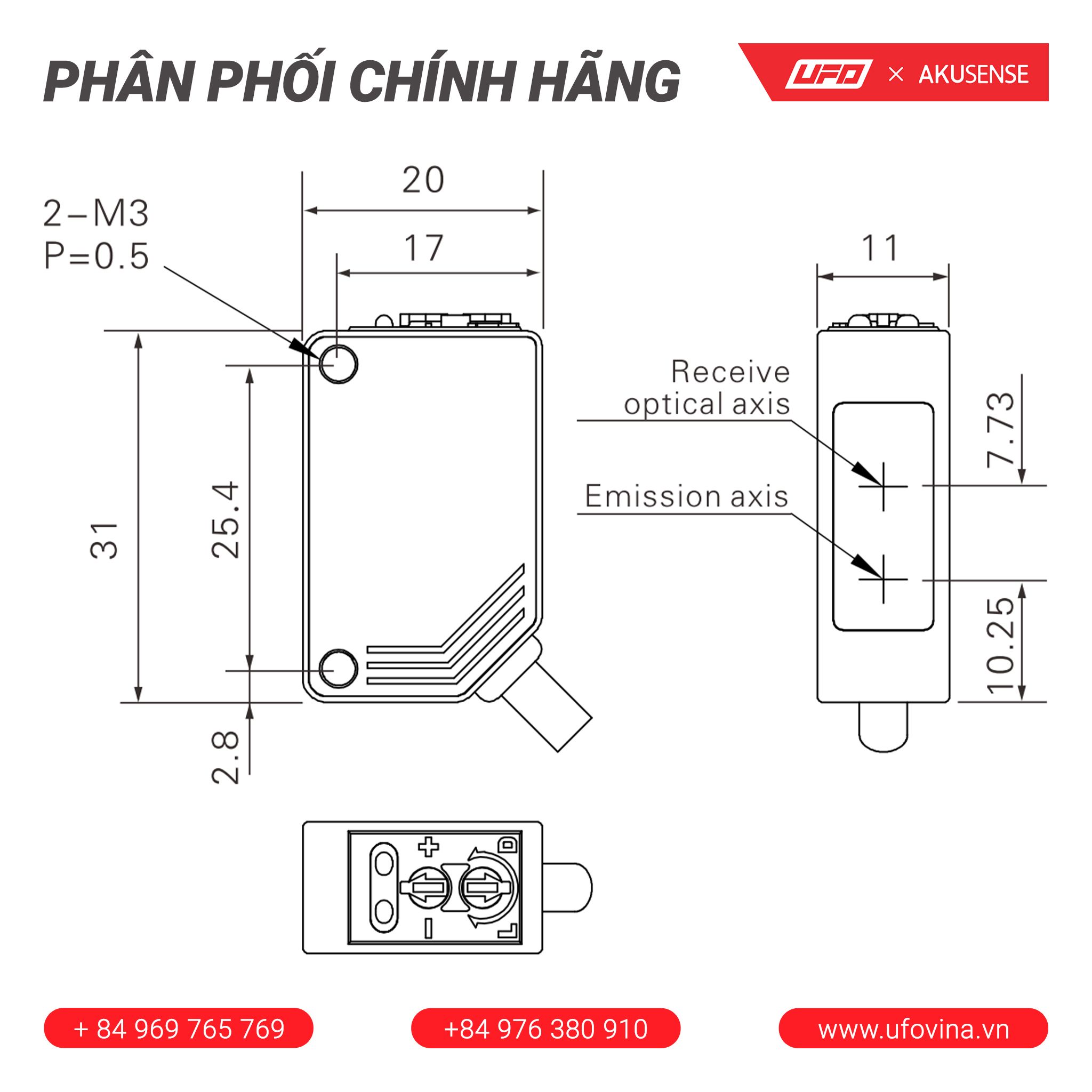

Size structure:

Circuit diagram:

ELB&ELE&ELC Series Catalog:
