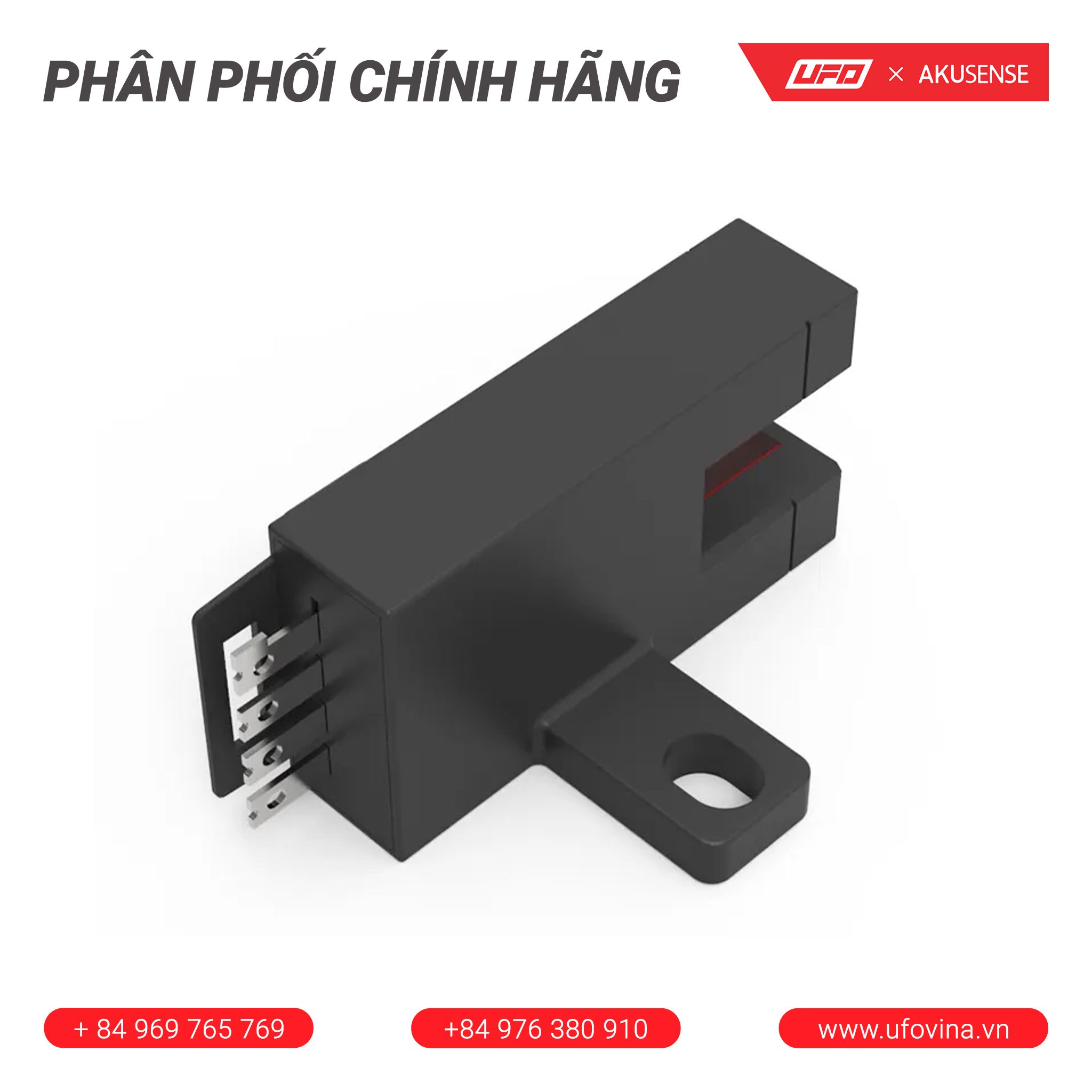

Akusense Slot Sensor ST-303N-E
0₫
Mô tả
- Detection Method：
- Detection Distance：5mm
- Output Mode：NPN open collector
- Repeatability：0.03mm or less
- Response Time ：≤0.3ms
####
| Model | ST-303N-E |
| Type | T Type |
| Detection Distance | 5mm |
| Repeatability | 0.03mm or less |
| Output Mode | NPN open collector |
| Switch Mode | L.on(light entry action) /D.on(shading action) can be switched |
| Indicator | The light is on when there is no object |
| Response Frenquency | 3KHz |
| Response Time | ≤0.3ms |
| Light Source | Infrared LED(940nm） |
| Working Voltage | 5~24V DC |
| Residual Voltage | 0.2V or less(load current 10mA),1.5V or less(load current 100mA) |
| Current Consumption | ＜20mA |
| Circuit Protection | Surge protection,reverse polarity protection |
| Ambient Illuminance | incandescent lamp≤1000Lux |
| Ambient Temperature | Working time: -25℃~+55℃ When storing: -30℃~+80℃,no freezing |
| Ambient Humidity | Working time: 5%~95%RH When storing: 5%~95%RH,no freezing |
| Pressure Resistance | AC,1000V for 1 min,between all power link terminals and housing |
| Anti-Vibration | 10~55Hz,amplitude 1.5mm,2 hours each in X,Y,Z direction |
| Insulation Resistance | Between all power connection terminals and housing,20MΩ or more(based on 250V DC) |
| Insulation Resistance | IP50 |
| Protection Degree | PC |
| Connection Method | Pluggable |

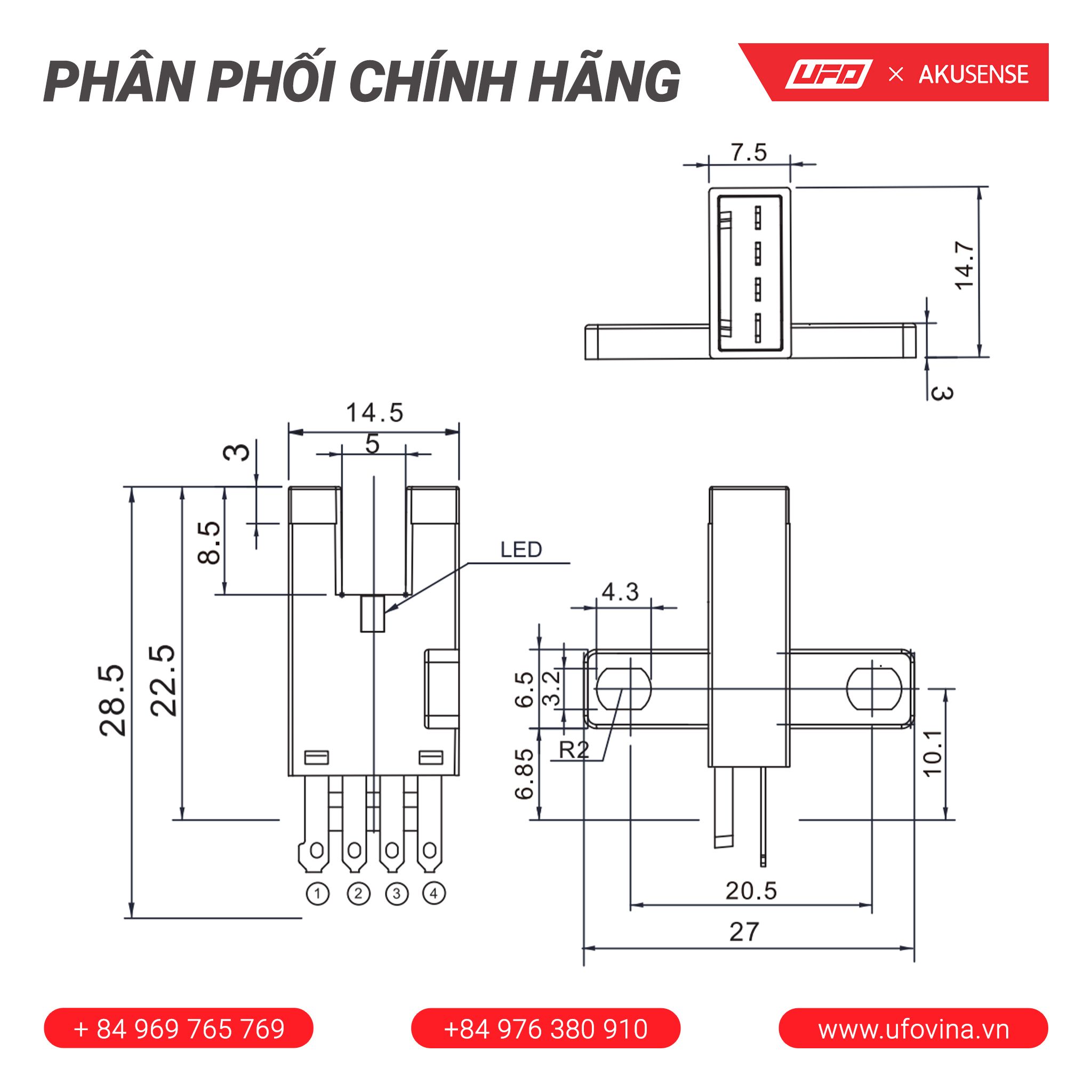

Size structure:

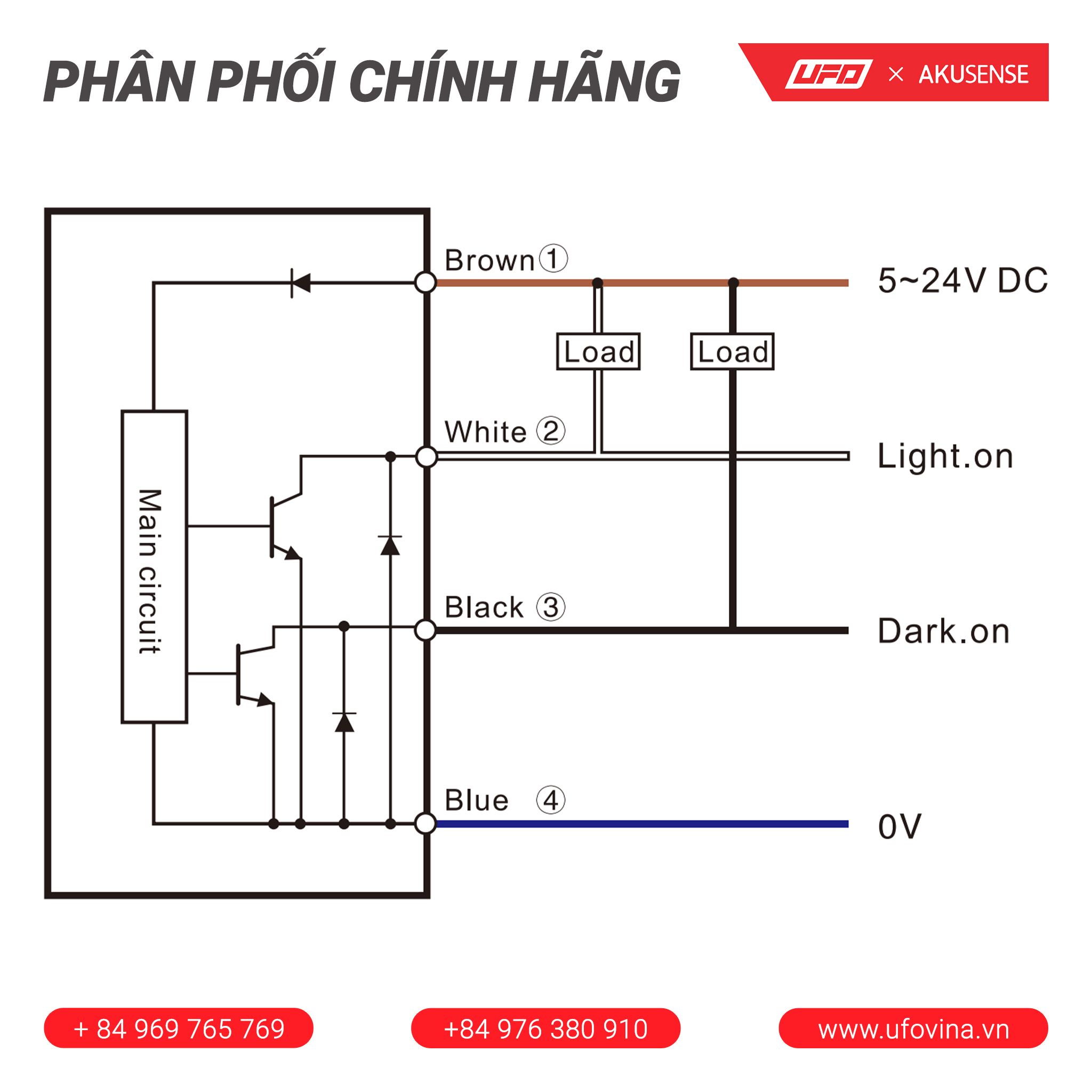

Circuit diagram:
Slot Type Series Catalog:
