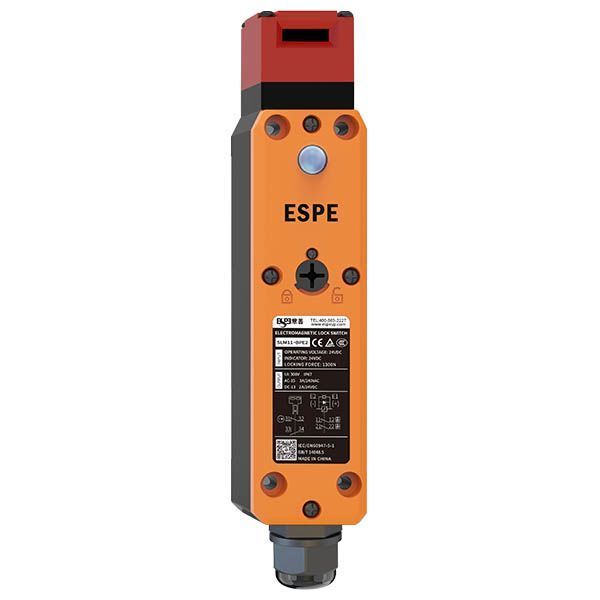

Mô tả sản phẩm
Technical Parameter
| Electromagnetic tube | ||
| Rated Voltage | DC24V | |
| Capacity | 4.8W | |
| Rated current | approximate 200mA | |
| Insulation | Clas B (130°C） | |
| LED indicator | ||
| Rated voltage | DC24V | |
| Rated current | approximate 1mA | |
| Luminous color (LED) | Green | |
| Safety level | ||
| Certificate | CE TUV | |
| Standard | EN60947-5-1, GB14048.5, IEC61508, EN ISO 14119 | |
| Protection rate | IP67 | |
| Material | PA66 fire retardant | |
| Mechanical lifespan | >1 million | |
| Electrical lifespan | over 150, 000 times (AC240V3A, resistive load) | |
| Type | AC-15 | DC-13 |
| Rated operating voltage(Ue) | 240V | 24V |
| Rated operating current(Ie) | 3A | 2A |
| Electrical parameter | ||
| Contact resistance | <25mΩ | |
| Nominal discharge current (lth) | 10A | |
| Rated insulation voltage (Ui) | 300V | |
| Anti-electric shock level | Class II (double insulation) | |
| Pulse withstand voltage (EN60947-5-1) | 2.5kv | |
| Insulation resistance | >100mΩ | |
| Short-circuit protection | 10A, 250V requires a quick-break fuse | |
| Vibration resistance | 10-55HZ, double amplitude 1.5mm | |
| Compact resistance | Durability 1000/S², mal-operation 300m/S² | |
| Conditional short-circuit current | 100A (EN60947-5-1) | |
| Space of contact | Above 2 x 2mm | |
| Action characteristic | ||
| Direct opening force | Minimum 60N | |
| Direct opening travel | over 10mm | |
| Allowed operating speed | 0.1m-0.5m/s | |
| Allowed operating frequency | Maximum 30 times/minute | |
| Holding force | 1300N | |
| Environment | ||
| Operating environment | 3 (EN60947-5-1) | |
| Operating temperature | -10 to 55°C ( no freezing) | |
| Operating humidity | <95% RH | |
Model Selection Table
Plastic Head
Volatge Indicator | Lock/ Unlock | Contact type (door monitor+ lock monitor) | Connector | Model |
Electromagnet DC24V Green LED | Power to unlock | 1NO+1NC | PG13.5 | SLM11-APM1 |
| M20 | SLM11-APM2 | |||
| 1NC/1N0+2NC | PG13.5 | SLM11-BPM1 | ||
| M20 | SLM11-BPM2 | |||
| 1NC+1NC | PG13.5 | SLM11-CPMF1 | ||
| M20 | SLM11-CPM2 | |||
| 2NC+1NC | PG13.5 | SLM11-DPM1 | ||
| M20 | SLM11-DPM2 | |||
| 2NO+2NC | PG13.5 | SLM11-EPM1 | ||
| M20 | SLM11-EPM2 | |||
| 1NC/1NO+1NC | PG13.5 | SLM11-FPM1 | ||
| M20 | SLM11-FPM2 | |||
| 2NC+2NC | PG13.5 | SLM11-GPM1 | ||
| M20 | SLM11-GPM2 | |||
| 1NC/1NO+1NC/1NO | PG13.5 | SLM11-HPM1 | ||
| M20 | SLM11-HPM2 | |||
| 1NO+3NC | PG13.5 | SLM11-IPM1 | ||
| M20 | SLM11-IPM2 | |||
| 1NC+3NC | PG13.5 | SLM11-JPM1 | ||
| M20 | SLM11-JPM2 | |||
| 3NC+1NC | PG13.5 | SLM11-KPM1 | ||
| M20 | SLM11-KPM2 | |||
| 2NC+1NC/1NO | PG13.5 | SLM11-LPM1 | ||
| M20 | SLM11-LPM2 | |||
Power to lock | 1NO+1NC | PG13.5 | SLM11-APE1 | |
| M20 | SLM11-APE2 | |||
| 1NC/1N0+2NC | PG13.5 | SLM11-BPE1 | ||
| M20 | SLM11-BPE2 | |||
| 1NC+1NC | PG13.5 | SLM11-CPE1 | ||
| M20 | SLM11-CPE2 | |||
| 2NC+1NC | PG13.5 | SLM11-DPE1 | ||
| M20 | SLM11-DPE2 | |||
| 2NO+2NC | PG13.5 | SLM11-EPE1 | ||
| M20 | SLM11-EPE2 | |||
| 1NC/1NO+1NC | PG13.5 | SLM11-FPE1 | ||
| M20 | SLM11-FPE2 | |||
| 2NC+2NC | PG13.5 | SLM11-GPE1 | ||
| M20 | SLM11-GPE2 | |||
| 1NC/1NO+1NC/1NO | PG13.5 | SLM11-HPE1 | ||
| M20 | SLM11-HPE2 | |||
| 1NO+3NC | PG13.5 | SLM11-IPE1 | ||
| M20 | SLM11-IPE2 | |||
| 1NC+3NC | PG13.5 | SLM11-JPE1 | ||
| M20 | SLM11-JPE2 | |||
| 3NC+1NC | PG13.5 | SLM11-LPE1 | ||
| M20 | SLM11-LPE2 | |||
| 2NC+1NC/1NO | PG13.5 | SLM11-MPE1 | ||
| M20 | SLM11-MPE2 |
