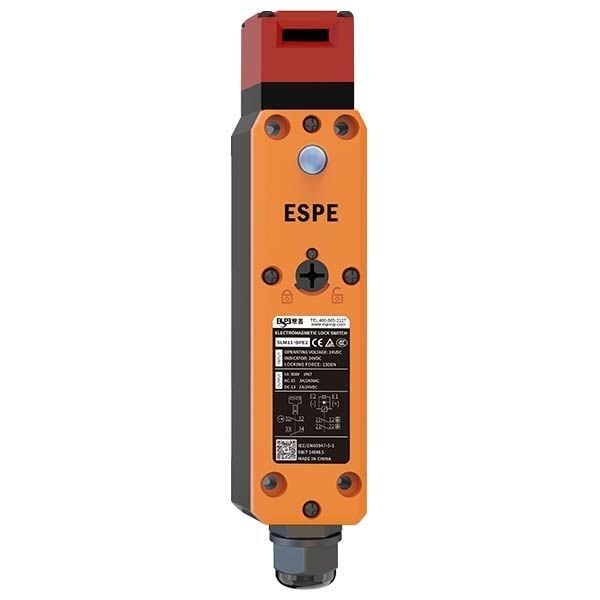

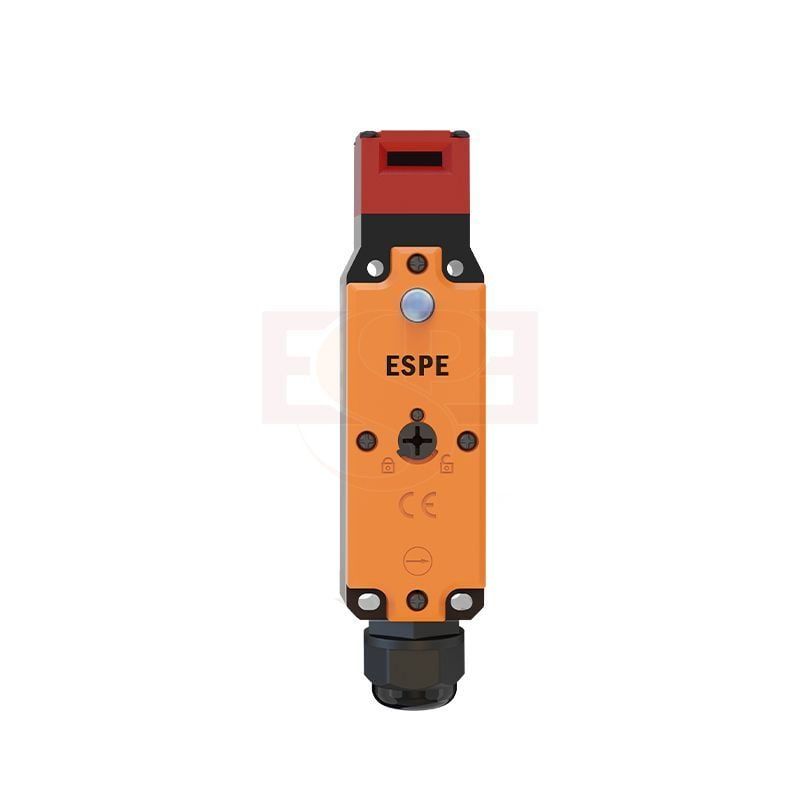

SLM11 Safety Door Switch(2 contacts)

Giá gốc Giá bán: 0₫

Brand:ESPE

Model:SLM11 (2 contacts)

Characteristic:

  1. IP 67 protection degree (EPL and EPS series safety door switches);

  2. Multiple models for selection;

  3. Easy for installment and operation;

  4. Holding force up to 1300N;

  5. Widely use in varies industrial environment.

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

Electromagnetic tube
Rated VoltageDC24V
Capacity4.8W
Rated currentapproximate 200mA
InsulationClas B (130­°C)
LED indicator
Rated voltageDC24V
Rated currentapproximate 1mA
Luminous color (LED)Green
Safety level
CertificateCE TUV
StandardEN60947-5-1, GB14048.5, IEC61508, EN ISO 14119
Protection rateIP67
MaterialPA66 fire retardant
Mechanical lifespan>1 million
Electrical lifespanover 150, 000 times (AC240V3A, resistive load)
TypeAC-15DC-13
Rated operating voltage(Ue)240V24V
Rated operating current(Ie)3A2A
Electrical parameter
Contact resistance<25mΩ
Nominal discharge current (lth)10A
Rated insulation voltage (Ui)300V
Anti-electric shock levelClass II (double insulation)
Pulse withstand voltage (EN60947-5-1)2.5kv
Insulation resistance>100mΩ
Short-circuit protection10A, 250V requires a quick-break fuse
Vibration resistance10-55HZ, double amplitude 1.5mm
Compact resistanceDurability 1000/S², mal-operation 300m/S²
Conditional short-circuit current100A (EN60947-5-1)
Space of contactAbove 2 x 2mm
Action characteristic
Direct opening forceMinimum 60N
Direct opening travelover 10mm
Allowed operating speed0.1m-0.5m/s
Allowed operating frequencyMaximum 30 times/minute
Holding force1300N
Environment
Operating environment3 (EN60947-5-1)
Operating temperature-10 to 55°C ( no freezing)
Operating humidity<95% RH

Model Selection Table

Plastic Head

Volatge

Indicator

Lock/

unlock

Contact type

(door monitor+

lock monitor)

ConnectorModel

Electromagnet

DC24V

Green LED

Power to unlock

1NO+1NC

M16SLM11-APM3
1NC+1NCM16SLM11-CPM3

Power to lock

1NO+1NC

M16SLM11-APE3
1NC+1NCM16SLM11-CPE3
