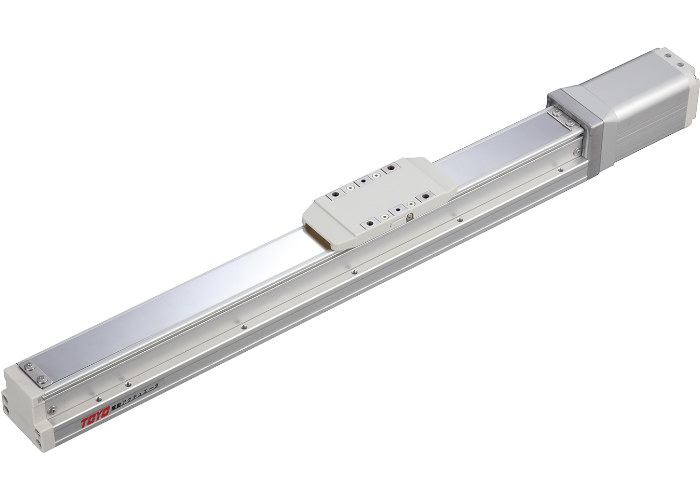

Ballscrew Accuracy Grade code: L
Ballscrew Accuracy code: C7 Rolled Ballscrews
Repeatability:±0.005(mm)
Stroke/Pitch :50-1050 / 50 pitch (mm)
Ball Screw Lead:2 / 5(mm)
Maximum rotating speed: 3000/3600(rpm)
Maximum Speed | Horizontal:≦100/≦300 (mm/s)
Maximum Speed | Vertical :≦100/≦300 (mm/s)
Maximum Payload | Horizontal :≦30 / ≦30 (kg)
Maximum Payload | Vertical :≦10/≦10 (kg)
Rated Thrust:1147/459(N)
______________________ ___________________
Ballscrew Accuracy Grade code: C
Ballscrew Accuracy code: C5 Ground Ballscrews
Repeatability:±0.003(mm)
Stroke/Pitch :50-300 / 50 pitch (mm)
Ball Screw Lead:10 / 20 (mm)
Maximum rotating speed: 3600/3300(rpm)
Maximum Speed | Horizontal:≦600 / ≦1100 (mm/s)
Maximum Speed | Vertical :≦600 / ≦1100 (mm/s)
Maximum Payload | Horizontal :≦15 / ≦6.5 (kg)
Maximum Payload | Vertical :≦5/ ≦1.5 (kg)
Rated Thrust:229 /115 (N)
______________________ ___________________
※1 The maximum speed shown here is when software speed setting is 100%
※2 The maximum speed and maximum payload cannot exist at the same time . Please refer to diagram of Speed and
payload curve before using.
※3 When the stroke is over 600mm, the run-out of the ballscrew will occur. We recommend to low down the working
speed under this circumstances.
