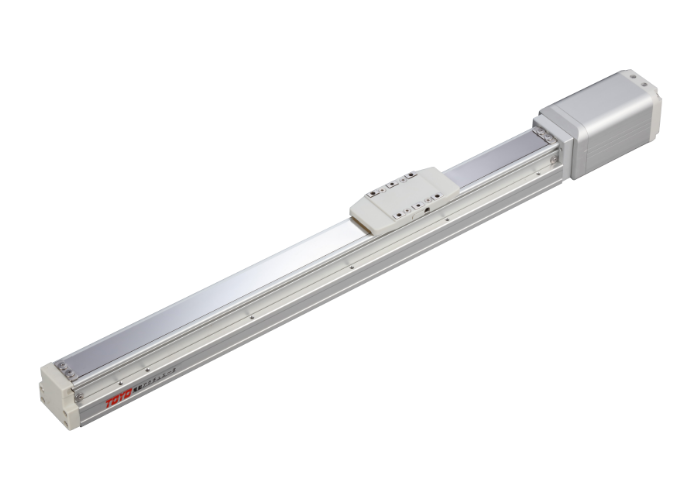

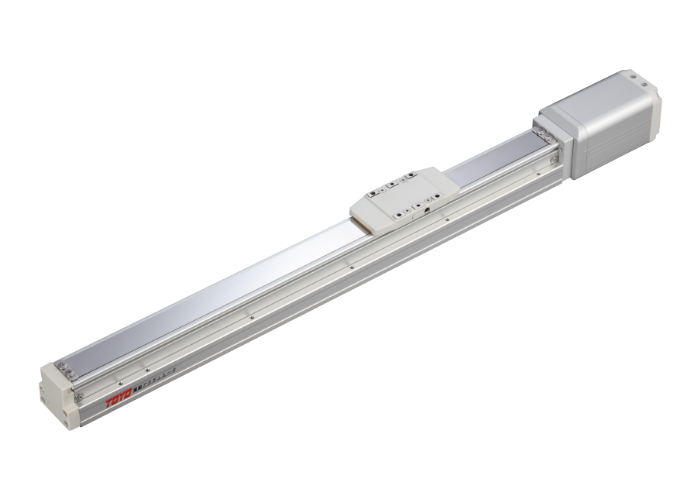

Servo Cylinder DGTH Series - DGTH4

Giá gốc Giá bán: 0₫
Repeatability:±0.005 (mm)
Ball Screw Lead:2/6/12(mm)
Maximum rotating speed: 3000/3600/3600(rpm)
Maximum Speed (Horizontal):≦100 / ≦360 / ≦720(mm/s)
Maximum Speed (Vertical):≦100 / ≦360 / ≦720(mm/s)
Maximum Payload (Horizontal):≦25/≦20/≦12 (kg)
Maximum Payload (Vertical):≦8/≦8 /≦3.5 (kg)
Rated Thrust:827/276/138(N)
Stroke/Pitch :50-1000 / 50 pitch (mm)
______________________ ___________________

※1 The maximum speed shown here is when software speed setting is 100%
※ 2 The maximum speed and maximum payload cannot exist at the same time . Please refer to diagram of Speed and payload curve before using.
※ 3 When the stroke is over 550 mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.
