Model | RCD-AI23024-X08RD-S |
Working principle | CMOS |
Enclosure type | Square |
Detection Range | 100~1000mm |
Focus Adjustment Method | Mechanical focusing |
Resolution | 1920×1200 |
Light Source | Polarized red light |
Code Type | One-dimensional Code: Code 39, Code93, Code128, EAN-8, EAN-13, Interleaved 2 of 5, UPC, Pharmacode; QR code, DataMatrix |
Color/black And White | black and white |
Shutter | Overall |
Indicator light | Location indication : 1 green light point indicates the scanning location center area; Status indicator :5 status leds and buzzers |
Image Sensor Size | 3μmx3μm |
Target Surface Size | 1/2.6" |
Maximum Reading Speed | 60 per second |
Exposure Time | 20μs~1sec |
Gain | 0dB~255dB |
Operating Voltage | 24VDC |
Power Consumption | 15W |
Output type | Two input control, optocoupler isolation - support NPN, PNP type; Three output control, optocoupler isolation |
Communication Protocol | TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Fins, Serial |
Communication Interface | RS232, Ethernet
|
Special function | Contact Maker Akusense or UFO VNTECH company |
Operating temperature | 0~45℃ |
Storage Temperature | -20-70℃ |
Humidity | 5% to 95%RH(non-condensing) |
Protection level | IP67 |
Connection Method | Cable connection |

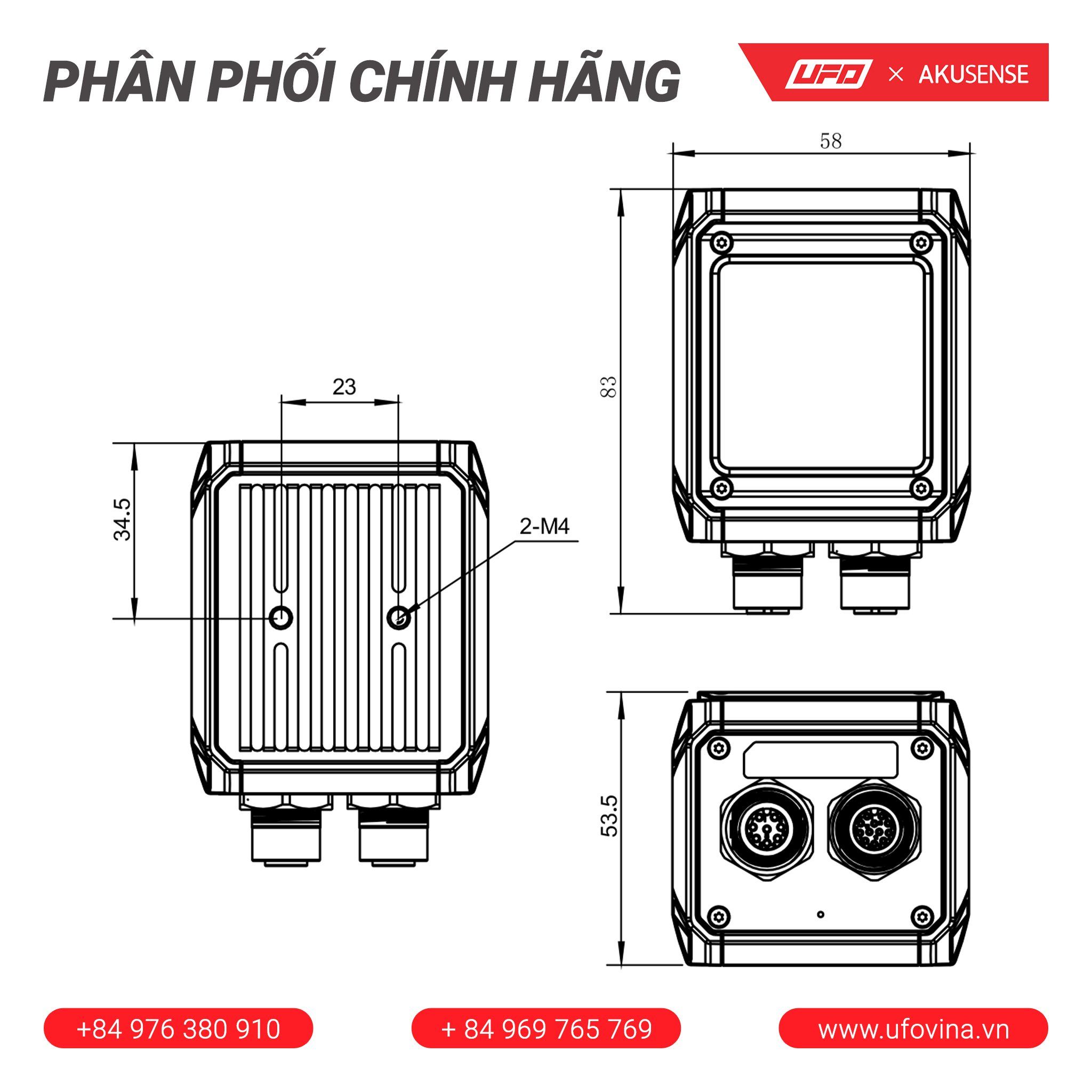

Dimensions | 58x53.5x83mm |
Weight | About 220g |
Accessories | M12-12 Pin-3M (3M high flexibility) M12-8 Pin-3M (3M high flexibility) L-shaped mounting bracket, 24V power adapter (optional), screw pack |
