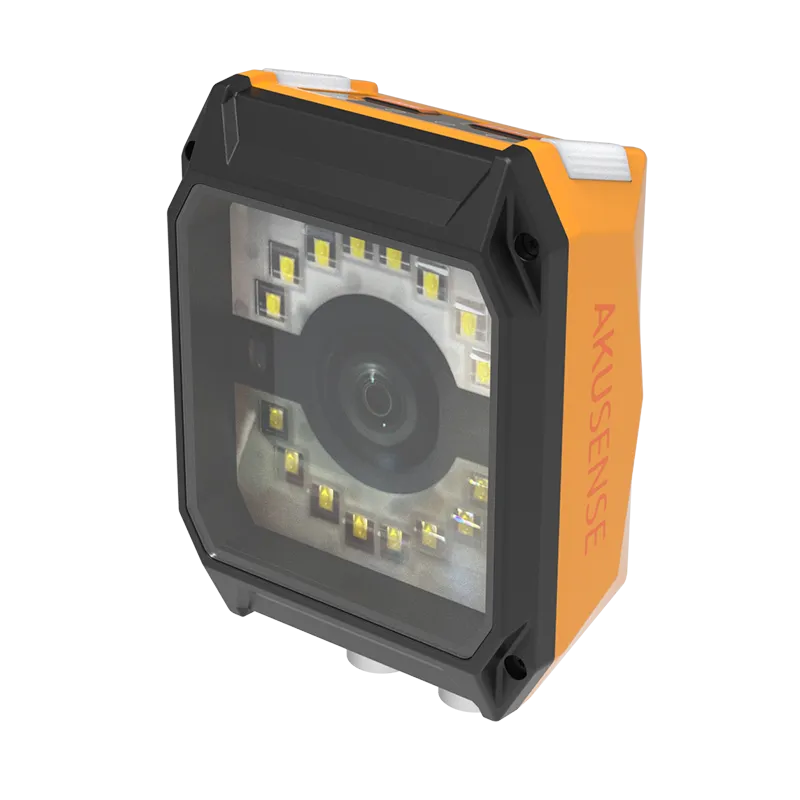

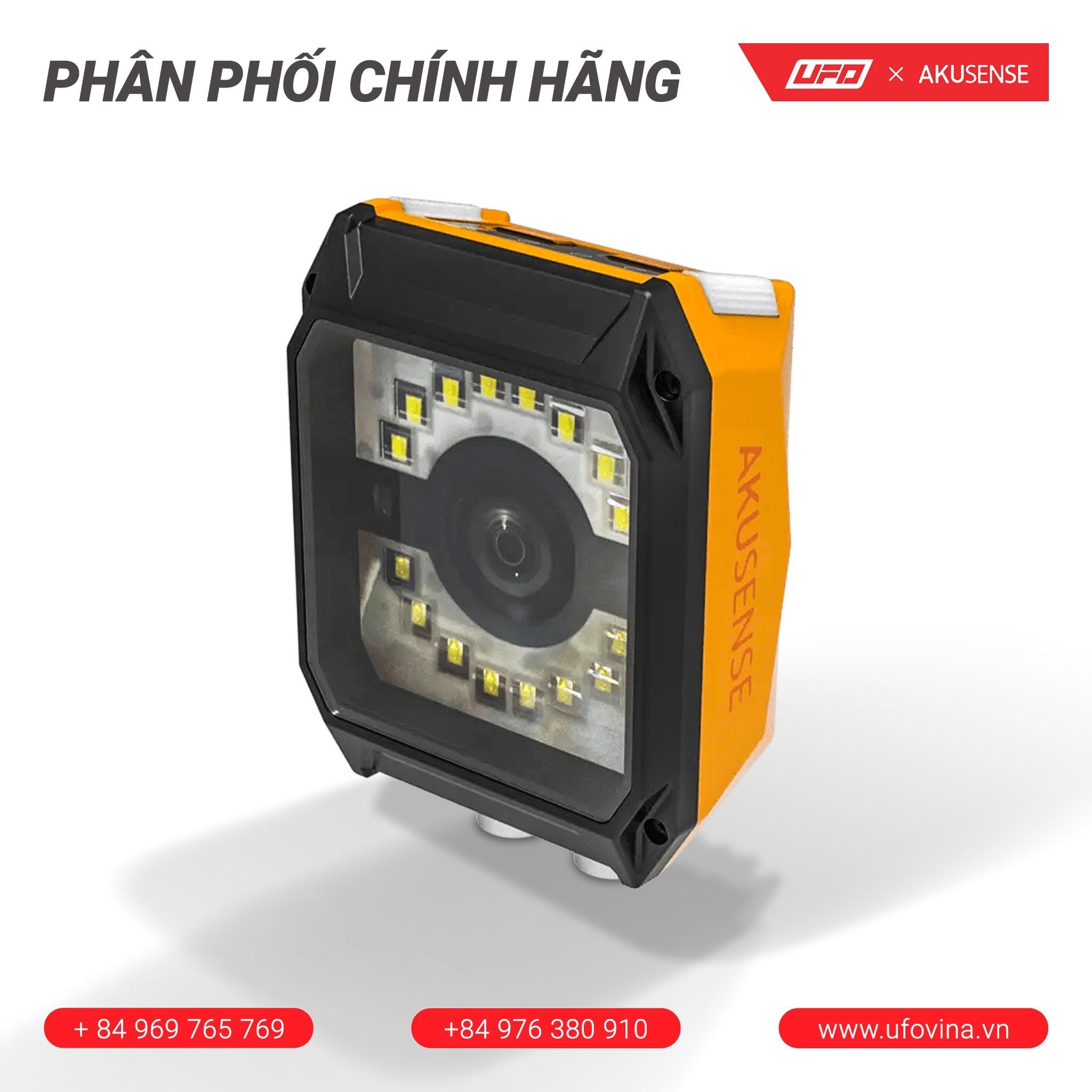

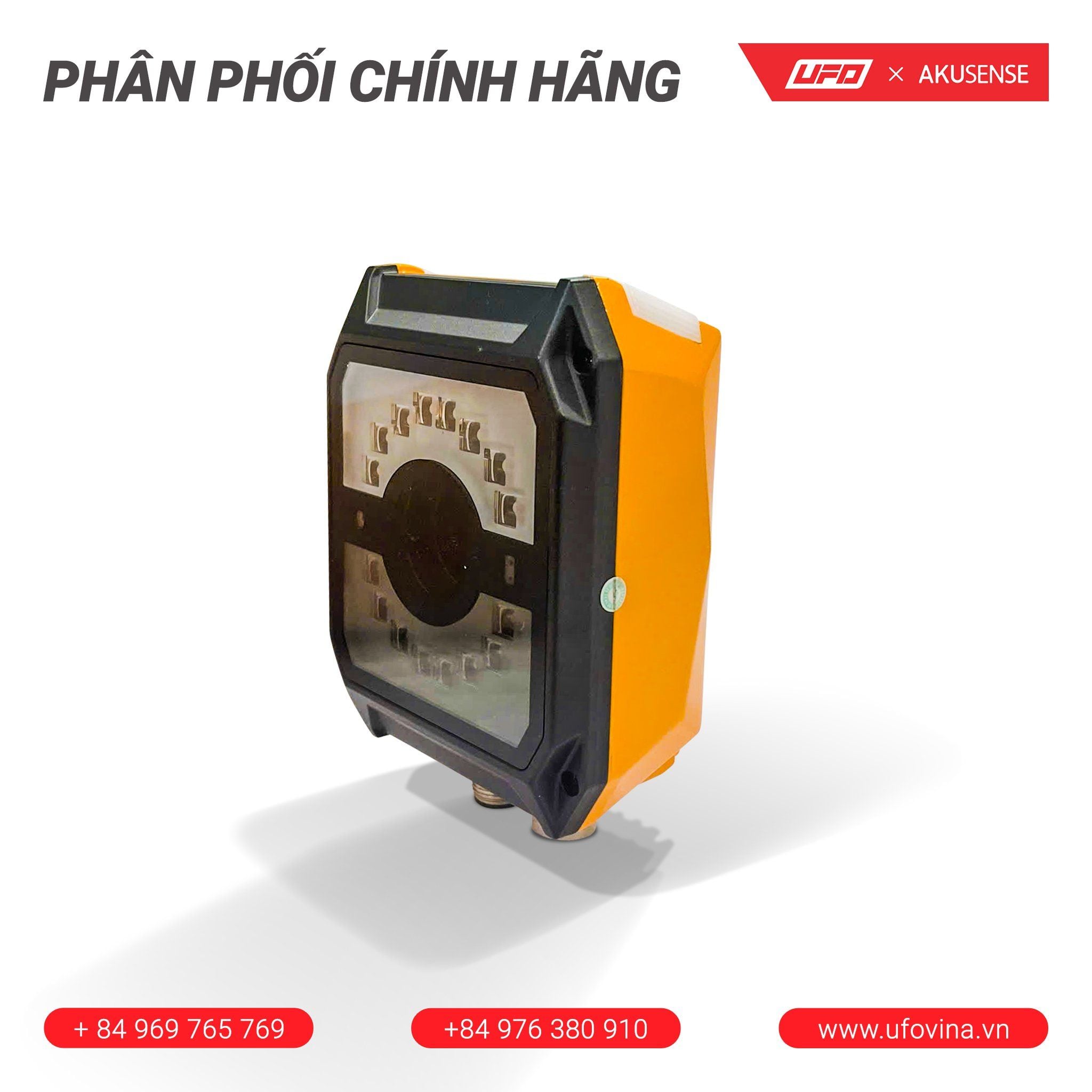

Model | RCD-AI50024-X12R-S |
Working principle | CMOS |
Enclosure type | Square |
Detection Range | 100-2000mm(@8/12/16mm)200-2000mm(@25mm) |
Focus Adjustment Method | Mechanical focusing |
Resolution | 2448×2048 |
Light Source | Unbiased red light |
Code Type | One-dimensional Code: Code 39, Code93, Code128, EAN-8, EAN-13, Interleaved 2of5, UPC, Pharmacode; QR code, DataMatrix |
Color/black And White | black and white |
Shutter | Overall |
Indicator light | 1 green light spot indicates the central area of the scan location; 1 distance sensor for auxiliary focus, 5 status leds and a buzzer |
Image Sensor Size | 2.74μmx2.74μm |
Target Surface Size | 1/1.8" |
Maximum Reading Speed | 30 per second |
Exposure Time | 20μs~1sec |
Gain | 0dB~255dB |
Operating Voltage | 24VDC |
Power Consumption | 15W |
Output type | Two input control, optocoupler isolation - support NPN, PNP type; Three output control, optocoupler isolation |
Communication Protocol | TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Fins, Serial |
Communication Interface | RS232, Ethernet
|
Special function | Contact Maker Akusense or UFO VNTECH company |
Operating temperature | 0~45℃ |
Storage Temperature | -20-70℃ |
Humidity | 5% to 95%RH(non-condensing) |
Protection level | IP67 |
Connection Method | Cable connection |

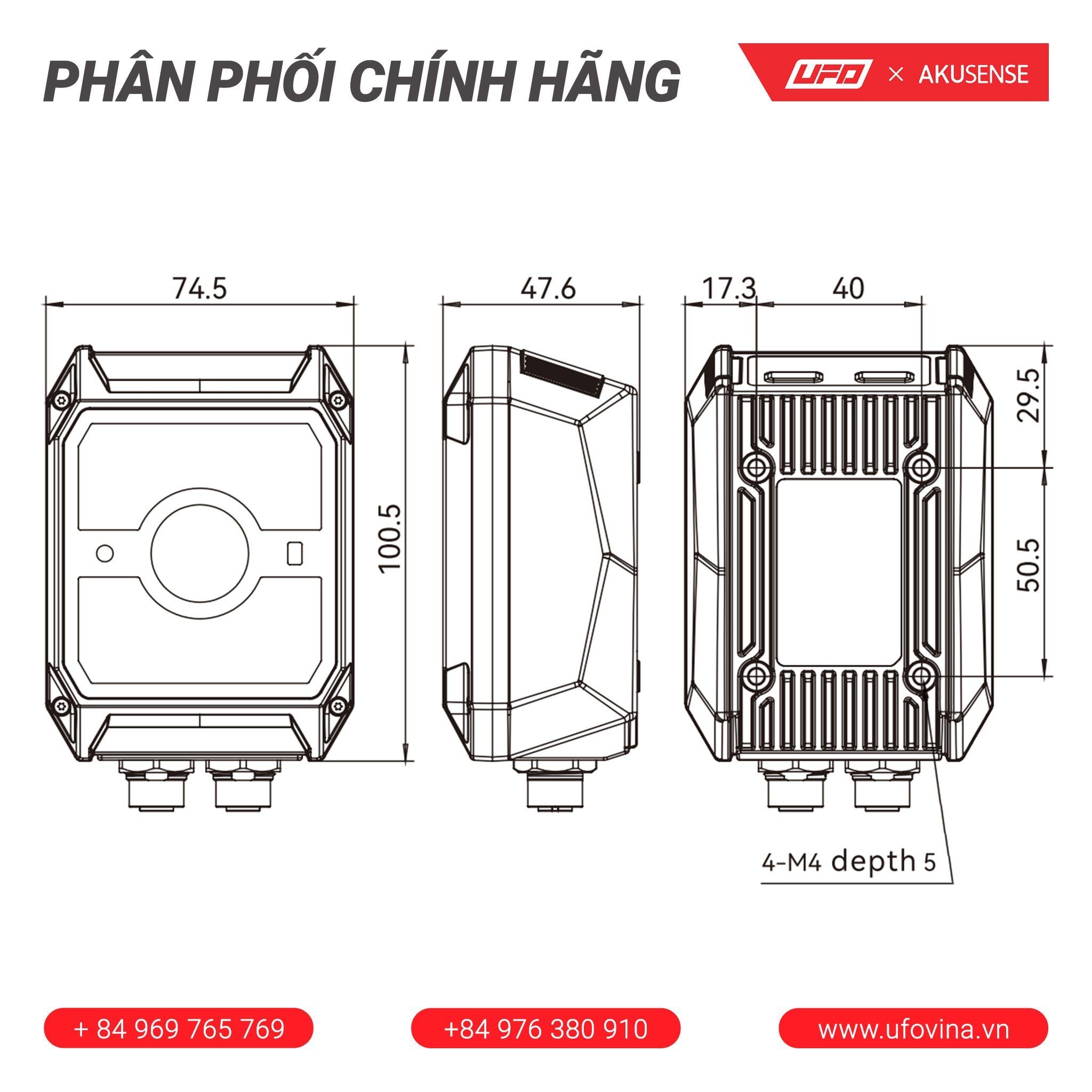

Dimensions | 74.5x100.5x47.6mm |
Weight | About 550g |
Accessories | M12-12 Pin-3M (3M high flexibility) M12-8 Pin-3M (3M high flexibility) L-shaped mounting bracket, 24V power adapter (optional), screw pack |
