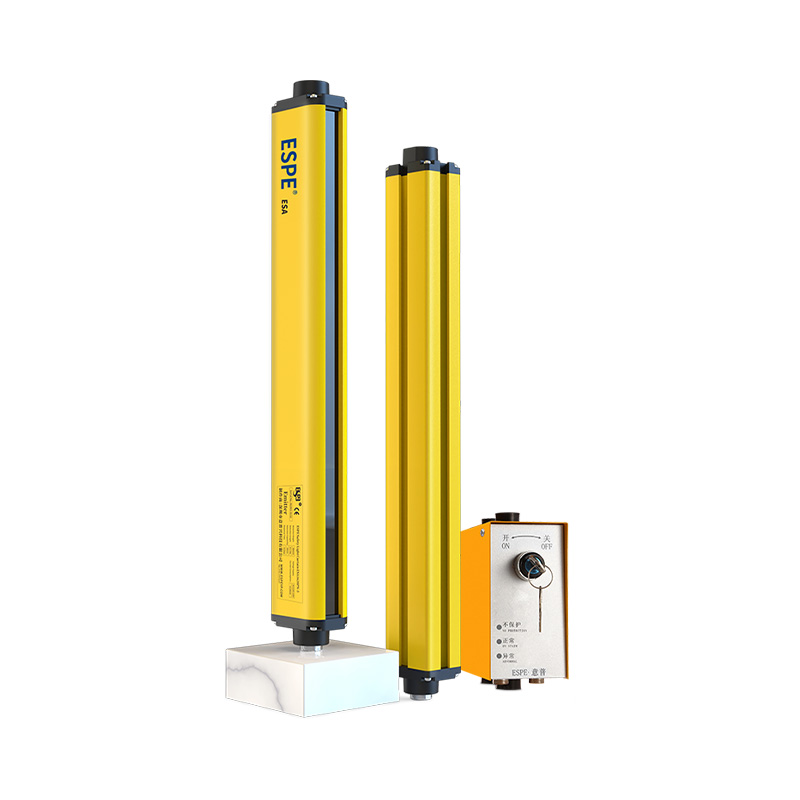

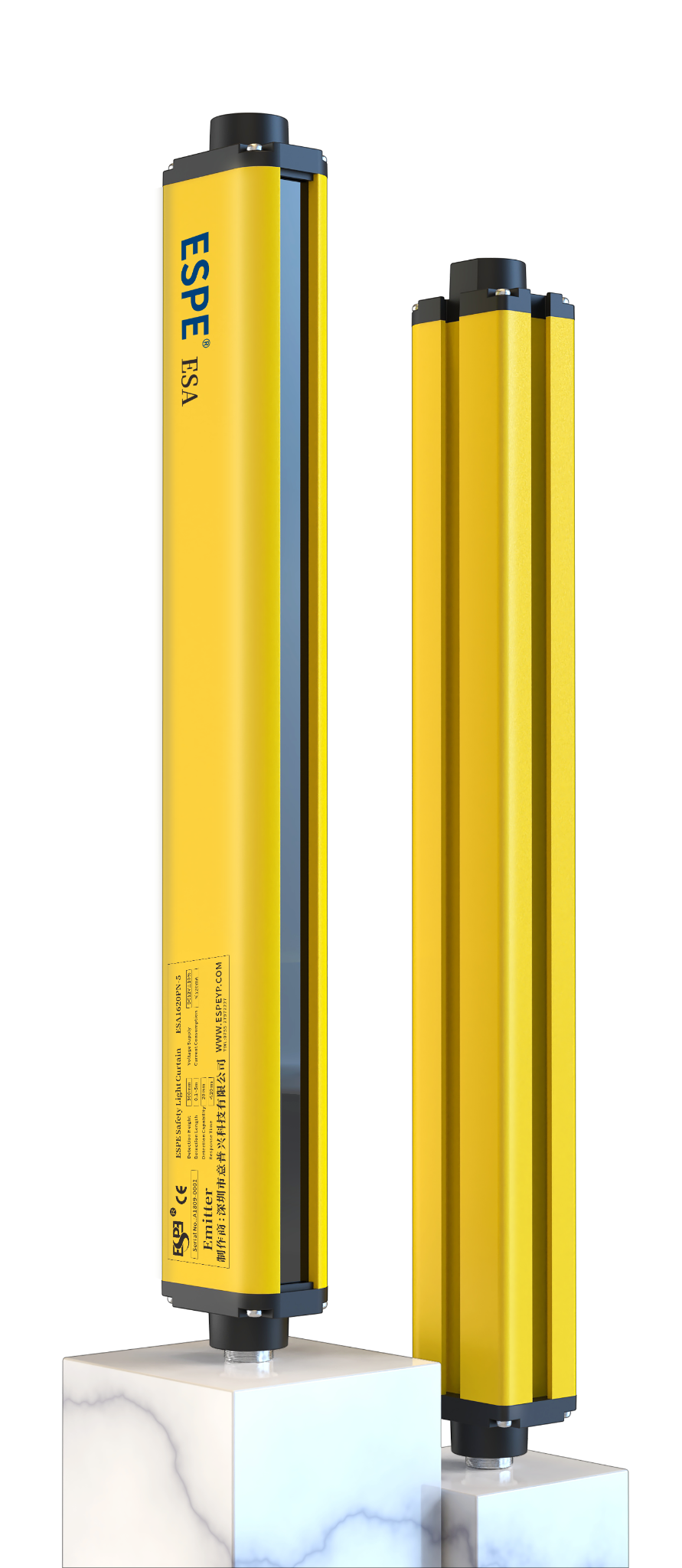

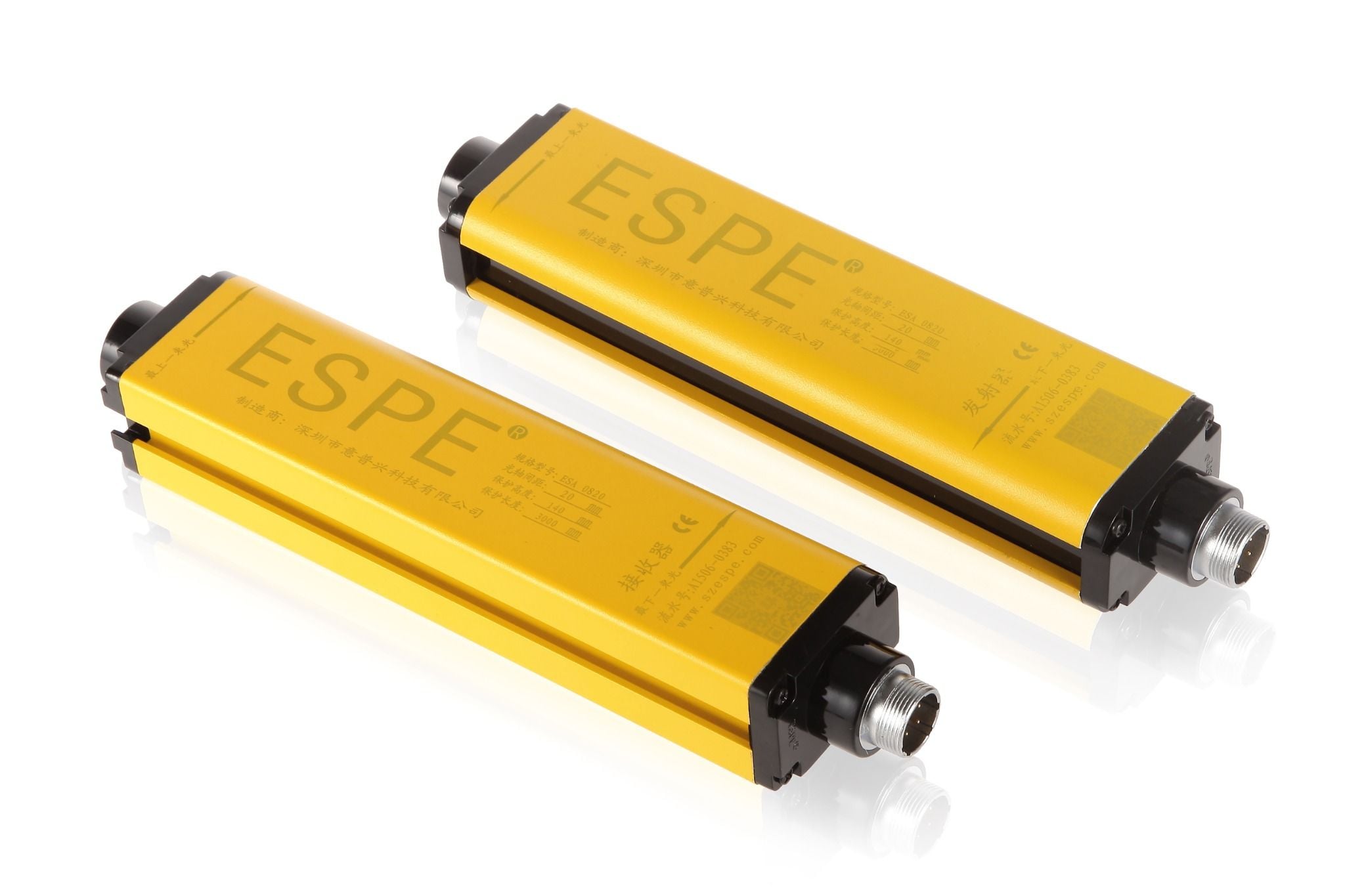

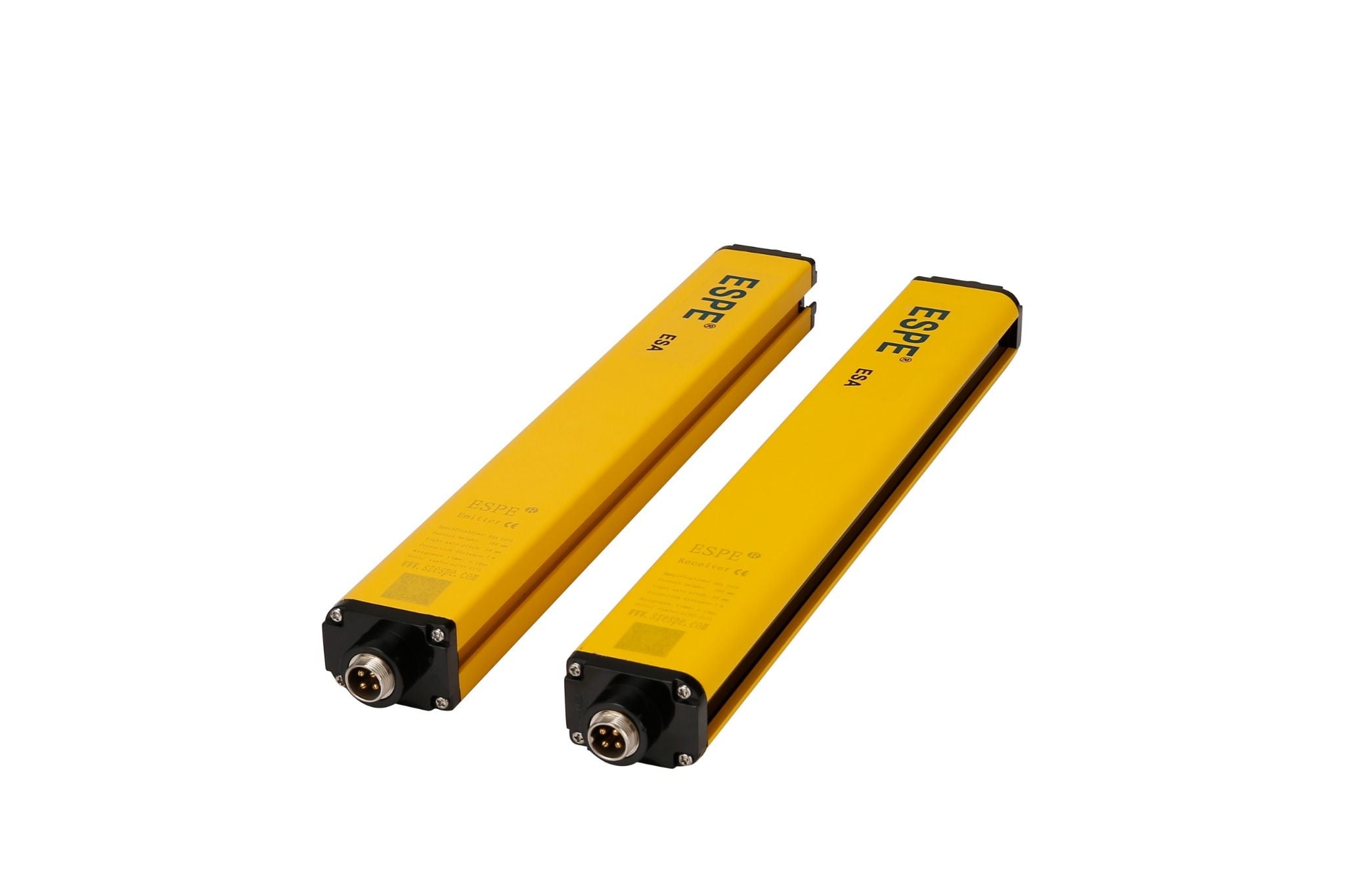

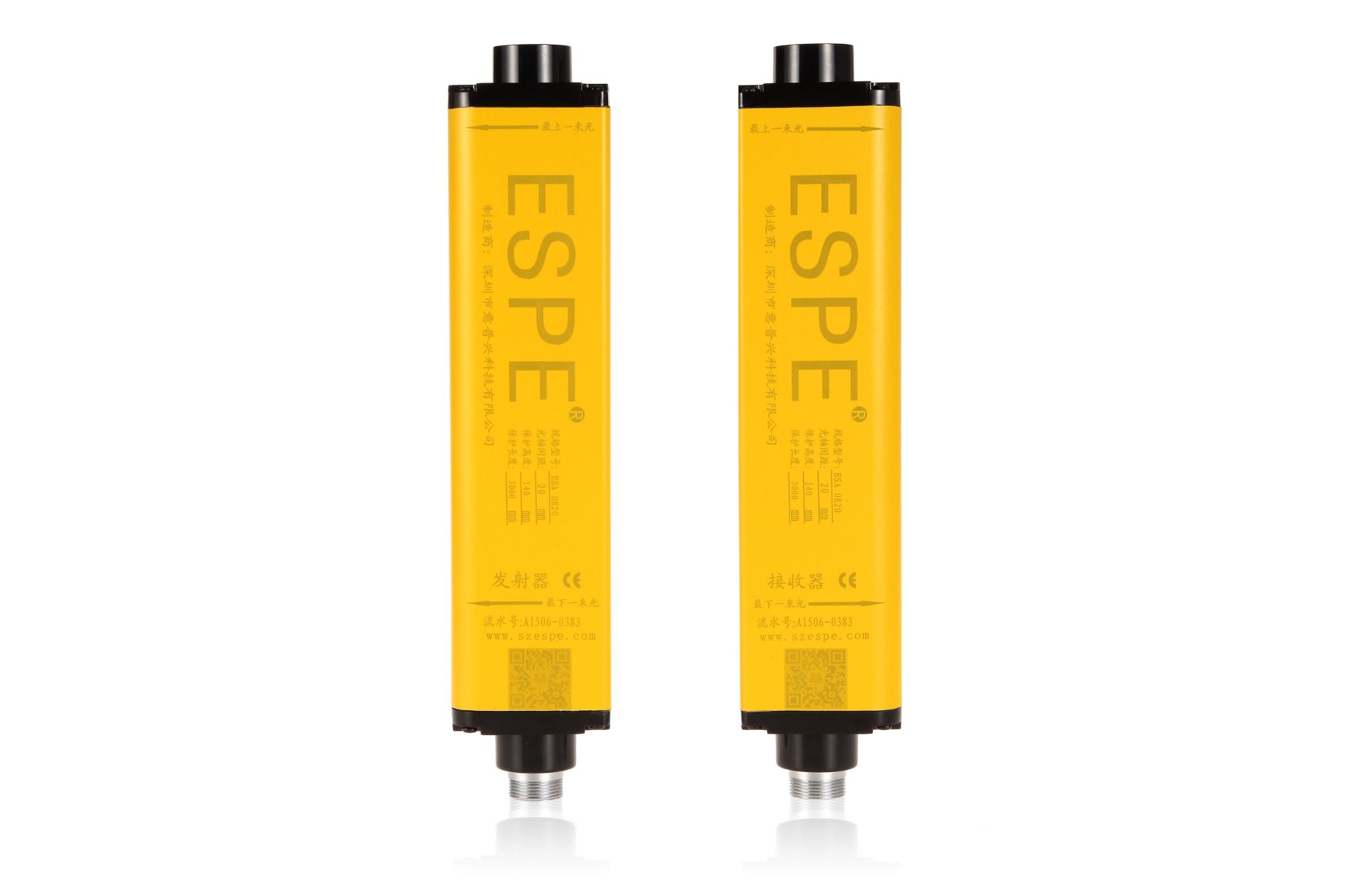

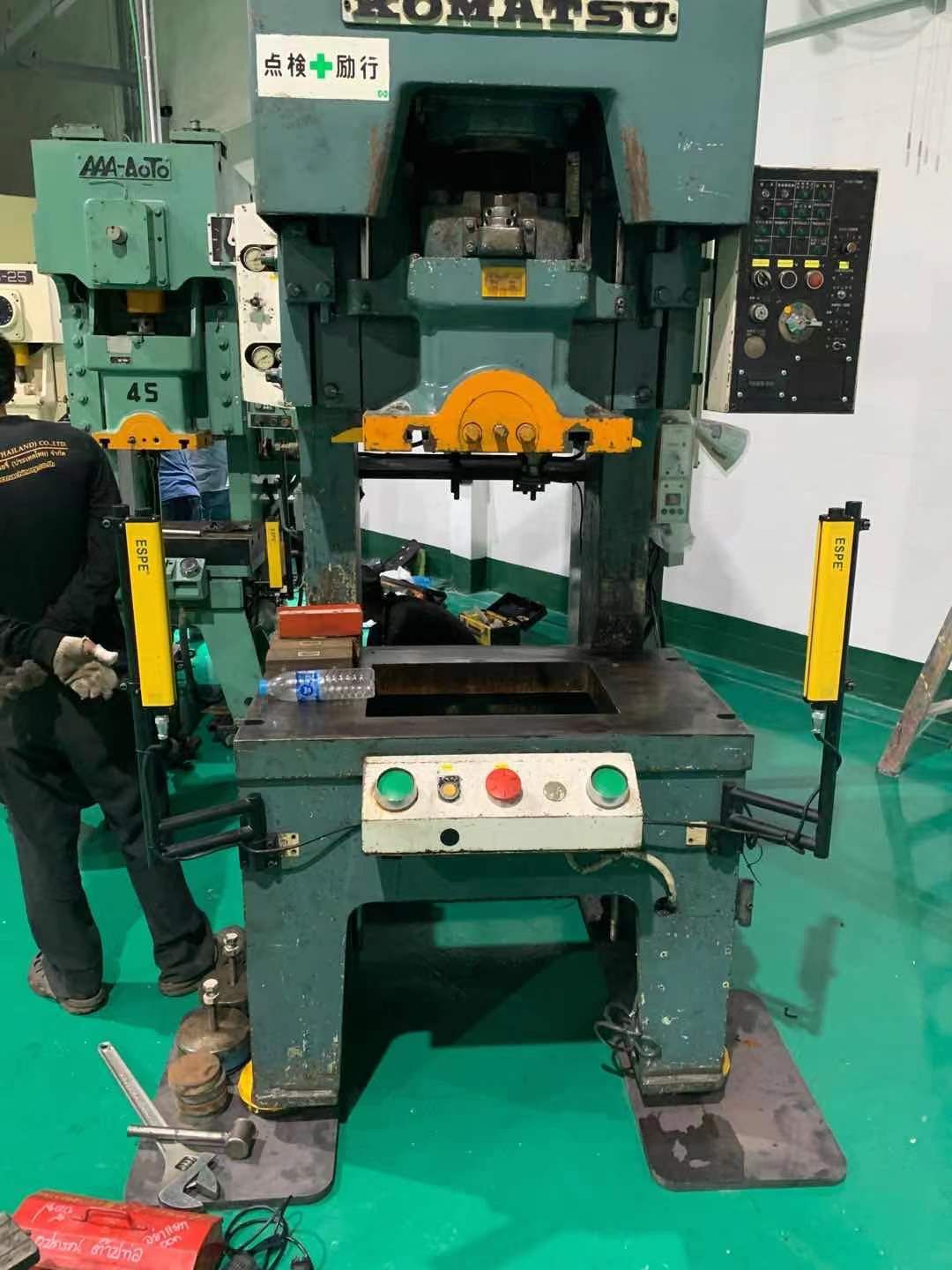

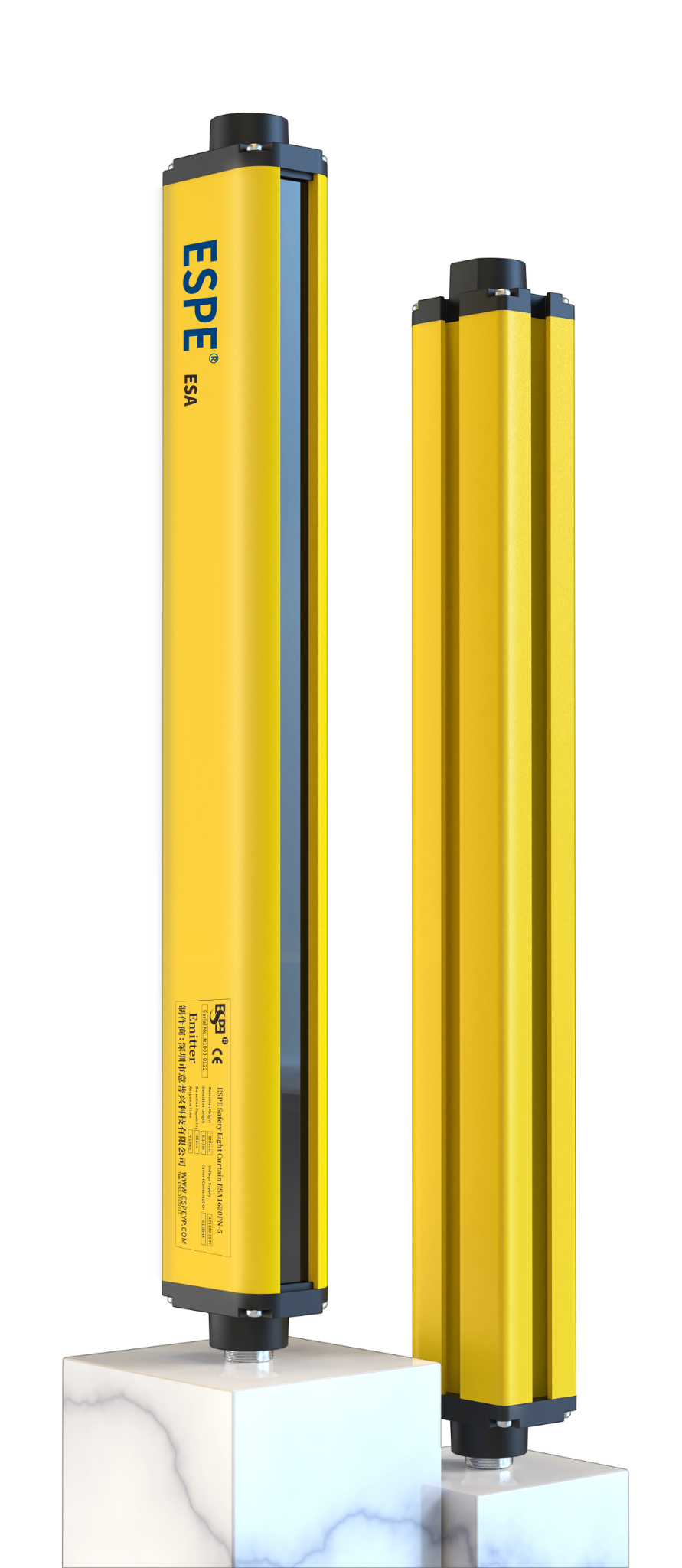

Punching Machine Safety Light Curtain
Mô tả
Brand: ESPE
Model: ESA Series
Product Feature:
1. With dual-loop external control system and GB4584-2007 certification;
2. Perfect self-inspection, excellent vibration, short response time and high reliability;
3. with diversified installation forms for varies dangerous devices and workable to protect the safety of operators and devices in harsh environment.
####
Technical Parameters
| Controller parameters | |
| Power supply | AC110V~220V 50/60Hz, AC380V |
| Capacity | <15W |
| Output type | Relay contact output |
| Contact capacity | 5A, AC250V/DC30V(Resistive load) |
| Lifespan of relay | Mechanical endurance, electrical life is related to the connected load, and be changed |
| Response time | ≤20ms |
| Ambient temperature | -10~55℃（without freezing） |
| Ambient humidity | 20℃, RH≤85% |
| Insulation resistance | ≥100MΩ |
| Safety rating | P type external controller: IP54 Q type inside controller: IP20 |
| Safety light curtain parameter | |
| Beam space | 10mm, 20mm, 40mm |
| Resolution | 20mm, 30mm, 40mm |
| Beams | 10mm beam, space：8, 12, 16……32020mm beam space：4, 6, 8……16040mm beam space：4, 6, 8……122 |
| Protective height | Protective height =（N-1）*beam space，N is beam quantity |
| Wave length | 940nm |
| Sensing distance | 0.1~30m (Reflective environment, please contact us) |
| Sensing method | Through-beam type |
| Synchronization | Wire synchronization |
| Anti-optical interference | 10000Lux(I >5°） |
| Enclosure material | Aluminum alloy |
| Housing cross-section | 35*50mm |
| Enclosure rating | IP65 |
| Vibration resistance | 10Hz～55Hz，double amplitude each in X、Y、Z directions for 20 times. |
Wire Connection
Explanation of Model Number
Product Size
A1: Upper cover A2: Bottom cover B1: Upper stop-work range B2: Bottom stop-work range D: Beam space(10mm/20mm/40mm) H: Protective height L: Total height | A1=20mm;A2=25mm When D=10mm,B1=5mm;B2=30mm When D=20mm,B1=10mm;B2=35mm When D=40mm,B1=10mm;B2=35mm H is protective height: H=(beams-1)*beam space L is total height: L=A1+A2+B1+B2+H |

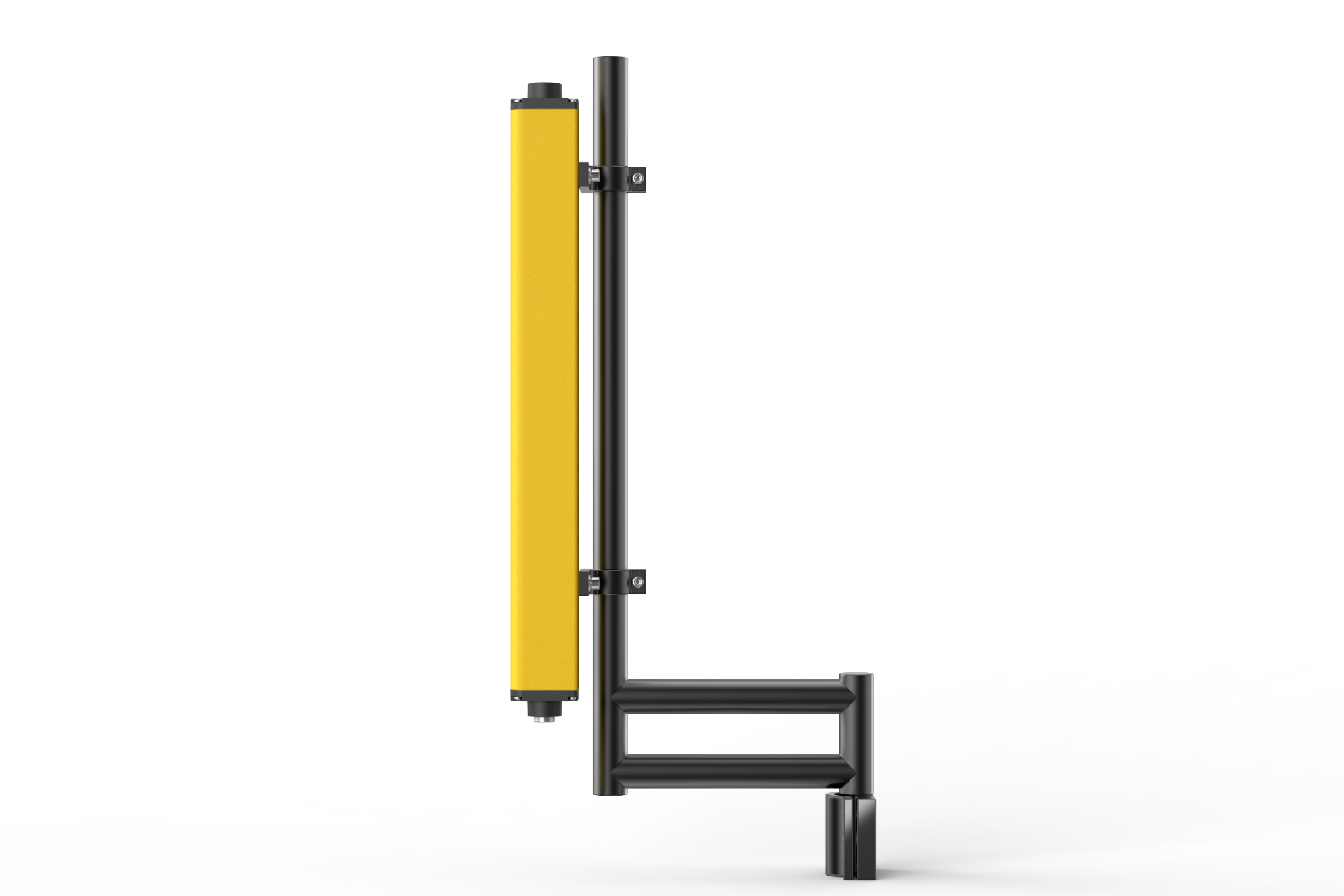

Option for Brackets
Model Selection Table
Beam space 10mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 8 | 70 | 139 | ELG0810 | Download |
| 12 | 110 | 179 | ELG1210 | Download |
| 16 | 150 | 219 | ELG1610 | Download |
| 20 | 190 | 259 | ELG2010 | Download |
| 24 | 230 | 299 | ELG2410 | Download |
| 28 | 270 | 339 | ELG2810 | Download |
| 32 | 310 | 379 | ELG3210 | Download |
| 36 | 350 | 419 | ELG3610 | Download |
| 40 | 390 | 459 | ELG4010 | Download |
| 44 | 430 | 499 | ELG4410 | Download |
| 48 | 470 | 539 | ELG4810 | Download |
| 52 | 510 | 579 | ELG5210 | Download |
| 56 | 550 | 619 | ELG5610 | Download |
| 60 | 590 | 659 | ELG6010 | Download |
| 64 | 630 | 699 | ELG6410 | Download |
| 68 | 670 | 739 | ELG6810 | Download |
| 72 | 710 | 779 | ELG7210 | Download |
| 76 | 750 | 819 | ELG7610 | Download |
| 80 | 790 | 859 | ELG8010 | Download |
| 84 | 830 | 899 | ELG8410 | Download |
| 88 | 870 | 939 | ELG8810 | Download |
| 92 | 910 | 979 | ELG9210 | Download |
| 96 | 950 | 1019 | ELG9610 | Download |
| 100 | 990 | 1059 | ELG10010 | Download |
| 104 | 1030 | 1099 | ELG10410 | Download |
| 108 | 1070 | 1139 | ELG10810 | Download |
| 112 | 1110 | 1179 | ELG11210 | Download |
| 116 | 1150 | 1219 | ELG11610 | Download |
| 120 | 1190 | 1259 | ELG12010 | Download |
| 124 | 1230 | 1299 | ELG12410 | Download |
| 128 | 1270 | 1339 | ELG12810 | Download |
| …… | …… | …… | …… | |
| 144 | 1430 | 1499 | ELG14410 | Download |
Beam space 20mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 4 | 60 | 114 | ELG0420 | Download |
| 6 | 100 | 179 | ELG0620 | Download |
| 8 | 140 | 219 | ELG0820 | Download |
| 10 | 180 | 259 | ELG1020 | Download |
| 12 | 220 | 299 | ELG1220 | Download |
| 14 | 260 | 339 | ELG1420 | Download |
| 16 | 300 | 379 | ELG1620 | Download |
| 18 | 340 | 419 | ELG1820 | Download |
| 20 | 380 | 459 | ELG2020 | Download |
| 22 | 420 | 499 | ELG2220 | Download |
| 24 | 460 | 539 | ELG2420 | Download |
| 26 | 500 | 579 | ELG2620 | Download |
| 28 | 540 | 619 | ELG2820 | Download |
| 30 | 580 | 659 | ELG3020 | Download |
| 32 | 620 | 699 | ELG3220 | Download |
| 34 | 660 | 739 | ELG3420 | Download |
| 36 | 700 | 779 | ELG3620 | Download |
| 38 | 740 | 819 | ELG3820 | Download |
| 40 | 780 | 859 | ELG4020 | Download |
| 42 | 820 | 899 | ELG4220 | Download |
| 44 | 860 | 939 | ELG4420 | Download |
| 46 | 900 | 979 | ELG4620 | Download |
| 48 | 940 | 1019 | ELG4820 | Download |
| 50 | 980 | 1059 | ELG5020 | Download |
| 52 | 1020 | 1099 | ELG5220 | Download |
| 54 | 1060 | 1139 | ELG5420 | Download |
| 56 | 1100 | 1179 | ELG5620 | Download |
| 58 | 1140 | 1219 | ELG5820 | Download |
| 60 | 1180 | 1259 | ELG6020 | Download |
| 62 | 1220 | 1299 | ELG6220 | Download |
| 64 | 1260 | 1339 | ELG6420 | Download |
| …… | …… | …… | …… | |
| 72 | 1420 | 1499 | ELG7220 | Download |
Beam space 40mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 4 | 120 | 199 | ELG0440 | Download |
| 6 | 200 | 279 | ELG0640 | Download |
| 8 | 280 | 359 | ELG0840 | Download |
| 10 | 360 | 439 | ELG1040 | Download |
| 12 | 440 | 519 | ELG1240 | Download |
| 14 | 520 | 599 | ELG1440 | Download |
| 16 | 600 | 679 | ELG1640 | Download |
| 18 | 680 | 759 | ELG1840 | Download |
| 20 | 760 | 839 | ELG2040 | Download |
| 22 | 840 | 919 | ELG2240 | Download |
| 24 | 920 | 999 | ELG2440 | Download |
| 26 | 1000 | 1079 | ELG2640 | Download |
| 28 | 1080 | 1159 | ELG2840 | Download |
| 30 | 1160 | 1239 | ELG3040 | Download |
| 32 | 1240 | 1319 | ELG3240 | Download |
| 34 | 1320 | 1399 | ELG3440 | Download |
| 36 | 1400 | 1479 | ELG3640 | Download |
