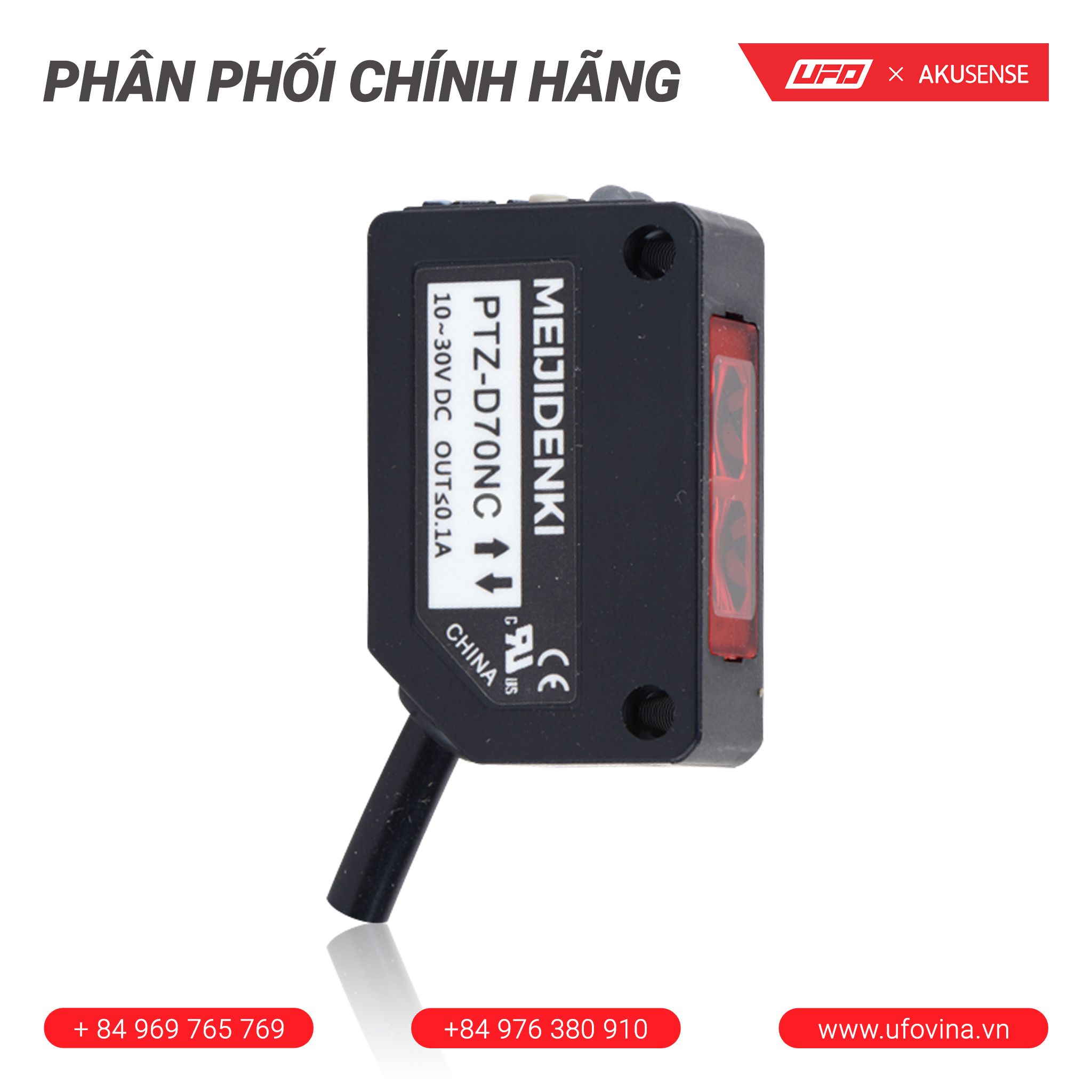

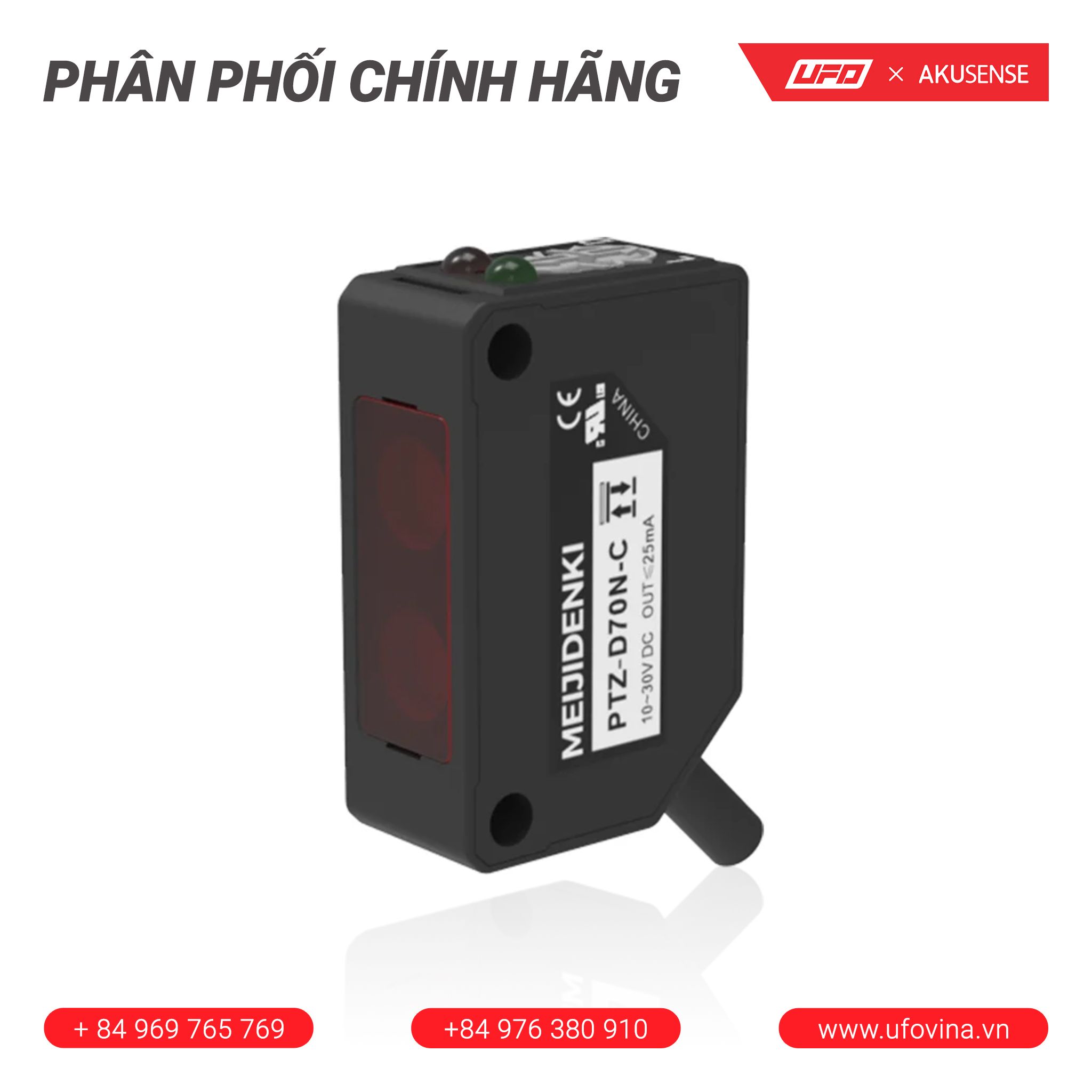

Model | PTZ-D70N-C |
Detection method | diffuse reflection |
Detection distance | 0~1m (white paper 200X200mm) |
Spot size | φ75mm/1m |
Output mode | NPN open collector, ≤100mA/30V DC |
Switch mode | L.on (light entry action)/D.on (light blocking action) switchable |
Indicator light | Output indicator light: orange; working indicator light: green |
Response time | ≤500us |

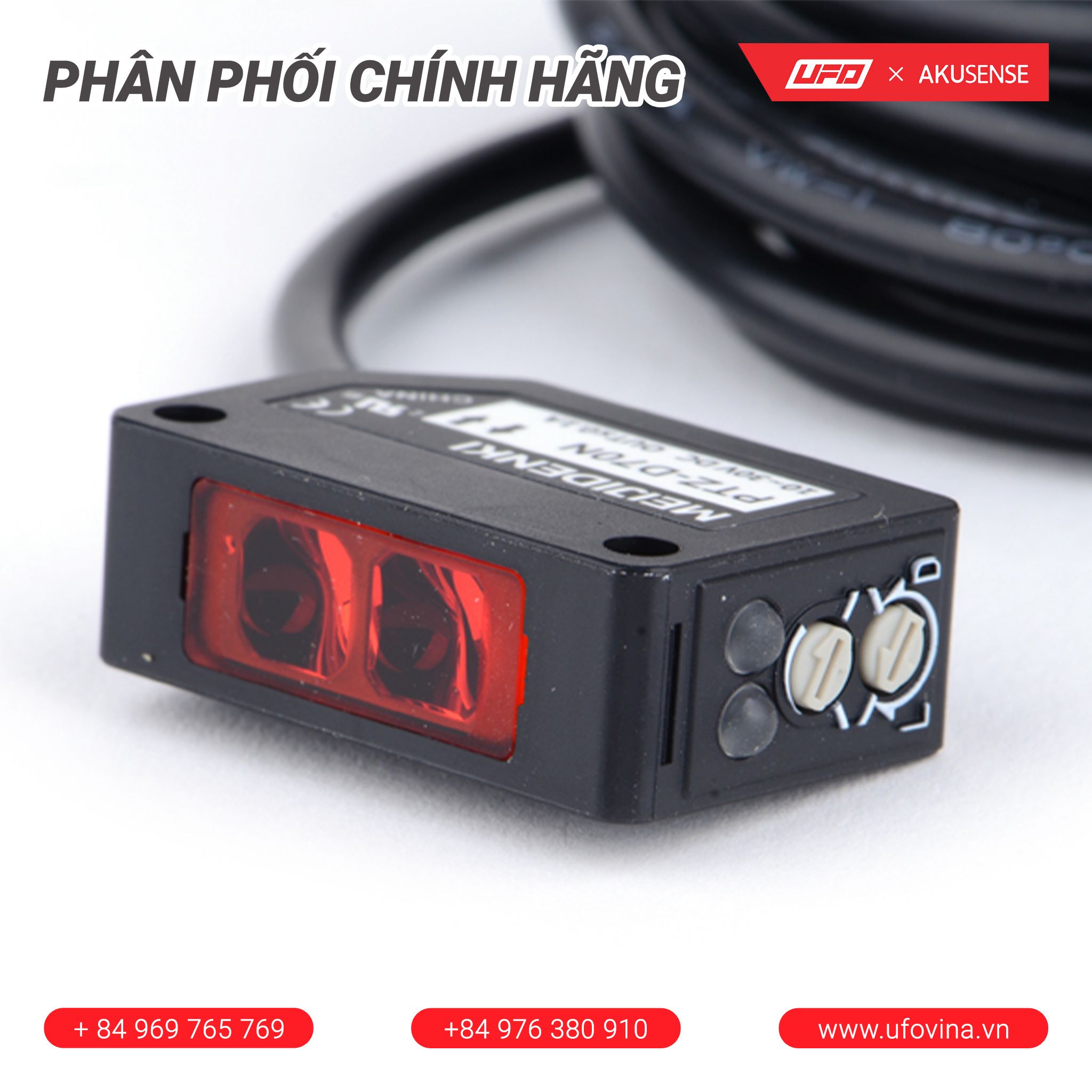

Sensitivity adjustment | single turn potentiometer |
Light source | Red LED |
Operating Voltage | 10~30V DC±10% |
Current consumption | ≤20mA |
Ambient light | Sunlight exposure ≤50000Lux; incandescent lamp exposure ≤5000Lux |
Hysteresis | ≤20% |
Function | IO-LINK |
Ambient temperature | -25~+55℃, no freezing |
Environment humidity | 35~85%RH, no condensation |
Protection level | IP 67 |
Material | ABS with fiberglass (shell), PMMA (lens) |

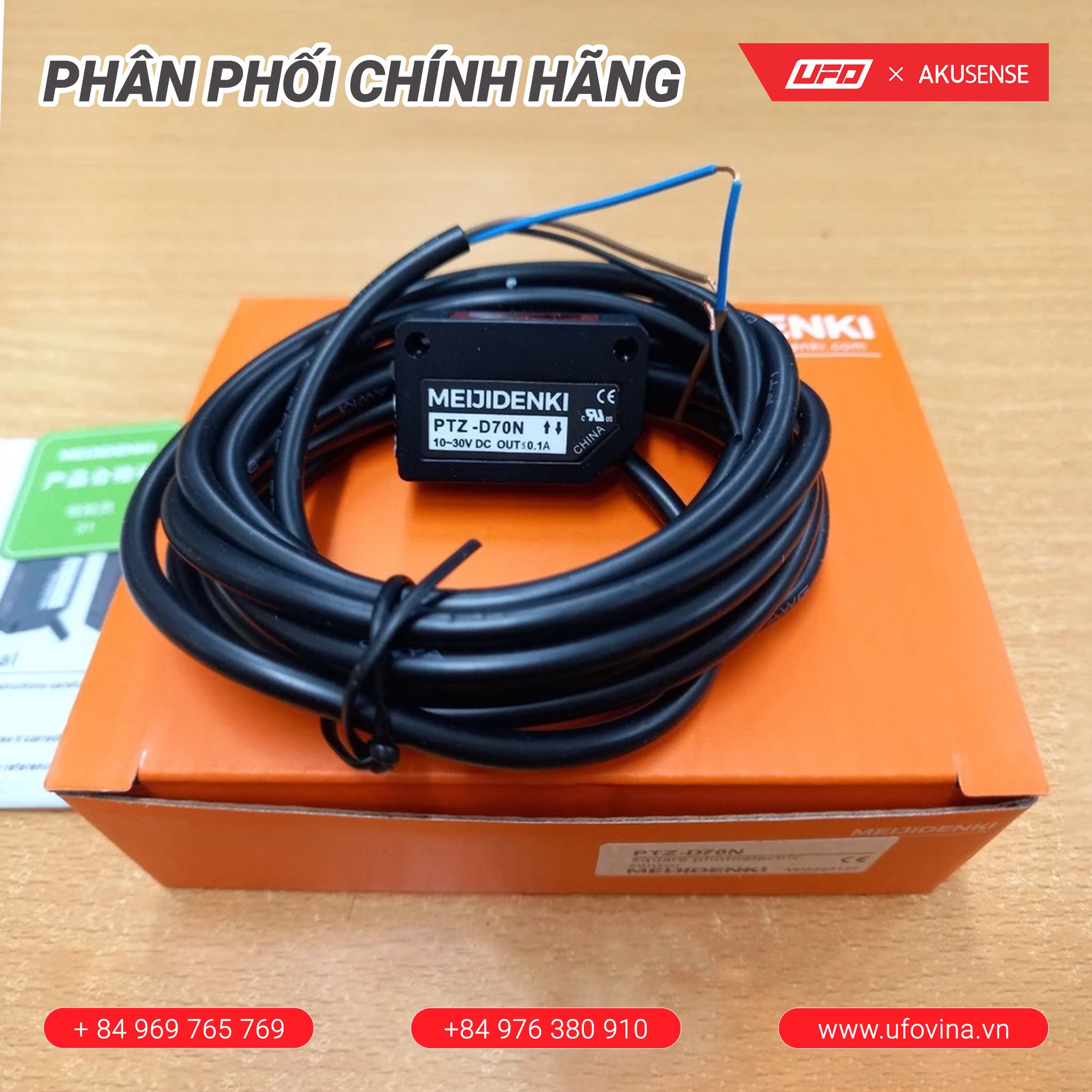

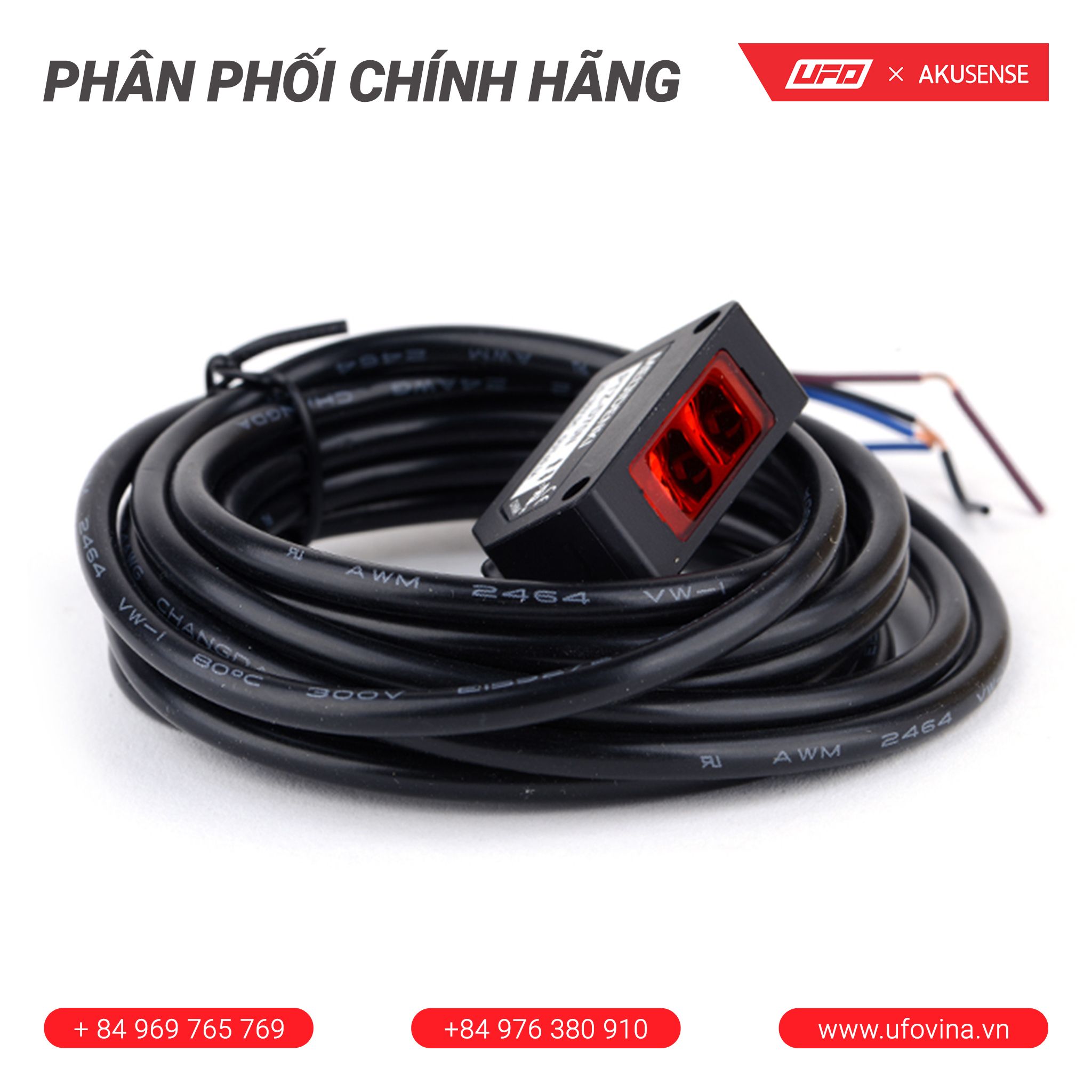

Outgoing method | 2M/3 core cable |
