PG1 Dual Digital Fiber Optic Amplifier(Economic and practical type) PG1-N
Mô tả sản phẩm
| Model | PG1-N |
| Output Control | One output port |
| Light Source | Red,4-element LED |
| Response Time | SHP: 13㎲,FINE: 30㎲,SUPR: 100㎲,MEGA: 200㎲ |
| Output | NPN collector open circuit,maximum 100mA,residual voltage: 1V |
| Indicater | Operation indicators: red LEDs,dual digital monitors: dual 7-digit display,threshold value(4-digit green LED body indicator) Lights up with the current value(4-digit red LED body indicator). Current value range: 0-9999 |
| Ambient Humidity | -10℃~+55℃,no freezing |
| Output Selection | LIGHT-ON/DARK-ON(short press MODE and use UP DOWN to select) |
| Detection Method | Light intensity(area detection possible,automatic sensitivity tracking available) |
| Delay Function | 1ms~9999ms |
| Power Supply | 12~24V DC±10% |
| Ambient Illumination | Sunlight≤30,000 Lux,incandescent lamp≤20,000 Lux |
| Power Comsumption | Standard mode: Max 300mW |
| Anti-Vibration | 10~55Hz,1.5mm double amplitude,two hours each on the X,Y,and Z axes |
Size structure:

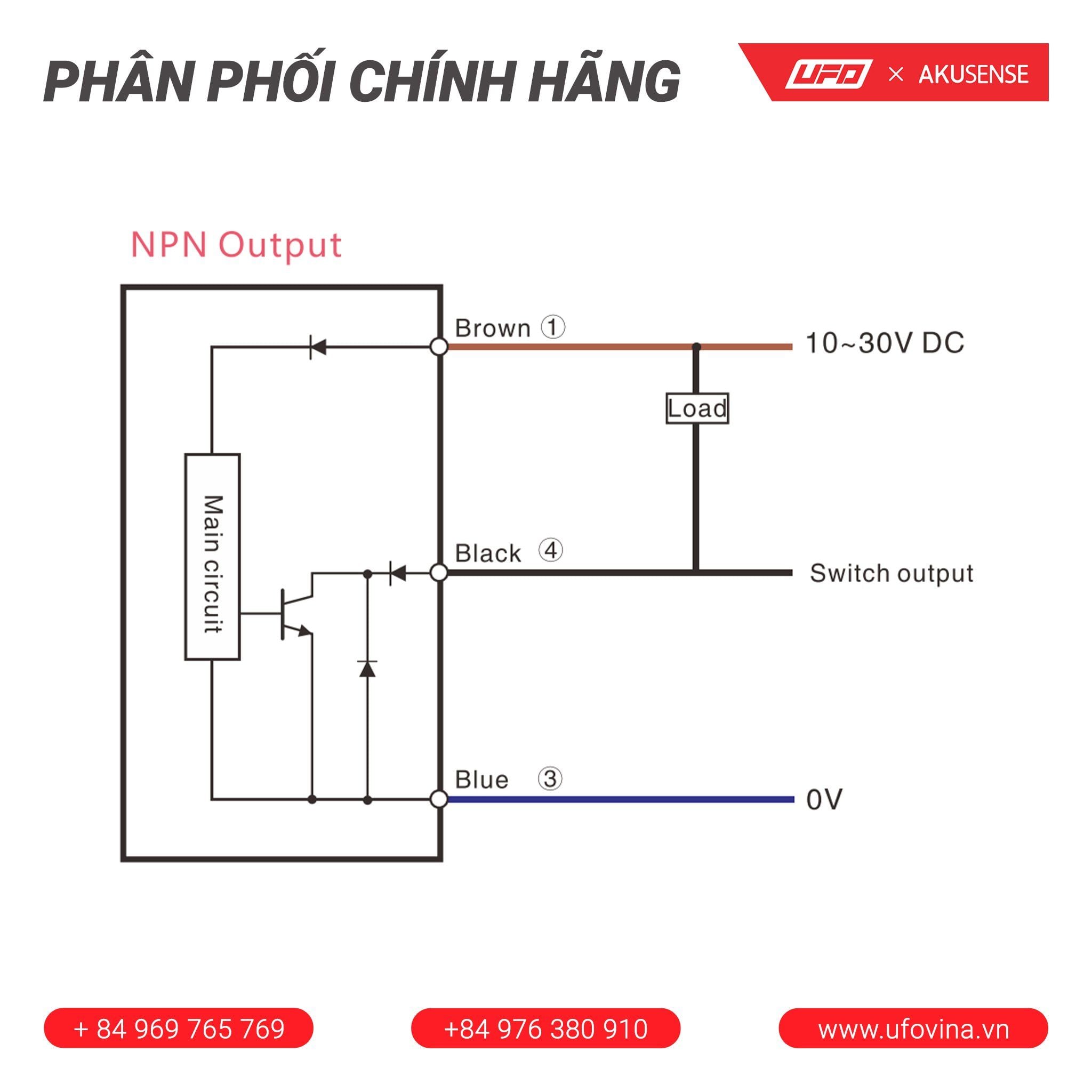

Circuit diagram:
PG1 Series Catalog:
