Mô tả sản phẩm
Technical Parameters
| Parameter of safety light curtain | |
| Supply voltage | DC10V~30V |
| Capacity | <5W |
| Beam space | 20mm、40mm |
| Resolution | 30mm、50mm |
| Beams | 20mm beam space:8, 16, 24……16040mm beam space: 8, 16, 24……80 |
| Protective height | Protective height =（N-1）*beam gap，N is beam quantity |
| Wave length | 940nm |
| Response time | Response time =(N * 0.1ms) + 0.4ms, N is beam quantity |
| Type of output（OSSD） | PNP/NPN semiconductors，current <200mA max, residual voltage: 1 V max. (Expect voltage influenced by extended wire). |
| Protective circuit | Overload voltage protection, power supply reverse polarity protection, over current protection. |
| Sensing distance | 0.1~2m、0.1~5m, 0.1~10m, 0.1~20m (remark: If have light reflection, please let us know) |
| Anti-optical interference | 10000Lux(angle >5°) |
| Sensing method | Through-beam type |
| Synchronization | Wire synchronization |
| Enclosure material | Aluminum alloy |
| Enclosure rating | IP65 |
| Housing cross-section | 35*50mm |
| Vibration resistance | 10Hz～55Hz，double amplitude each in X、Y、Z directions for 20 times. |
| Ambient operating temperature | -10℃-55℃（with no freezing） |
| Storage temperature | -30℃～70℃（with no freezing） |
| Ambient operating humidity | When temperature is 20℃，humidity max 85% |
Wire Connection
Explanation of Model Number
Product Size
A1: Upper cover A2: Bottom cover+ aviation cap B1: Upper stop-work range B2: Bottom stop-work range D: Beam space H: Protective height L: Total height | A1=20mm; A2=25mm When D=20mm,B1=10mm; B2=35mm When D=40mm,B1=10mm; B2=35mm H is protective height: H=(beams-1)*beam space L is total height: L=A1+A2+B1+B2+H |

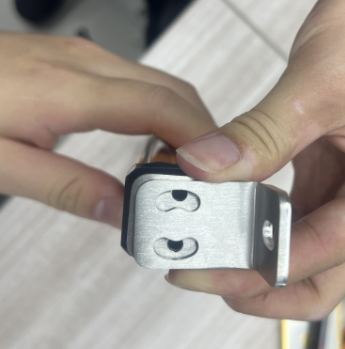

Option for Brackets
Model Selection Table
Beam space 20mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 8 | 140 | 230 | ESP0820 | Download |
| 16 | 300 | 390 | ESP1620 | Download |
| 24 | 460 | 550 | ESP2420 | Download |
| 32 | 620 | 710 | ESP3220 | Download |
| 40 | 780 | 870 | ESP4020 | Download |
| 48 | 940 | 1030 | ESP4820 | Download |
| 56 | 1100 | 1190 | ESP5620 | Download |
| 64 | 1260 | 1350 | ESP6420 | Download |
| 72 | 1420 | 1510 | ESP7220 | Download |
| 80 | 1580 | 1670 | ESP8020 | Download |
| 88 | 1740 | 1830 | ESP8820 | Download |
| 96 | 1900 | 1990 | ESP9620 | Download |
| 104 | 2060 | 2150 | ESP10420 | Download |
| 112 | 2220 | 2310 | ESP11220 | Download |
| 120 | 2380 | 2470 | ESP12020 | Download |
| 128 | 2540 | 2630 | ESP12820 | Download |
| 136 | 2700 | 2790 | ESP13620 | Download |
| 144 | 2860 | 2950 | ESP14420 | Download |
| 152 | 3020 | 3110 | ESP15220 | Download |
| 160 | 3180 | 3270 | ESP16020 | Download |
Beam space 40mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 8 | 280 | 370 | ESP0840 | Download |
| 12 | 440 | 530 | ESP1240 | Download |
| 16 | 600 | 690 | ESP1640 | Download |
| 20 | 760 | 850 | ESP2040 | Download |
| 24 | 920 | 1010 | ESP2440 | Download |
| 28 | 1080 | 1170 | ESP2840 | Download |
| 32 | 1240 | 1330 | ESP3240 | Download |
| 36 | 1400 | 1490 | ESP3640 | Download |
| 40 | 1560 | 1650 | ESP4040 | Download |
| 44 | 1720 | 1810 | ESP4440 | Download |
| 48 | 1880 | 1970 | ESP4840 | Download |
| 52 | 2040 | 2130 | ESP5240 | Download |
| 56 | 2200 | 2290 | ESP5640 | Download |
| 60 | 2360 | 2450 | ESP6040 | Download |
| 64 | 2520 | 2610 | ESP6440 | Download |
| 68 | 2680 | 2770 | ESP6840 | Download |
| 72 | 2840 | 2930 | ESP7240 | Download |
| 76 | 3000 | 3090 | ESP7640 | Download |
| 80 | 3160 | 3250 | ESP8040 | Download |
Công ty TNHH THƯƠNG MẠI & DỊCH VỤ KỸ THUẬT UFO VIỆT NAM là Đại lý chính thức phân phối chính hãng sản phẩm ESPE tại thị trường Việt Nam.
Vui lòng liên hệ chúng tôi để được tư vấn chi tiết hơn về sản phẩm
Phone: 0976380910
Email: ufo.vietnam2015@gmail.com
