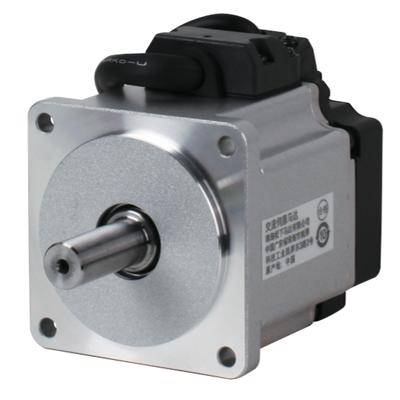

MSMF082L1U2 | Servo Motor - No Brake

Giá gốc Giá bán: 0₫
Part NumberMSMF082L1U2
ProductServo Motor
DetailsLow inertia, Lead wire type
Product nameServo Motor - No Brake
Features50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

Spec Detail

ItemSpecifications
Part NumberMSMF082L1U2
DetailsLow inertia, Lead wire type
Family NameMINAS A6
SeriesMSMF Series
TypeLow inertia
Protection classIP65
About EnclosureExcept rotating portion of output shaft and leadwire end.
Environmental ConditionsFor more details, please refer to the instruction manual.
Flange sq. dimension80 mm sq.
Flange sq. dimension (Unit:mm)80
Motor lead-out configurationLead wire
Motor encoder connectorLead wire
Power supply capacity (kVA)1.8
Voltage specifications (V)200
Rated output (W)750
Rated current (A (rms))4.1
Holding brakewithout
Mass (kg)2.3
Oil sealwith
ShaftKey-way, center tap
Rated torque (N ⋅ m)2.39
Continuous stall torque (N ⋅ m)2.39
Momentary Max. peak torque (N ⋅ m)7.16
Max. current (A (o-p))17.4
Regenerative brake frequency (times/min)Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequencyPlease refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)3000
Rated rotational Max. speed (r/min)6000
Moment of inertia of rotor ( x10-4 kg ⋅ m²)0.96
Recommended moment of inertia ratio of the load and the rotor20 times or less
About recommended moment of inertia ratio of the load and the rotorPlease refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications23-bit Absolute/Incremental system
NoticeWhen using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution8388608


Permissible load

ItemSpecifications
During assembly: Radial load P-direction (N)686
During assembly: Thrust load A-direction (N)294
During assembly: Thrust load B-direction (N)392
During operation: Radial load P-direction (N)392
During operation: Thrust load A, B-direction (N)147
About permissible loadFor details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".

Applicable Driver

Part NumberSeriesTypeI/F Classification of typeFrameSupply voltage
MCDLN35NEA6NE seriesRTEX, Ultra high-speed Network (Basic type)RTEXC-FrameSingle/3-phase 200 V
MCDLN35SEA6SE seriesPosition control typePulse train onlyC-FrameSingle/3-phase 200 V
MCDLN35SGA6SG seriesRS485/RS232 Communication typePulse, Modbus (RS485 /RS232)C-FrameSingle/3-phase 200 V
MCDLT35NFA6NF seriesRTEX, Ultra high-speed Network type (Multi type)RTEXC-FrameSingle/3-phase 200 V
MCDLT35SFA6SF seriesMultifunction typeAnalog /Pulse, Modbus (RS485 /RS232)C-FrameSingle/3-phase 200 V

Torque charactristics:

Dotted line represents the torque at 10 % less supply voltage.

Dimensions:
