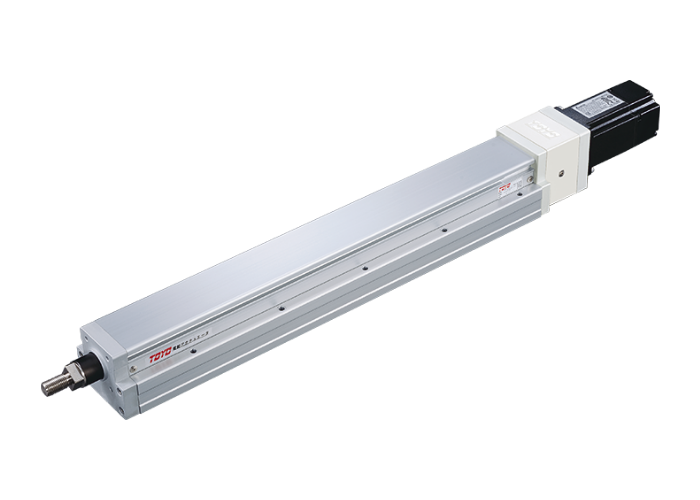

Linear motion modules GTY8 - Toyo Robot

Giá gốc Giá bán: 0₫

Repeatability±0.01(mm)
Ball Screw Lead5/10/20(mm)
Maximum Speed 250/500/1000(mm/s)
Maximum Payload (Horizontal)50/30/18(kg)
Maximum Payload (Vertical)15/8/3(kg)
Rated Thrust1388/694/347(N)
Stroke/Pitch 50-800 / 50 mm Pitch.

* When the stroke is over 750 mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.
* Acceleration and deacceleration value is set 0.2 second.
