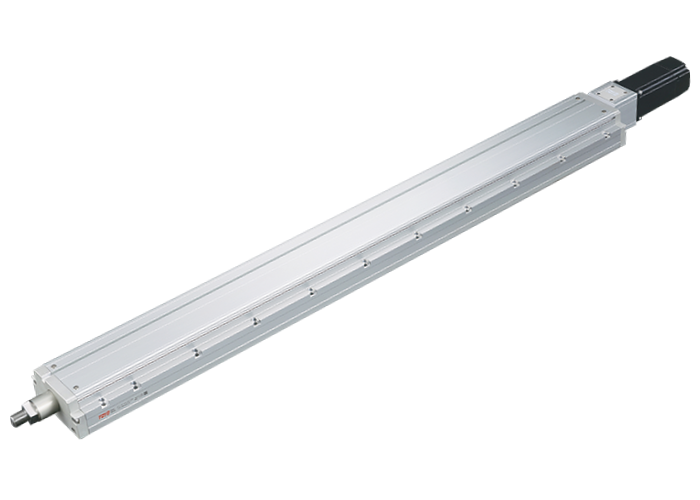

Linear motion modules GTY12 - Toyo Robot
0₫
Mô tả
Repeatability：±0.01(mm)
Ball Screw Lead：5/10/20/32(mm)
Maximum Speed ：250/500/1000/1600(mm/s)
Maximum Payload (Horizontal)：110/88/40/30(kg)
Maximum Payload (Vertical)：33/22/10/8(kg)
Rated Thrust：1388/694/347/218(N)
Stroke/Pitch ：50-800 / 50 mm Pitch.
* When the stroke is over 800 mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.
* Acceleration and deacceleration value is set 0.2 second.
####
